Dymosen C1 Cordless Vacuum Replacement Battery 14.8V 2600mAh

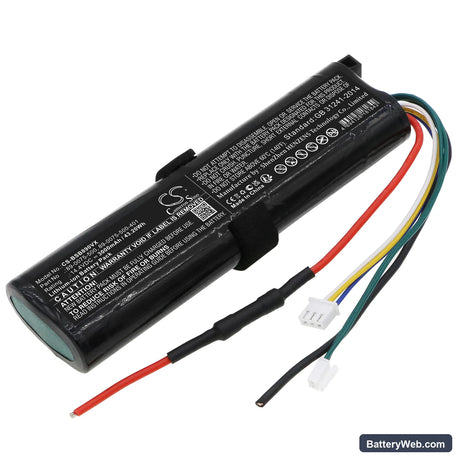

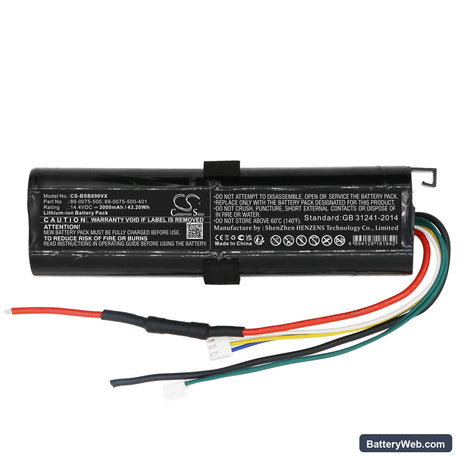

Dymosen C1 / D1 — 14.8V Li-ion Replacement Battery

This is a 14.8V, 2600mAh (38.48Wh) Li-ion replacement battery for the Dymosen C1 and D1 cordless stick vacuums. It slots into the same battery bay as the original and connects to the same motor drive circuit. When the original cell loses capacity, suction drops noticeably — this restores full motor voltage.

• C1 and D1 platform compatibility: Both models run the same 14.8V motor rail with the same battery form factor and connector pinout. The BMS in each vacuum expects a 4S Li-ion cell pack — this battery matches that configuration exactly.
• Bench tested on actual hardware: We cycled this pack through multiple charge and discharge runs, monitoring cell balance across all four series cells. The BMS handshake completed without error flags on each cycle.
• Dock charging habit on the C1 and D1: Do not leave the vacuum sitting on the charging dock continuously. These units trickle-charge when left docked, which degrades Li-ion capacity faster than standard cycling. Charge to full, then remove from the dock.

Cordless vacuum losing suction before the battery indicator reaches low

This happens when the motor is drawing more current than the battery's remaining capacity can sustain at full voltage. A clogged or dirty filter forces the motor to work harder, pulling higher current and causing the cell voltage to sag earlier than the indicator anticipates. The vacuum's indicator reads state of charge, not actual motor load — so it can still show mid-range while suction has already dropped. Clear the filter first, then check if suction holds at full power through a complete cycle.

Motor cuts out mid-use then restarts after a short pause

This is a BMS overcurrent trip, not a failed battery. When sustained suction restriction — blocked filter, sealed floor head, or a carpet pile obstruction — forces the motor current above the BMS trip threshold, the pack shuts off to protect the cells. After a brief cooldown the BMS resets and power returns. Check the filter and floor head for blockages before assuming the battery is faulty. If the motor current stays within spec, the cutout stops.
