Philips FC6169/01 18V Replacement Battery 2000mAh Li-ion

Philips FC6169/01 Series — 18V Li-ion Replacement Battery (69-2008-009-223)

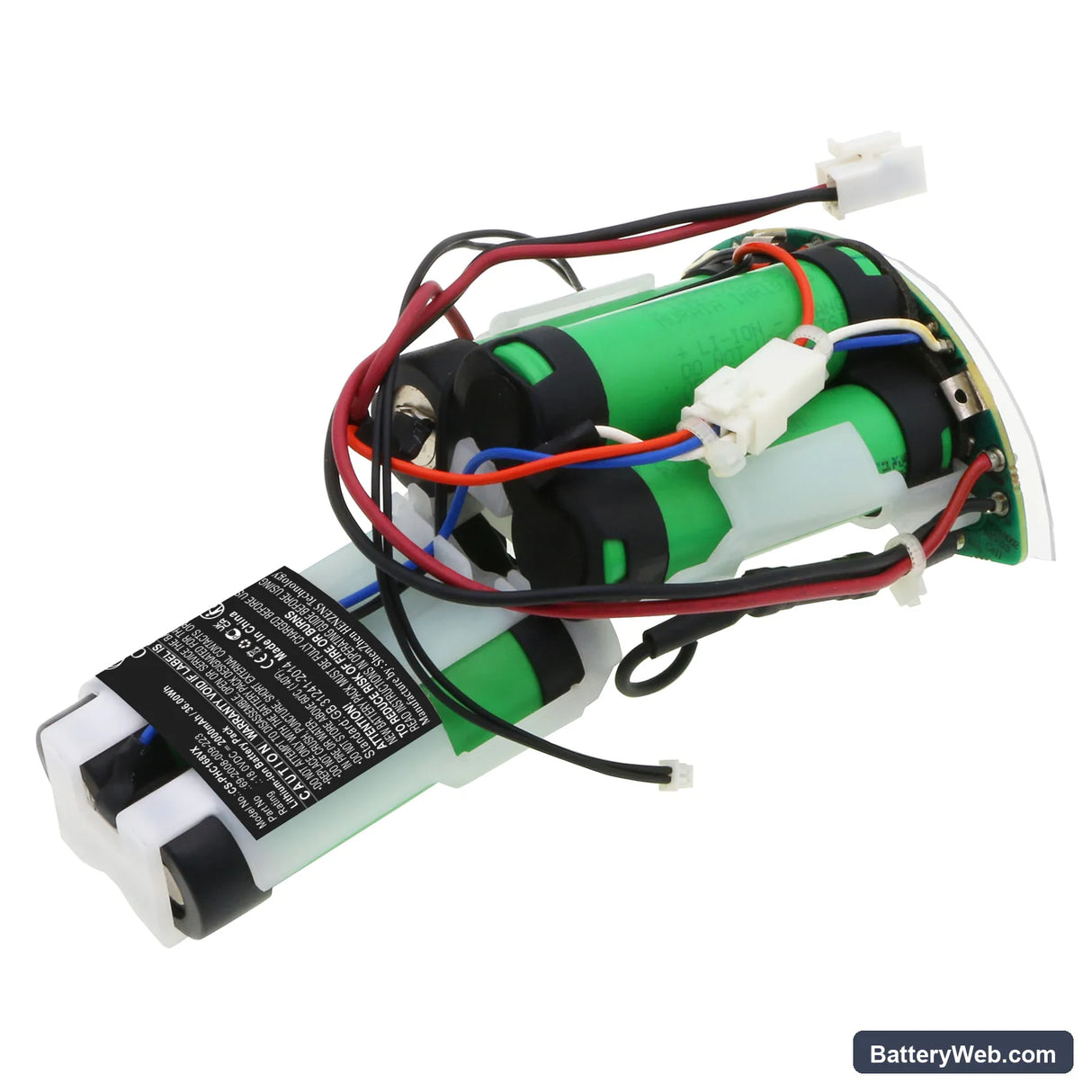

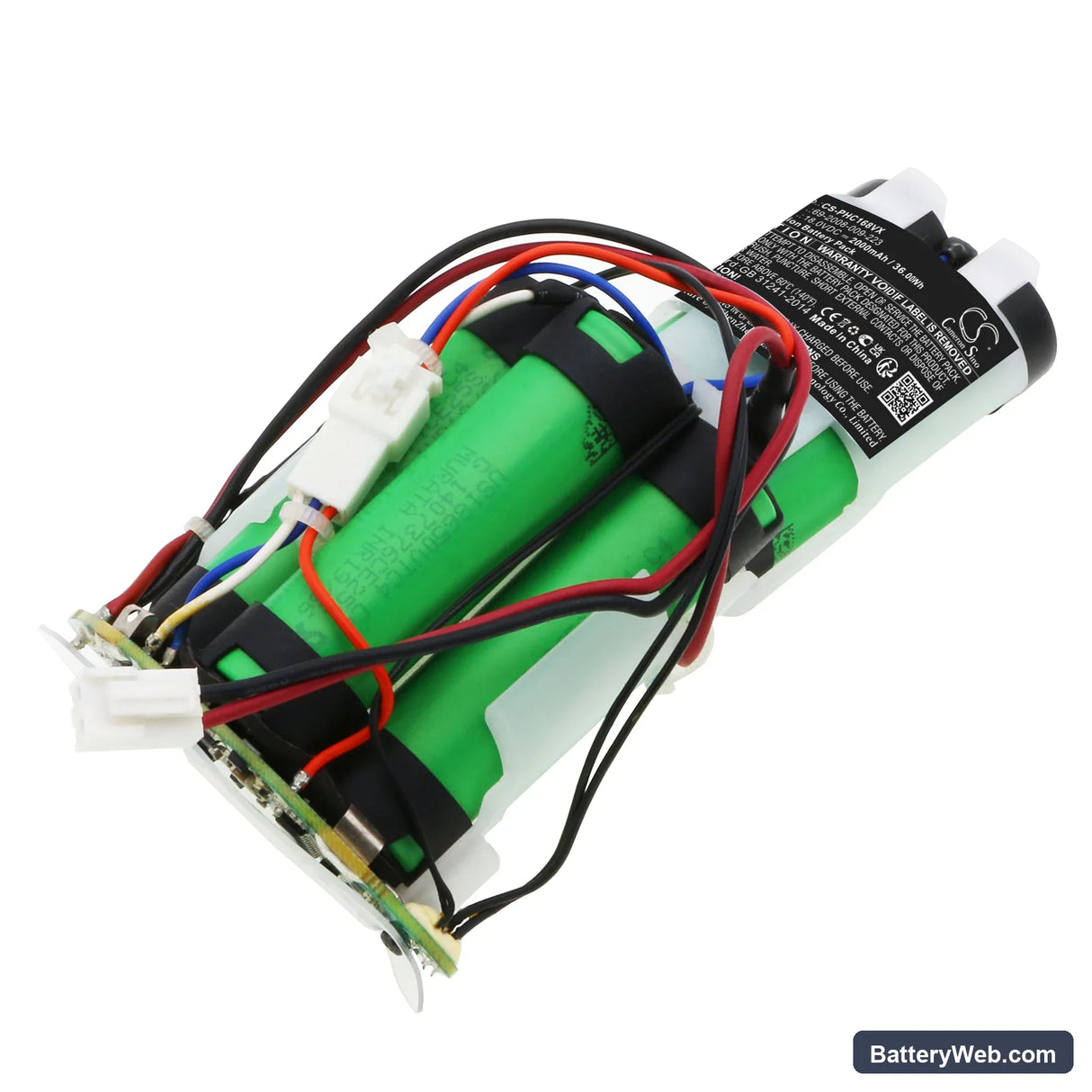

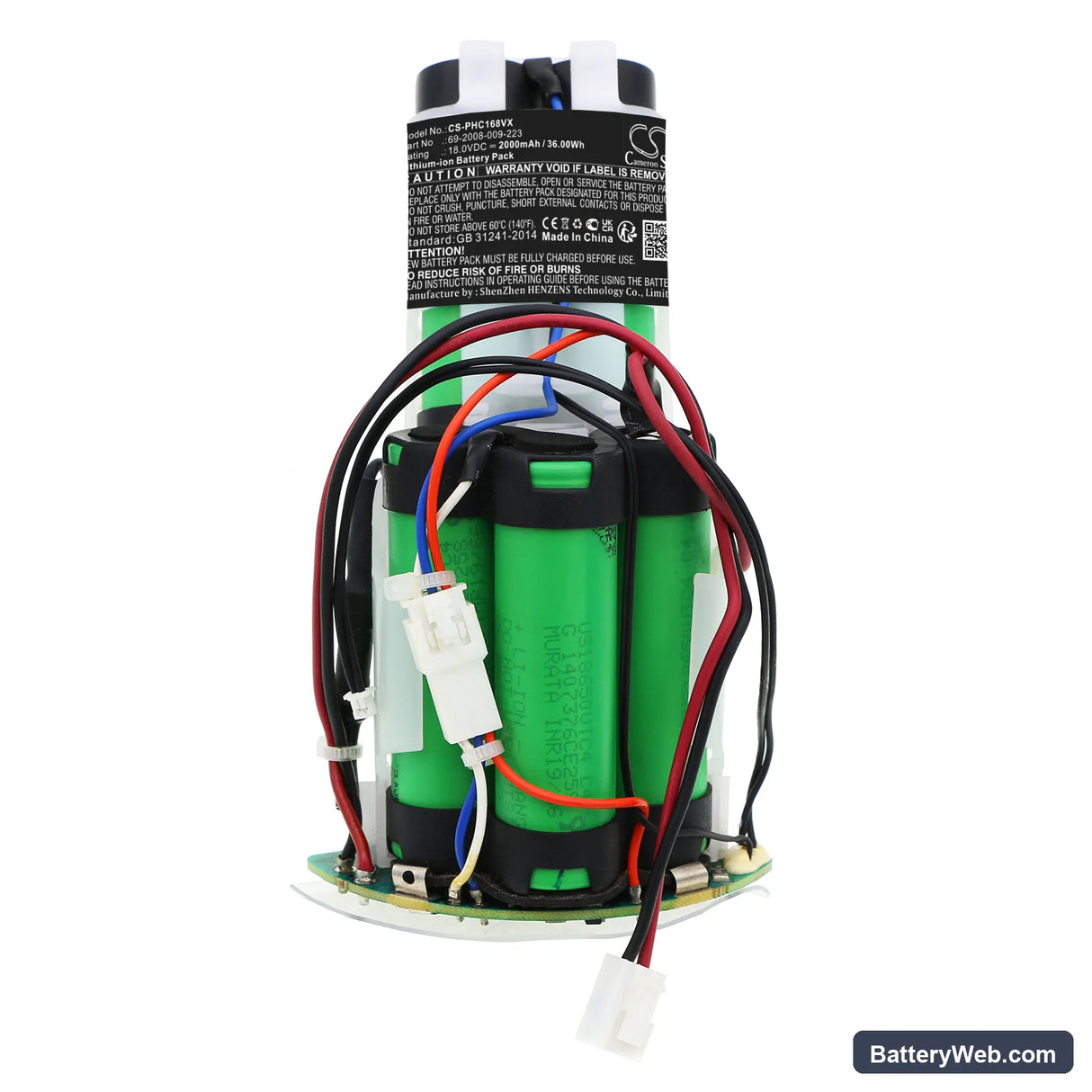

This 18V Li-ion battery replaces the original power cell in the Philips FC6169/01 and compatible cordless stick and handheld vacuums. It carries a 2000mAh (36Wh) capacity and uses the same OEM part number referenced across the FC6168, FC6405/01, and related models. Swap it when your original cell no longer holds a charge or drops suction well before the battery indicator reaches low.

• FC6168 and FC6405 series compatibility: These models share the same 18V battery rail, connector format, and BMS handshake protocol. One battery cell services the full platform without modification or adapter.
• Bench tested on actual hardware: We ran this cell through charge cycles on the FC6169/01 dock and verified the BMS communicated correctly with the charger. The protection circuit responded to simulated overcurrent draw as expected — no false trips at normal motor-start load.
• Dock charging discipline on Philips stick vacuums: Do not leave this vacuum docked permanently after a full charge. The FC6169/01 charging dock does not throttle to a true maintenance rate — continuous connection degrades cell capacity faster than cycling the battery through discharge and recharge.

Cordless vacuum losing suction before the battery indicator reaches low

This happens when the motor draws more current than the battery's BMS expects under sustained load — commonly triggered by a partially blocked filter or brush roll restriction. The cell voltage sags under that elevated draw, and the BMS throttles output before the indicator circuit registers a low charge state. The vacuum feels like a dying battery, but the real cause is airflow restriction forcing the motor to work harder. Clean the filter first, then retest — if suction holds consistently, the battery is not the source of the fault.

Motor cuts out mid-clean then recovers after a short pause

This is a BMS overcurrent trip, not a dead battery. When airflow is restricted — blocked filter, clogged brush roll, or a blockage in the wand — the motor current spikes past the protection threshold and the BMS shuts the cell output down. After 30–60 seconds the BMS resets and the vacuum powers back on. Clearing the blockage stops the trip from repeating. If the cutout continues on an unblocked machine, check that the replacement cell BMS is reading the charger handshake correctly — re-seat the battery in the dock and confirm the charge indicator activates at 18V input.
