Ecovacs Deebot T10 Compatible Battery 14.4V 6700mAh

Ecovacs Deebot T10 / X1 Omni Series — 14.4V Li-ion Replacement Battery (201-2115-1959)

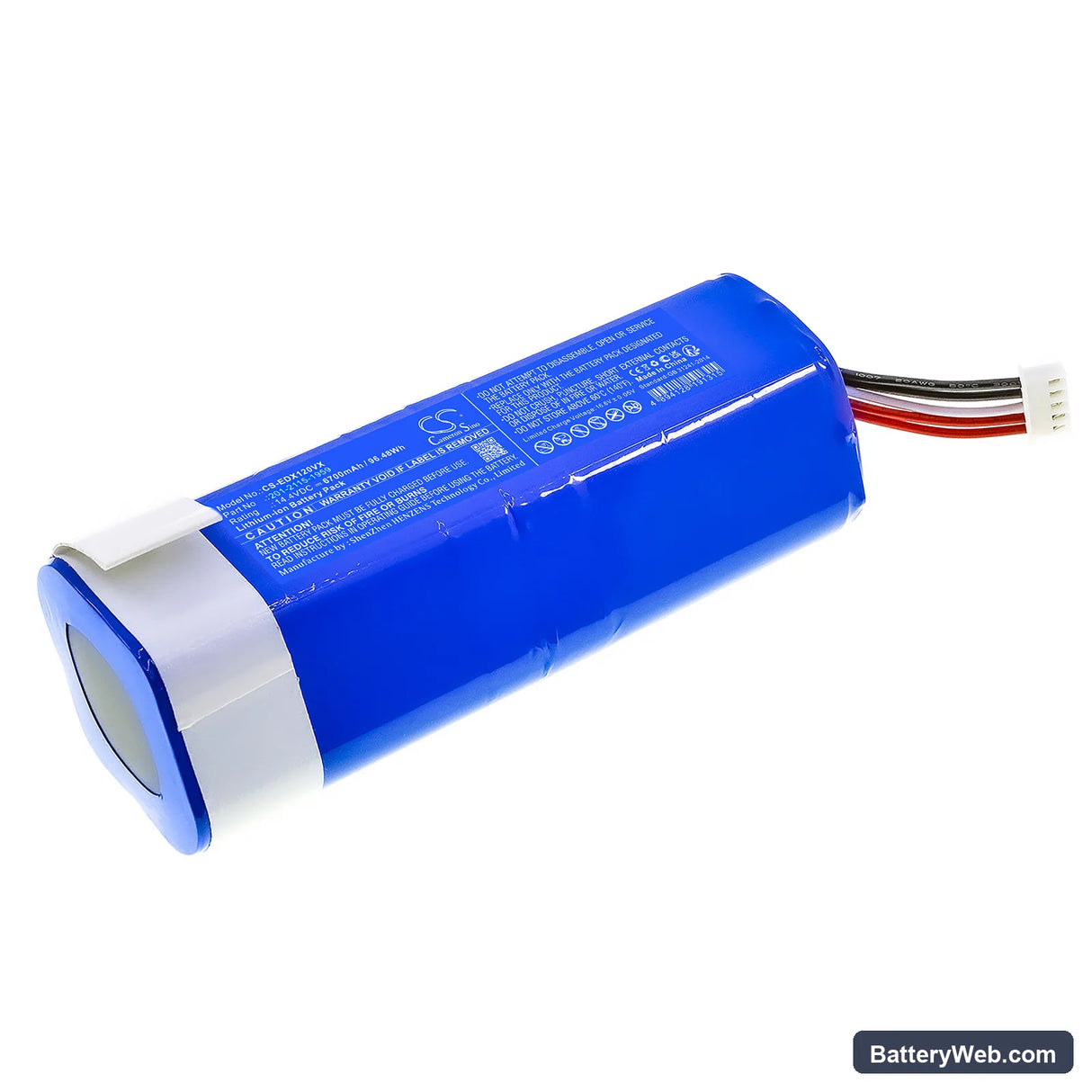

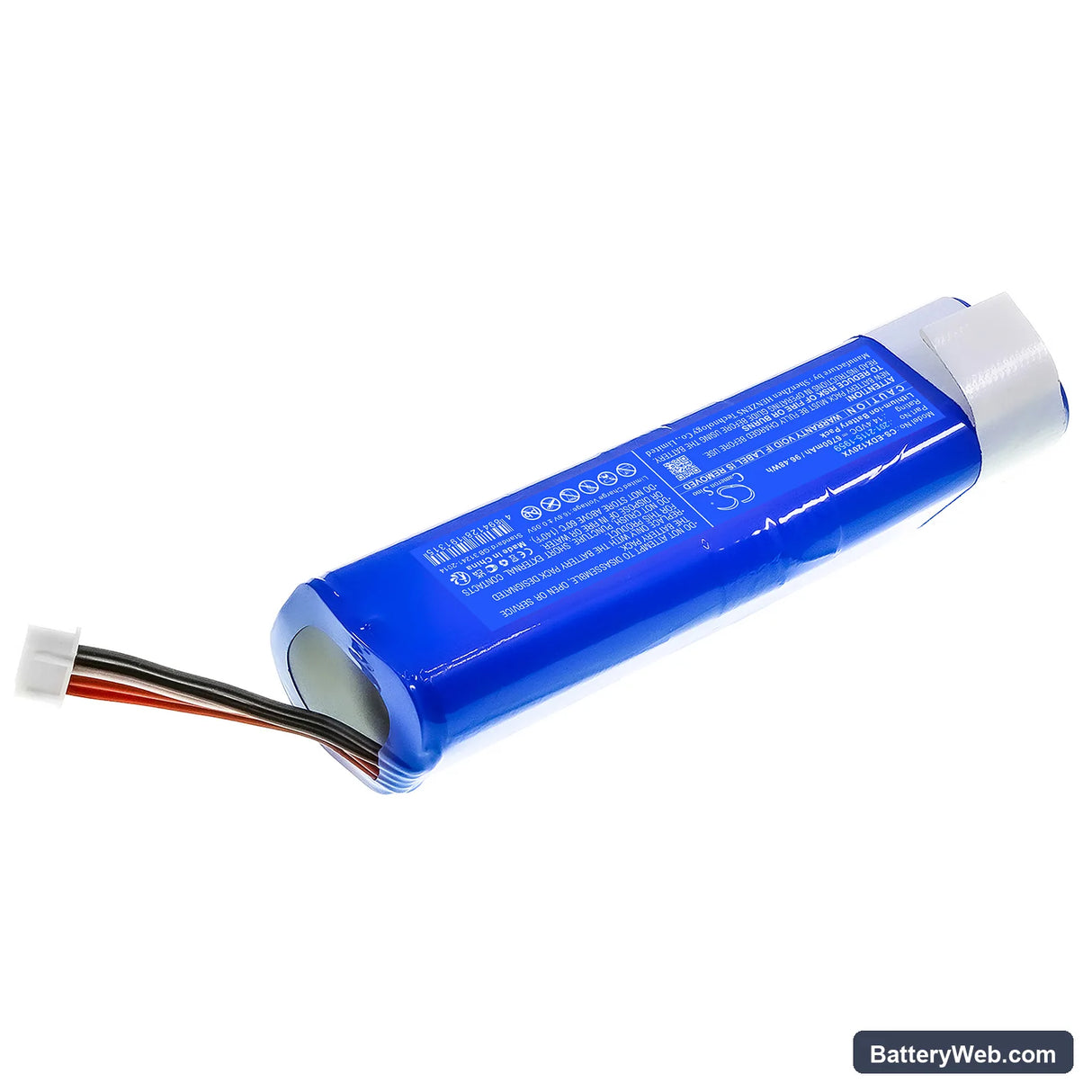

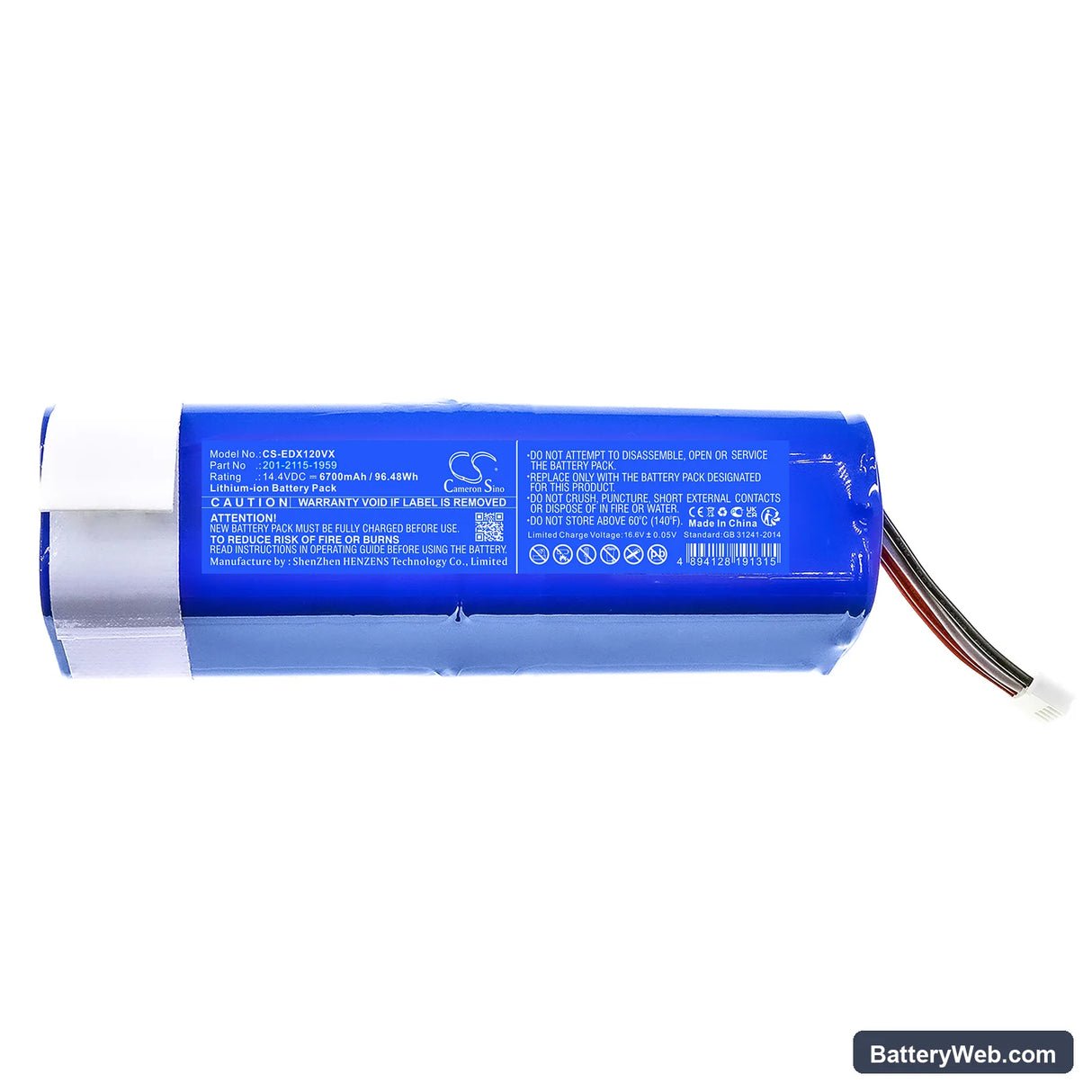

This is a 14.4V Li-ion replacement battery rated at 6700mAh (96.48Wh) for the Ecovacs Deebot T10, T10 Turbo, T10 Plus, X1 Omni, and compatible models. It slots into the same battery bay as the original cell and uses the same BMS communication protocol recognised by the robot's motherboard. When the original pack degrades after repeated cycles, suction output and navigation endurance both drop — this cell restores full operating capacity.

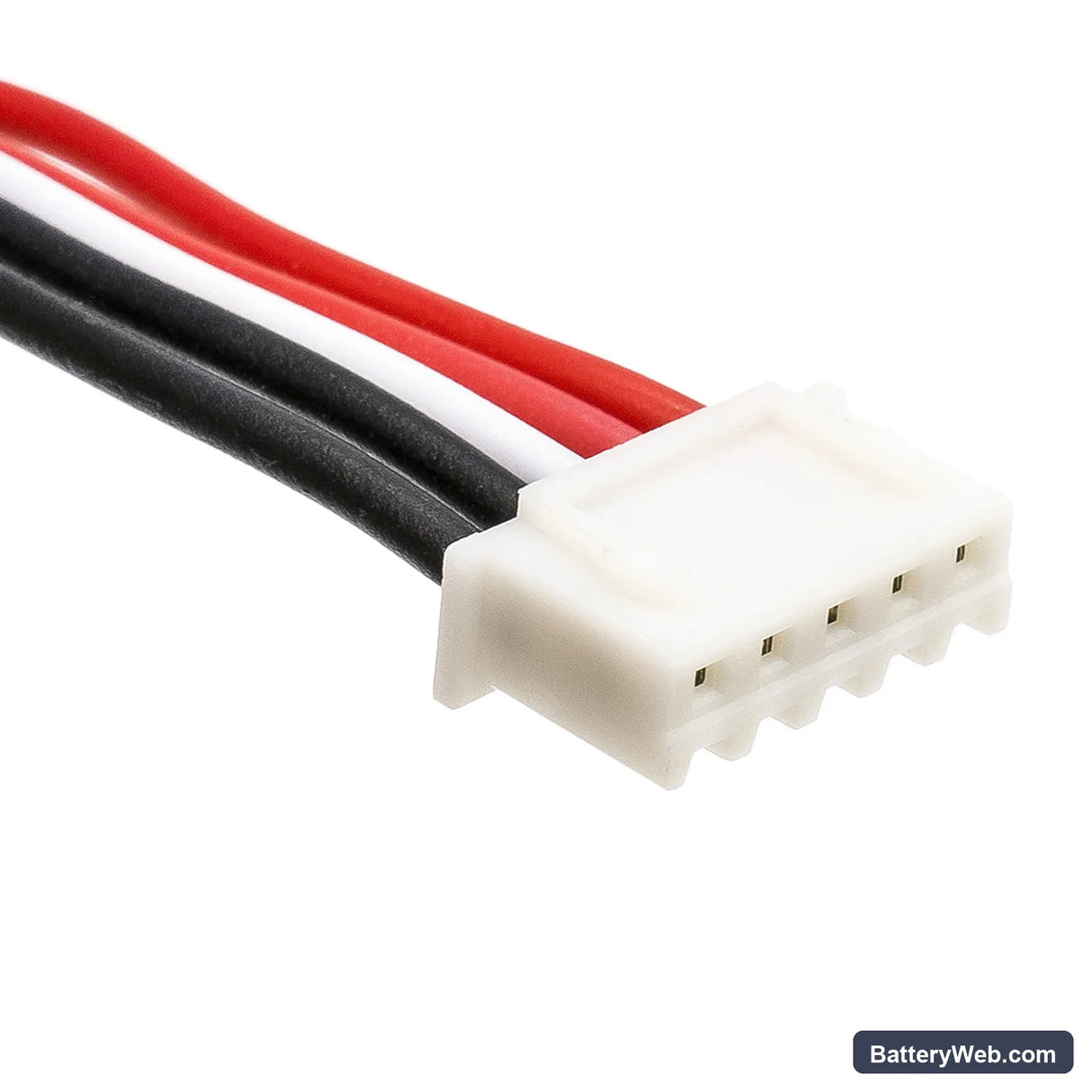

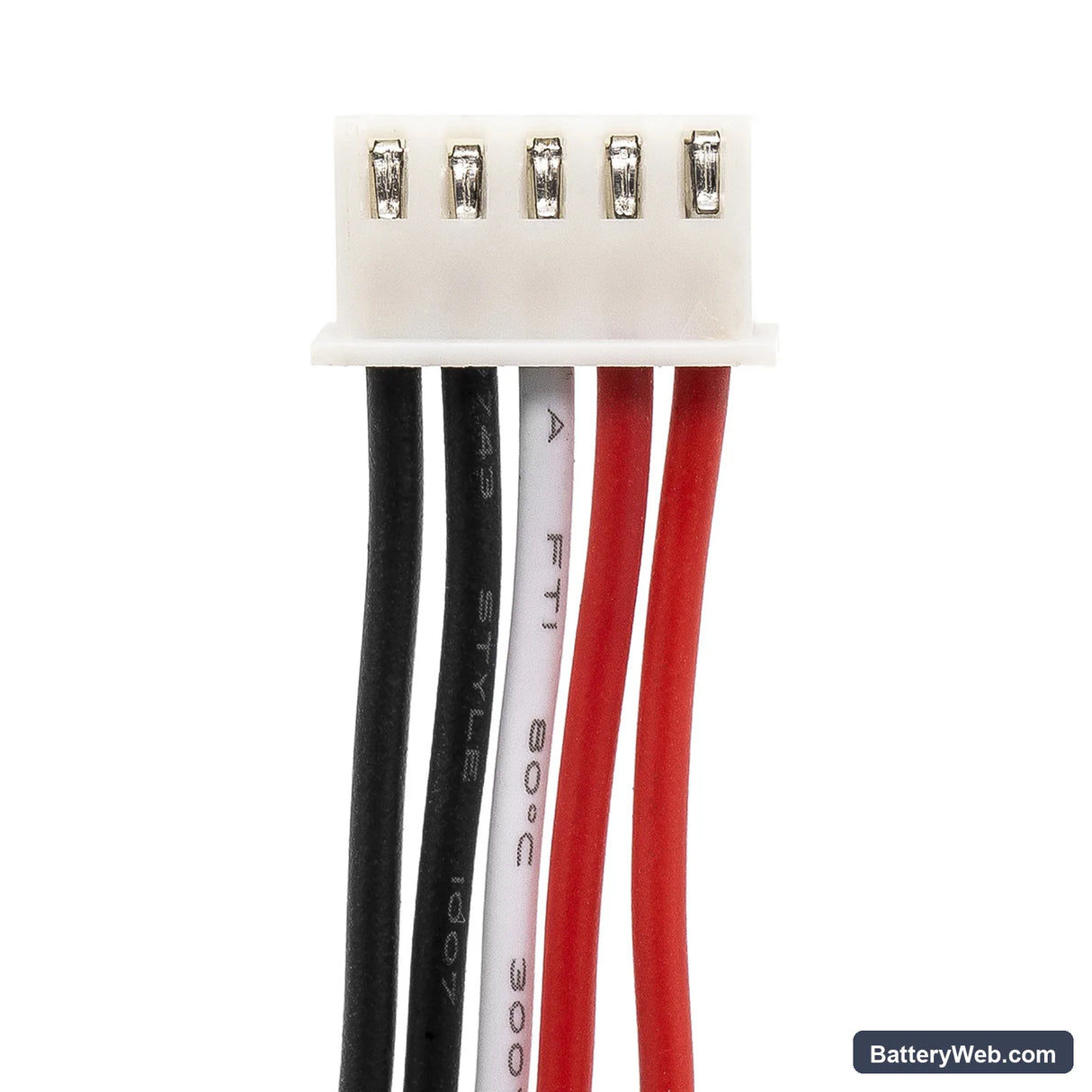

• T10 and X1 Omni platform fit: These models share a common 14.4V power rail, identical battery connector pinout, and the same BMS handshake sequence. That shared architecture is why one cell covers the entire platform — OEM part numbers 201-2115-1959, S10-LI-144-5200, 201-2010-3104, and 201-2466-0006 all map to this specification.
• Bench tested on actual hardware: We ran this cell through full charge and discharge cycles on the T10 platform. The BMS communicated correctly with the motherboard, passed the battery-present handshake on startup, and held voltage within normal operating range throughout cleaning cycles under both hard floor and carpet load conditions.
• Dock charging habit on the Deebot T10: The T10 auto-returns to dock between cleaning sessions — that convenience creates a problem. Leaving the robot docked continuously exposes the Li-ion pack to prolonged trickle charge, which accelerates capacity fade. Let the robot complete its dock charge to full, then use scheduled cleaning runs to keep it cycling rather than sitting permanently plugged in.

Suction dropping before the battery indicator reaches low

This happens when the battery pack can no longer hold voltage steady under motor load, even though the cell still reads a mid-range state of charge at rest. The robot's motor draws a sustained current spike on carpet transitions and edge-cleaning passes — a degraded or partially failed pack sags below the motor controller's minimum voltage threshold and the firmware reduces suction power to protect the circuit. It is not a filter issue if suction recovers immediately when the robot moves back to hard floor. Replacing the cell with a fresh pack rated at the correct 14.4V and 6700mAh resolves voltage sag at the source.

Motor cutting out mid-cycle and resuming without a restart

A mid-cycle motor cutout that self-recovers is almost always a BMS overcurrent trip, not a motor fault. When the suction path is even partially restricted — a clogged filter, a tangled brush roll, or a near-full dustbin — the motor draws above its rated current to maintain airflow. The BMS detects the spike and cuts output to protect the cell, then resets once current normalises. Clean the filter and check the brush roll first. If cutouts continue on a clear airway with a fresh filter, the existing battery pack is no longer able to deliver current within the BMS's trip threshold — replace the cell.
