Eservice Smart D220 Replacement Battery 3.8V 3000mAh IS707

Up to 20% off
New arrival
From $39.99 USD $49.99
Shipping calculated at checkout.
Fits Eservice Smart D220 payment terminals, replaces OEM part numbers IS707 and 1ICP5/55/75.
3.8V, 3000mAh Li-Polymer cell delivers stable output for card processing and receipt printing cycles.

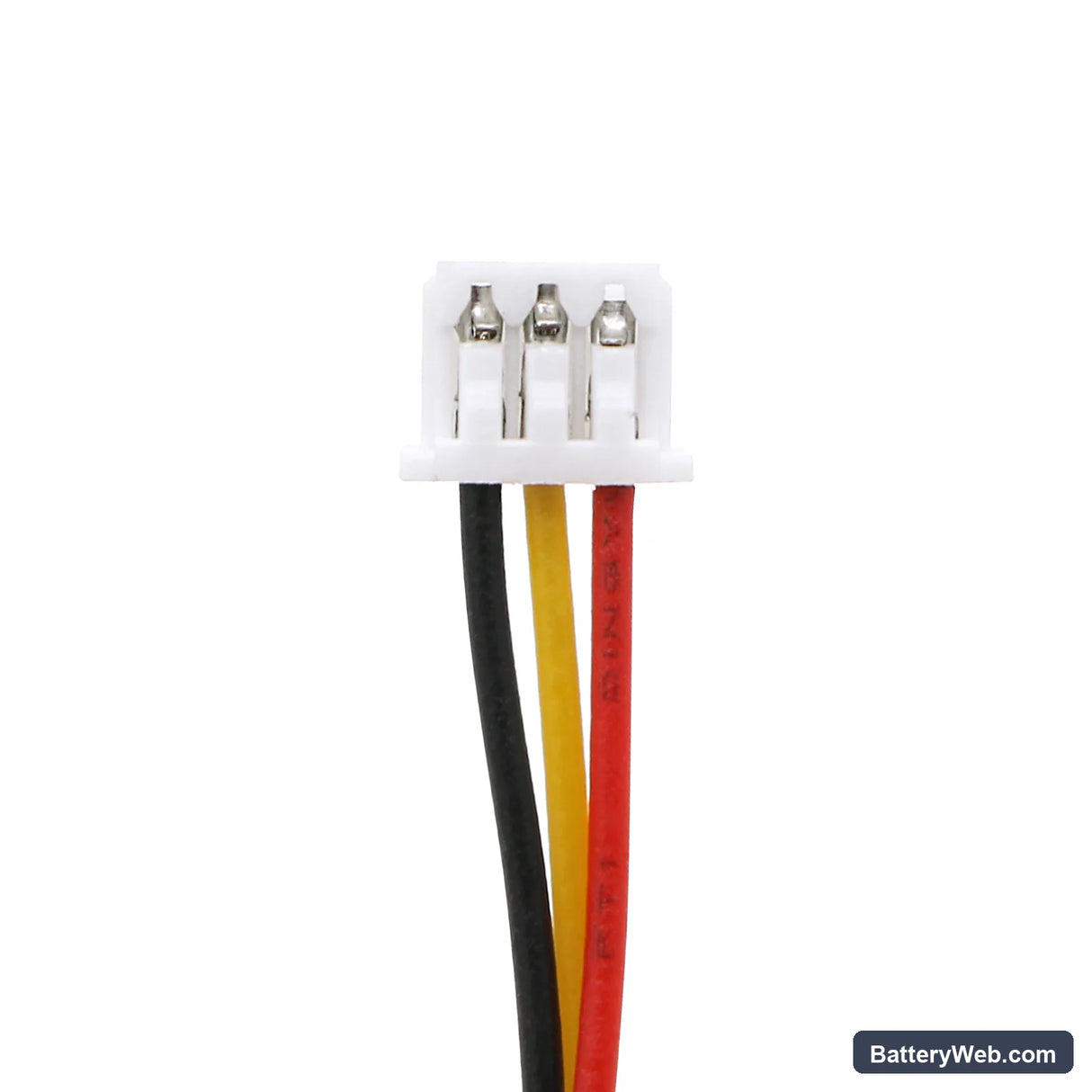

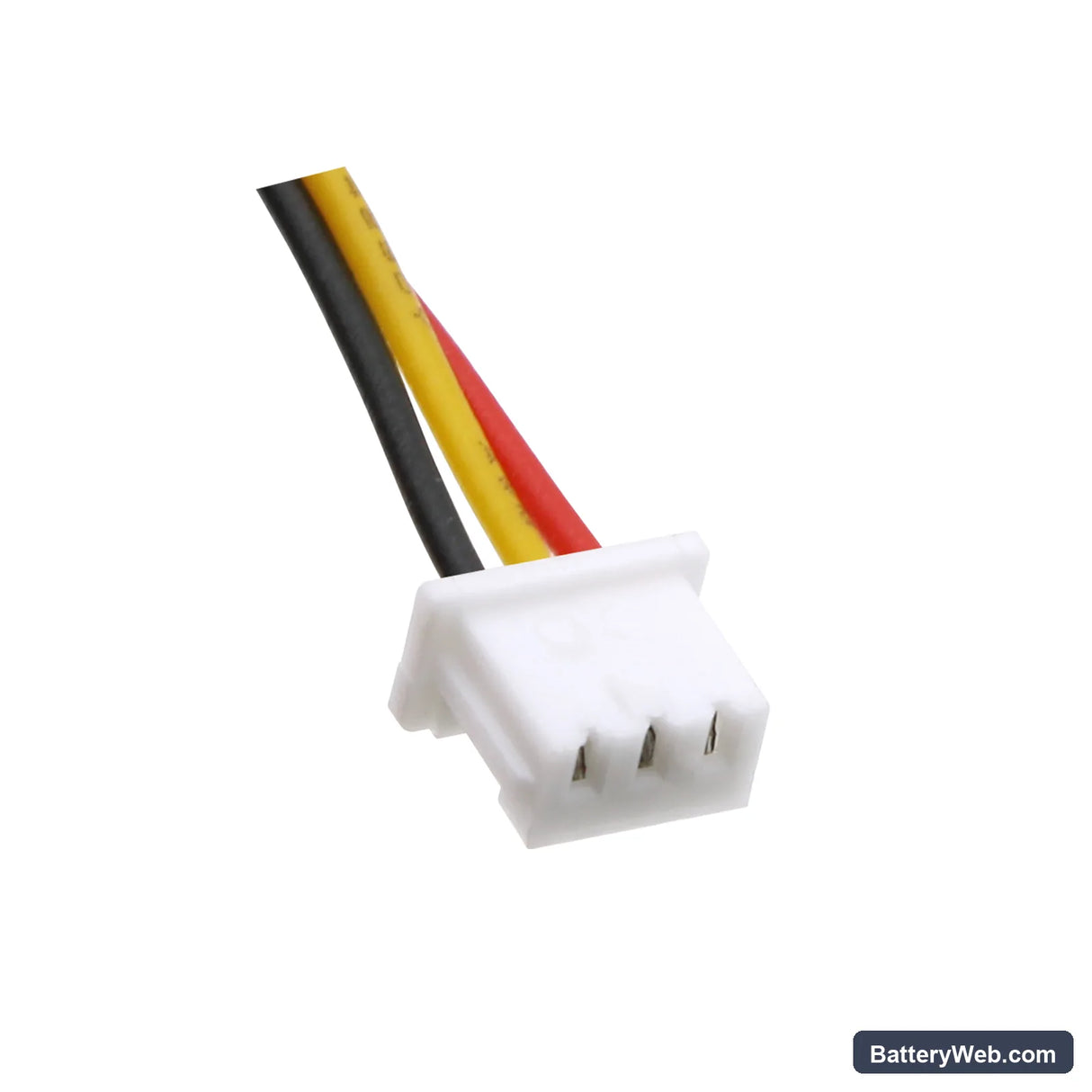

Connector seats flush into terminal housing with single locking tab; polarity marked on pack.
Bench testing confirmed BMS accepts charge current immediately with no fault handshake delay on first insertion.
After installation, run one complete transaction cycle before live deployment — terminal calibrates charge display during normal operation.
Delivery time

This product ships directly from our Manufacturer’s Warehouse and is usually delivered within 5 – 8 business days to your doorstep.

Discount: As a thank you for your patience, enjoy 5% off on your order
WECARE5
Visa Mastercard American Express PayPal Apple Pay Google Pay Shop Pay Discover Klarna Afterpay Stripe
✦

Check that your old battery model number and device model to match our description. This makes sure they work together.

✦

We ship your order same day if you buy it before 4 PM EST.

Warranty

Let customers speak for us

from 11 reviews

Product is exactly as described and arrived quickly

Robert Jones
Rocket ES4-12 Compatible Replacement Battery

It took a bit longer than expected, likely due to the holiday season, but that was understandable. So far, the battery seems to be working well!

Linda M.
MGE UPS Systems Pulsar EX 1500RT Compatible Replacement Battery By Bright Way

Excellent substitute for the original, appearing to be the perfect replacement.

Alberto J.
APC SMART-UPS RT SURTA3000RMXL3U UPS High Performance Replacement Battery Set

It was what i was looking for. Support is fast

Jaswal
WAHEGURUG - RADHASWAMI

Fast service

Mark Casias
BatteryWeb

Perfect fit

Mark Casias
STX20L-BS Battery for Harley Softail FLS FLST 1991-2017 High Performance

Works Perfectly!!

Ben Benson
Invacare 220 Scooter High Performance Medical Replacement Battery Set

Send Your Battery Photo

Expert Technician Help

Snap a photo or video of your battery and send it to us. We'll identify the exact replacement—fast and hassle-free. Our team has helped thousands of customers find the right battery quickly and easily.

POST YOUR BATTERY IMAGE
Product & Solutions Expert

Product & Solutions Expert

✉ sales@batteryweb.com

🔹 10+ Years Battery Experience 🔹 Fast & Accurate Identification

Battery Care Tips

🔹 Getting Started

Charge your new battery fully before you use it for the first time. Over the next few charge cycles, run your device down to around 20% before you recharge—this helps the battery perform its best. After that, charge whenever you need to.

🔹 Keep It Healthy

Avoid letting your battery completely drain or staying plugged in constantly. Both extremes wear it out faster. Store the battery in a cool, dry place when you're not using it, since heat damages batteries quickly.

Delivery and Shipping

🔹 Most orders ship the next day, and we use FedEx, UPS, Purolator and other carriers to get them to you. Lithium batteries have to ship by ground only, not air or USPS. Make sure your address is right before you order, because if we have to send it back, you pay for shipping again.

Disclaimer

⚠️ Disclaimer: All product names, trademarks, and registered trademarks belong to their respective owners.

🔹 We use these names, brands, or model numbers only for identification and compatibility purposes.

Voltage

3.8V

Amp

3000mAh

Eservice Smart D220 — 3.8V Li-Polymer Replacement Battery (IS707)

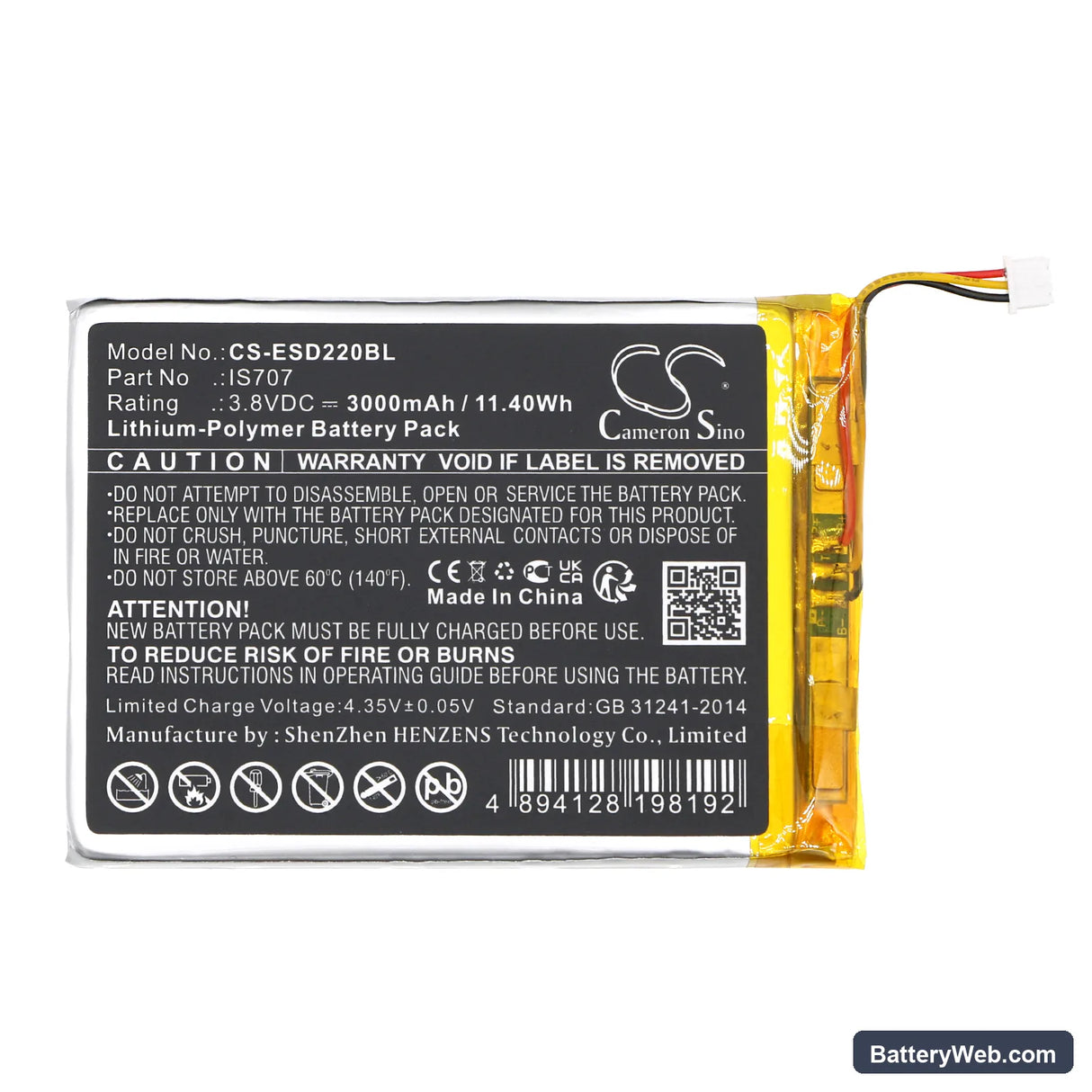

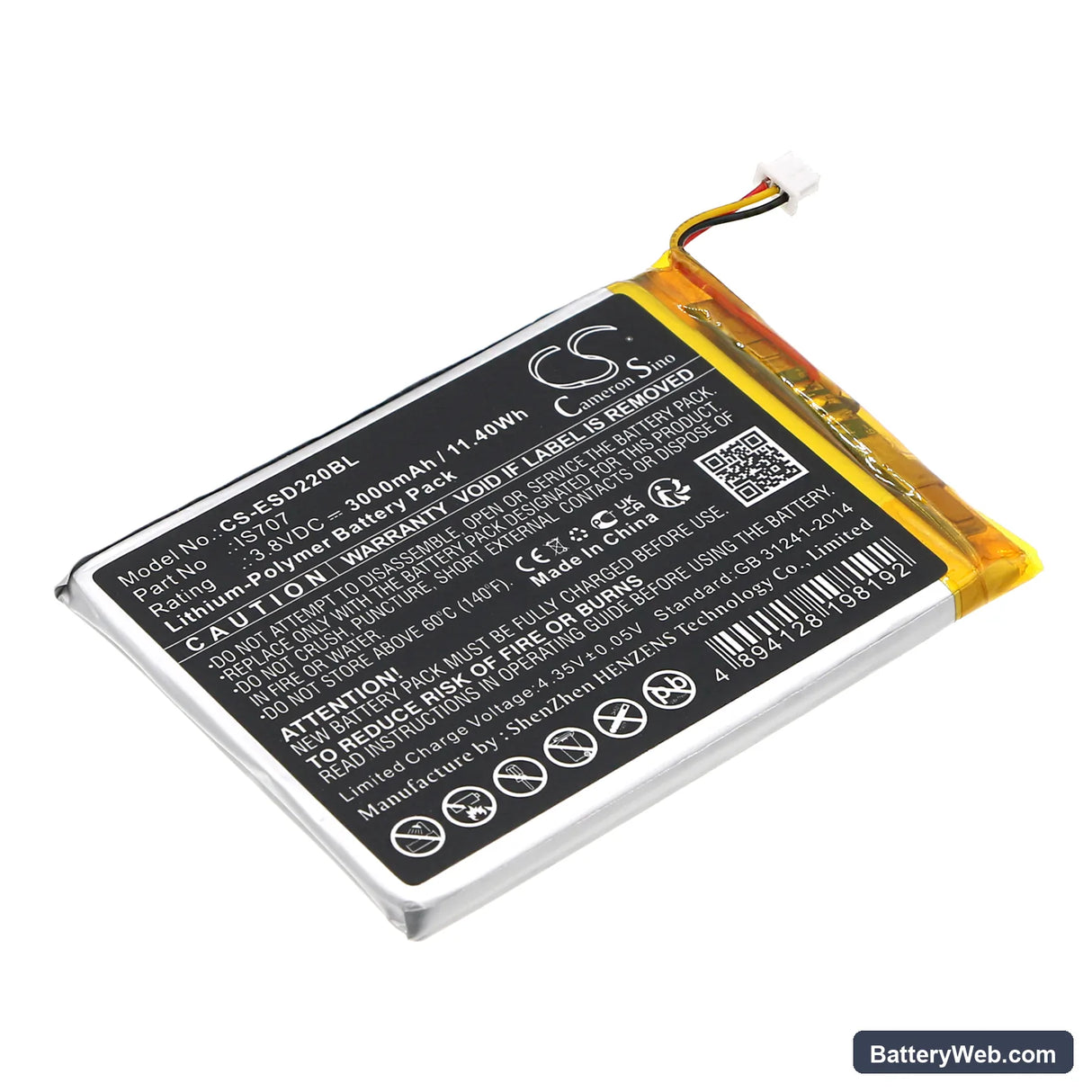

This 3.8V, 3000mAh Li-Polymer battery replaces the original IS707 cell in the Eservice Smart D220 payment terminal. It fits the Smart D220 directly, using the same connector and BMS communication protocol as the factory unit. Capacity is 3000mAh (11.4Wh), sourced to match OEM specifications.

  • Smart D220 fitment: The Smart D220 uses a single-cell Li-Polymer pack at 3.8V nominal. The IS707 form factor — 74.60 x 53.70 x 4.70mm — occupies the full battery bay. Any deviation in thickness or connector pinout will cause BMS rejection at boot, so physical and electrical match both matter here.
  • Bench tested on actual hardware: We cycled this cell through card-read, receipt print, and wireless transaction sequences. The BMS held steady through the combined current draw of the printer motor and radio stack without tripping overcurrent protection.
  • First deployment tip: After fitting this battery, complete one full transaction cycle before putting the terminal into live service. The Smart D220 maps battery capacity during normal operation and requires at least one complete power cycle to calibrate the charge indicator correctly.

Terminal not completing PCI boot sequence after battery swap

The Smart D220 runs a PCI compliance check during startup that includes a battery handshake. A new cell that hasn't completed a full charge-discharge cycle may report state-of-charge data the terminal treats as out of range. This causes the boot sequence to stall or loop before reaching the payment screen. Charge the battery to 100%, power the terminal off cleanly, then restart — one full boot-charge cycle usually clears the handshake flag.

Terminal rebooting mid-transaction during receipt printing

The receipt printer motor draws a short burst of current well above the idle load of the display and wireless radio. On a degraded or partially discharged battery, this spike can push cell voltage below the BMS undervoltage threshold, triggering an immediate protection cutoff — which looks like a reboot. If this happens consistently, check that the cell is above 3.6V before high-volume transaction periods. A cell sitting at 3.5V under idle load will not hold voltage through a printer motor start surge.

Compatible Models

Smart D220

Replaces Part Numbers

IS707 1ICP5/55/75

Technical Specifications

Voltage3.8V
Amp Hours3000mAh
Capacity3000mAh
Rate11.4Wh
Net Weight43g /1.52 oz
Gross Weight68g /2.40 oz
Approximate Weight68g /2.40 oz
Dimension 74.60 x 53.70 x 4.70mm

Product Highlights

  • Brand: Eservice
  • Manufacturer: CS
  • Series: Standard
  • Color: Black
  • Product Type: Li-Polymer
  • Battery Type: Li-Polymer
  • Warranty: 12 Months
  • Bulk Orders: sales@batteryweb.com

Frequently Asked Questions

My Smart D220 was sitting unused in a drawer for a few months and now won't power on at all — is the battery dead?

Extended storage without a top-up charge can pull a Li-Polymer cell below the BMS recovery threshold, typically under 3.0V. At that point the BMS locks the output to protect the cell, and the terminal shows nothing when you press the power button. Connect the terminal to its charger and leave it for 30–45 minutes before attempting to power on — most BMS controllers will begin a trickle recovery charge and unlock the output once the cell reaches 3.2V.

The charge indicator has been stuck at 99% since I put the new battery in — is something wrong with the cell?

Nothing is wrong. When a new Li-Polymer cell first enters the charger, the charge IC switches to top-off mode at high state-of-charge and pulses small amounts of current until the cell voltage stabilises at exactly 4.2V. This can take longer than the terminal's display expects, so the indicator stalls at 99%. Run the terminal through a normal transaction cycle and let the battery discharge slightly — the charge IC will reset its calibration on the next charge and the indicator will read correctly.

The Smart D220 feels noticeably warm after a busy period of back-to-back transactions — is the battery overheating?

Under sustained load — display on, wireless active, and the printer firing repeatedly — the combined draw on a single 3.8V Li-Polymer cell generates heat that the terminal's slim chassis can't dissipate quickly. This is normal within limits. If the terminal is too hot to hold comfortably or shuts down on its own, let it rest for five minutes with the screen off before continuing. If shutdowns persist, measure open-circuit cell voltage after cooling — it should read at least 3.7V at rest; anything below that indicates the cell is not recovering charge correctly between cycles.
