Eufy L70 Hybrid Replacement Battery 14.4V 5200mAh

Eufy L70 Hybrid — 14.4V Li-ion Replacement Battery (INR18650M26-4S2P)

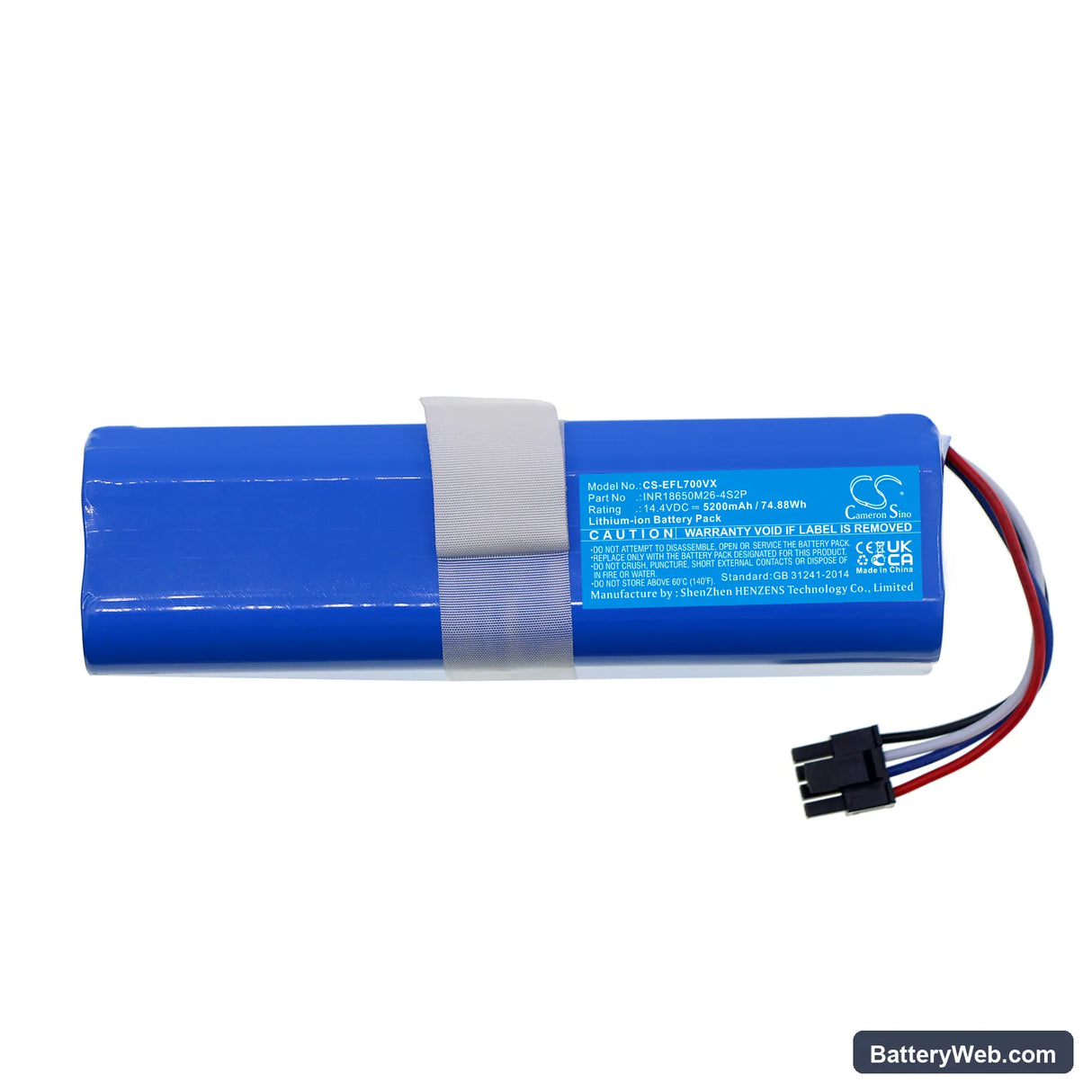

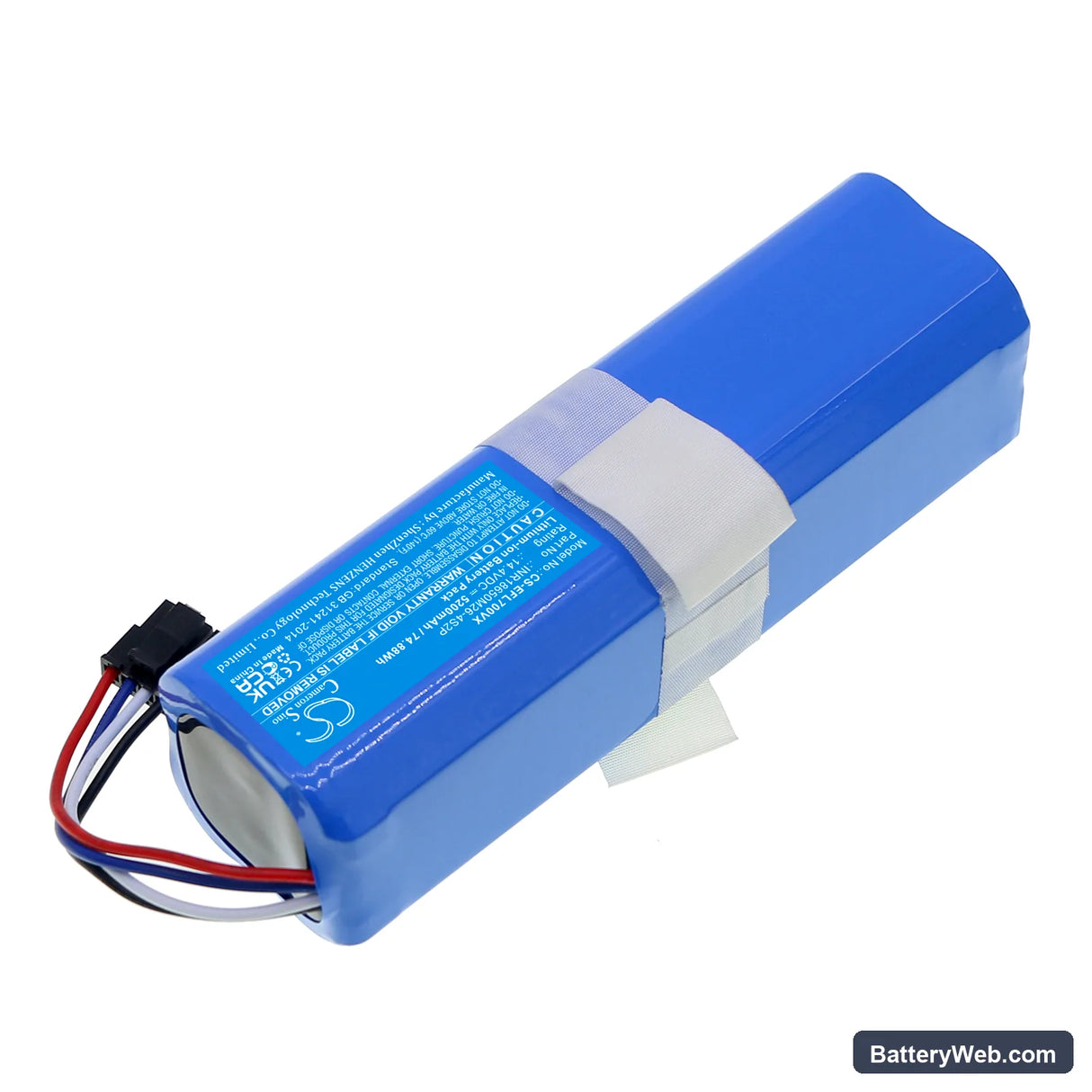

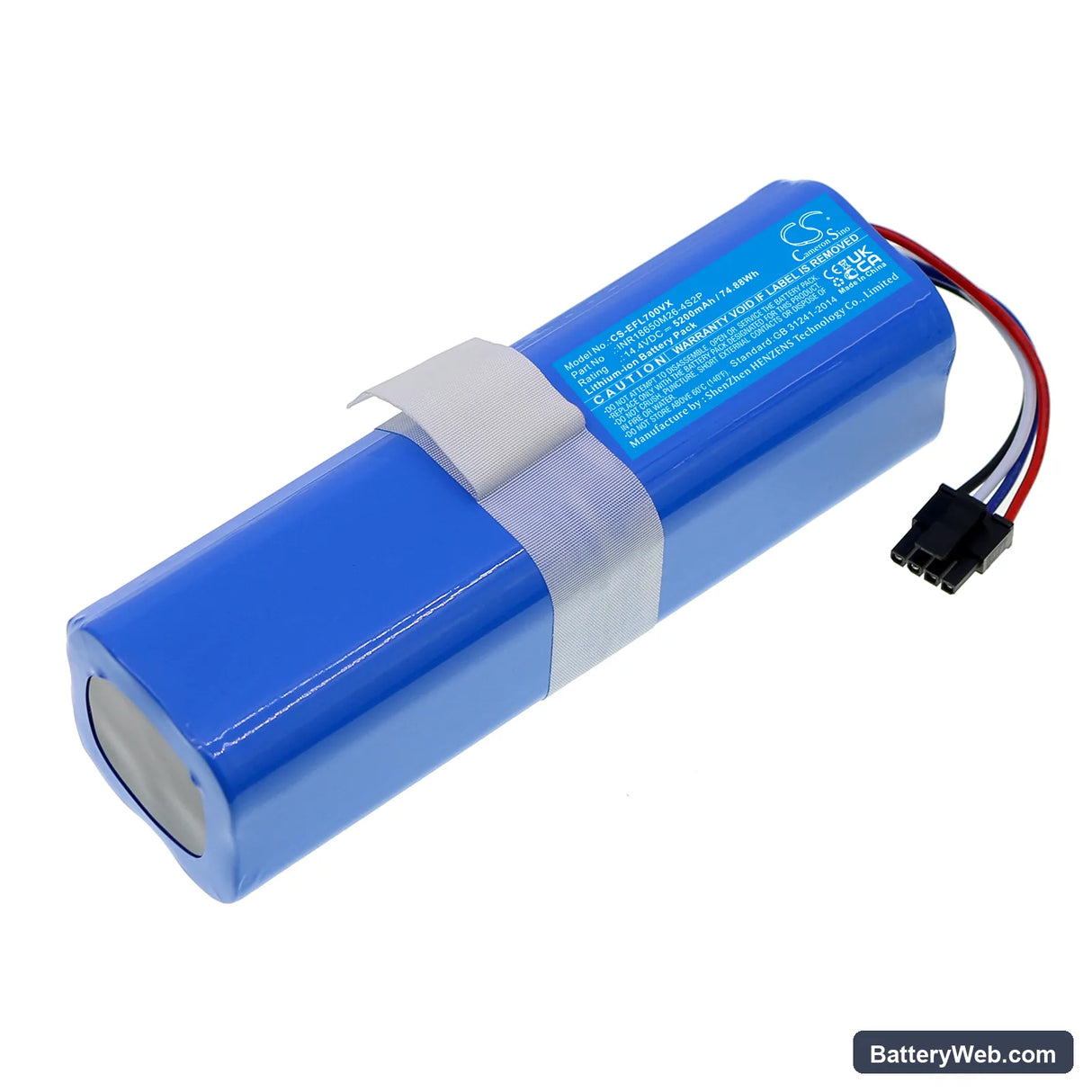

This is a 14.4V, 5200mAh Li-ion battery for the Eufy L70 Hybrid and Robovac L70 Hybrid robotic vacuum (models T2190, T2190G21). It replaces part number INR18650M26-4S2P, which powers the drive motors, suction motor, and onboard navigation. Capacity is 74.88Wh — matching the original specification.

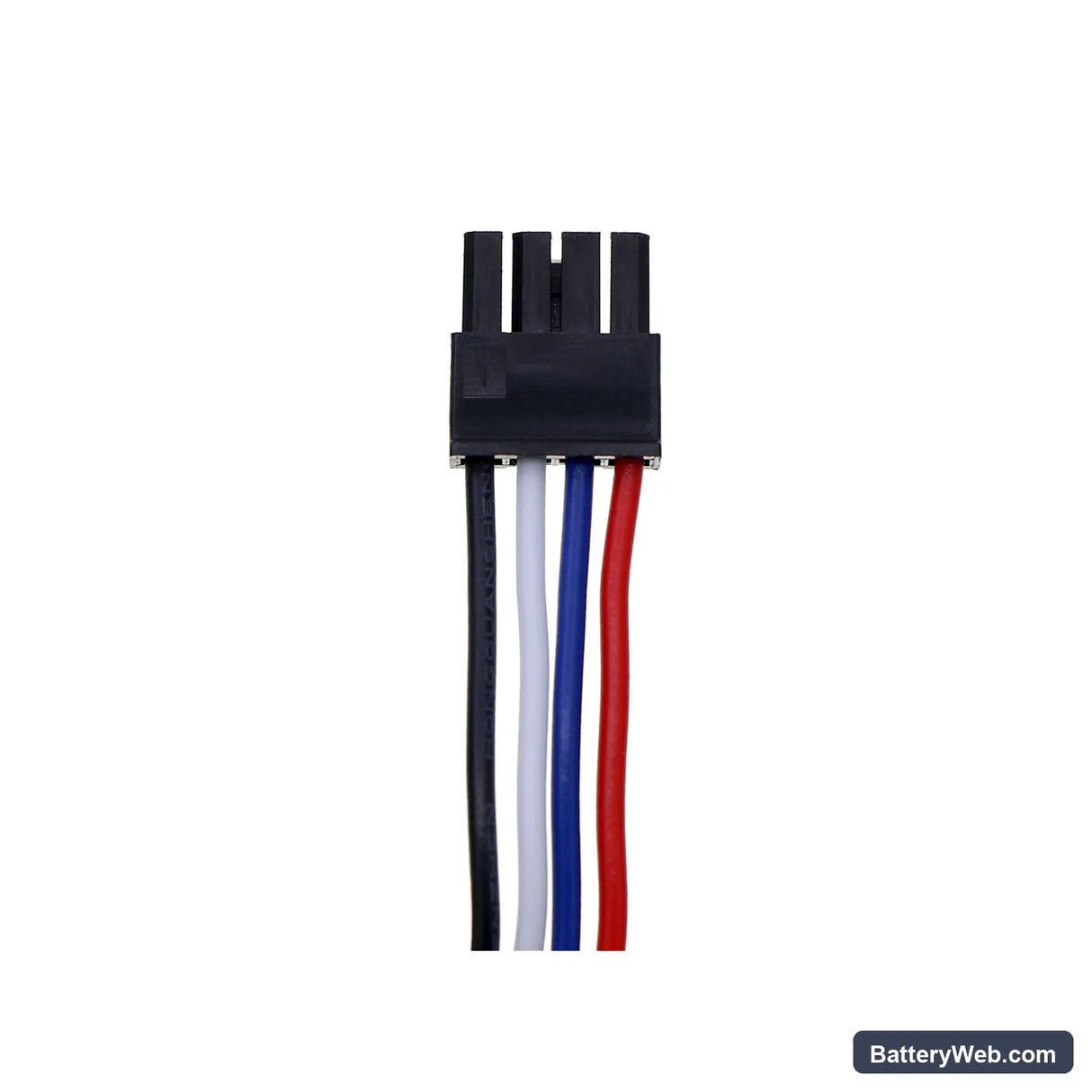

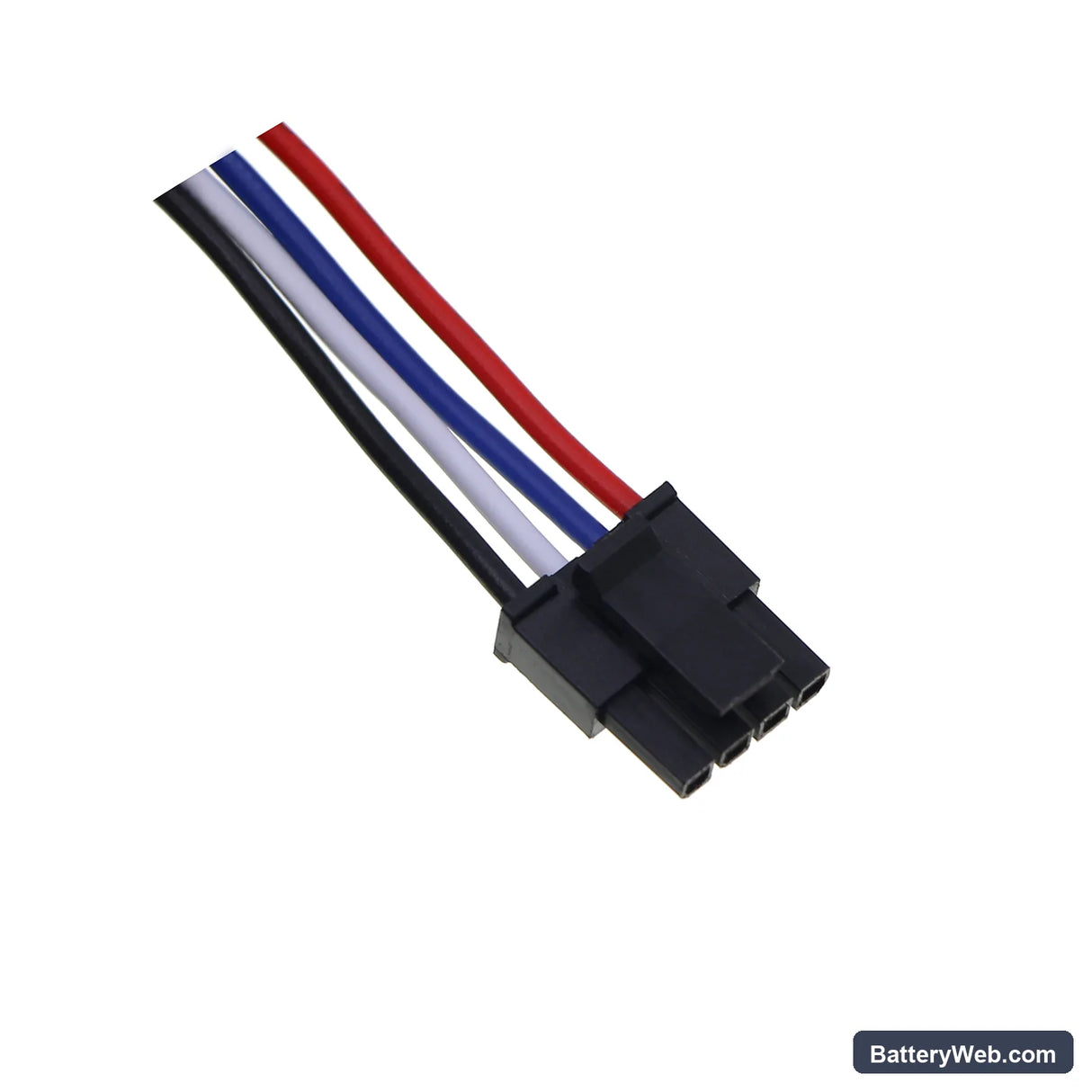

• L70 Hybrid and T2190 compatibility: These models share the same 14.4V battery rail, connector pinout, and BMS handshake requirements. The INR18650M26-4S2P cell configuration — four cells in series, two in parallel — is specific to this platform and is not interchangeable with other Eufy Robovac lines running different voltages.
• Bench tested on actual hardware: We ran this battery through charge and discharge cycles on the L70 Hybrid platform. The BMS communicated correctly with the dock charger, reported state-of-charge accurately to the onboard display, and held voltage above the low-battery cutoff threshold throughout sustained suction operation on both hard floor and carpet modes.
• Dock charging behaviour on the L70 Hybrid: Do not leave the L70 Hybrid sitting on the dock permanently between uses. This model trickle-charges when docked regardless of battery state, which accelerates capacity loss in Li-ion cells. Charge to full, then undock and store the vacuum until the next cleaning cycle.

Suction dropping before the battery indicator reaches low

The L70 Hybrid's suction motor draws significantly more current when the filter is partially blocked or the brush roll is restricted. That increased draw pulls battery voltage down faster than the onboard indicator tracks, so the vacuum loses suction while the display still shows a healthy charge level. This is a voltage sag issue, not a battery failure — the cell voltage recovers once load is removed. If suction drops mid-cycle, clean the filter and check the brush roll before assuming the battery is at fault.

Motor cuts out mid-run then restarts after a few seconds

This is a BMS overcurrent trip. When the suction path is restricted — blocked filter, tangled brush roll, or debris caught in the intake — the motor draws more than the BMS threshold allows, and the protection circuit cuts power momentarily. The vacuum restarts once current drops back within range. Clear the restriction, then confirm the battery recovers to at least 15.8V at full charge before ruling out cell degradation as a contributing factor.
