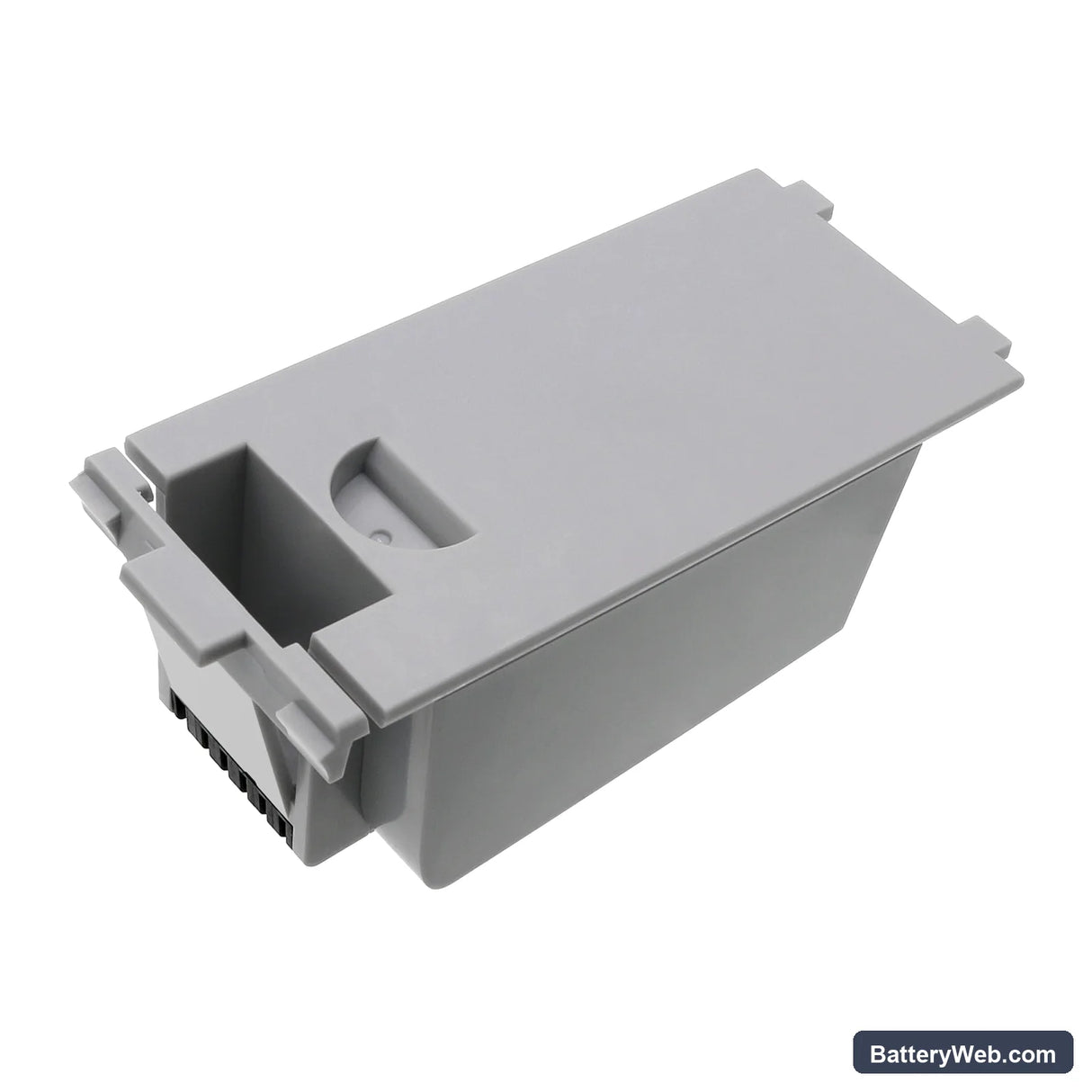

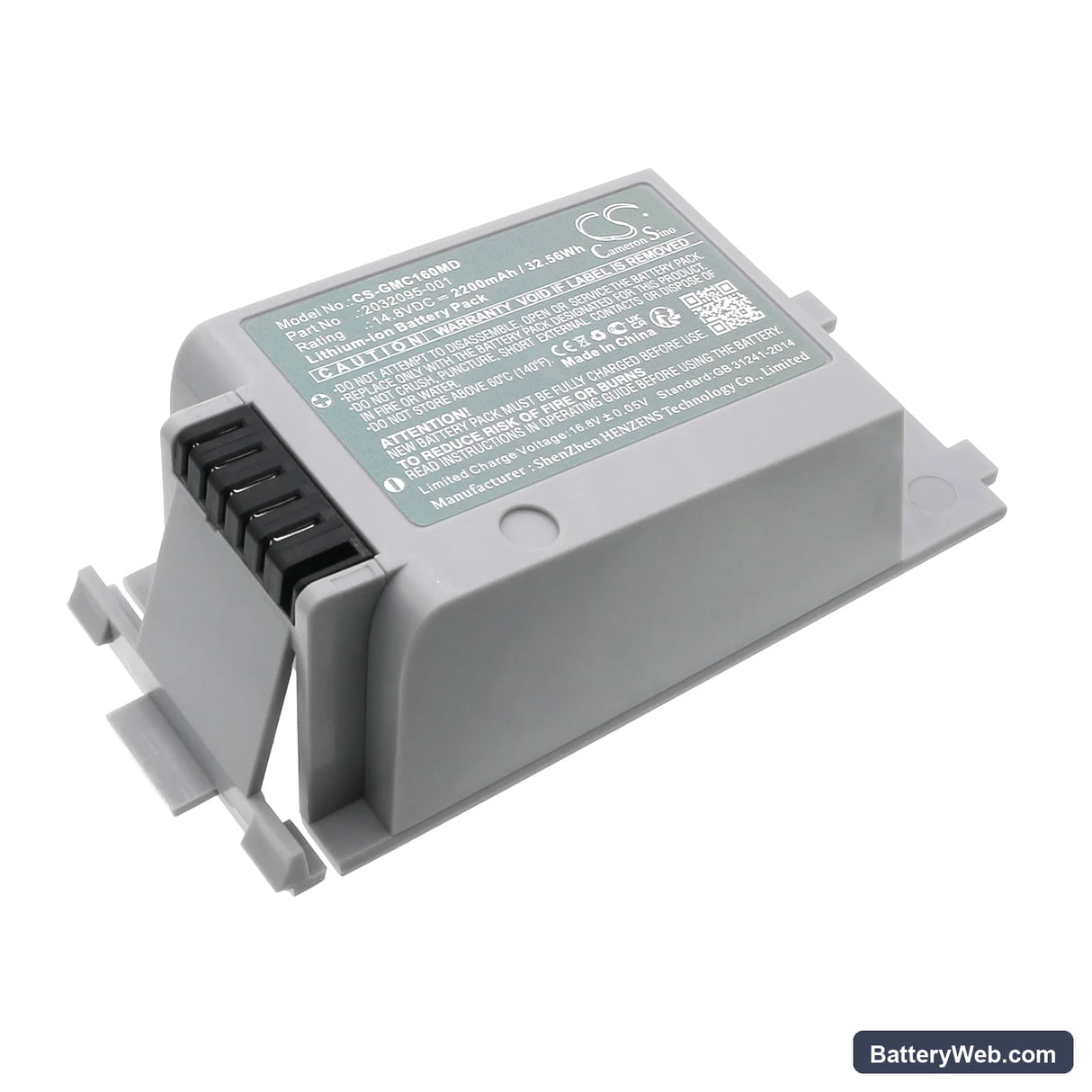

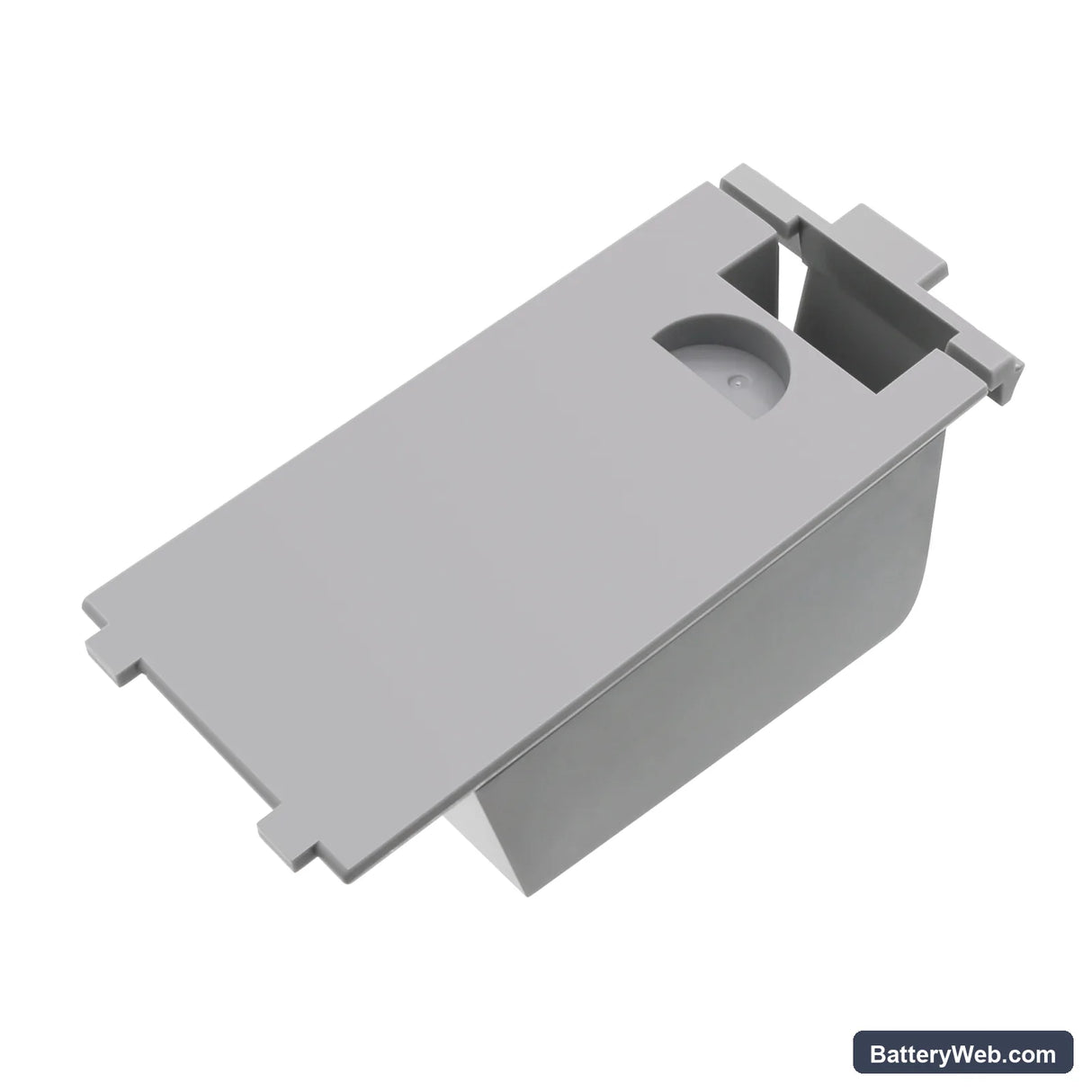

GE Mac 1600 ECG Replacement Battery 14.8V 2200mAh

GE Mac 1600 ECG — 14.8V Li-ion Replacement Battery (2032095-001)

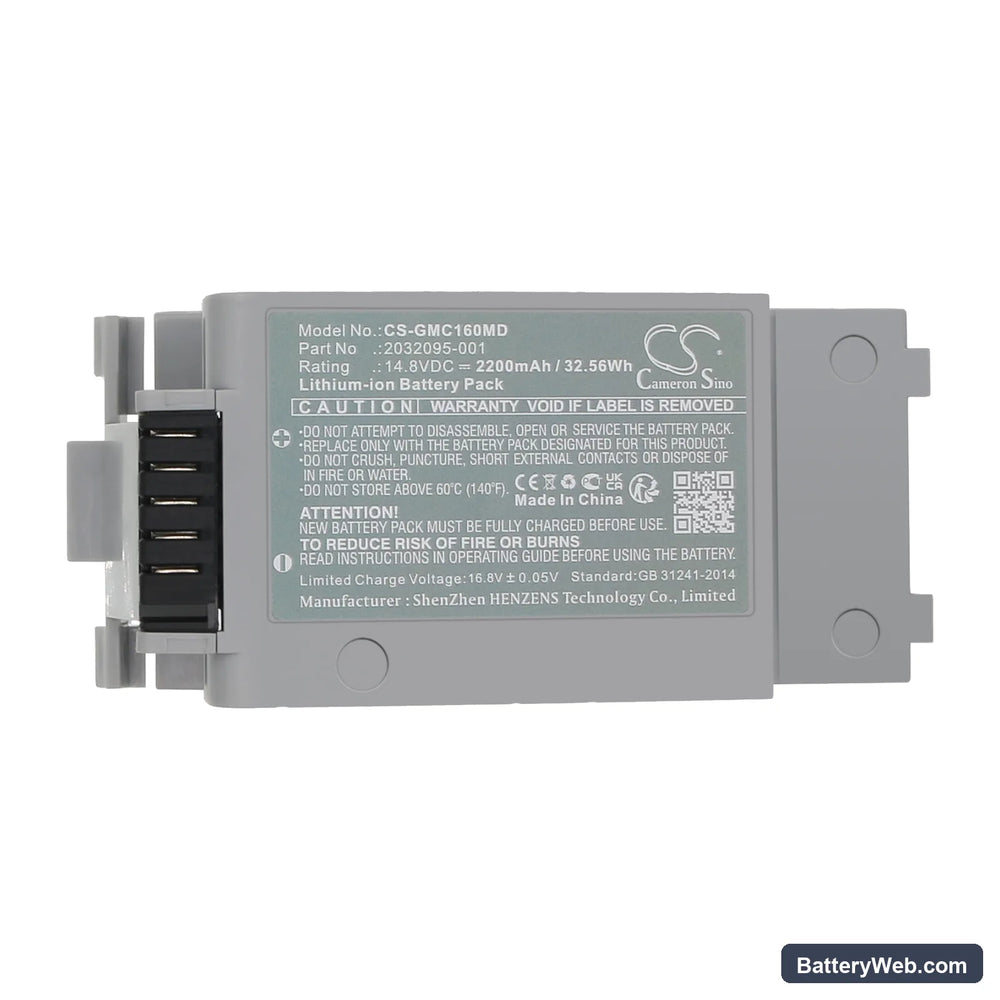

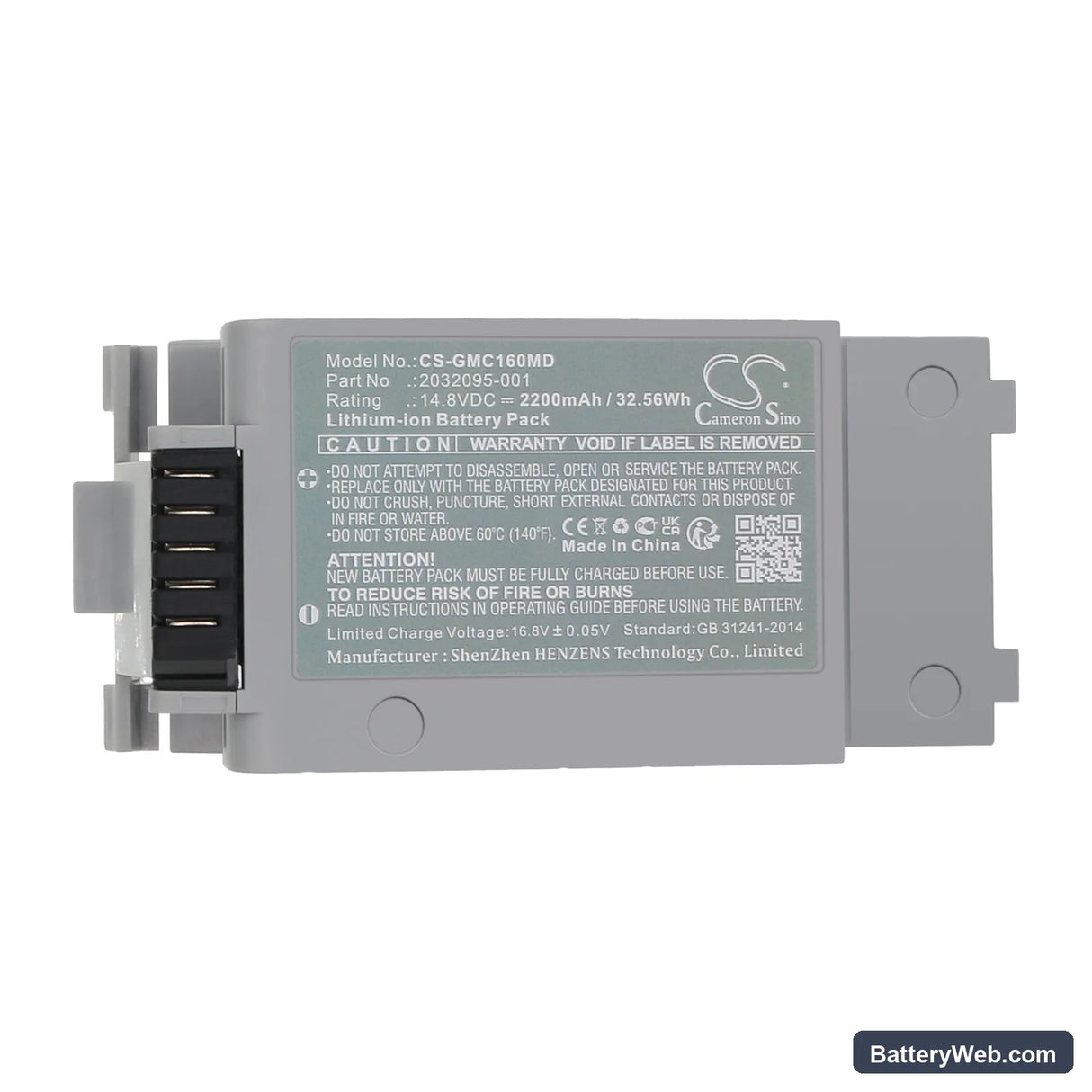

This 14.8V, 2200mAh lithium-ion battery replaces the OEM power cell in the GE Mac 1600 electrocardiograph. It fits the Mac 1600 and ECG Mac 1600 portable cardiac monitors used in hospitals, clinics, and ambulatory care. Cross-references OEM part numbers 2032095-001, 2035701-001, and M2821.

• Mac 1600 and ECG Mac 1600 compatibility: Both variants run the same 14.8V four-cell architecture with an identical BMS handshake and connector pinout, so one cell covers the full platform. The BMS reads cell chemistry and state-of-charge before the device completes its boot sequence.
• Bench tested on actual hardware: We cycled this cell through charge and discharge on Mac 1600 hardware and confirmed the BMS accepted the new cell, cleared all battery fault flags, and passed the device's internal self-test without intervention.
• Post-swap startup protocol: After installation, let the Mac 1600 complete its full power-on self-test without interruption. The device runs a BMS verification pass at startup — cutting power during this sequence can latch a false battery fault that will not clear until the next complete reboot.

Why the Mac 1600 flags a battery fault after a confirmed full charge

The Mac 1600's charge IC applies a conservative acceptance threshold when it first sees a new cell — it compares internal resistance and open-circuit voltage against a learned OEM baseline that a fresh replacement has not yet established. If the cell's first-cycle profile falls outside that window, the device logs a fault even though the cell is electrically sound. Running one complete charge-discharge cycle lets the BMS map the new cell's characteristics and clear the mismatch. After that cycle, the fault does not reappear under normal use.

Mac 1600 will not power on after the battery sat unused in storage

Lithium-ion cells self-discharge at roughly 2–3% per month. If a spare battery has been stored for several months without a top-up charge, its resting voltage can drop below the Mac 1600's BMS recovery threshold — typically around 10V for a 14.8V four-cell pack — and the device will not respond to the power button at all. Place the battery on charge for a minimum of 30 minutes before attempting to power on; most BMS controllers will re-initialise once the pack climbs above that threshold. If the device still shows no response after a full charge attempt, measure pack voltage directly — a reading below 8V indicates the cells have discharged beyond recovery.
