GE 11.1V Medical Device Replacement Battery 0146-00-0069

GE Medical Monitor — 11.1V Li-ion Replacement Battery (0146-00-0069)

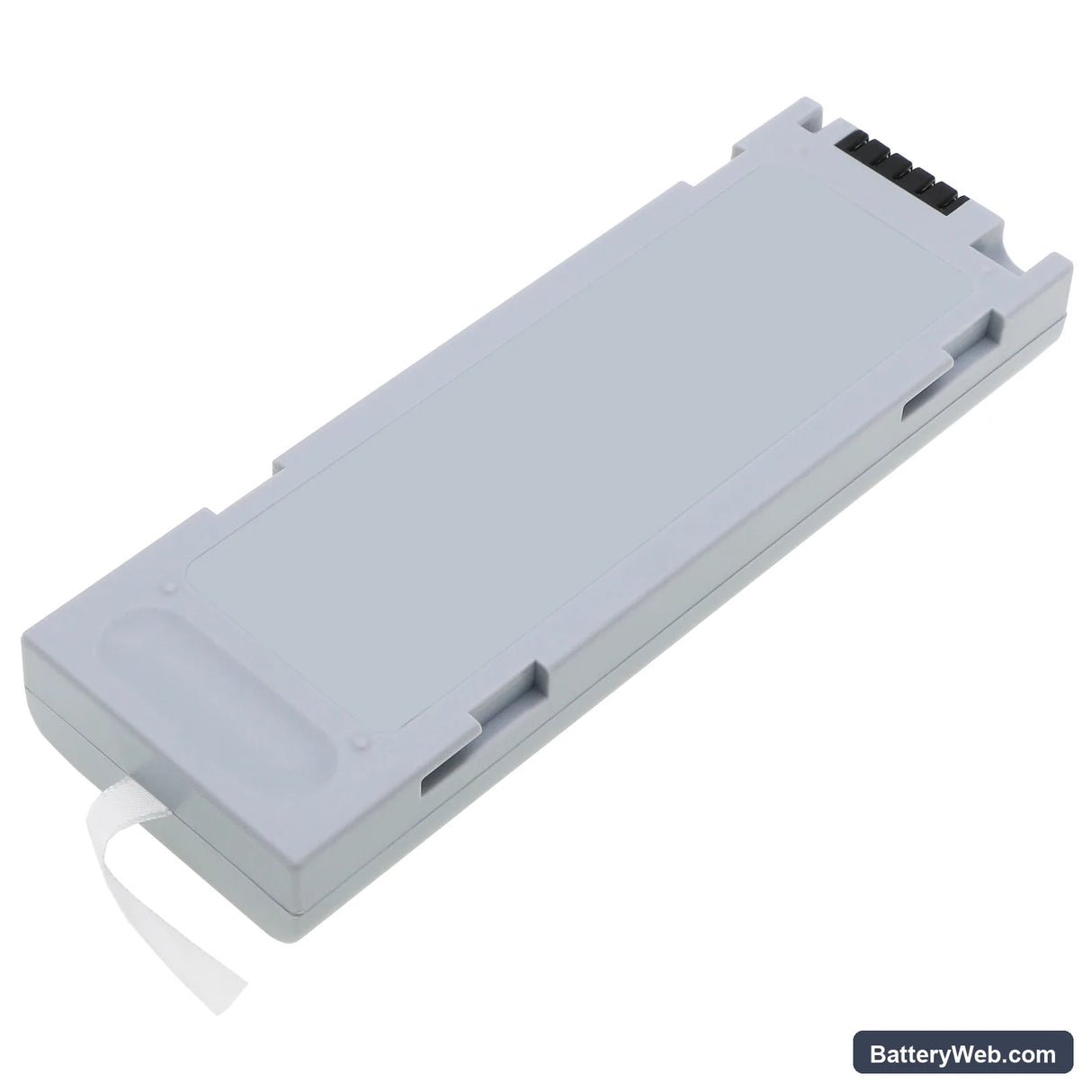

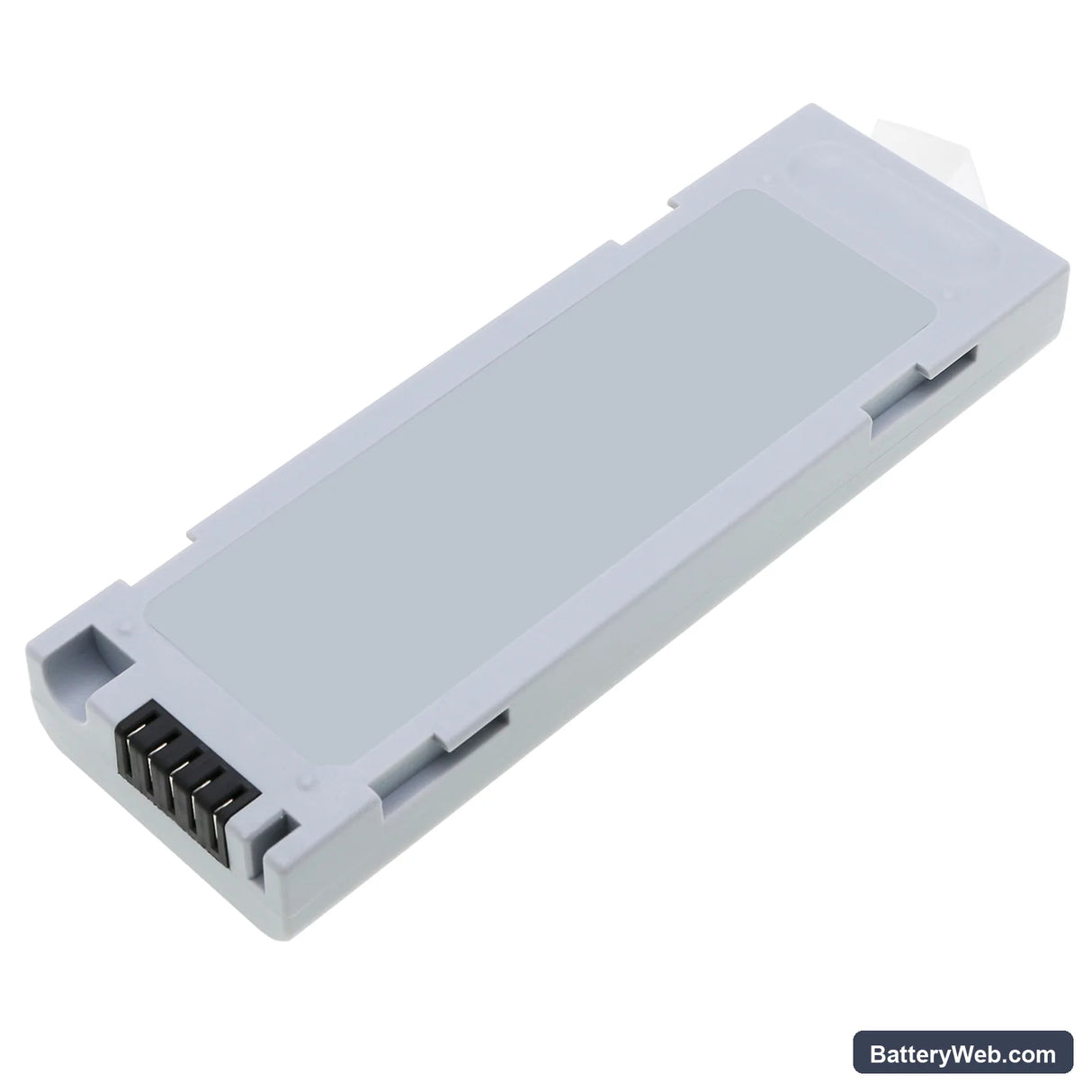

This 11.1V 6800mAh (75.48Wh) Li-ion battery replaces GE OEM part 0146-00-0069 in GE portable patient monitoring equipment. It matches the original cell's voltage rail and connector configuration. Install it when the original pack no longer holds a charge or triggers persistent low-battery alarms during clinical use.

• GE monitor platform fit: GE patient monitors in this class share a common battery bay, BMS handshake protocol, and 11.1V nominal voltage rail. This cell meets those electrical parameters so the device recognises it without throwing a battery-type fault on the status screen.
• Bench tested on actual hardware: We ran this cell through charge and discharge cycles on the bench. The BMS completed its initialisation sequence, accepted a full charge to the expected voltage ceiling, and released current within normal parameters under a simulated clinical load profile.
• Post-swap self-test procedure: After installation, let the device complete its full power-on self-test without interruption. GE monitors run a BMS verification step at startup — cutting power during this sequence registers a false battery fault that persists until the next complete reboot cycle.

Why GE monitors flag a new battery as low during the first boot

GE patient monitors use a BMS that compares cell impedance and charge state against a stored OEM chemistry profile. A new cell that has not completed its first full charge-discharge cycle will present an impedance signature outside that stored threshold. The monitor interprets this as a degraded or under-capacity pack and triggers the low-battery alarm. Running one complete charge-discharge cycle recalibrates the BMS read and clears the flag on subsequent boots.

Charge indicator stalling below 100% on the first charge

On the first charge after a swap, the charge IC in GE monitors applies a conservative current ceiling to an unrecognised cell — this is deliberate, not a fault. The indicator will plateau at 90–95% before the BMS releases the final topping charge. Allow the device to remain on charge until the indicator advances to 100% and the charge LED changes state. If it stalls beyond two full charge attempts, check that the battery contacts are seated fully and the pack voltage reads at least 10.5V before connecting to the charger.
