HB4Q1 Huawei U9500 Compatible Battery 3.7V 1800mAh

Huawei Ascend D1 / U9500 Series — 3.7V Li-Polymer Replacement Battery (HB4Q1)

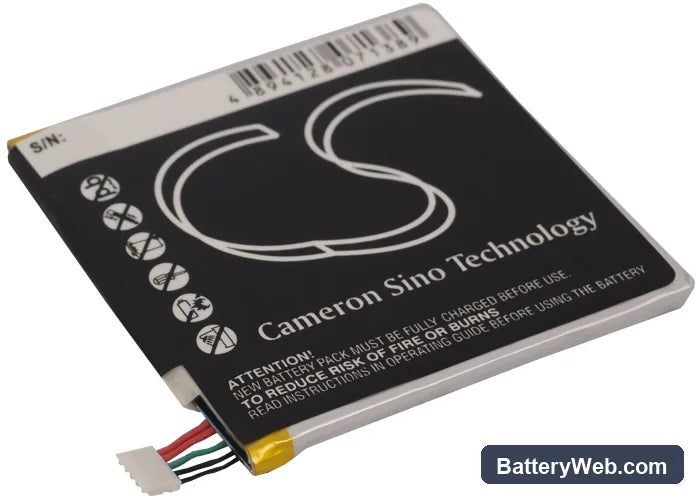

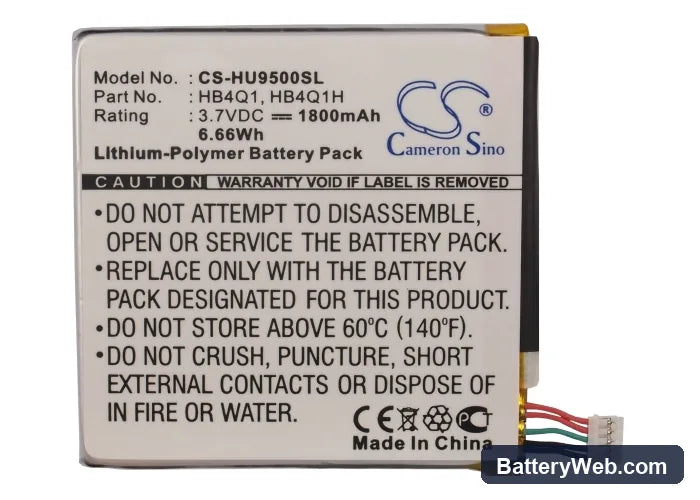

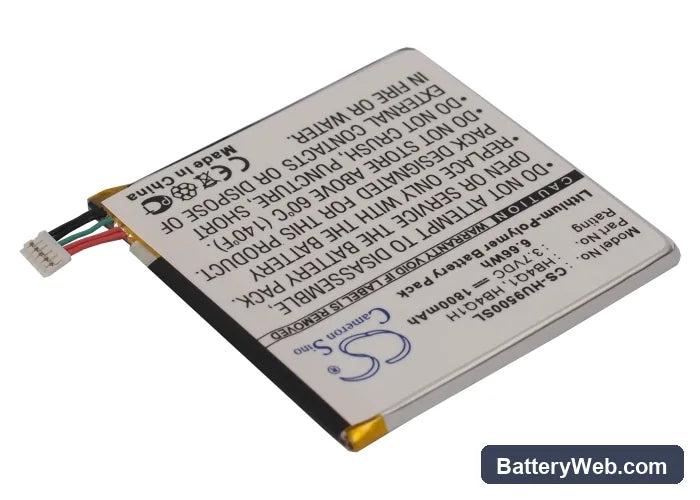

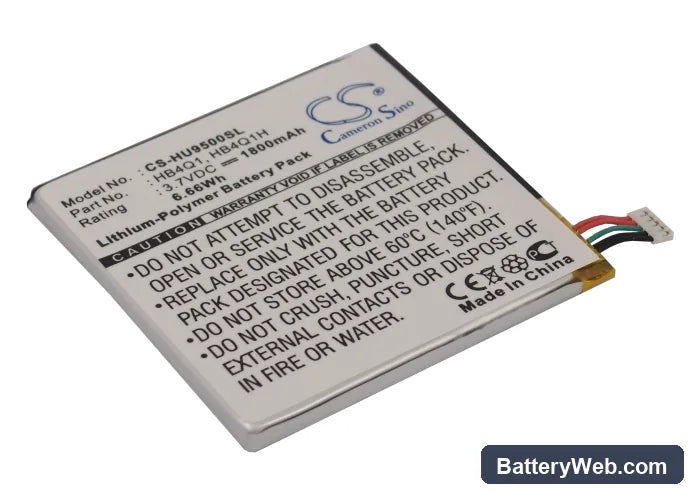

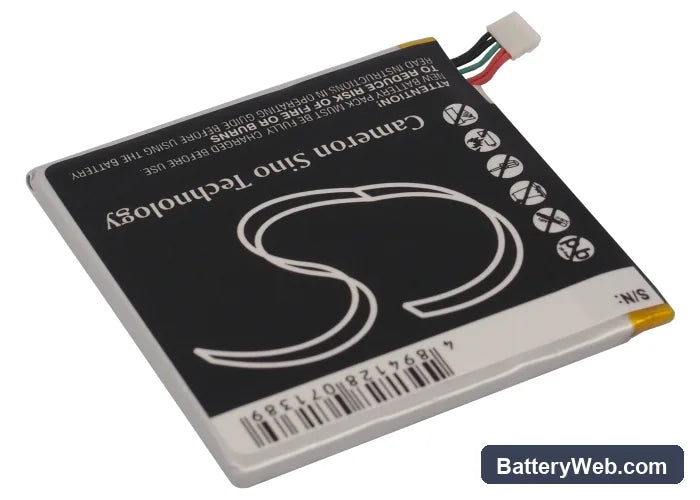

This is a 3.7V, 1800mAh (6.66Wh) lithium-polymer replacement battery for the Huawei U9500, U9500e, Ascend D1, and Ascend D1 XL. It replaces OEM part numbers HB4Q1, HB4Q1H, and HB4Q1HV. If your original cell swells, drains rapidly, or no longer holds a charge, this is the direct swap.

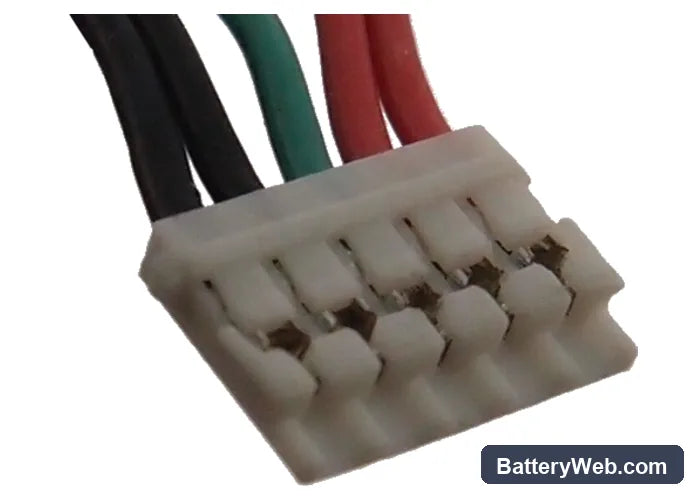

• U9500 and Ascend D1 series fit: These models share the same battery bay dimensions, 3.7V nominal rail, and connector pinout. The BMS handshake protocol is identical across U9500, U9500e, and Ascend D1 variants, so the fuel gauge IC reads the cell without manual pairing or firmware intervention.
• Bench tested on actual hardware: We ran this cell through charge and discharge cycles on the U9500 platform. The BMS accepted the cell on first insertion, voltage regulation held within spec under full screen-on and modem load, and no thermal cutoff events occurred.
• First-cycle calibration on the Ascend D1: On first use after installation, disable fast charging for one complete discharge-charge cycle. The fuel gauge IC on these devices calibrates its coulomb counter against the cell's discharge curve — feeding a high current into an uncalibrated cell causes the percentage readout to drift by 10–15% within the first week.

Why the U9500 reports wrong battery percentage after a cell swap

The U9500 uses a fuel gauge IC that builds its capacity model from the previous cell's discharge curve. When a new cell goes in, that stored model no longer matches the actual chemistry. The IC continues estimating from stale data until it completes a full reference cycle. Run one uninterrupted discharge down to shutdown, then charge to 100% without interruption — after that cycle, the coulomb counter resets against the new cell and percentage accuracy returns to normal.

Sudden shutdown at 20–30% on the replacement cell

This happens when the modem or display draws a current spike the cell cannot sustain at low state-of-charge — the terminal voltage drops below the BMS cutoff threshold even though the reported percentage looks safe. On a fresh lithium-polymer cell, this is almost always a fuel gauge calibration issue, not a faulty battery. Complete two full discharge-charge cycles without fast charging. If the shutdowns continue past that point, measure resting voltage after a full charge — it should read 4.18–4.20V. Anything below 4.10V after a full charge indicates a cell that did not reach full capacity.
