Mindeo M60 Barcode Scanner Compatible Battery HMD60 3.85V

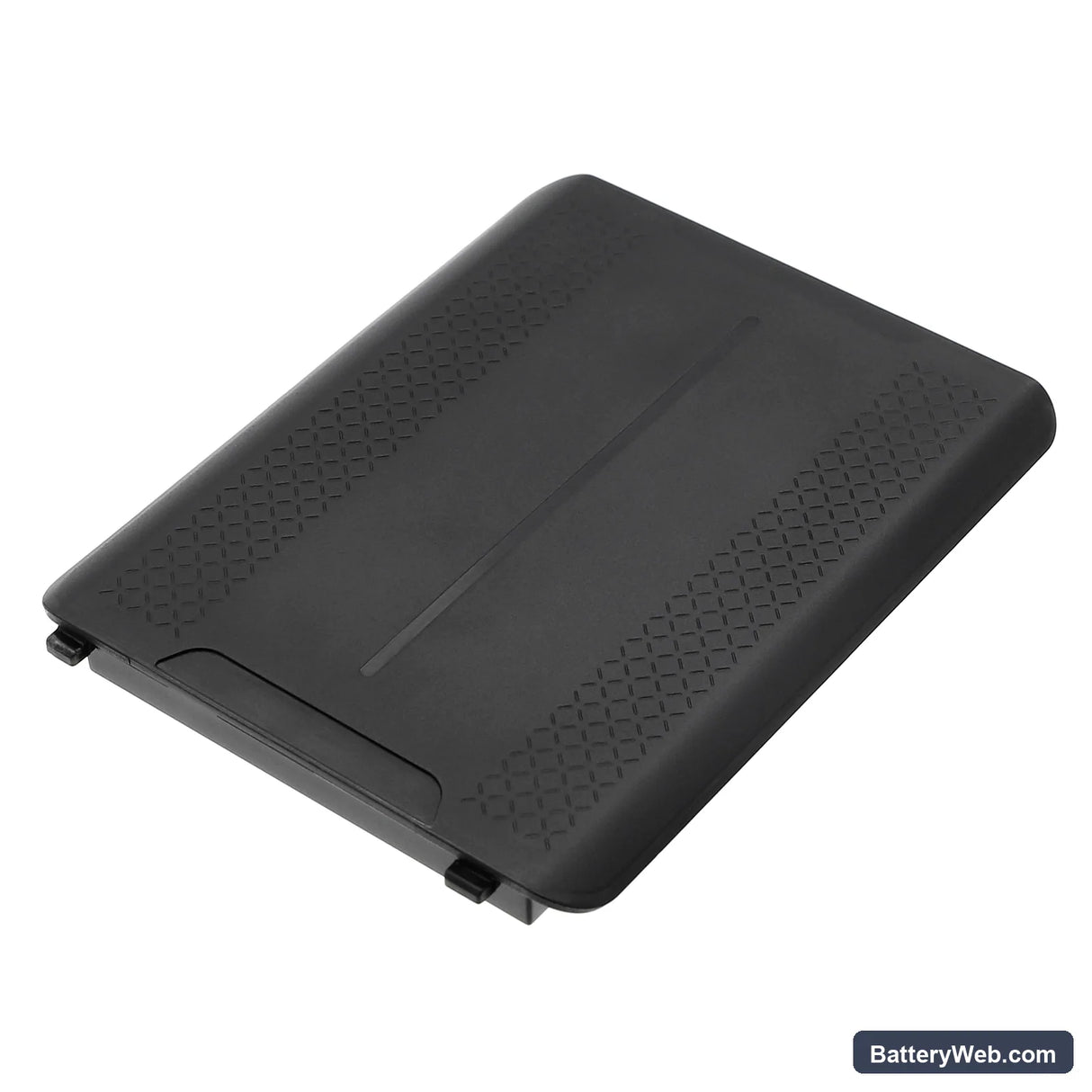

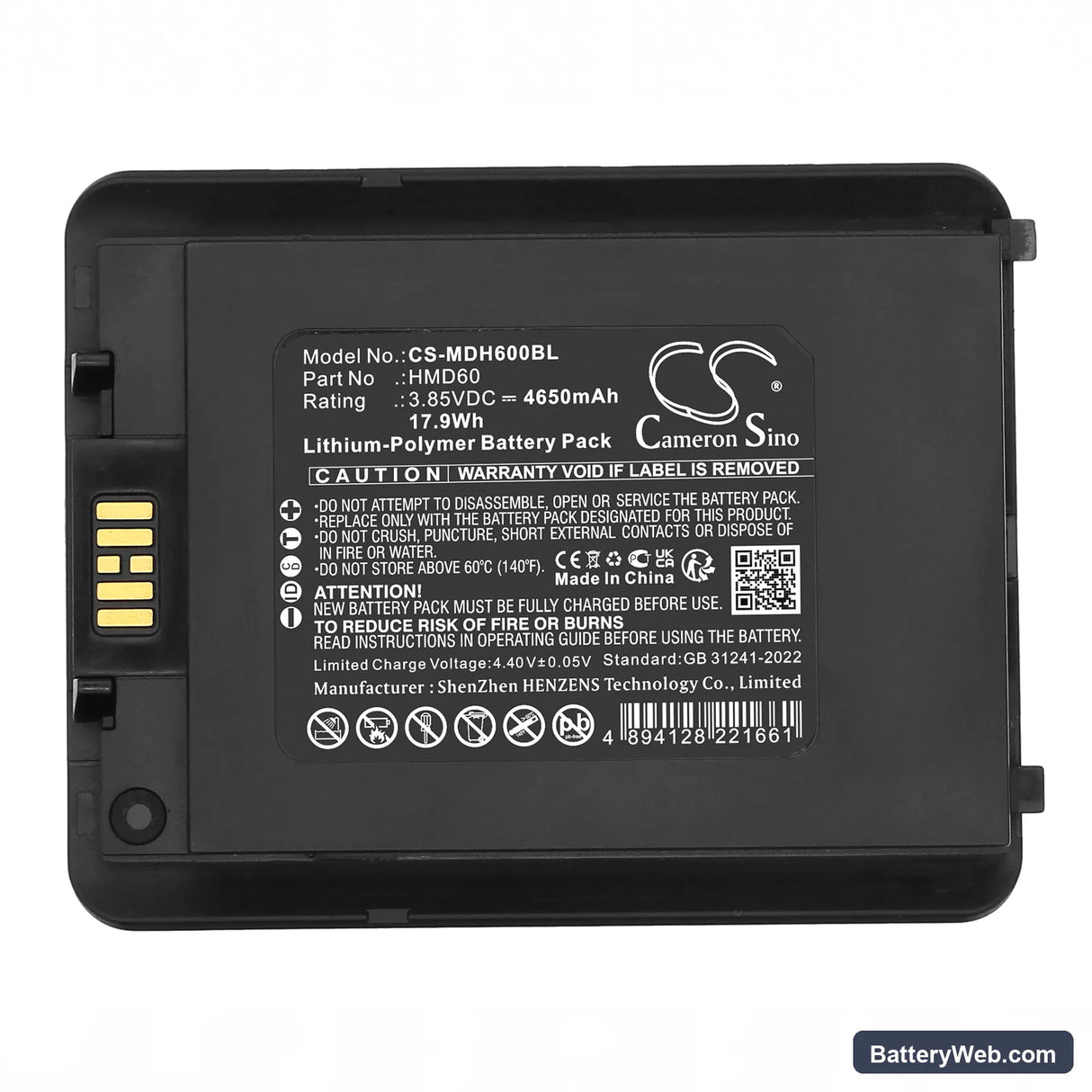

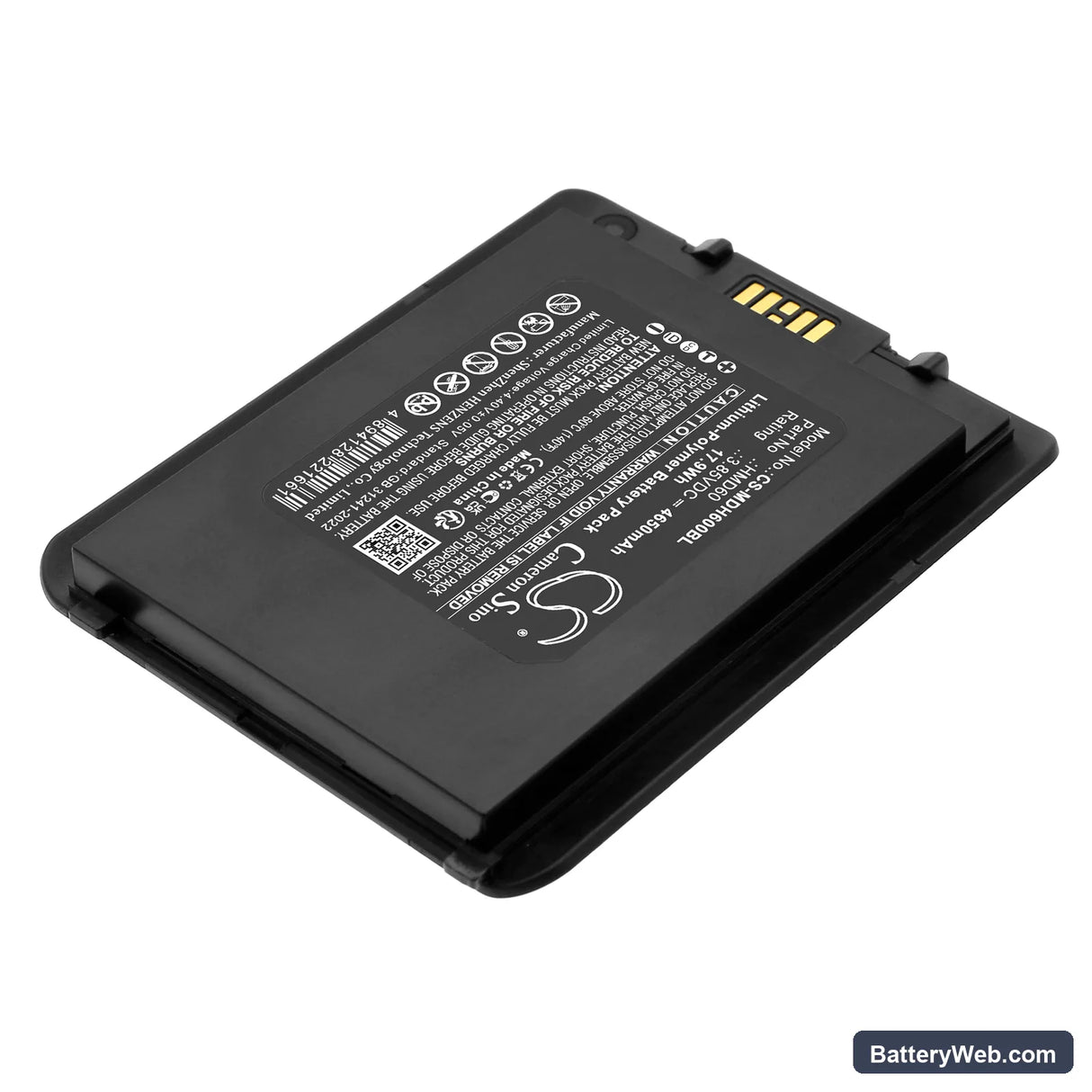

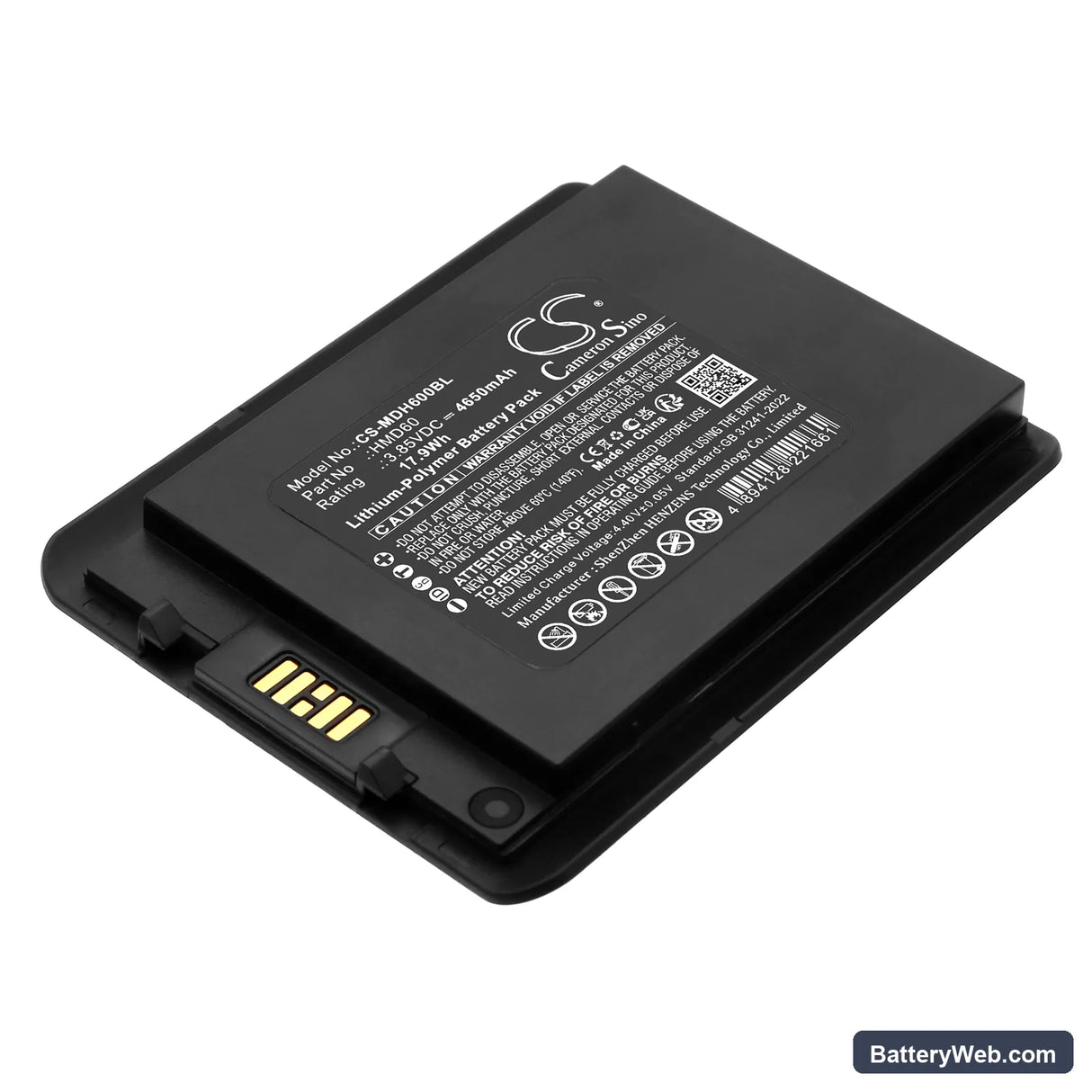

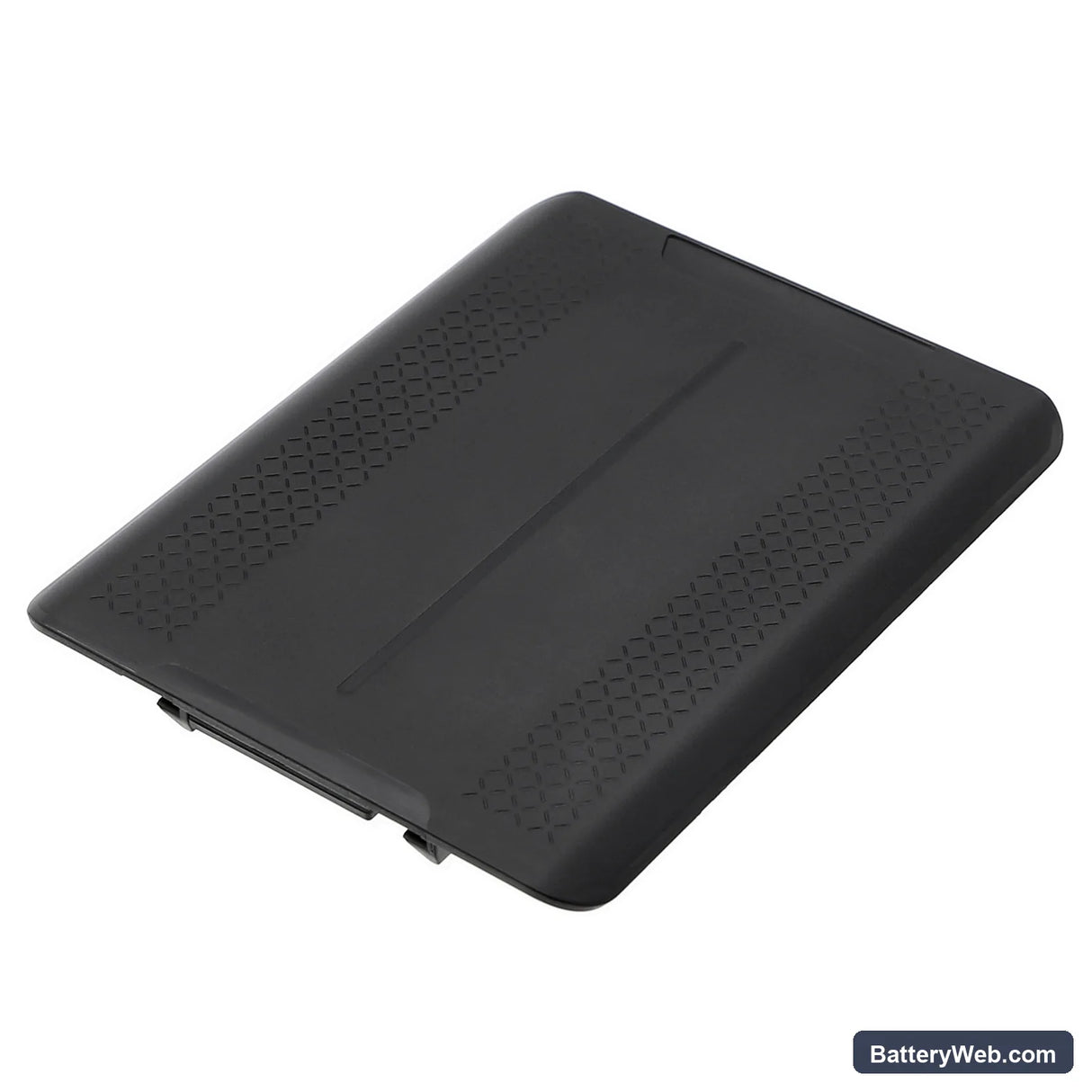

Mindeo M60 — 3.85V Li-Polymer Replacement Battery (HMD60)

The HMD60 is a 3.85V, 4650mAh Li-Polymer cell that fits the Mindeo M60 handheld barcode scanner. The M60 is a mobile data capture device used in retail, logistics, and warehouse inventory workflows. This battery matches the original voltage and capacity spec to keep the scanner running through active scan shifts.

• M60 platform fit: The M60 uses a dedicated battery bay with a fixed connector orientation and a BMS handshake that checks cell voltage on insertion. The HMD60 part number matches this handshake, so the scanner powers on without a BMS rejection error.
• Bench tested on actual hardware: We cycled this pack through repeated scan-trigger and wireless polling loads. The BMS held stable across the draw spikes and did not trip into protection mode during high-frequency scan bursts.
• First-shift prep for pick-and-pack: After installing this battery, seat the M60 in its charging cradle and run a full charge cycle before putting it on the floor. The scan trigger draws peak inrush current at low cell voltage — a fully charged cell prevents false BMS trips on the first shift's opening scans.

Cradle showing a charging error on a new HMD60 pack

A charging error on a freshly installed pack is almost always a contact resistance issue, not a faulty cell. The M60 cradle reads a handshake voltage through the battery contacts before it starts the charge cycle. If the dock contacts or the pack contacts have any film or debris on them, that signal drops below threshold and the cradle throws an error. Wipe all four contacts on both the battery and the cradle with a dry lint-free cloth, reseat the pack firmly, and the charge light should go solid within 10 seconds.

Scanner losing wireless connection during rapid scan bursts

During fast back-to-back scanning, the M60 pulls current simultaneously from the imager and the wireless radio. If the cell voltage sags under that combined load, the radio module drops its connection to the access point before the scanner itself powers off — the screen stays on but the link goes dead. This often points to a degraded original battery being pushed past its sag limit, not a scanner fault. Swap to the new HMD60 pack, confirm the cell is fully charged to 4.35V, and test with the same scan-burst cadence to confirm the connection holds.
