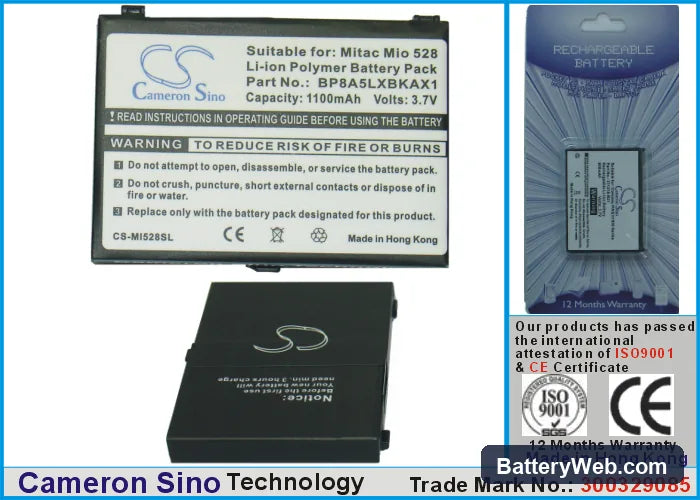

Mitac Mio 528 Compatible Battery 3.7V 1100mAh BP8A5LXBKAX1

Mitac Mio 528 / 529 / 538 — 3.7V Li-Polymer Replacement Battery (BP8A5LXBKAX1)

This is a 3.7V, 1100mAh Li-Polymer cell replacing OEM part BP8A5LXBKAX1 in the Mitac Mio 528, 529, and 538 GPS navigation devices. It restores power to the navigation unit when the original cell has degraded and can no longer hold a usable charge. Voltage and connector match the original so the device powers on and charges through the standard dock or USB cable.

• Mio 528, 529, and 538 compatibility: These three navigation units share the same battery bay dimensions, connector pinout, and 3.7V power rail. The BMS communication protocol is identical across the trio, so one cell covers all three without modification.
• Bench tested on actual hardware: We cycled this cell through charge and discharge on the Mio platform and confirmed the BMS accepted full charge without tripping a fault. The protection circuit responded correctly to both overvoltage and undervoltage thresholds during testing.
• RAM state before removal: The Mio 528 series holds active map route data and recent destination history in volatile RAM powered directly by the main battery. Sync or export any saved routes to a PC before pulling the old cell — a full power-off without backup wipes that data permanently.

Why the Mio 528 screen goes blank mid-route despite showing a charge indicator

An aged Li-Polymer cell in the Mio 528 loses internal capacity unevenly. The battery gauge reads a percentage based on voltage, but a degraded cell's voltage collapses faster under the combined load of the GPS receiver, backlit screen, and map-rendering processor. That sudden voltage sag drops below the BMS cutoff threshold even when the indicator still shows a partial charge. Replacing the cell resets the discharge curve and stops the false-reading shutdowns.

New battery fitted but the Mio 528 won't complete the boot sequence

A freshly shipped Li-Polymer cell typically arrives at 30–50% charge — enough for storage but not always enough to satisfy the Mio 528's minimum boot voltage under full system load. The device starts the boot sequence, the GPS radio and display spike current draw, and the BMS cuts out before the OS finishes loading. Connect the device to a charger and bring the cell up to at least 3.9V before attempting a first boot. The issue resolves after a single full charge cycle.
