MSI F13MG-206XES / Modern 14 — 11.55V Li-Polymer Replacement Battery (BTY-M4B)

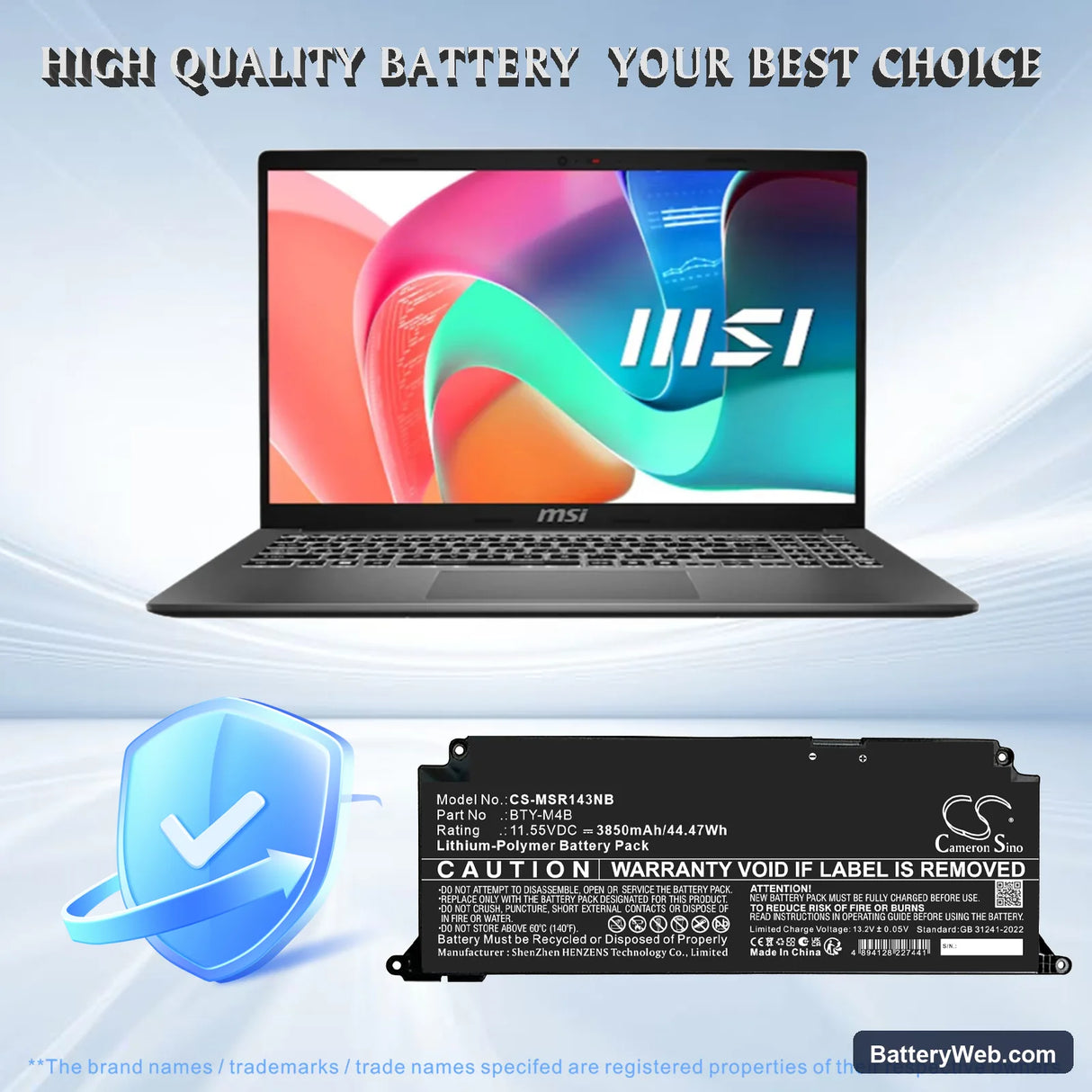

This is an 11.55V, 3850mAh (44.47Wh) Li-Polymer cell built to the BTY-M4B specification. It fits the MSI F13MG-206XES and the broader Modern 14 line. The connector, BMS handshake, and cell voltage all match the original MSI specification.

• F13MG-206XES and Modern 14 compatibility: Both models share the same 11.55V three-cell architecture, BTY-M4B connector pinout, and BMS communication protocol. One battery covers both without any adapter or modification.
• Bench tested on actual hardware: We ran this cell through charge and discharge cycles on Modern 14 hardware. The BMS handshake initialised correctly, charge current stepped down as expected near full capacity, and no BMS protection trip occurred under sustained CPU and display load.
• Post-install calibration cycle: After fitting this battery, discharge the laptop fully until it hibernates on its own — do not force shutdown — then charge uninterrupted to 100% without using the machine. This resets the BIOS battery learn cycle and clears the inaccurate health or low-capacity warning that appears after every cell swap on MSI notebooks.

BIOS reporting poor battery health immediately after fitting a new BTY-M4B

The MSI BIOS reads health data from an EEPROM log built up by the old cell over its lifetime. A new cell arrives with a blank or mismatched EEPROM profile, so the BIOS flags it as degraded before a single charge cycle completes. This is a data mismatch, not a fault with the cell itself. Running one full discharge-to-hibernate followed by an uninterrupted charge to 100% lets the BIOS write a fresh baseline and the warning clears on the next boot.

Laptop shuts down unexpectedly at 20–30% charge shown on screen

The fuel gauge IC calibrates its remaining-capacity estimate against the old cell's internal resistance curve. A new cell has a different curve, so the gauge misjudges the voltage cliff — the point where cell voltage drops sharply under load — and the laptop shuts down before the display reads zero. Under combined CPU and display load, the cell voltage can fall below the BMS cutoff threshold faster than the gauge predicts. Two to three full discharge and charge cycles recalibrate the fuel gauge IC against the new cell, and the early shutdowns stop once the estimate tracks actual cell voltage accurately.
