Theis TKL-7 Survey Instrument Replacement Battery 7.4V 5200mAh

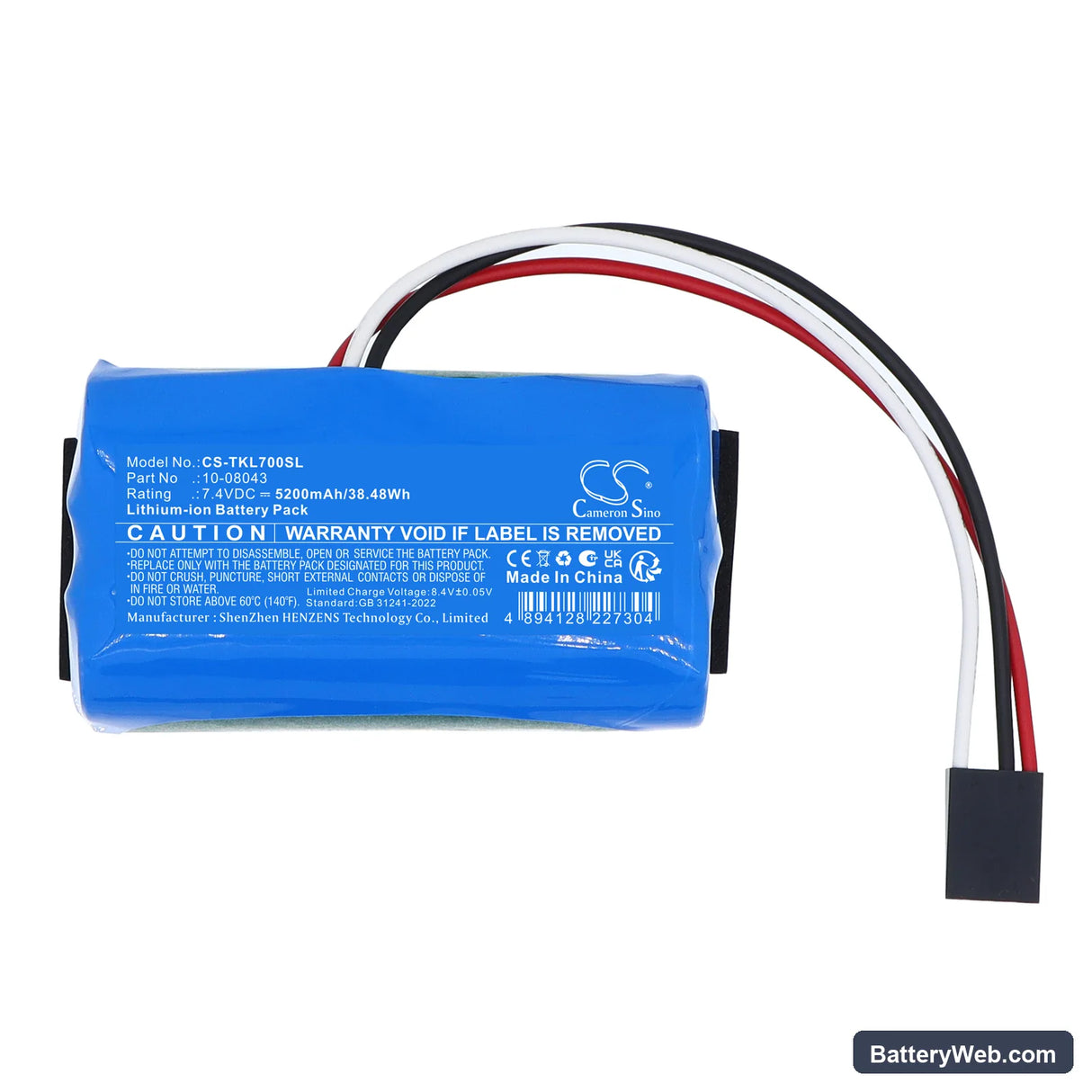

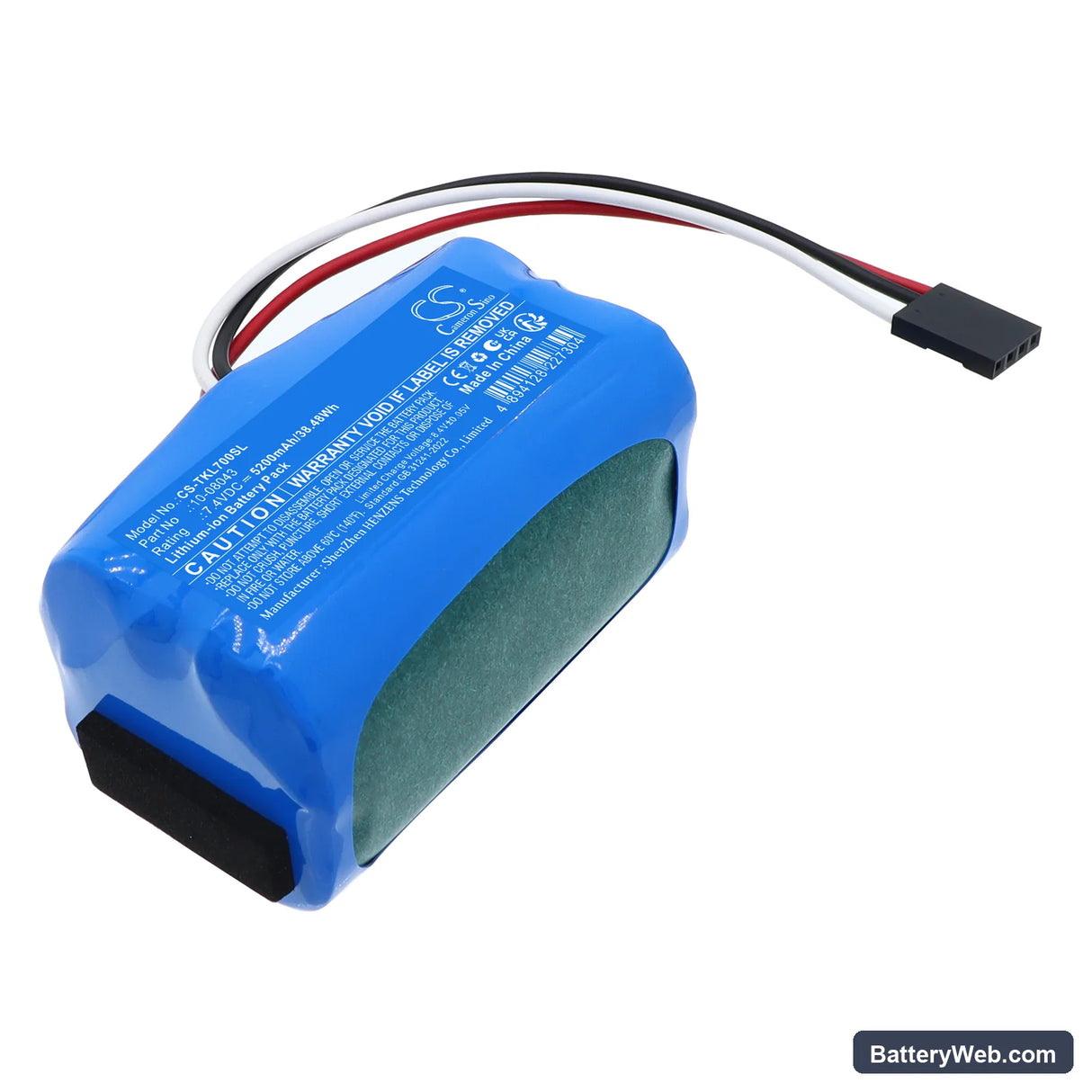

Theis TKL-7 — 7.4V Li-ion Replacement Battery (10-08043)

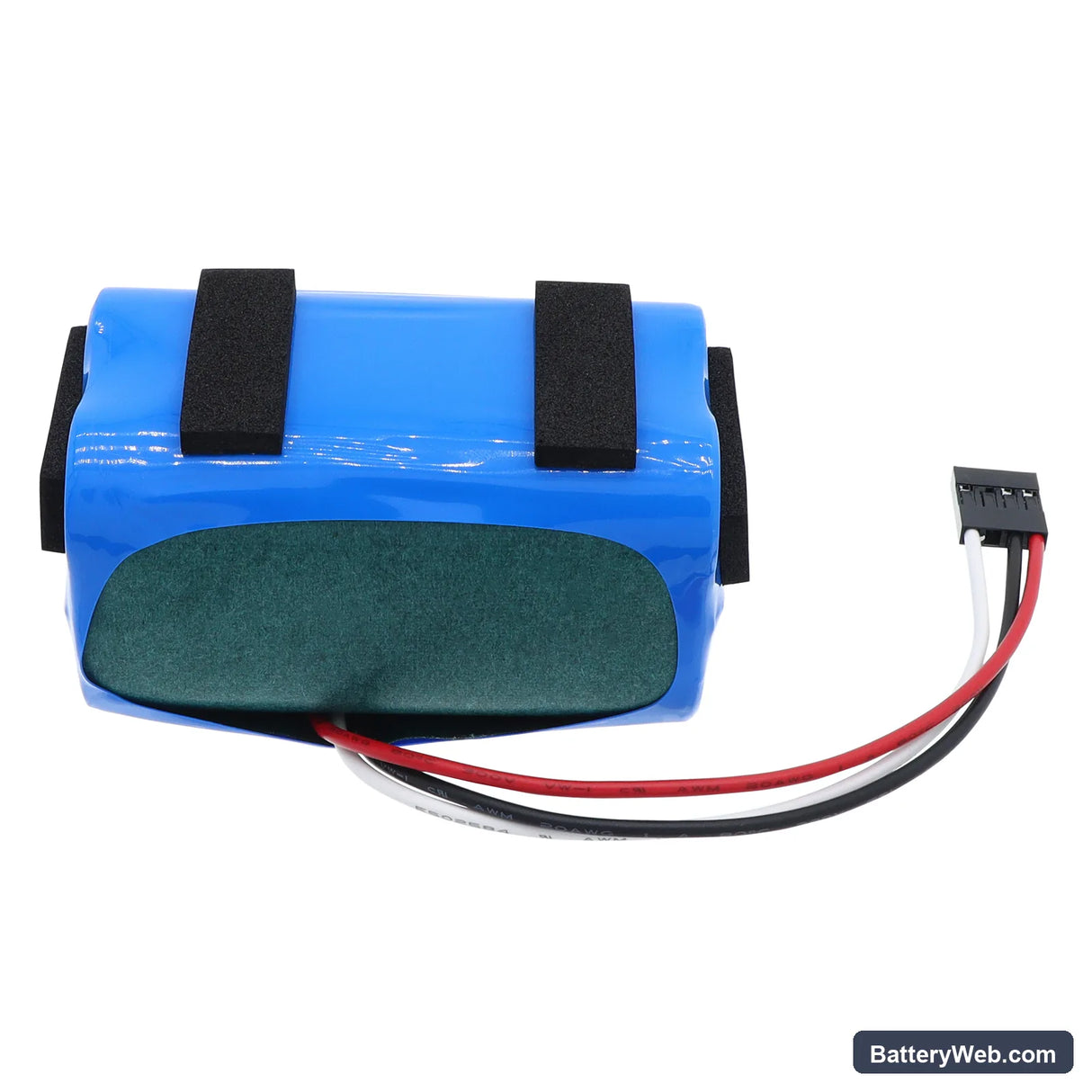

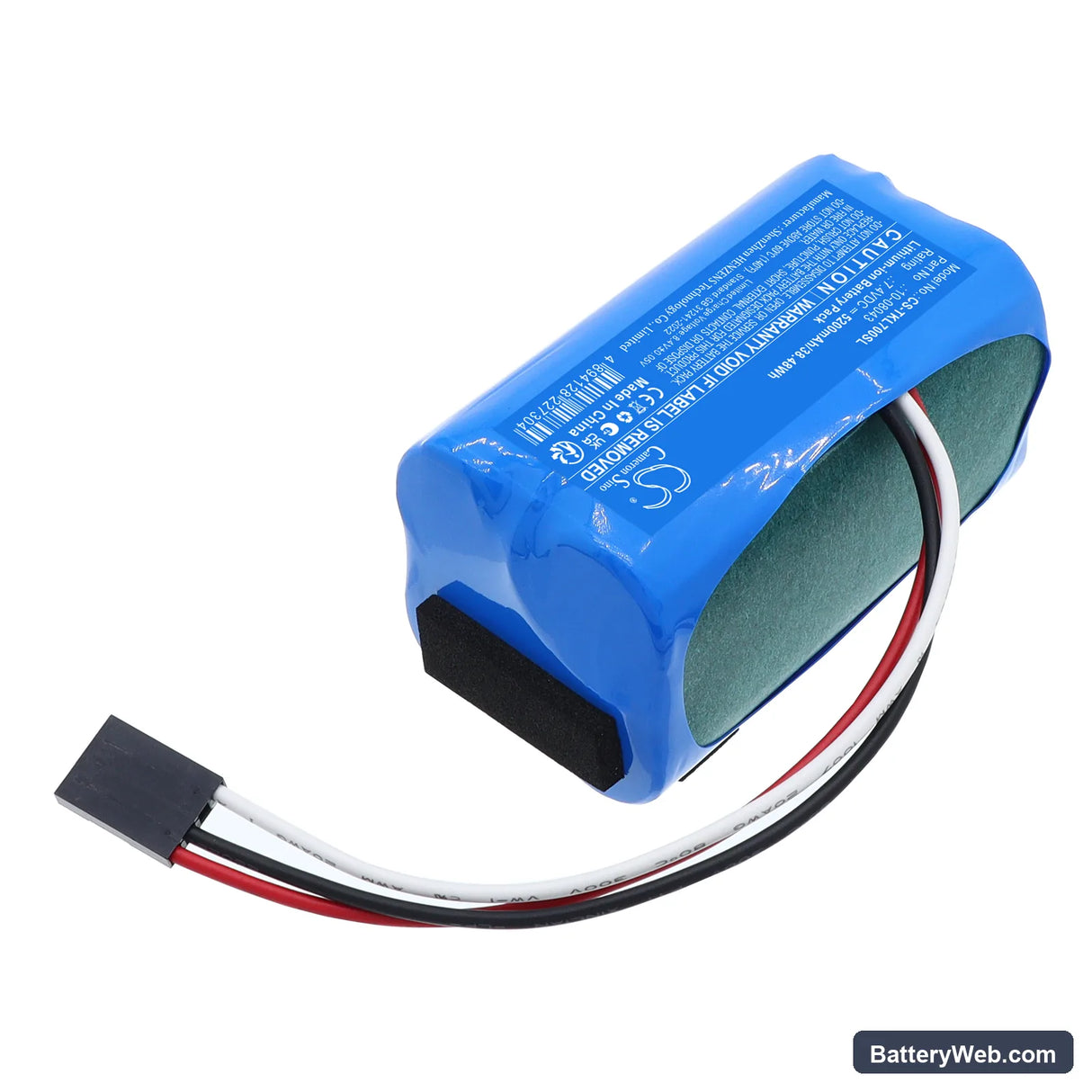

This 7.4V, 5200mAh lithium-ion battery replaces the OEM pack in the Theis TKL-7 portable field instrument. It fits the TKL-7 used in surveying, measurement, and data collection applications. Voltage, capacity, and connector match the original 10-08043 specification.

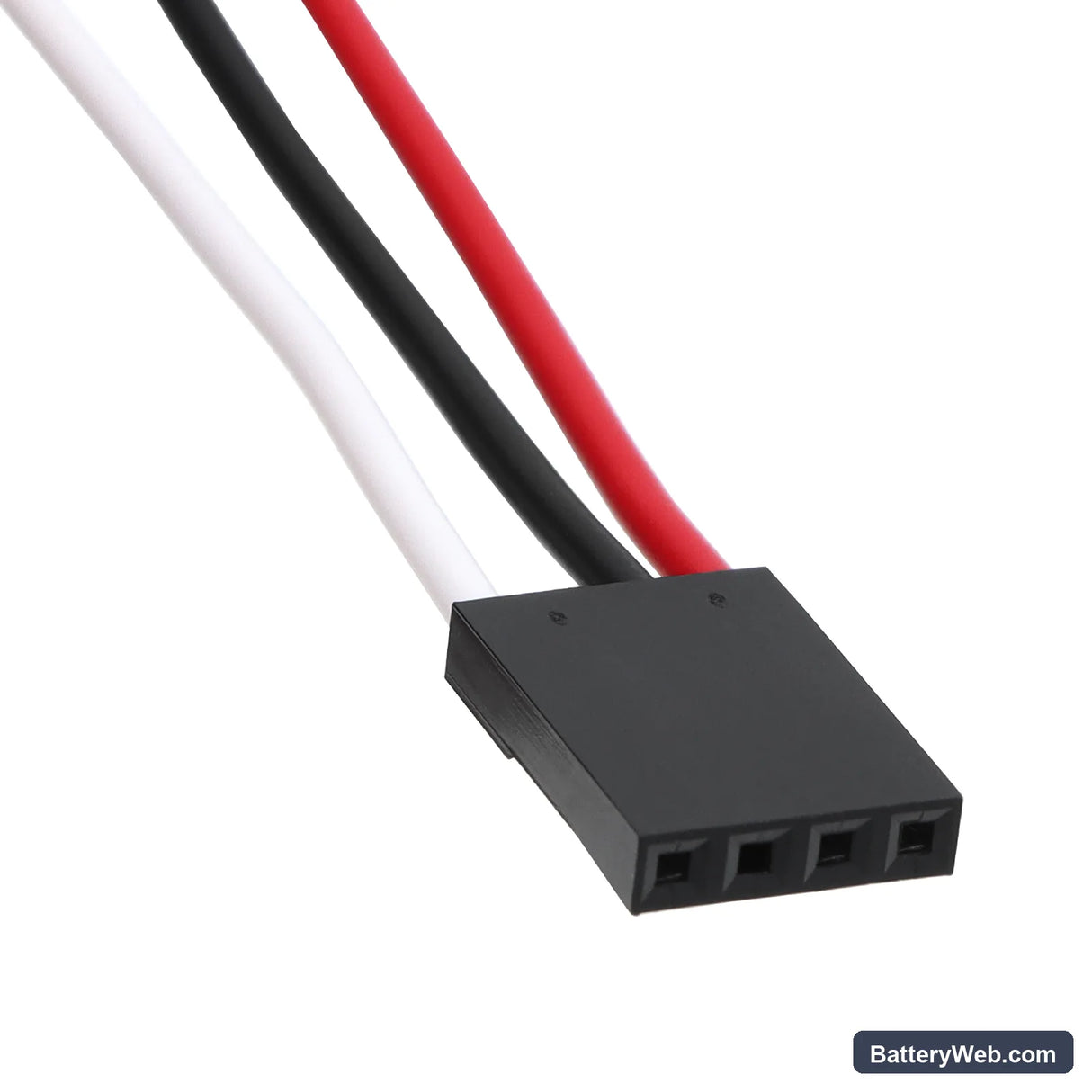

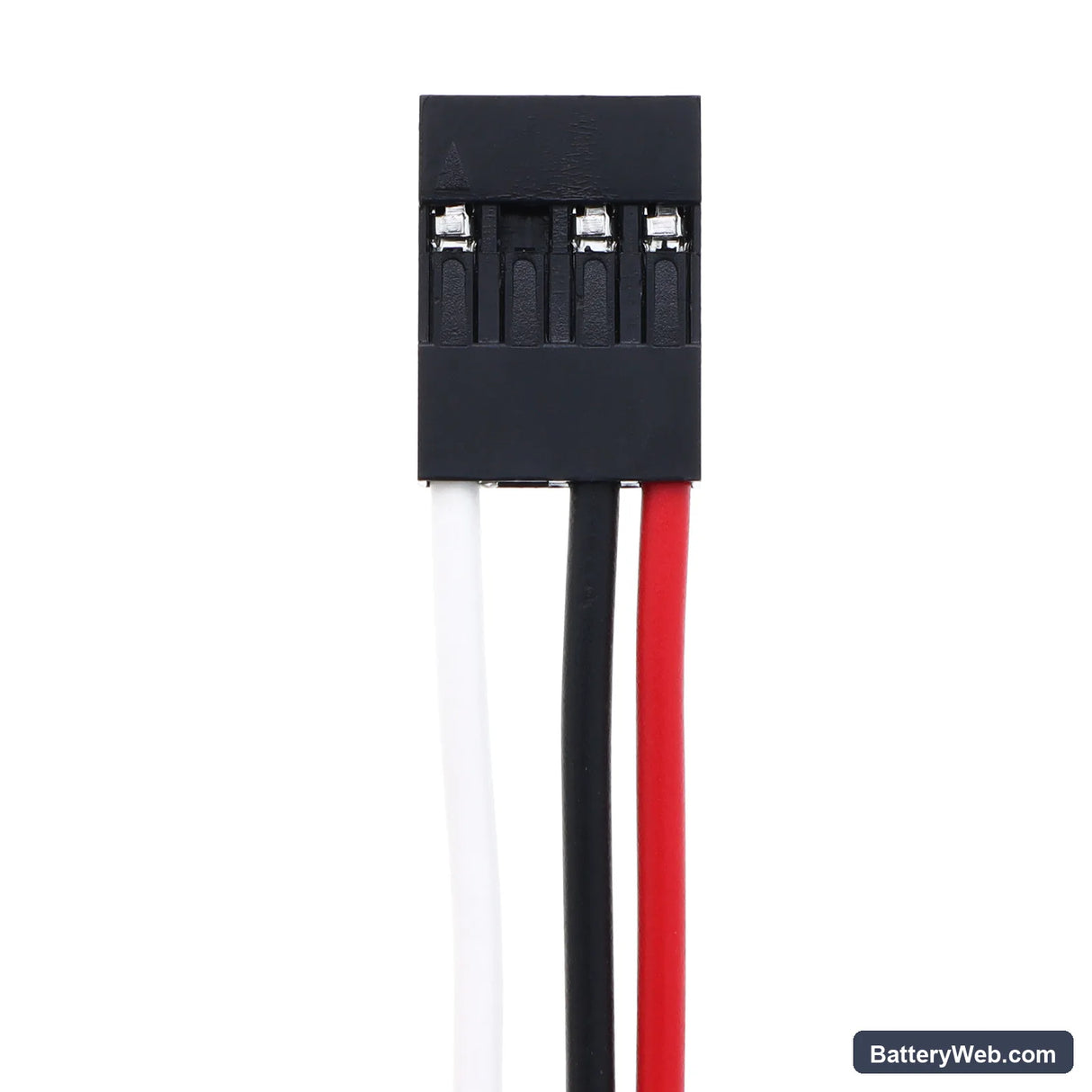

• TKL-7 platform fit: The TKL-7 uses a fixed 7.4V two-cell Li-ion architecture with a BMS that handshakes on power-up. This pack matches that voltage rail and connector pinout, so the instrument powers on and reads the pack without throwing a battery fault.
• Bench tested on actual hardware: We cycled this pack through instrument power-up, probe initialisation, and sustained sensor logging. The BMS held the output rail steady through the current spike at probe power-up — no cutoff, no fault code.
• First deployment — run the calibration cycle: After installing, run a full calibration cycle through the TKL-7 instrument menu before heading into the field. The instrument maps battery state during calibration. Skipping this step causes premature low-battery warnings on the first measurement session, even when the pack is fully charged.

BMS lockout after the TKL-7 sat unused in a carry case for months

Li-ion cells self-discharge slowly during storage. If the TKL-7 sits unused for several months, the pack voltage can drop below the BMS recovery threshold — typically around 2.5V per cell. At that point the BMS enters a protective lockout state and the instrument will not power on at all. Connect the pack to a compatible charger and leave it for at least two hours before attempting to power the instrument; most BMS circuits recover once the cells are nudged above 3.0V per cell.

Readings drifting or logging session restarting mid-measurement

When the TKL-7 runs multiple active sensors simultaneously, sustained current draw can cause a momentary voltage dropout on the output rail. An ageing or partially discharged pack has higher internal resistance, so the voltage sags further during that sustained load. The instrument interprets the dropout as a low-power event and resets the active session. Charge the pack to full before a multi-sensor session and confirm resting voltage reads at least 8.0V on a multimeter before deploying.
