Theis TKL-7 Replacement Battery 7.4V 6800mAh Li-ion

Theis TKL-7 — 7.4V Li-ion Replacement Battery (10-08043)

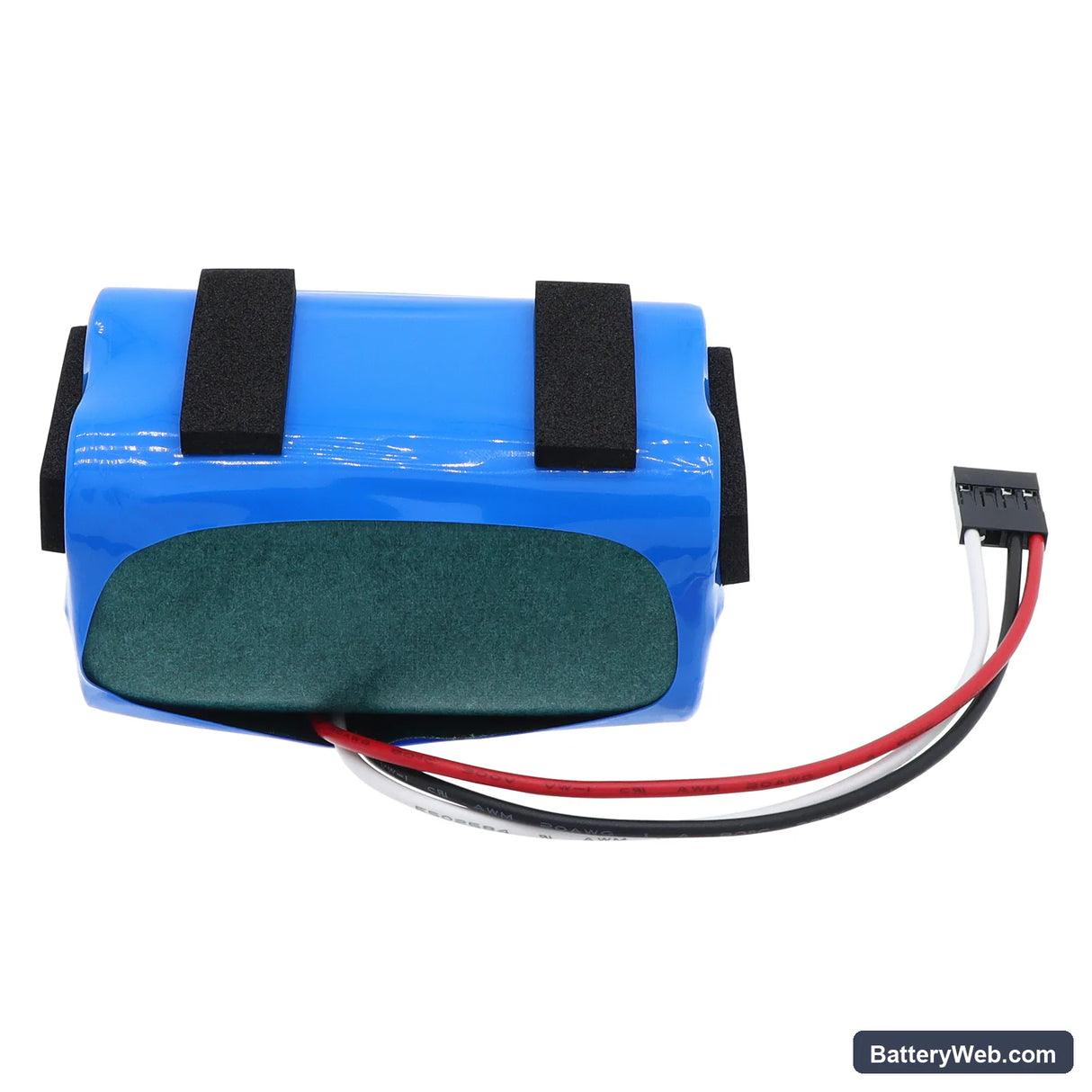

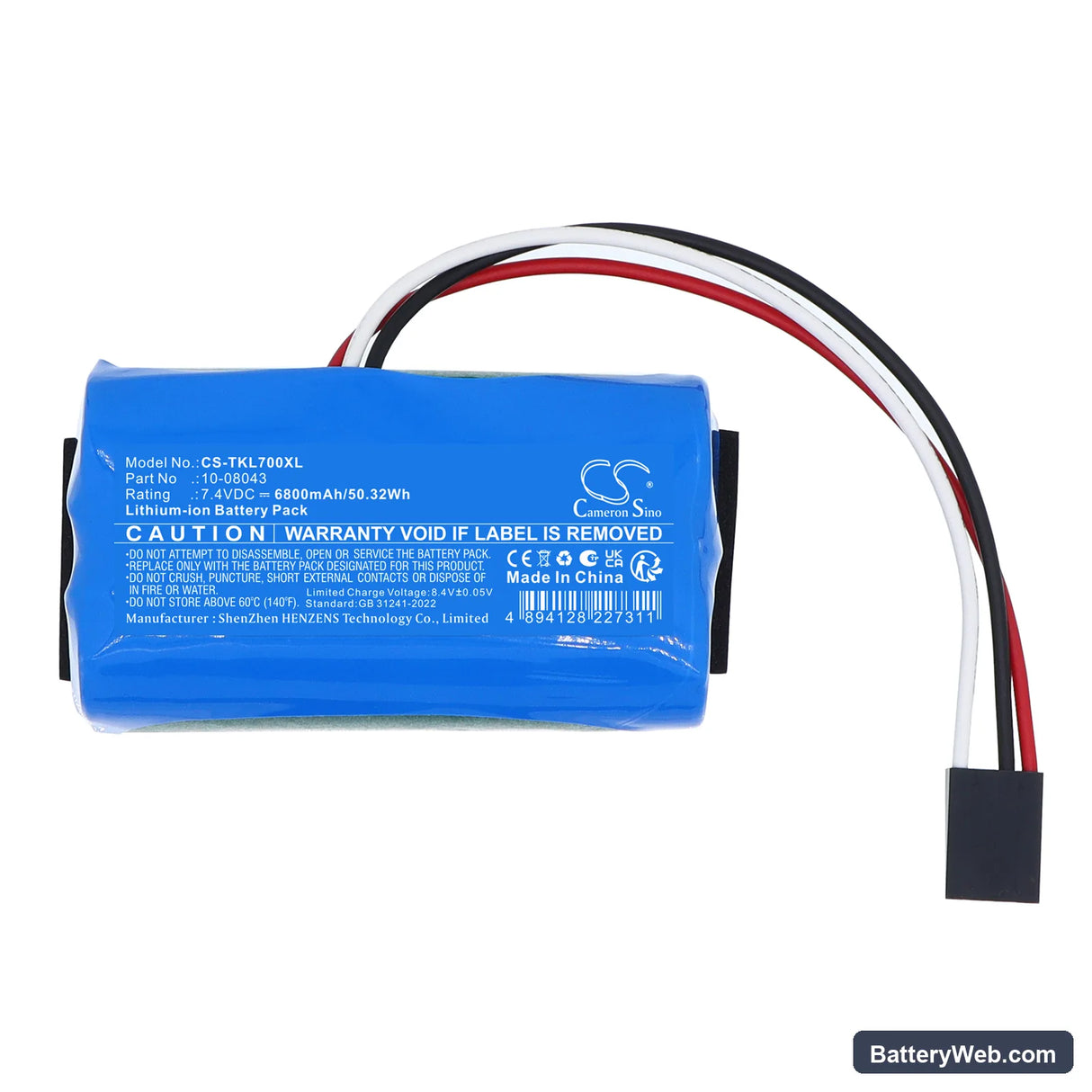

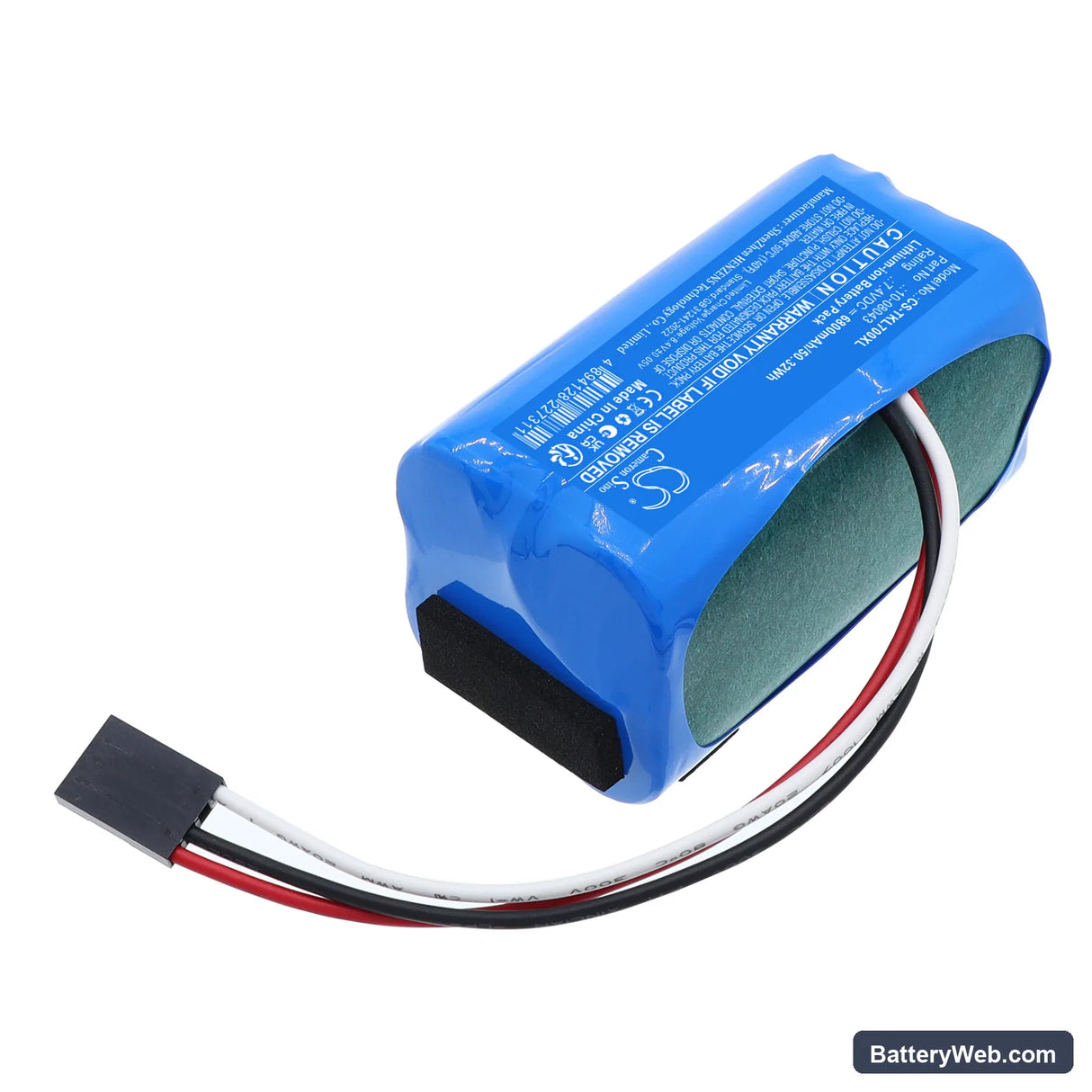

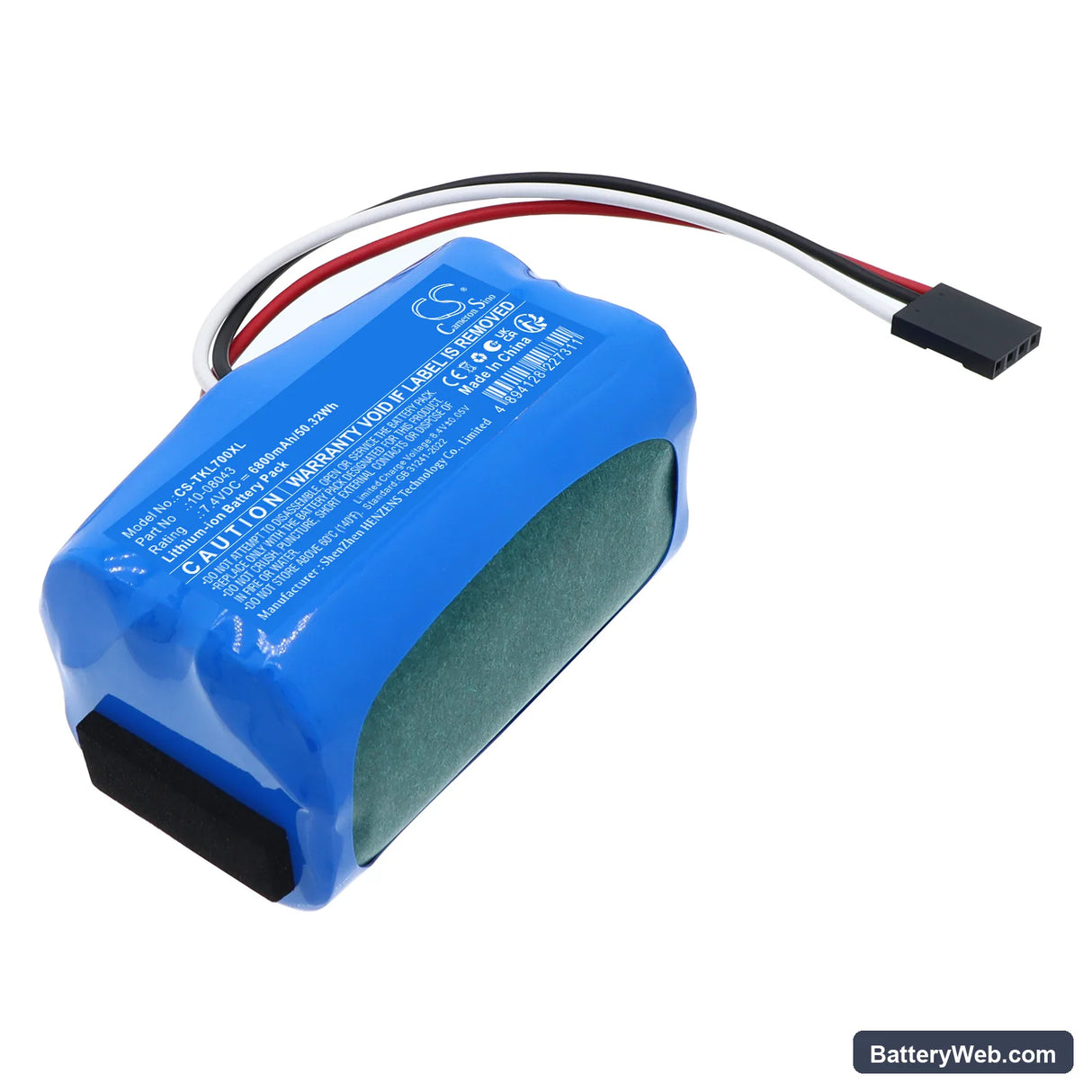

This 7.4V Li-ion battery replaces the OEM pack in the Theis TKL-7 total station. It delivers 6800mAh (50.32Wh) at the same voltage and connector configuration as the factory battery. Built for surveyors running multi-day field operations where charging access is limited.

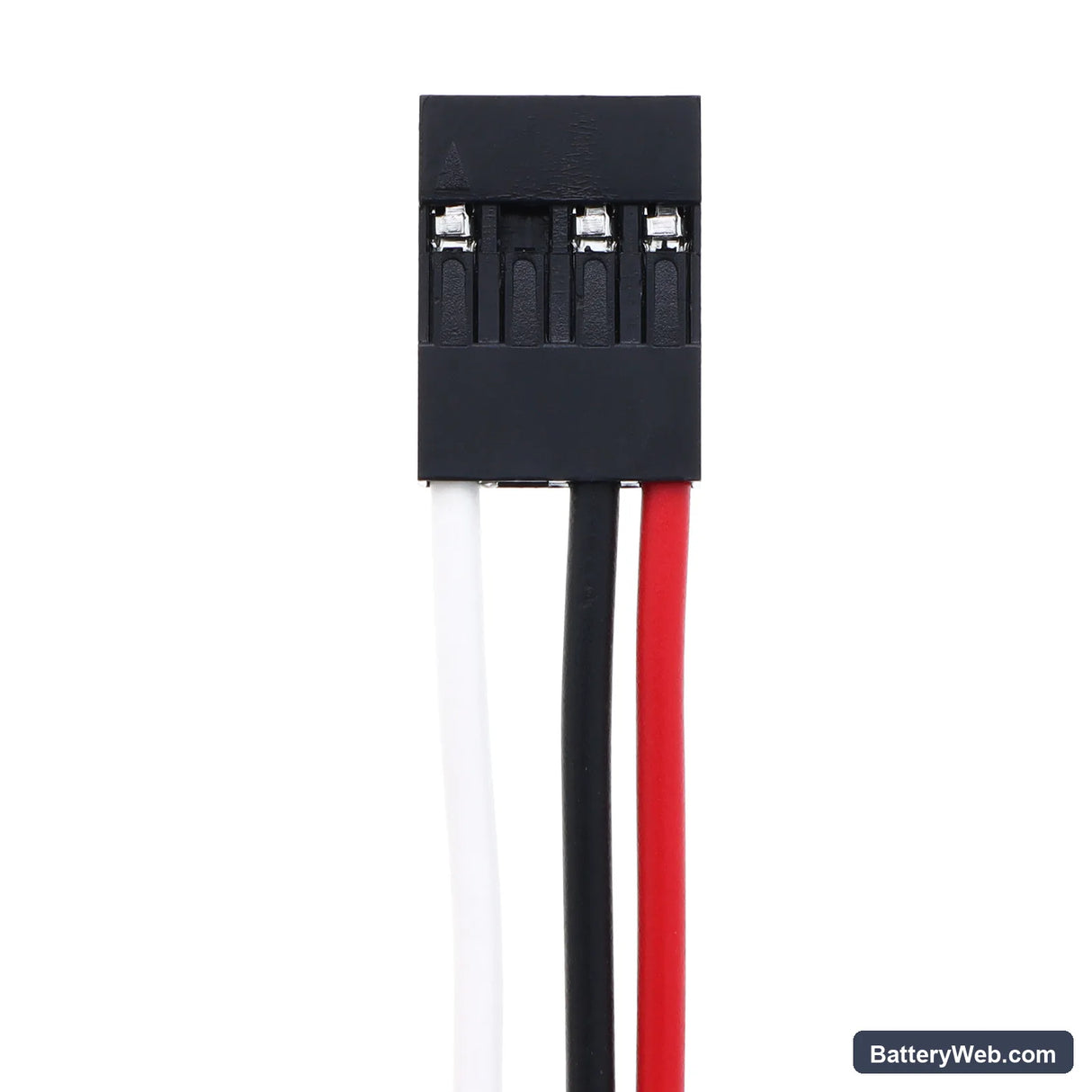

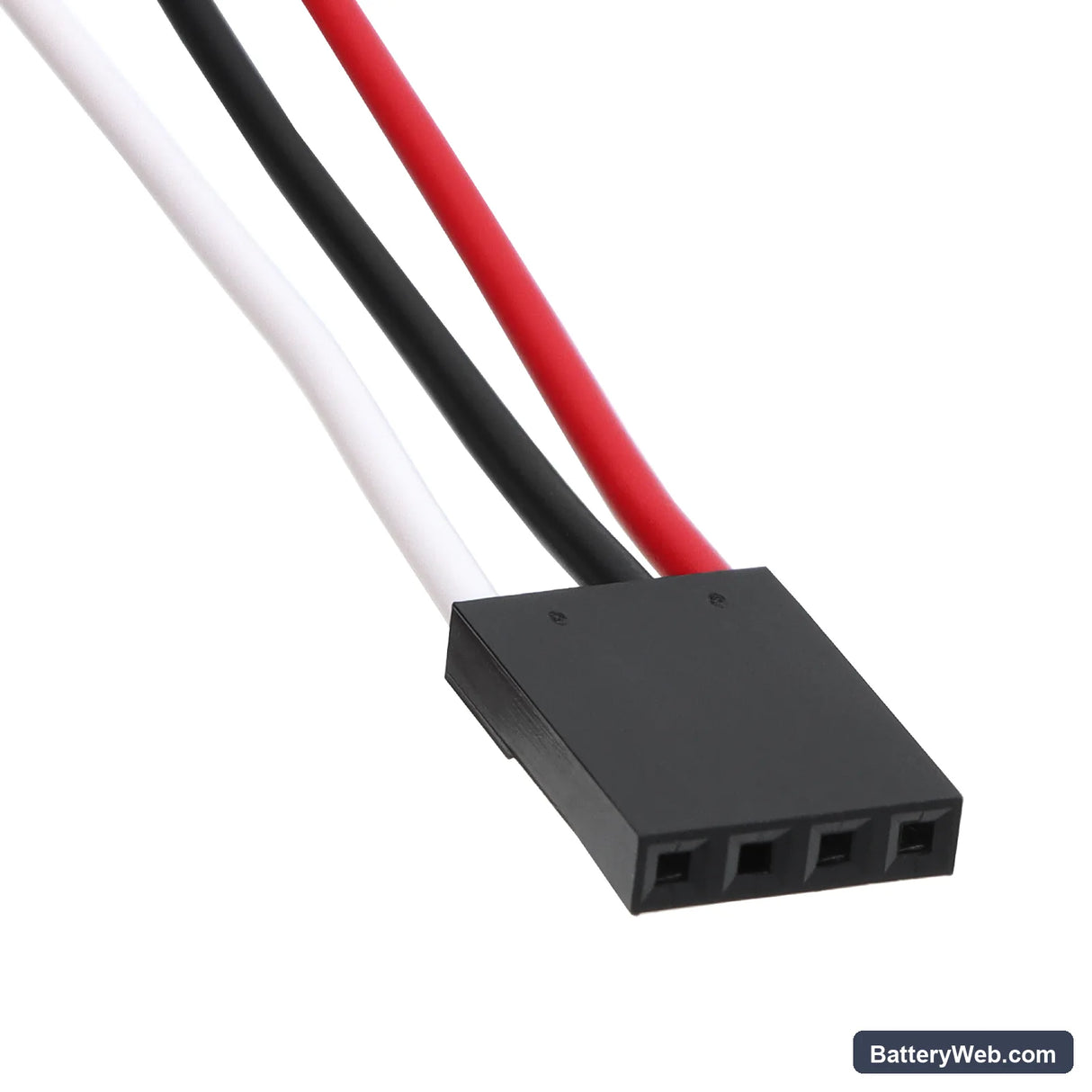

• TKL-7 platform fit: The TKL-7 uses a dedicated battery bay with a keyed connector and BMS handshake that confirms pack identity before the instrument powers the optical and measurement modules. This battery meets that handshake so the instrument boots normally without battery error codes.
• Bench tested on actual hardware: We cycled this pack through cold-start instrument boot, prism tracking, and sustained angle-logging loads. The BMS held voltage within spec across all three load stages and did not trip under the servo motor initialisation current spike at power-on.
• Field preparation after installation: After fitting this battery, run a full instrument calibration cycle through the TKL-7 menu before your first measurement session. The instrument maps battery state during calibration — skipping this step causes premature low-battery warnings to appear well before actual depletion.

Servo motor start surge tripping the BMS on TKL-7 power-up

When the TKL-7 initialises, the servo motors that drive the horizontal and vertical axes draw a short but sharp current spike. A battery with degraded cells or a BMS set to a tight overcurrent threshold will cut out at exactly this moment, making it appear the instrument won't boot. This pack's BMS is rated to handle the inrush current the TKL-7 servo system pulls at start-up. If you see a startup cutout, confirm the battery contacts are clean — oxidation on the contacts adds resistance and amplifies the voltage drop during that surge.

TKL-7 refusing to recognise a new pack after months in storage

Li-ion cells self-discharge during storage. If this battery sat in a warehouse or your gear bag for several months before use, the cell voltage may have dropped below the BMS recovery threshold — typically around 2.5V per cell — and the BMS enters sleep mode to protect the cells. The instrument will show no battery detected or simply fail to power on. To recover it, place the battery on a compatible charger and leave it connected for at least 30 minutes before the charger registers a charging state; once cell voltage climbs above 3.0V per cell, normal charging resumes.
