Newland LB74V22H SP60 Replacement Battery 7.4V 2200mAh

Newland SP60 / SPG7 — 7.4V Li-ion Replacement Battery (LB74V22H)

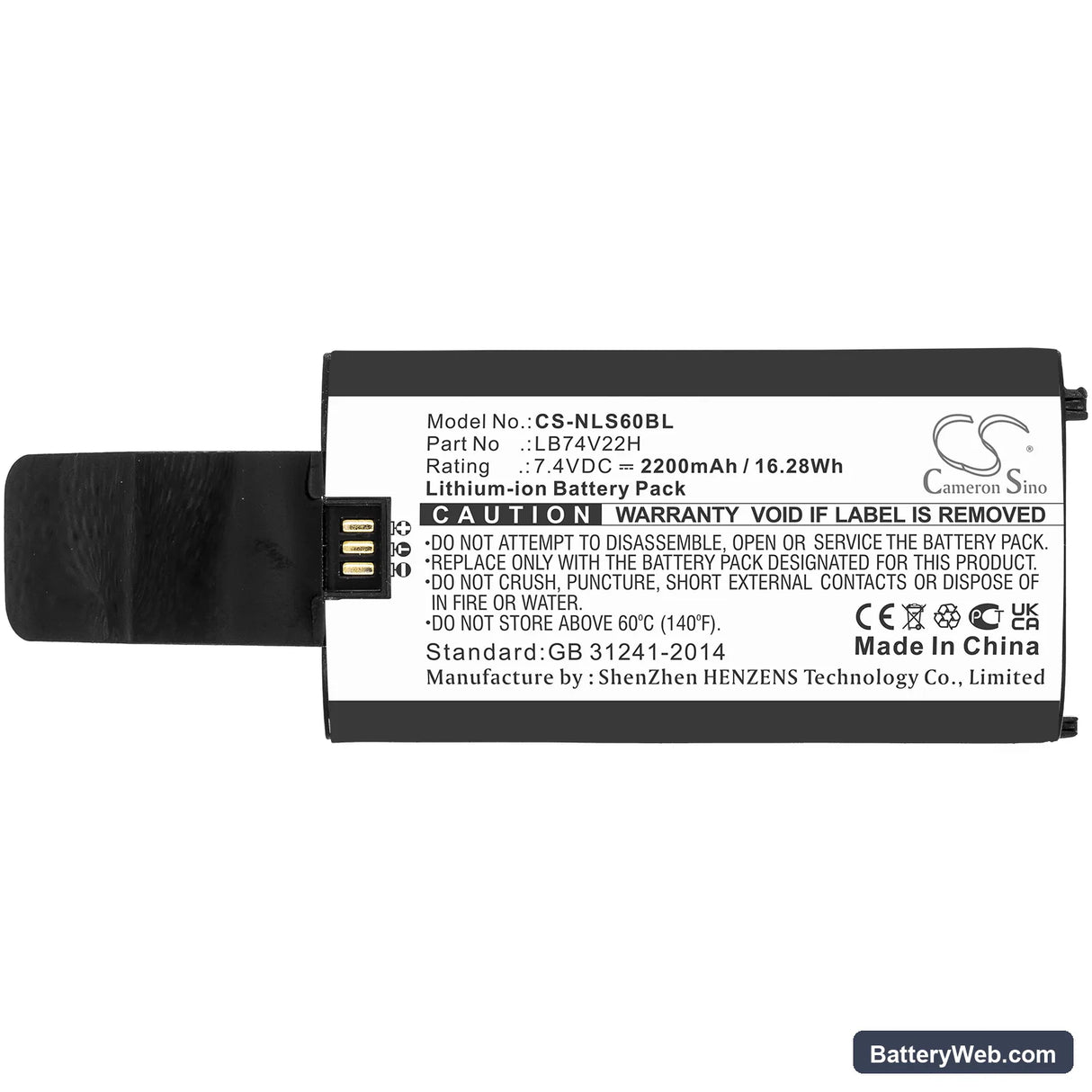

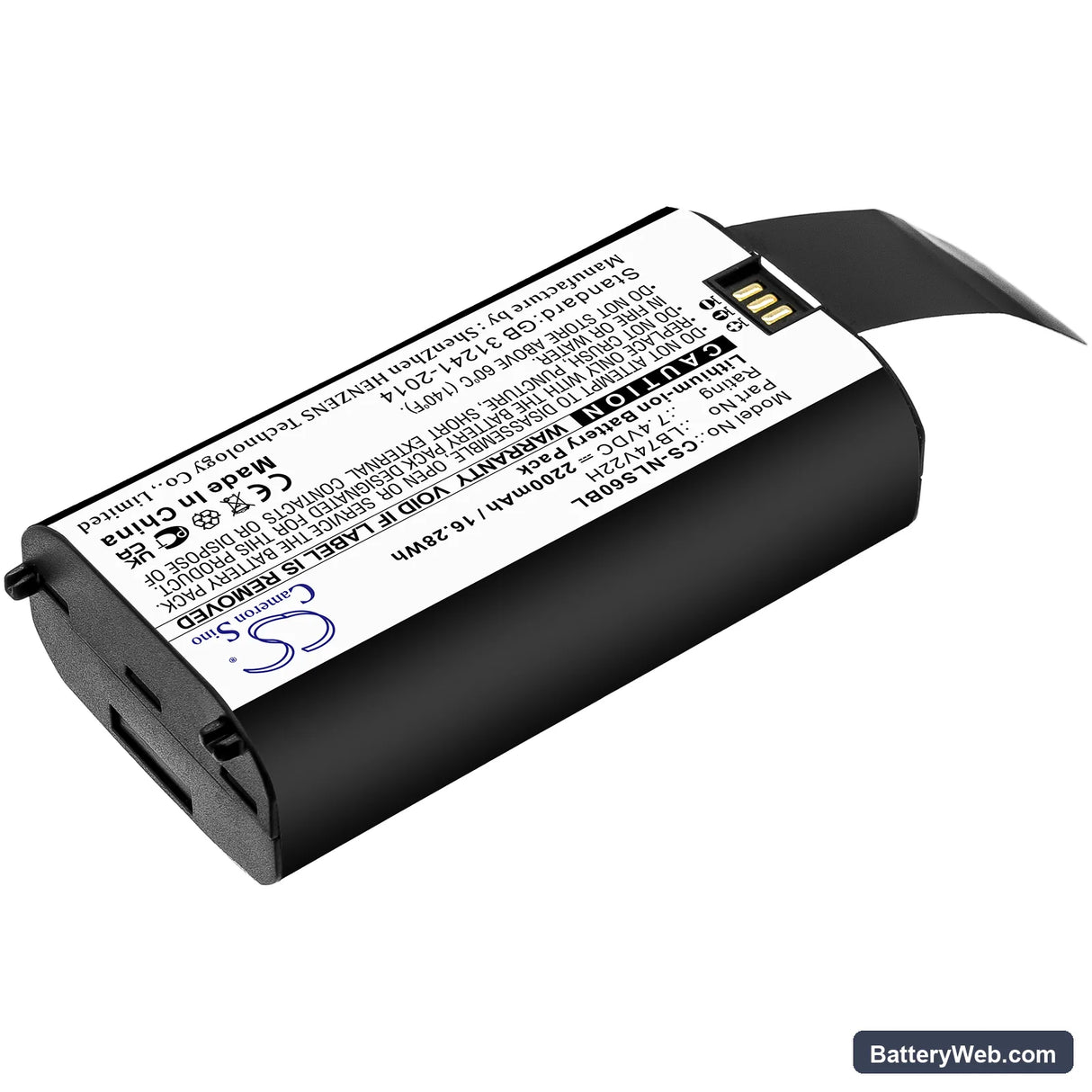

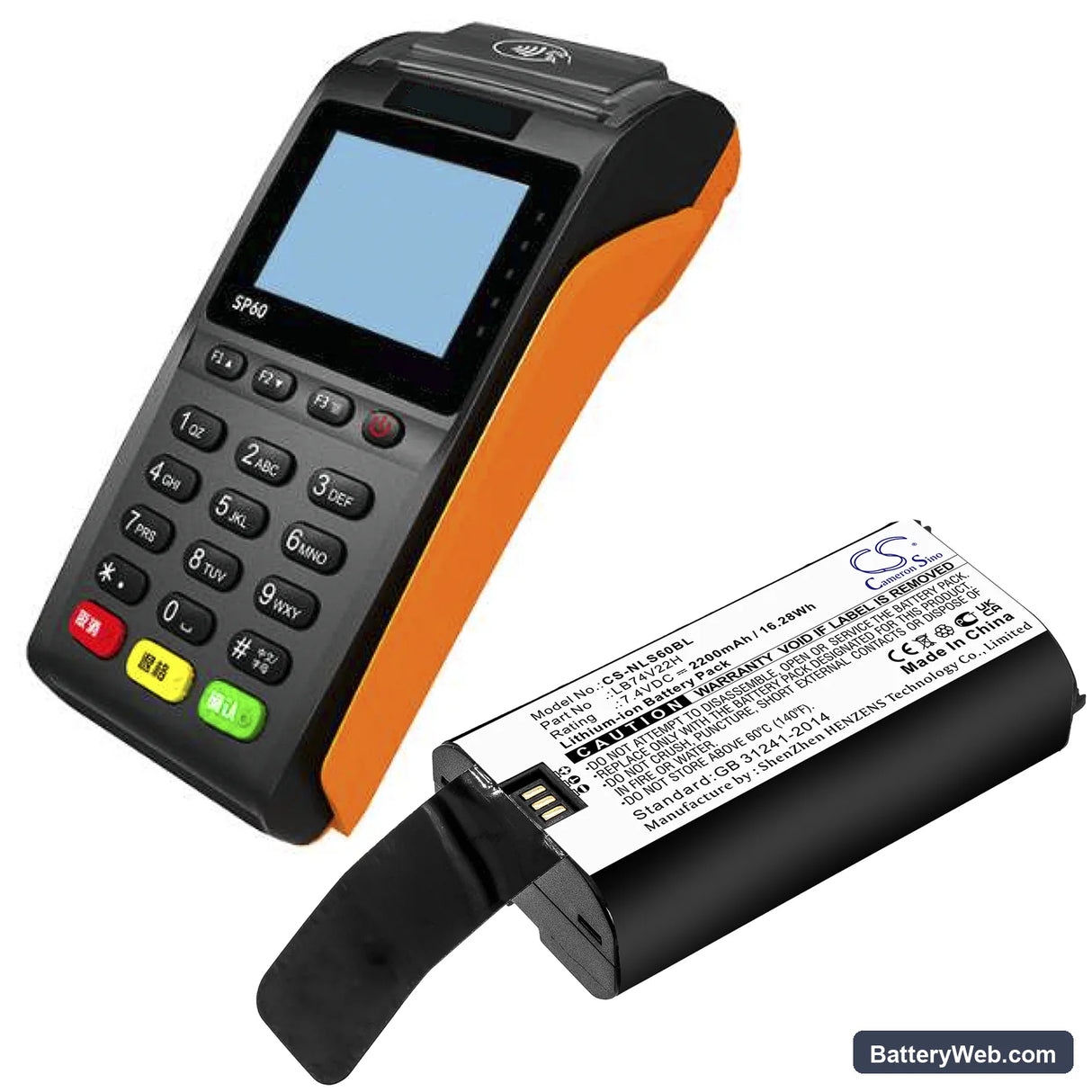

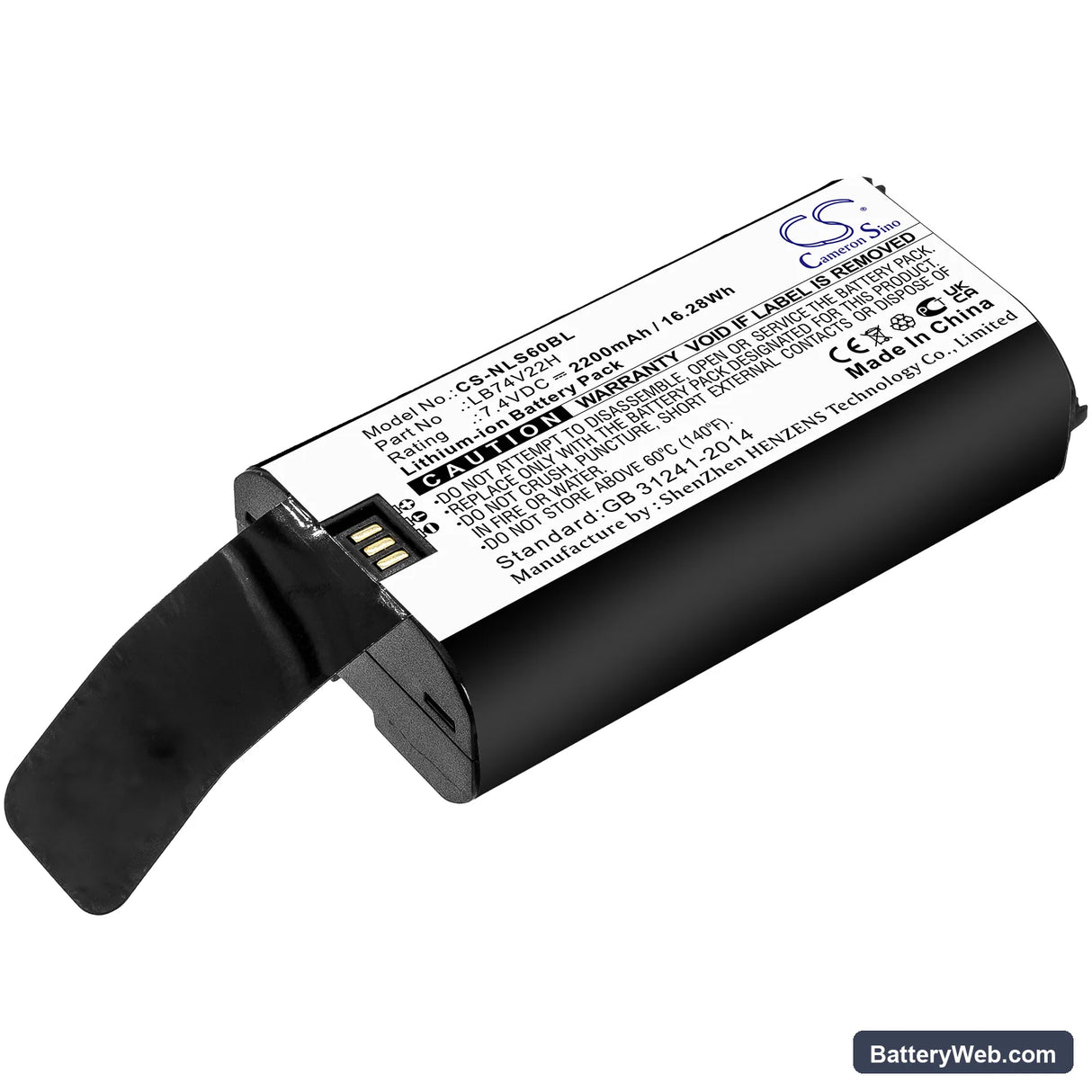

This is a 7.4V, 2200mAh Li-ion battery for the Newland SP60 and SPG7 mobile payment terminals. It replaces OEM part LB74V22H and fits directly into the battery compartment of both handheld POS models. Voltage and cell chemistry match the original spec exactly.

• SP60 and SPG7 compatibility: Both terminals share the same battery bay dimensions, voltage rail, and BMS communication protocol. The LB74V22H connector and cell configuration are identical across the two models, so the same battery services both without modification.
• Bench tested on actual hardware: We ran this cell through full charge cycles and monitored the BMS handshake on the SP60 platform. The protection circuit responded correctly to charge cutoff, discharge floor, and thermal events — no false trips during normal transaction loads.
• First-use calibration on POS terminals: After installing a new cell, complete at least one full transaction cycle before deploying the terminal on a live counter. The SP60 maps battery capacity during normal operation and needs one complete power cycle to display the charge indicator accurately.

Terminal rebooting mid-transaction after battery swap

The SP60 receipt printer draws a short burst of current every time it fires — this spike can exceed the BMS overcurrent threshold on a new cell that has not yet completed an initial charge cycle. The BMS interprets that draw as a fault and trips, cutting power mid-transaction. Run the terminal through a full charge to 100% before putting it into service. Once the BMS has logged a complete cycle, the protection threshold settles and the printer motor spike no longer triggers a cutoff.

Terminal not completing PCI boot sequence after installing replacement battery

The SP60 runs a PCI-compliant boot check that requires stable voltage throughout startup. If the replacement cell ships at a low state of charge, voltage can sag below 6.8V during the boot sequence and cause the terminal to halt or loop. Charge the battery fully before the first boot — measure at the terminal's battery contacts and confirm voltage is above 7.2V before powering on. That single step resolves most post-swap boot failures without any firmware intervention.
