Orbic Wonder — 3.8V Li-Polymer Replacement Battery (RC555L)

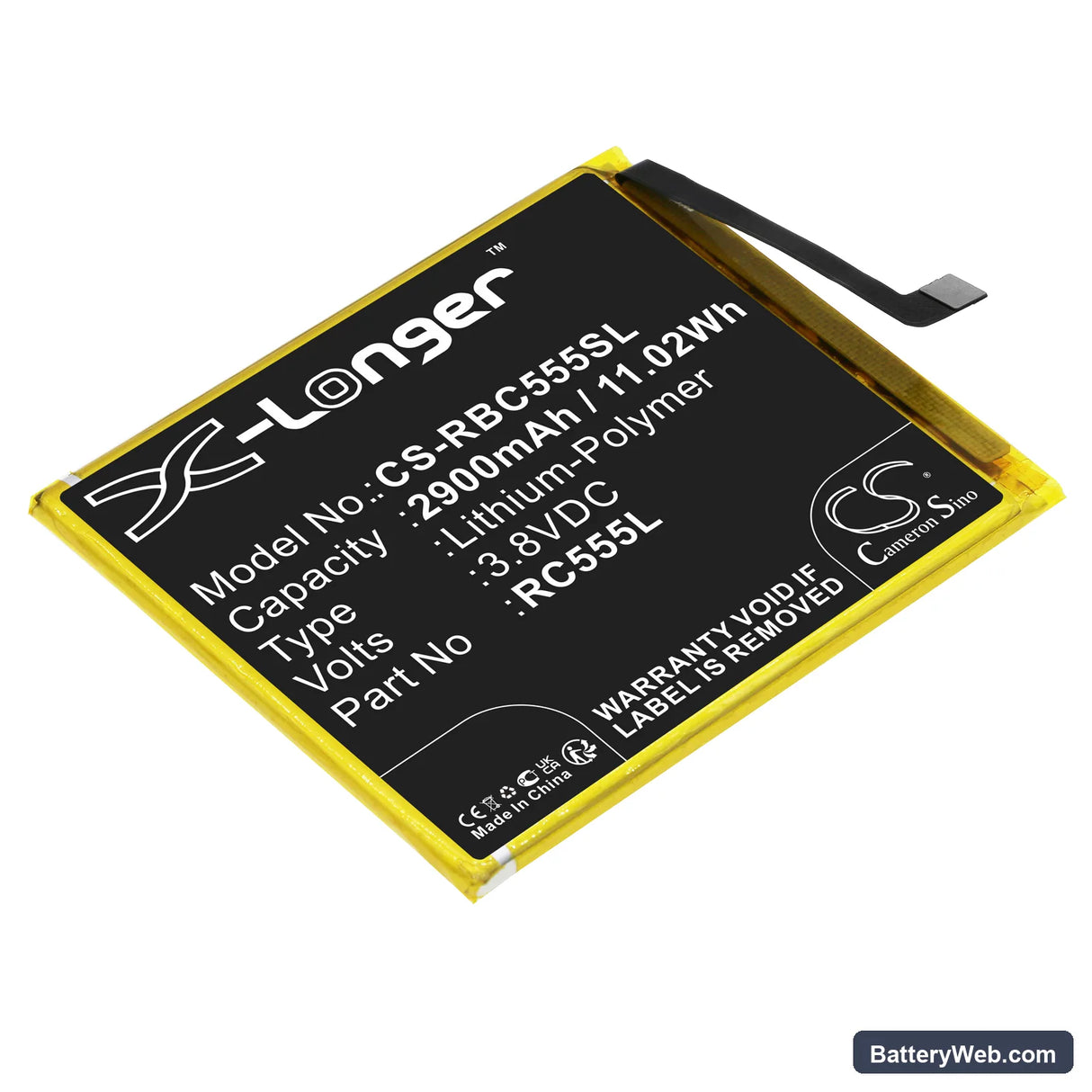

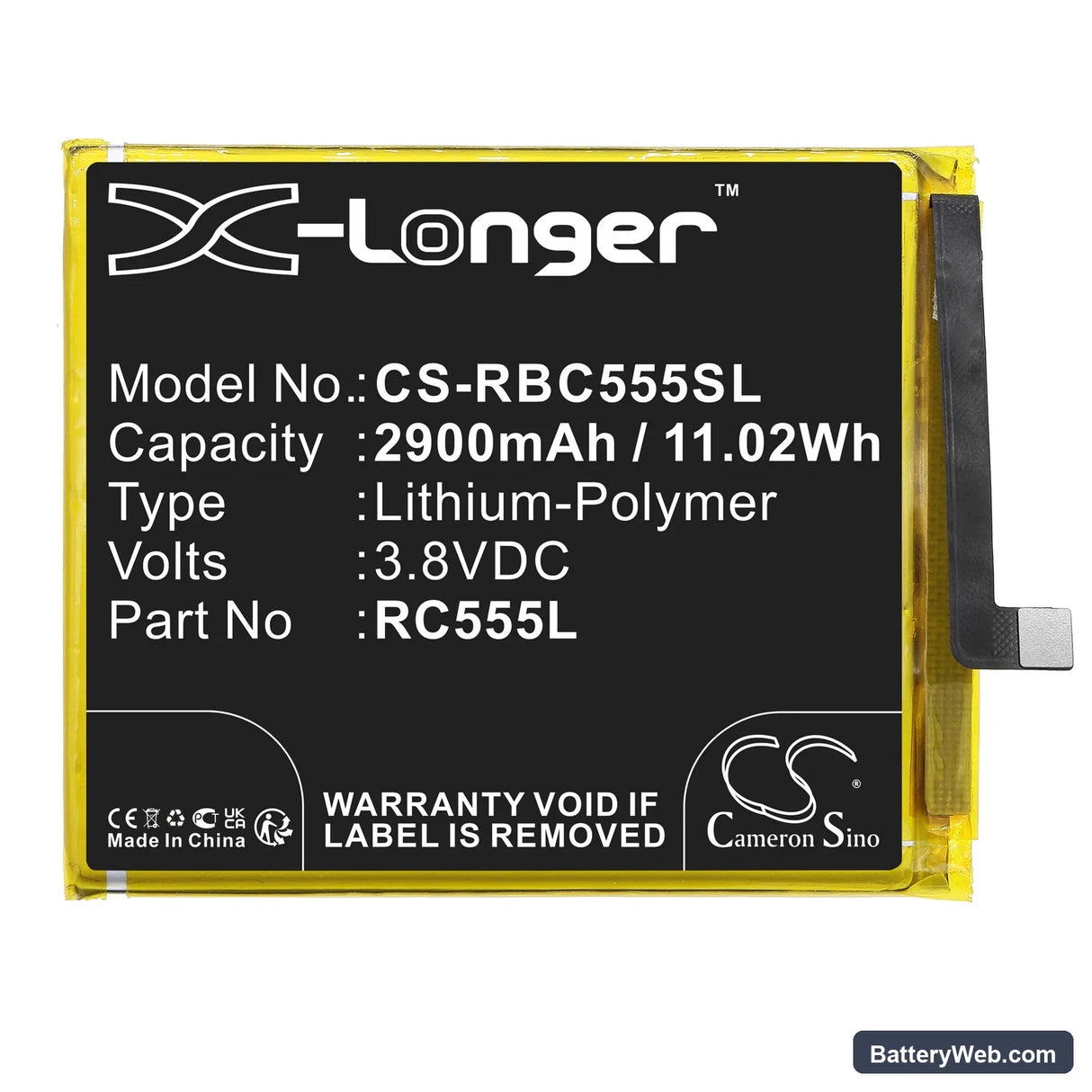

This is a 3.8V, 2900mAh lithium-polymer replacement battery for the Orbic Wonder smartphone (RC555L / ORB555LBVZPP). It replaces the original cell when the phone stops holding charge, shuts down unexpectedly, or won't power on. Capacity is rated at 11.02Wh — matching the original cell specification.

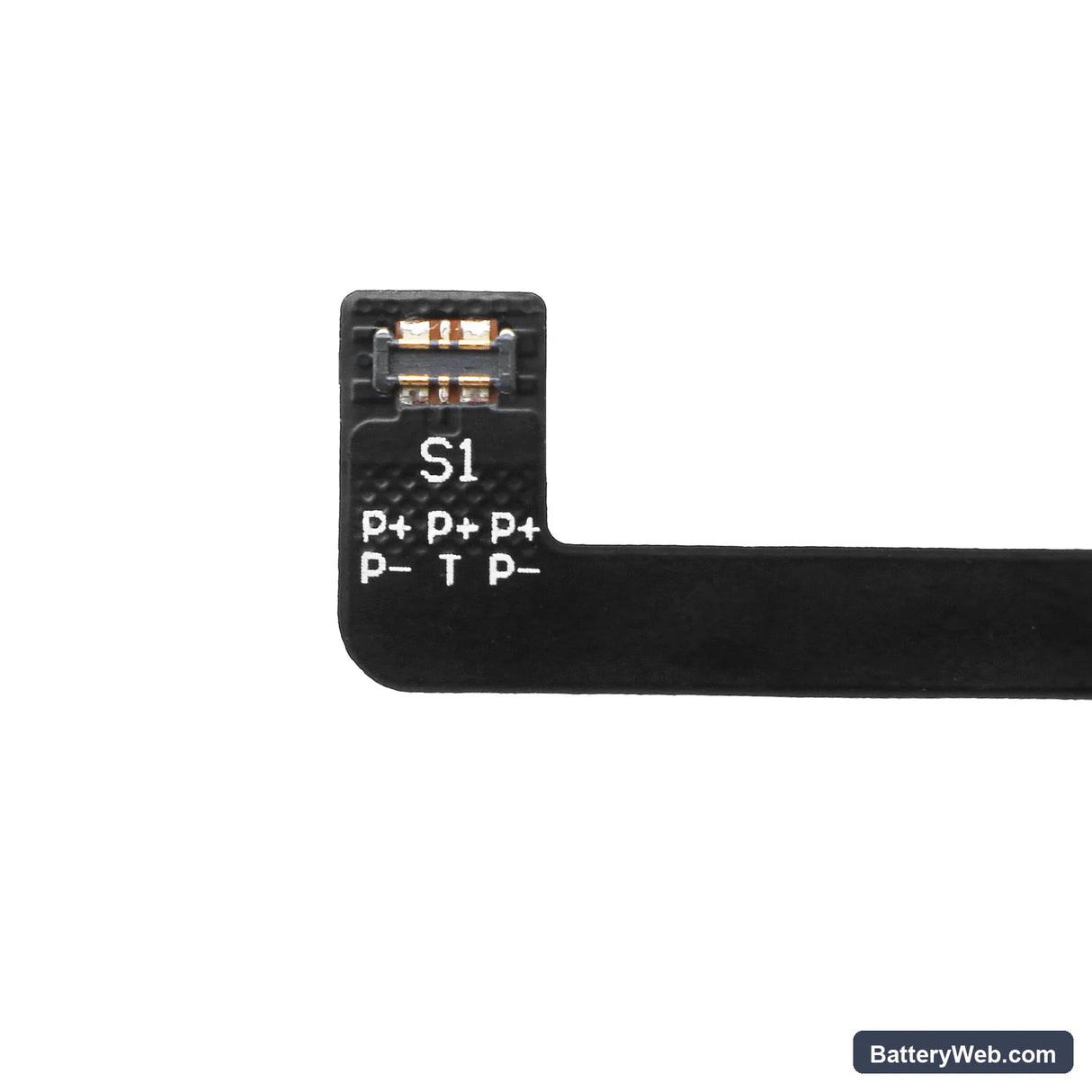

• Wonder / RC555L / A1203 compatibility: These model numbers share the same physical footprint, connector pinout, and BMS handshake requirements — the 76.80 × 64.70 × 3.70mm cell seats correctly and the charge IC communicates without fault codes across all variants listed.
• Bench tested on actual hardware: We ran this cell through full charge-discharge cycles on the Wonder platform and monitored the BMS through charge termination, low-voltage cutoff, and thermal thresholds. No spurious cutoffs or charge IC rejections were recorded.
• Fuel gauge recalibration on first use: After installing this cell, disable fast charging and run one complete discharge down to automatic shutdown, then charge uninterrupted to 100%. This gives the fuel gauge IC a clean reference cycle against the new cell's discharge curve before high-current charging is reintroduced.

Sudden shutdown at 20–30% on the Orbic Wonder after a cell swap

A fresh lithium-polymer cell has a slightly different voltage-to-capacity curve than the aged cell the fuel gauge IC was calibrated against. When the phone's coulomb counter reaches a voltage it associates with near-empty — even if the new cell still has capacity — it triggers a protective shutdown. This is most noticeable under high-draw events like screen brightness spikes or LTE handoffs. One full discharge-to-shutdown followed by an uninterrupted charge cycle resets the reference and eliminates the early cutoff.

Phone shows fluctuating or jumping battery percentage after replacement

The Orbic Wonder's fuel gauge IC tracks charge state using a coulomb counter built around the original cell's internal resistance profile. A new cell has lower impedance, so the IC's state-of-charge estimates drift between readings — showing jumps of 5–15% in either direction. This is not a fault with the replacement cell; it resolves as the IC accumulates discharge data over the first two to three cycles. After three full cycles, percentage reporting should stabilise within ±3% of actual charge state.
