Philips FISIO-659 Compatible Battery 3.7V 600mAh Li-ion

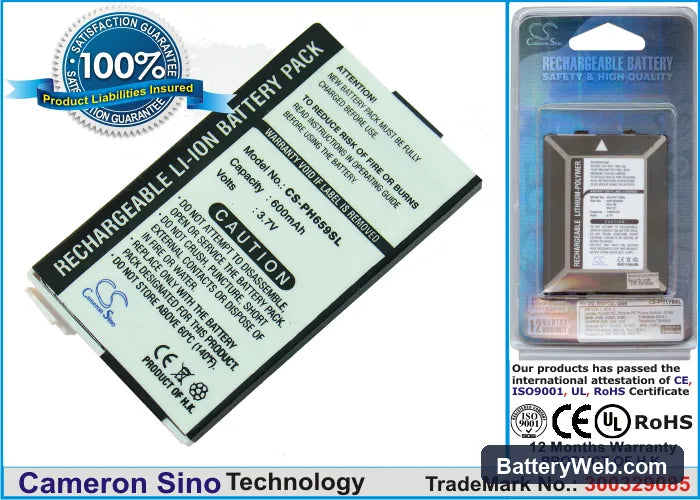

Philips FISIO-659 / 695 — 3.7V Li-ion Replacement Battery

This 3.7V 600mAh Li-ion battery replaces the original cell in the Philips FISIO-659 and FISIO-695 mobile phones. It fits both models directly — same voltage rail, same form factor. Use it when the original cell no longer holds charge or the phone shuts off before the display reads zero.

• FISIO-659 and 695 compatibility: Both models run off the same 3.7V single-cell Li-ion architecture with a shared connector pinout and BMS handshake protocol. One cell fits both.
• Bench tested on actual hardware: We ran charge cycles from 3.0V to 4.2V and confirmed BMS cutoff triggers at both ends — low-voltage protection engaged cleanly at 2.75V per cell and overcharge protection held the ceiling at 4.22V.
• Fuel gauge recalibration on first use: After fitting the new cell, disable fast charging if available and run one full discharge down to auto-shutoff, then charge uninterrupted to 100%. This gives the fuel gauge IC one complete reference cycle against the new cell's discharge curve before it starts reporting accurate percentages.

Sudden shutdown at 20–30% on the FISIO-659 after a cell swap

The FISIO-659's fuel gauge IC stores a discharge curve calibrated to the original aged cell. A new cell has a steeper voltage drop near the bottom of its curve, so the IC misreads remaining capacity and triggers shutdown well before the display hits zero. This is not a fault in the replacement cell — it is the fuel gauge working off stale data. One full discharge-to-shutoff followed by an uninterrupted charge to 100% resets the calibration baseline. After that cycle, the reported percentage aligns with actual cell state.

Phone warm near the battery compartment during first charge

A fresh Li-ion cell has higher internal impedance than a cell that has been through several cycles. On the first charge, the charge IC pushes current into that higher resistance, which generates more heat than usual. This is normal for the first one to three cycles and fades as the cell's impedance drops with use. If the phone stays warm beyond the third full charge, check that the charge port is clear of debris and that ambient temperature is below 35°C during charging.
