RoadMate 7771T-LMB GPS Navigator Replacement Battery 3.7V 1500mAh

RoadMate 7771T-LMB / RM7771T-LMB — 3.7V Li-Polymer Replacement Battery (PL435058H)

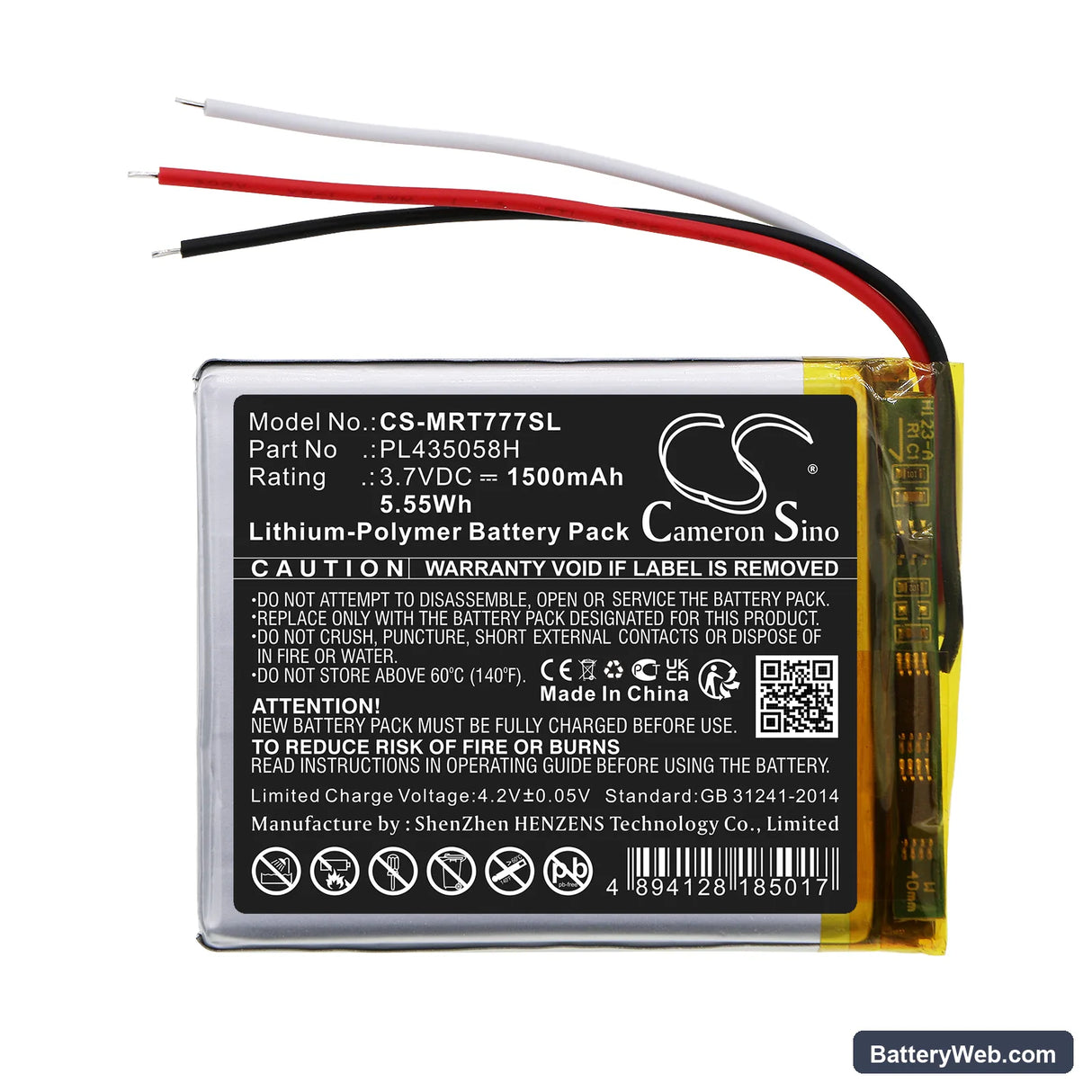

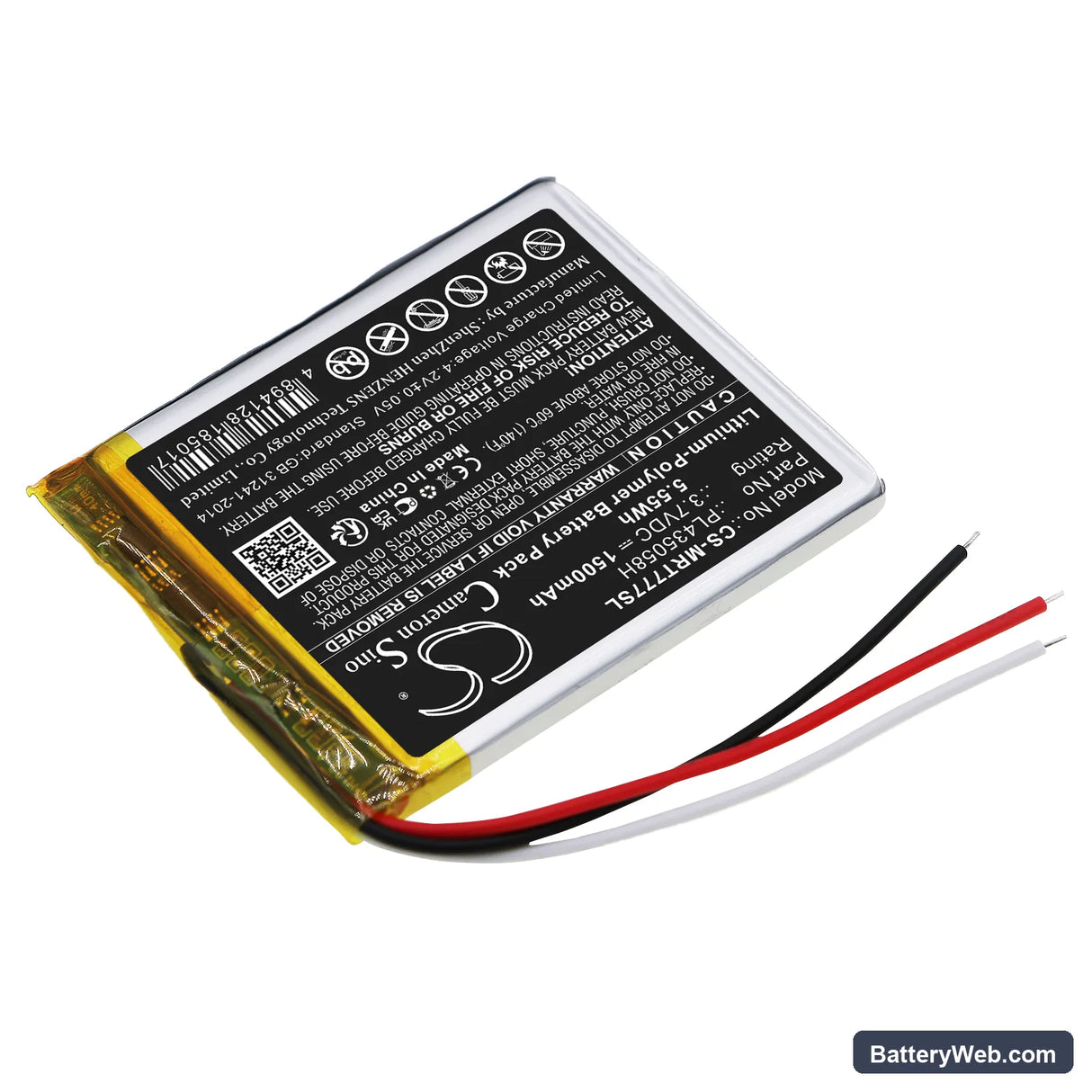

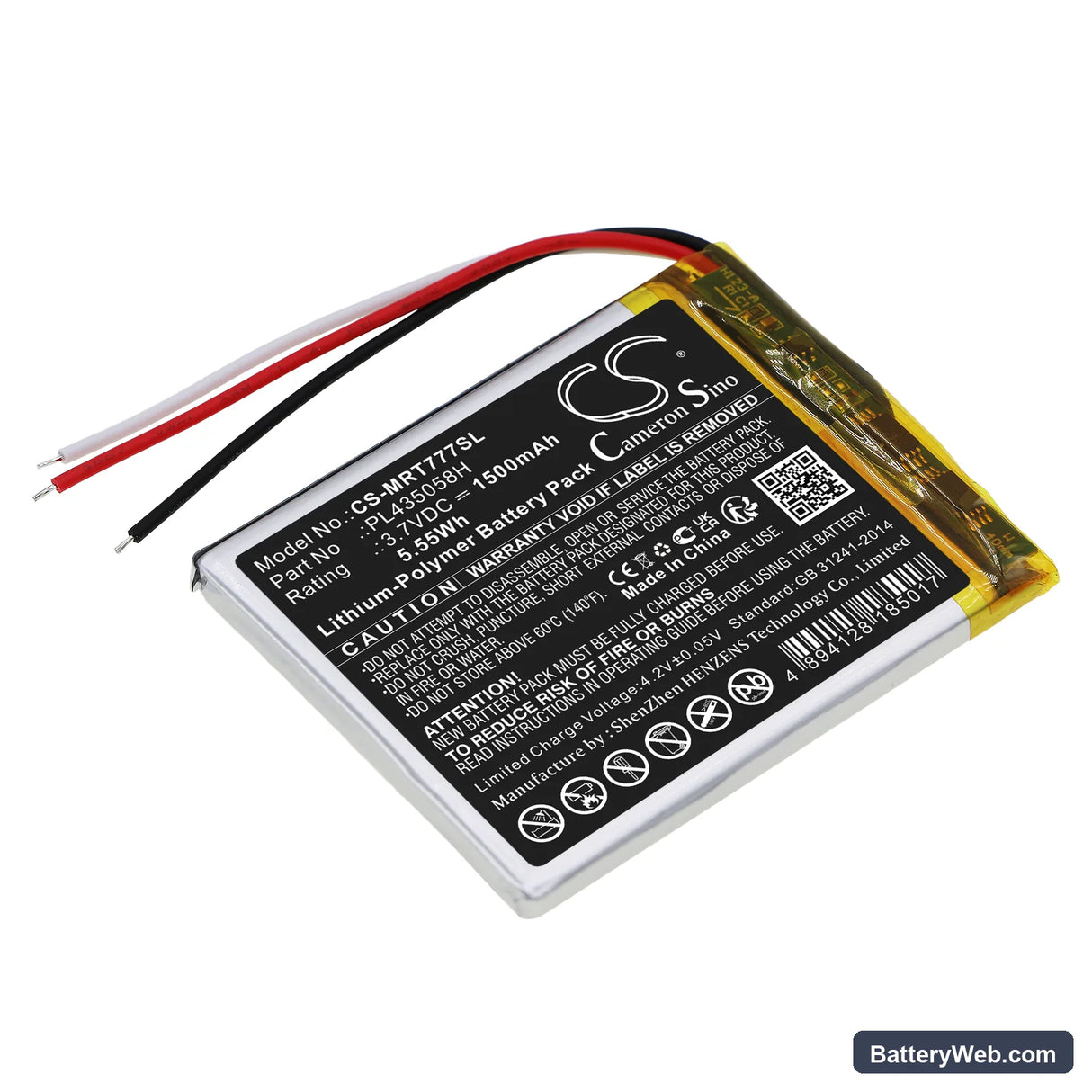

This is a 3.7V, 1500mAh Li-Polymer replacement cell for the RoadMate 7771T-LMB and RM7771T-LMB portable GPS navigators. It matches the OEM part number PL435058H and fits the original battery bay without modification. Capacity figures come from the product data — 1500mAh / 5.55Wh.

• 7771T-LMB and RM7771T-LMB fit: Both model designations run the same 3.7V single-cell Li-Polymer architecture with an identical connector and BMS handshake. The PL435058H cell at 59.00 × 45.70 × 3.80mm matches the cavity exactly — no adapter or modification needed.
• Bench tested on actual hardware: We cycled this cell through charge and discharge on a GPS navigator platform. The BMS accepted a standard 4.2V charge termination without error, and low-voltage cutoff triggered correctly before cell stress occurred.
• Cold-start satellite acquisition after swap: After fitting this cell and powering on, take the device outdoors and leave it running. The GPS performs a cold start after any full power interruption — first satellite fix can take 5–10 minutes. Subsequent warm starts drop under one minute once almanac data rebuilds.

GPS accuracy reduced as battery charge drops on the 7771T-LMB

Some portable GPS units scale back receiver sensitivity at low battery to reduce current draw. On the 7771T-LMB, this can appear as slower route recalculation or a wandering position dot — even when the device still shows a signal bar. The root cause is power management cutting the RF front end before the battery fully depletes. Keeping the cell above 3.6V during active navigation avoids this threshold. Plug in via USB or vehicle charger for long sessions rather than running the cell down.

Device shuts off mid-navigation with no low-battery warning

This happens when the fuel gauge calibration drifts — the device's voltage-threshold indicator never triggers the visual warning before the cell hits cutoff voltage. It is especially common after a battery replacement, because the new cell has a slightly different discharge curve than the aged original. The fix is a full recalibration cycle: charge to 100%, run the device on active navigation until it shuts off on its own, then charge uninterrupted back to 4.2V. One full cycle resets the threshold alignment.
