Garmin DEZL OTR800 Replacement Battery 3.7V 2000mAh

Garmin dēzl OTR800 Series — 3.7V Li-Polymer Replacement Battery (361-00109-00)

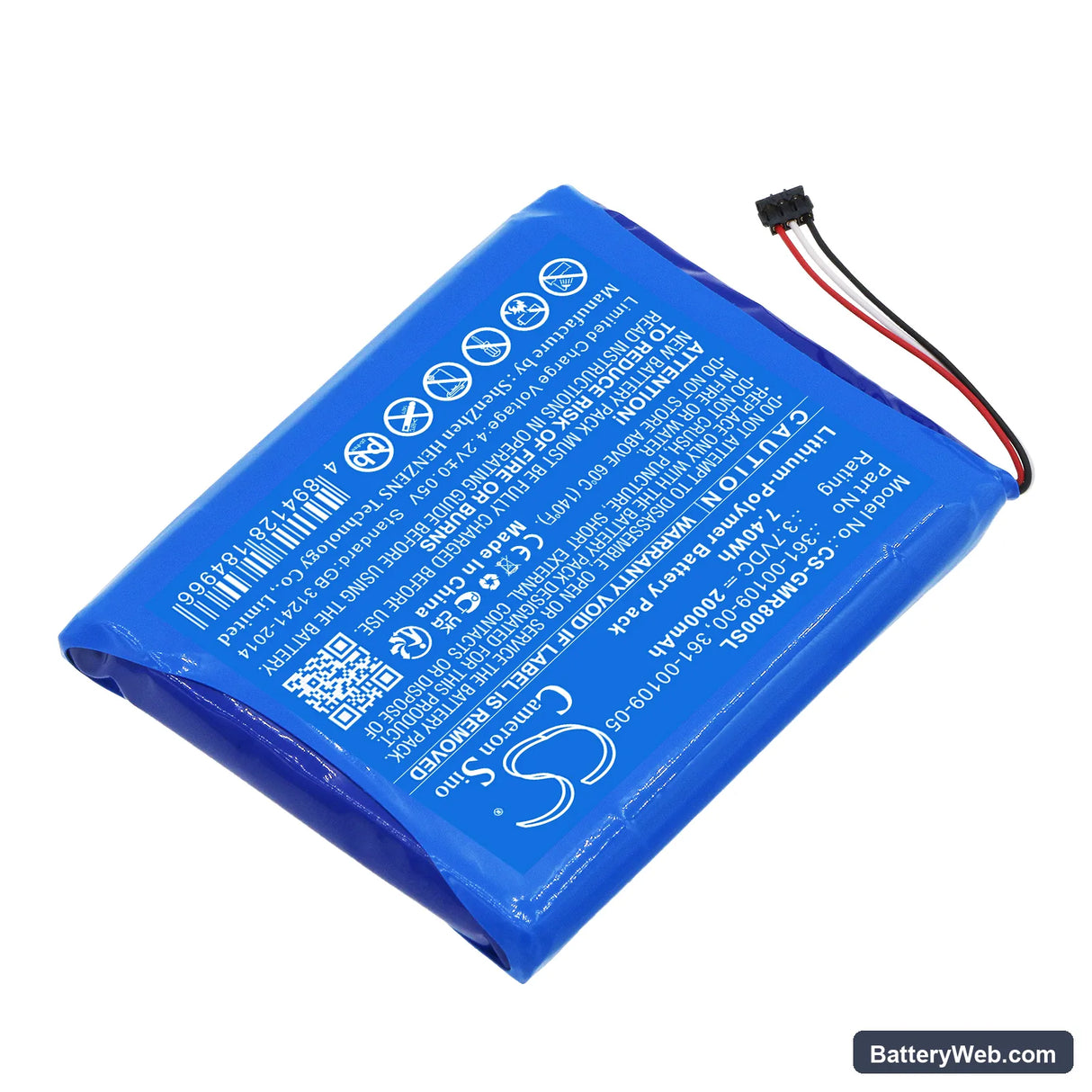

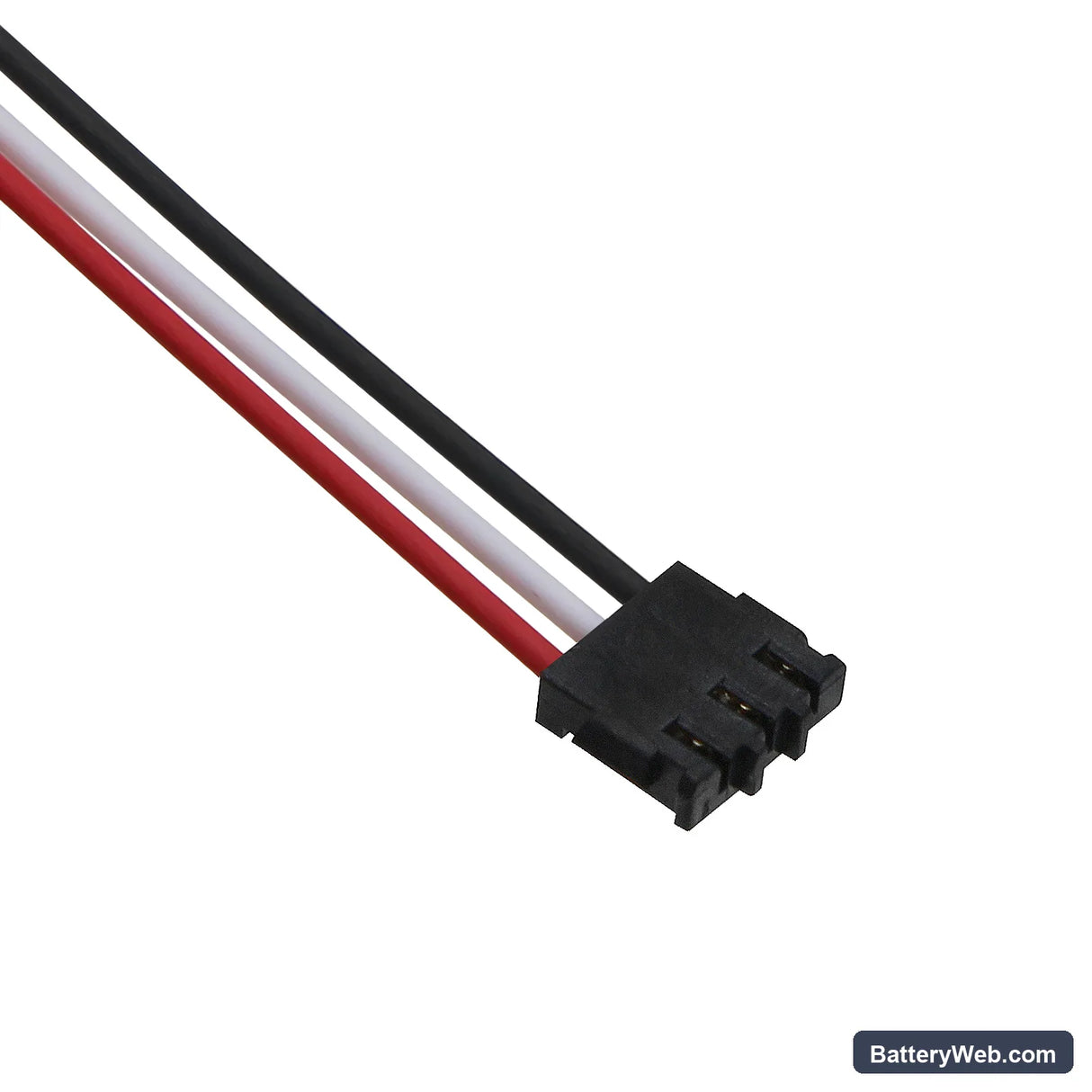

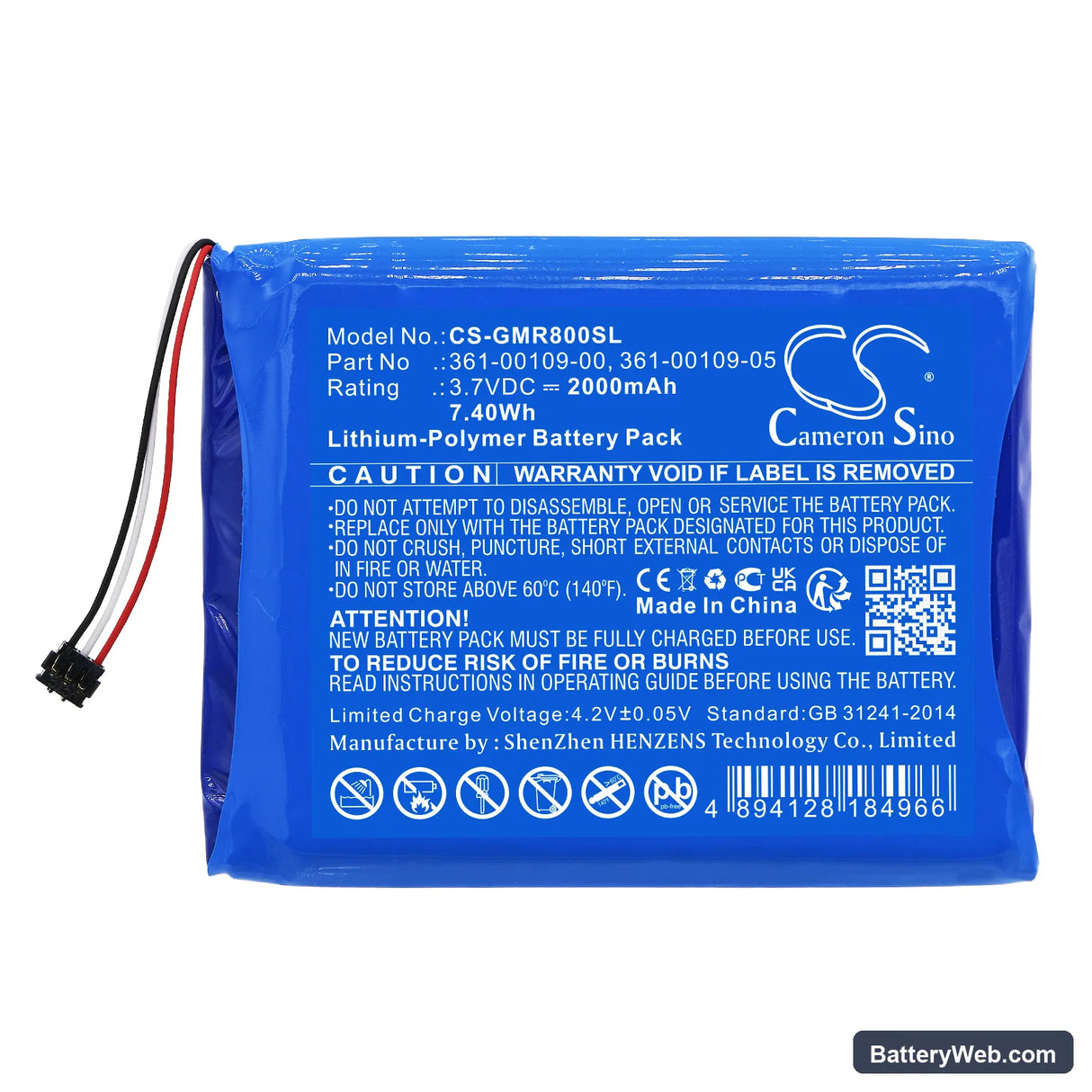

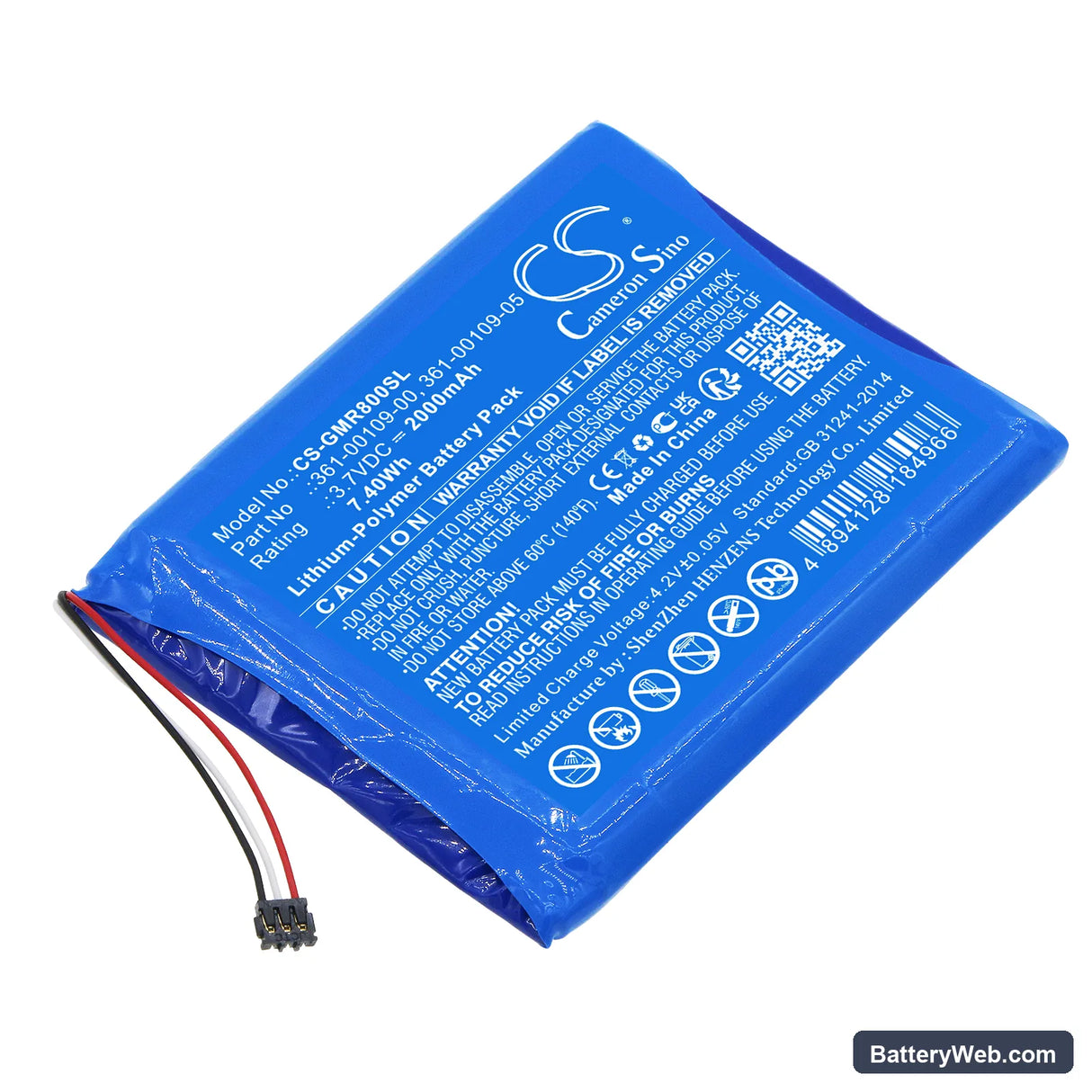

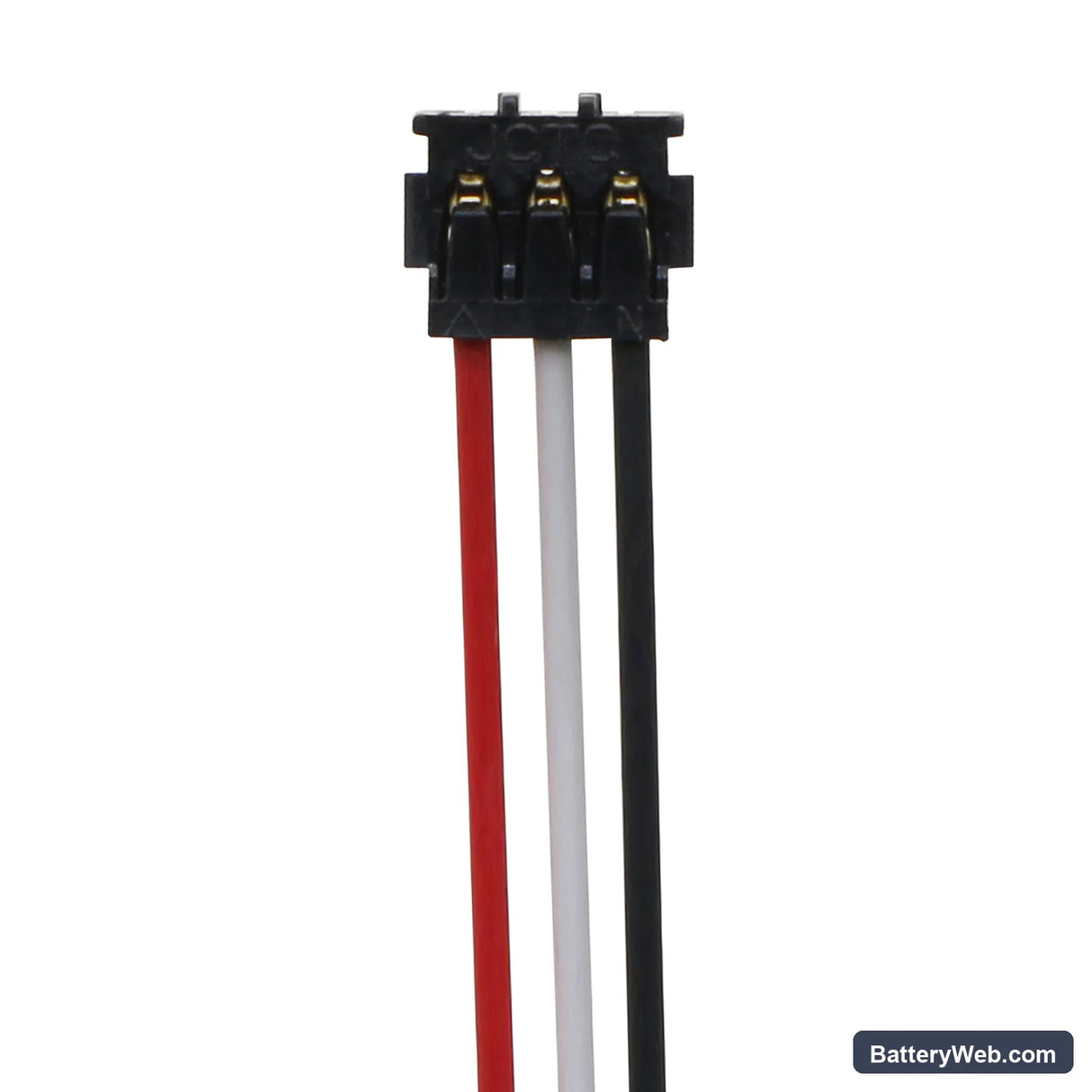

This 3.7V, 2000mAh lithium-polymer cell replaces the original battery in the Garmin dēzl OTR800, dēzl OTR800 MT-S, and Overlander GPS navigators. It matches the OEM dimensions of 61.00 × 49.30 × 6.00mm and connects directly to the existing battery connector inside the device. Swap it when the original cell no longer holds charge or shuts the unit off before the on-screen indicator reaches zero.

• OTR800, OTR800 MT-S, and Overlander fit: All three models share the same battery bay dimensions, connector pinout, and 3.7V supply rail, so a single cell covers the full group. The BMS on each device uses the same charge termination voltage, so no firmware differences affect charging behaviour.
• Bench tested on actual hardware: We cycled this cell through full charge and discharge on the OTR800 platform. The BMS accepted charge at the standard CC/CV profile, terminated cleanly at 4.2V, and held the low-voltage cutoff at approximately 3.0V without tripping early.
• Cold-start satellite acquisition after power interruption: After fitting this cell, power the navigator on outdoors before driving. The dēzl OTR800 performs a cold start after any full power removal — allow 5 to 10 minutes for first satellite fix before relying on turn-by-turn directions.

GPS accuracy reduced when battery charge drops below 20%

At low state of charge, the dēzl OTR800 reduces power to the GPS receiver to extend operation. This drops satellite sensitivity, which can widen position error — noticeable when navigating tight truck routes near restricted roads. A degraded original cell sitting at low voltage all day triggers this mode more often than a fresh cell would. Replacing the battery and keeping charge above 20% during active navigation keeps the receiver running at full sensitivity.

dēzl OTR800 shuts off without showing a low-battery warning

This happens when the original cell has aged enough that its actual capacity no longer matches the fuel gauge calibration. The device reads 30% remaining but the real voltage collapses to the 3.0V cutoff threshold under load, triggering an immediate shutdown. It is not a firmware fault — the indicator is simply reading a worn cell inaccurately. Fit the new cell, charge to 100%, then run one full discharge cycle so the fuel gauge recalibrates against the fresh capacity.
