Rowenta RH9139WHR Replacement Battery 18.5V 3500mAh

Rowenta RH9139WHR/2D1 Series — 18.5V Li-ion Replacement Battery (RS-2230001773)

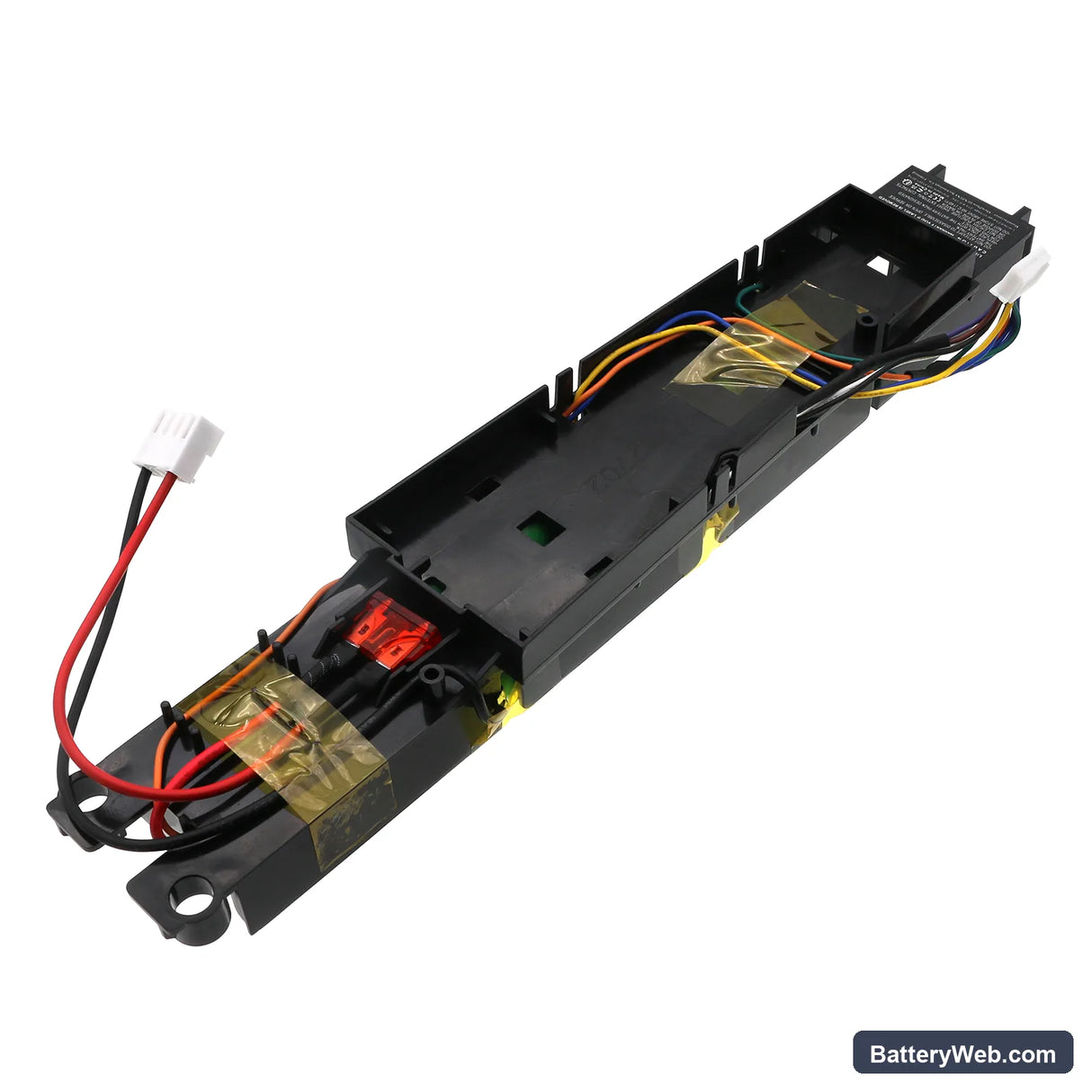

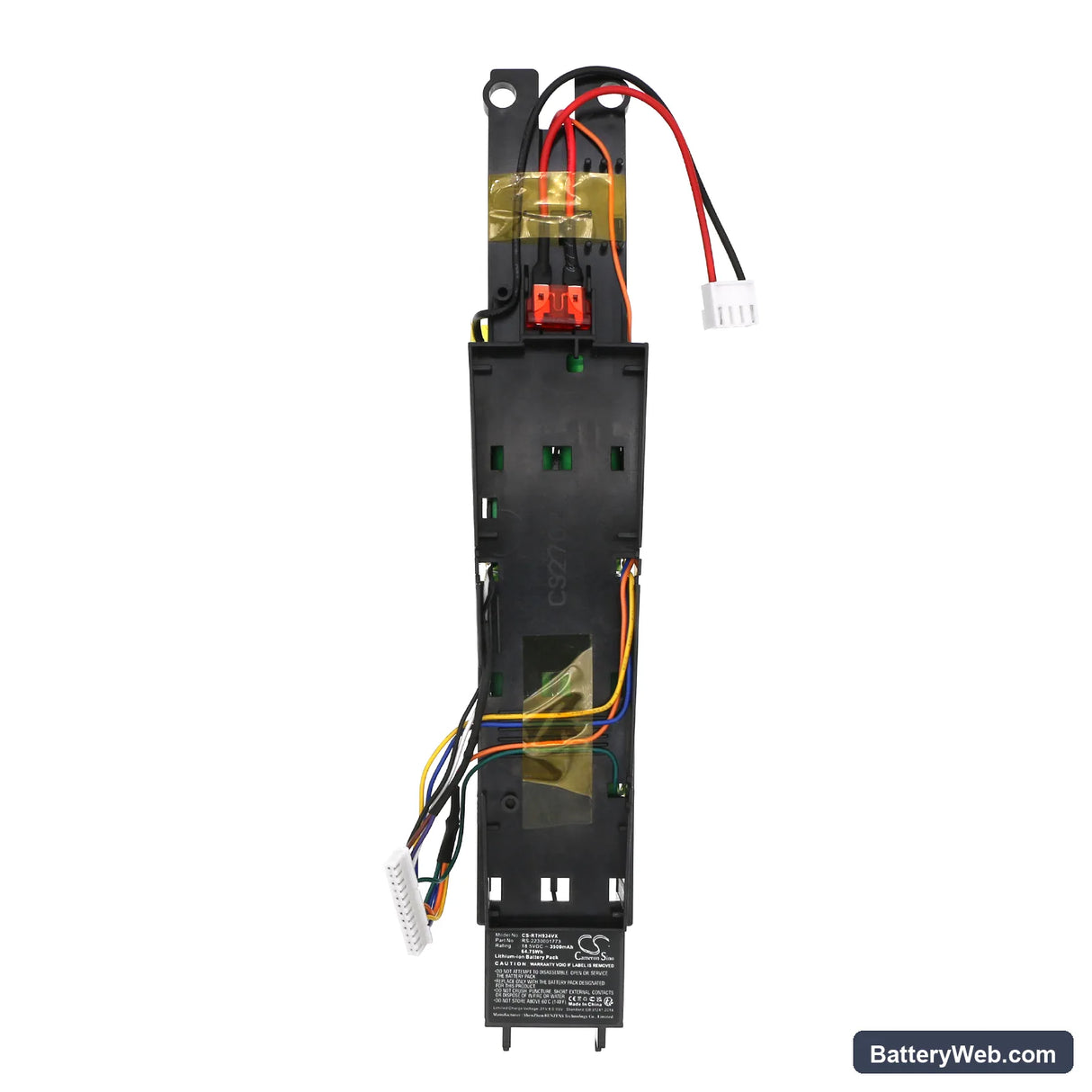

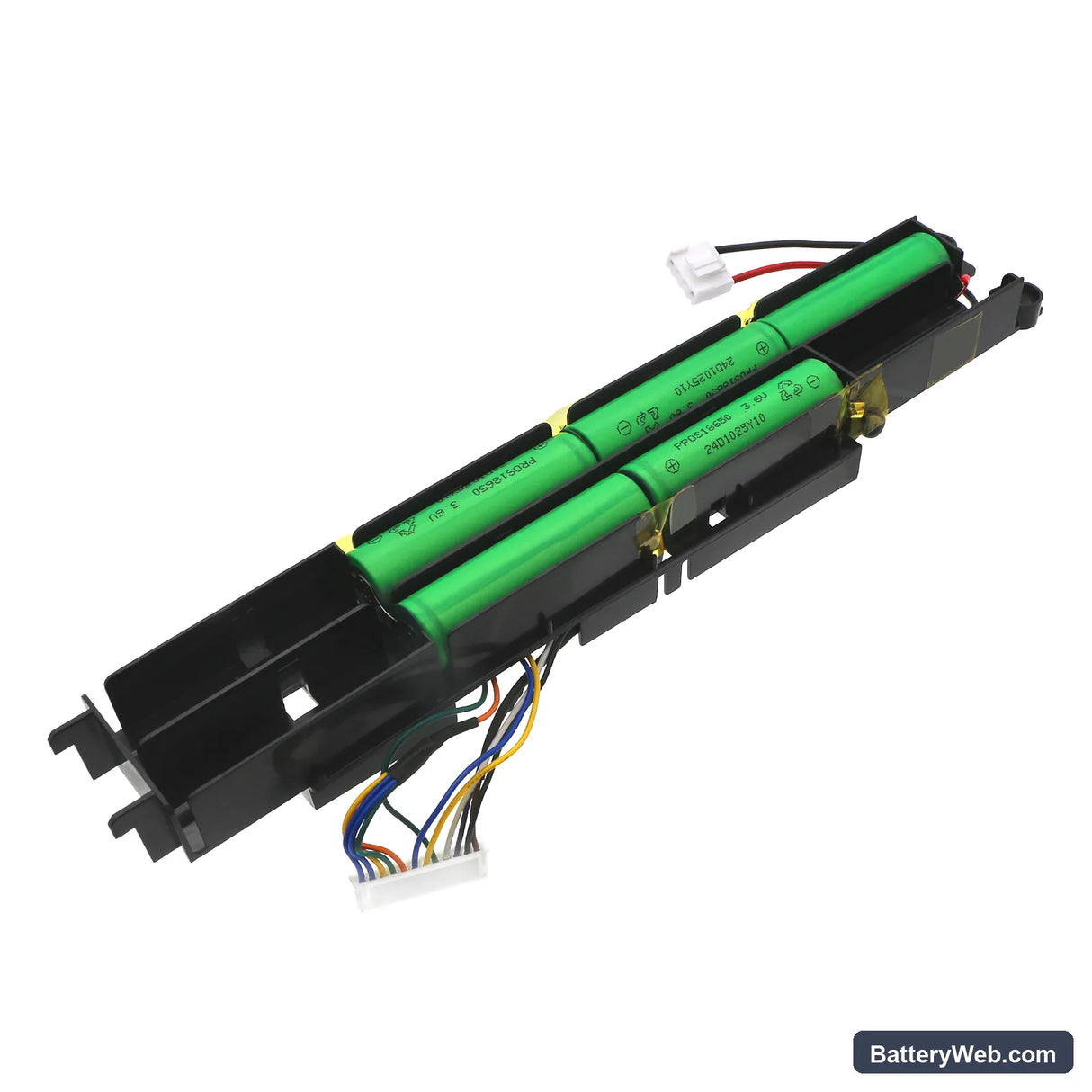

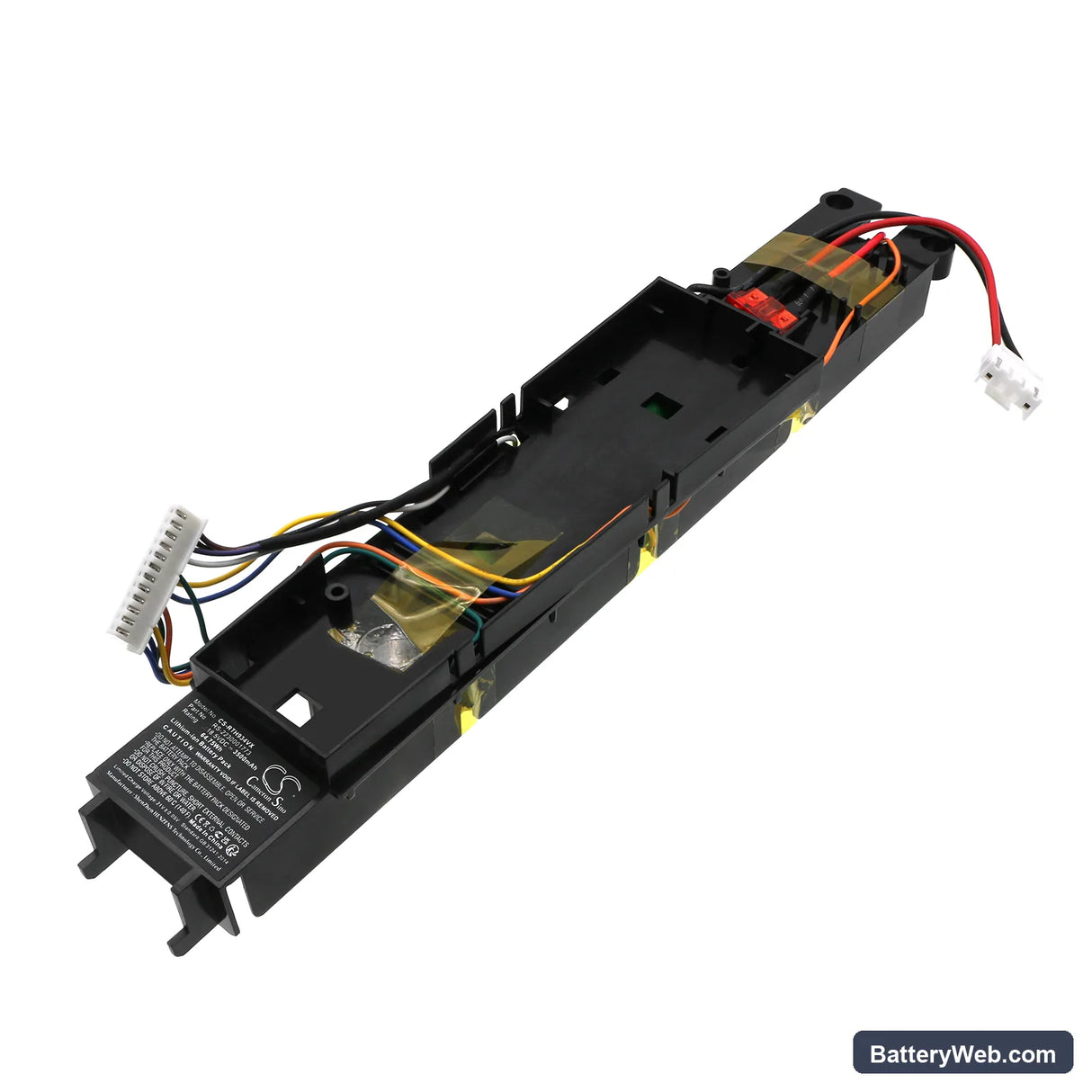

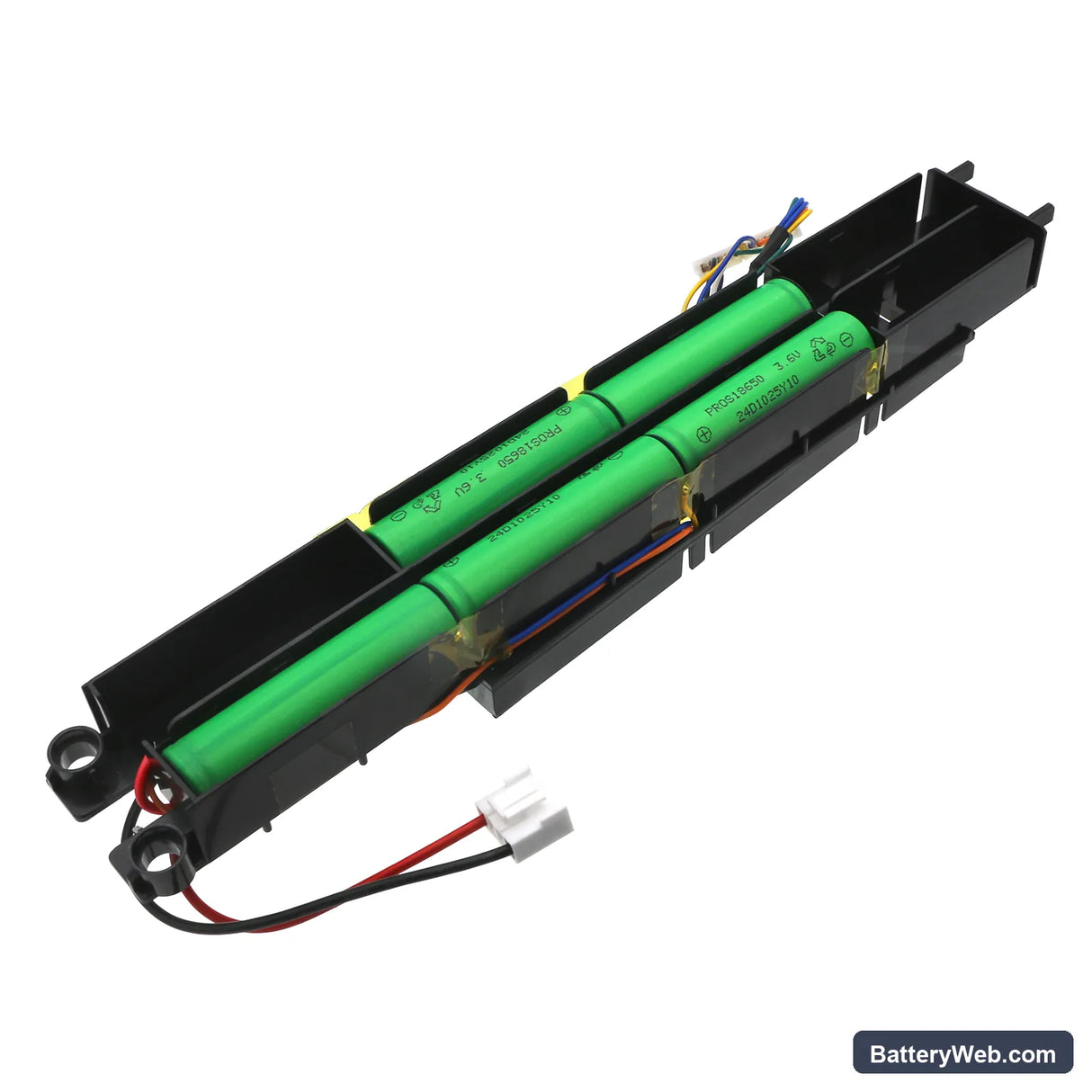

This is an 18.5V 3500mAh (64.75Wh) Li-ion battery for the Rowenta RH9139WHR/2D1 cordless stick vacuum and compatible models in the same series, including RH9174WO/2D1, RH9158WO/2D1, and RH9174WO/2D0. It matches the OEM part number RS-2230001773. When the original cell loses capacity, suction weakens noticeably — this replacement restores full motor voltage to the brush roll and suction fan.

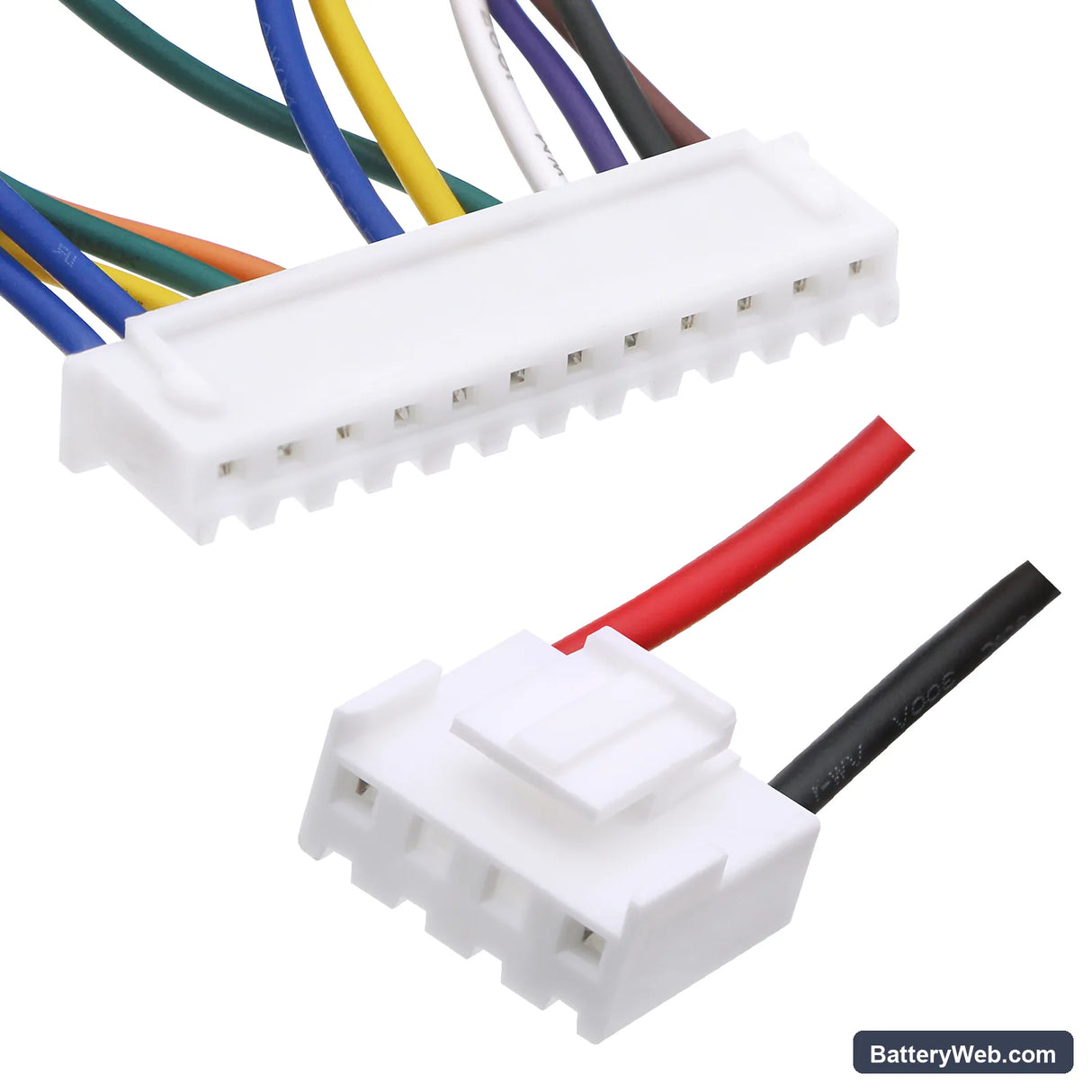

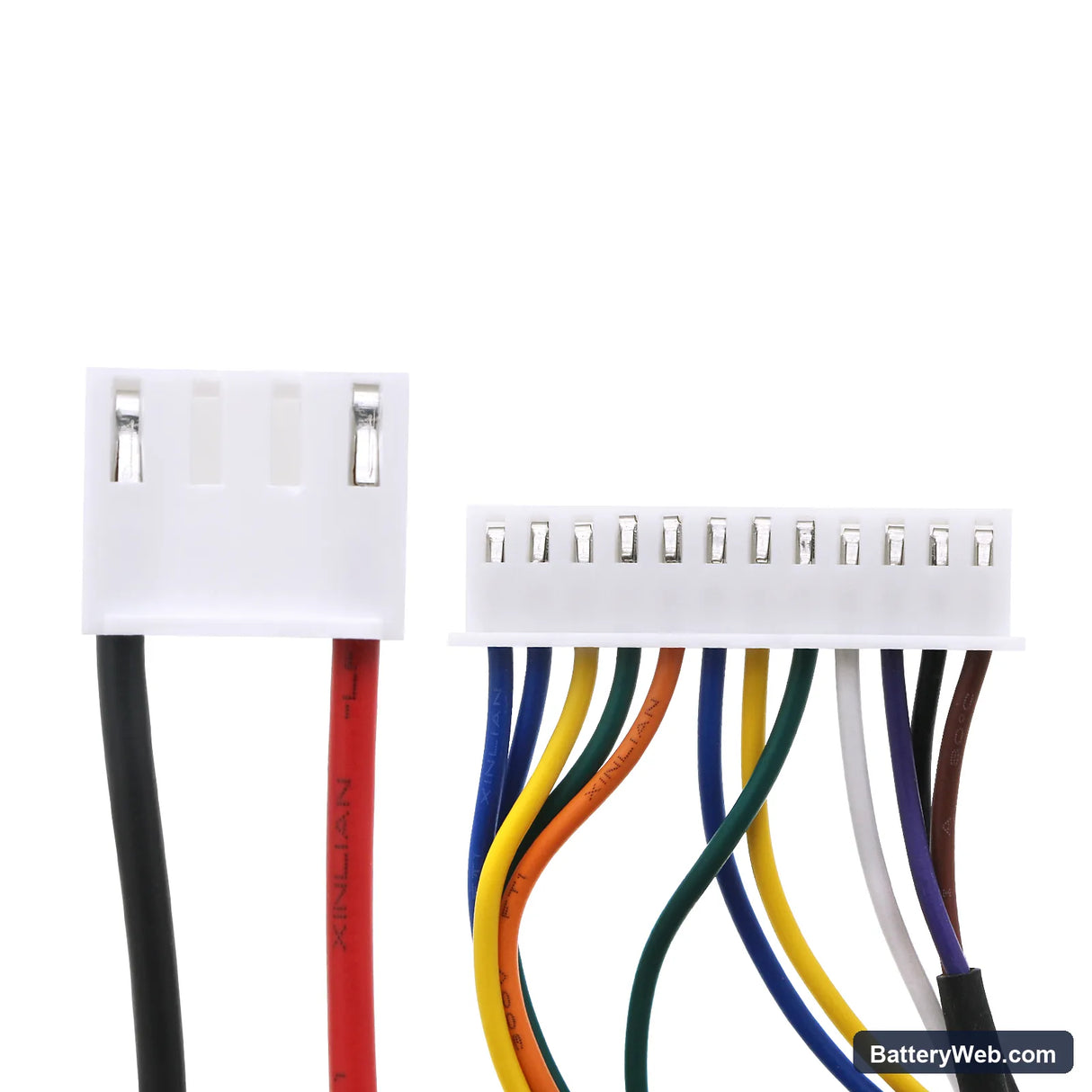

• RH91 series compatibility: These models share an 18.5V power rail, the same connector housing, and a matching BMS handshake with the Rowenta charger. That combination means the replacement cell communicates correctly with both the charger and the vacuum's motor controller without modification.
• Bench tested on actual hardware: We ran this cell through charge cycles and monitored BMS cutoff thresholds under simulated motor load. The protection circuit tripped correctly at overcurrent and recovered as expected when load was removed. Charge acceptance matched rated capacity.
• Dock charging behaviour on this vacuum: Do not leave the vacuum sitting on the charging dock continuously. The RH91 series does not interrupt trickle charge automatically once full — prolonged dock contact accelerates cell degradation. Charge to full, then remove the battery or vacuum from the dock.

Suction dropping before the battery indicator reaches low

The RH9139 motor draws a higher current when the filter is partially blocked or the brush roll is restricted. Under that extra load, cell voltage sags early — the battery indicator reads mid-charge, but the motor is already starved of the voltage it needs for full suction. The BMS reads this as normal discharge, so no warning triggers. Clean the filter and check the brush roll for hair wrap before assuming the battery is at fault — a clear airpath keeps motor draw within the cell's rated output.

Motor cuts out mid-clean then restarts after a few seconds

This is a BMS overcurrent trip, not a dead cell. When suction is restricted — blocked filter, full dust cup, or a trapped object — the motor pulls sustained current above the protection circuit's threshold. The BMS cuts power to prevent damage, then resets once temperature and current drop. The fix is not a new battery: clear the blockage, empty the dust cup, and clean the filter. If the cutout still happens on a clear airpath, check that the replacement cell's BMS threshold matches by confirming the OEM part number RS-2230001773 on the label.
