Shark Evopower System Flex CS501J 11.1V Replacement Battery XSBT330

Shark Evopower System Flex CS501J — 11.1V Li-ion Replacement Battery (XSBT330)

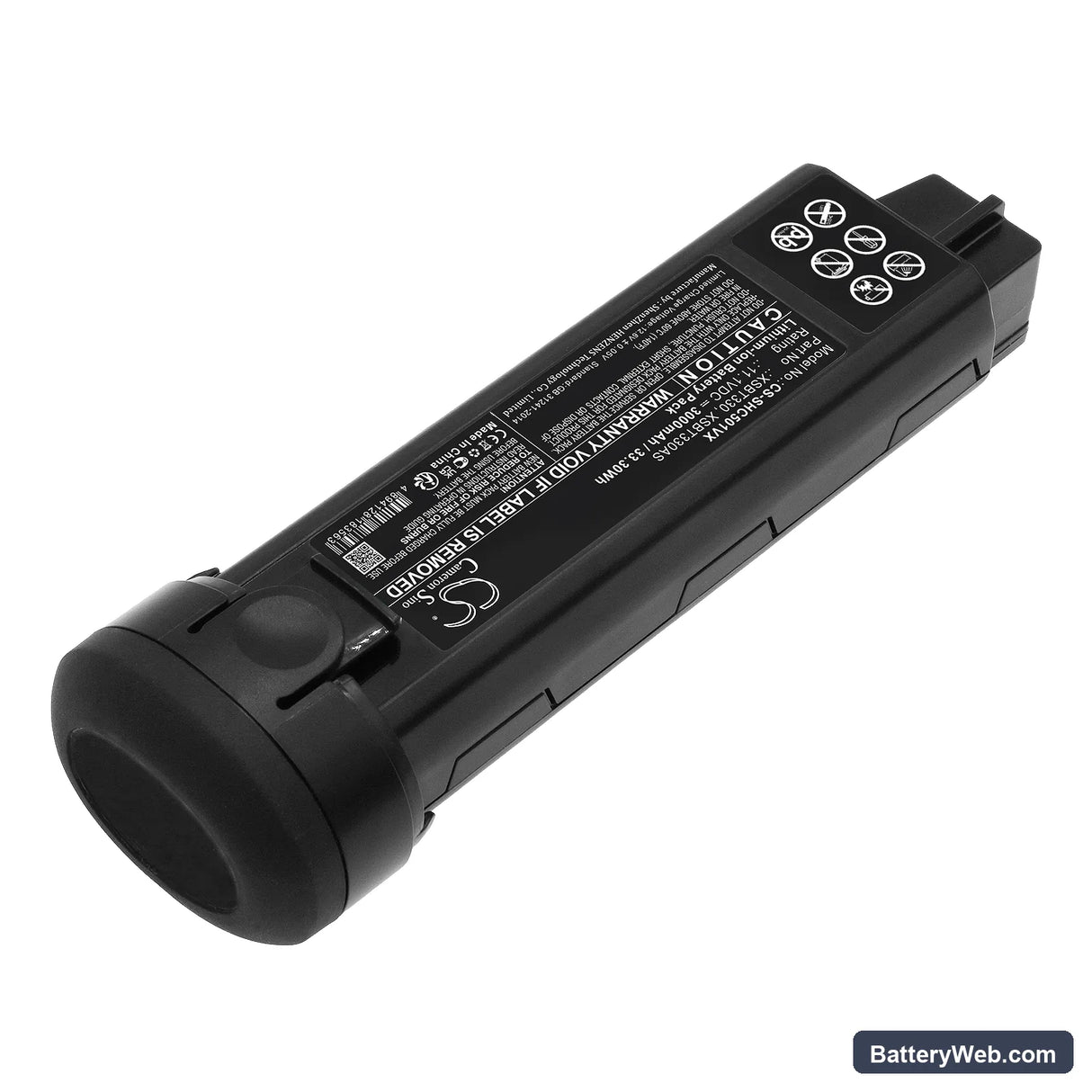

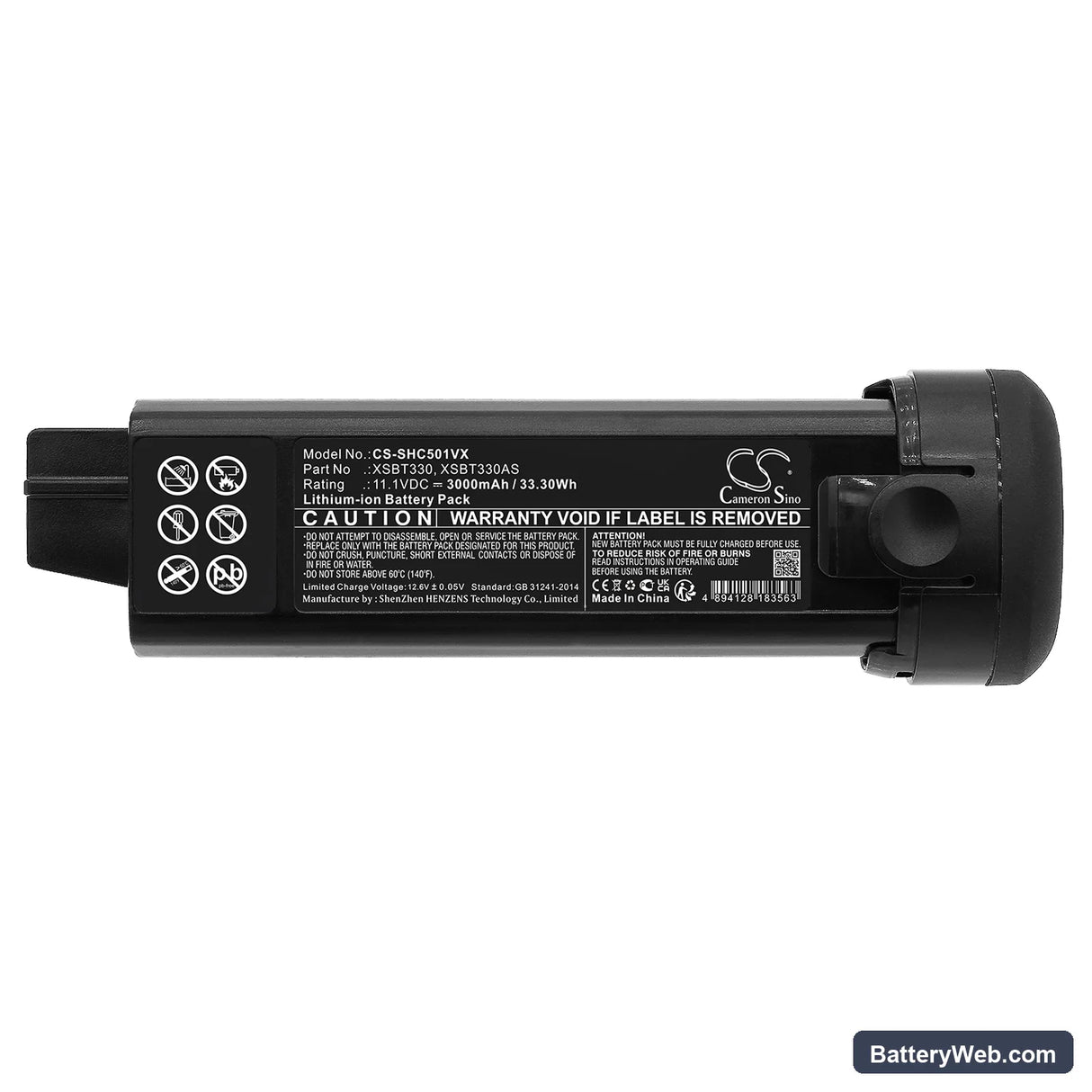

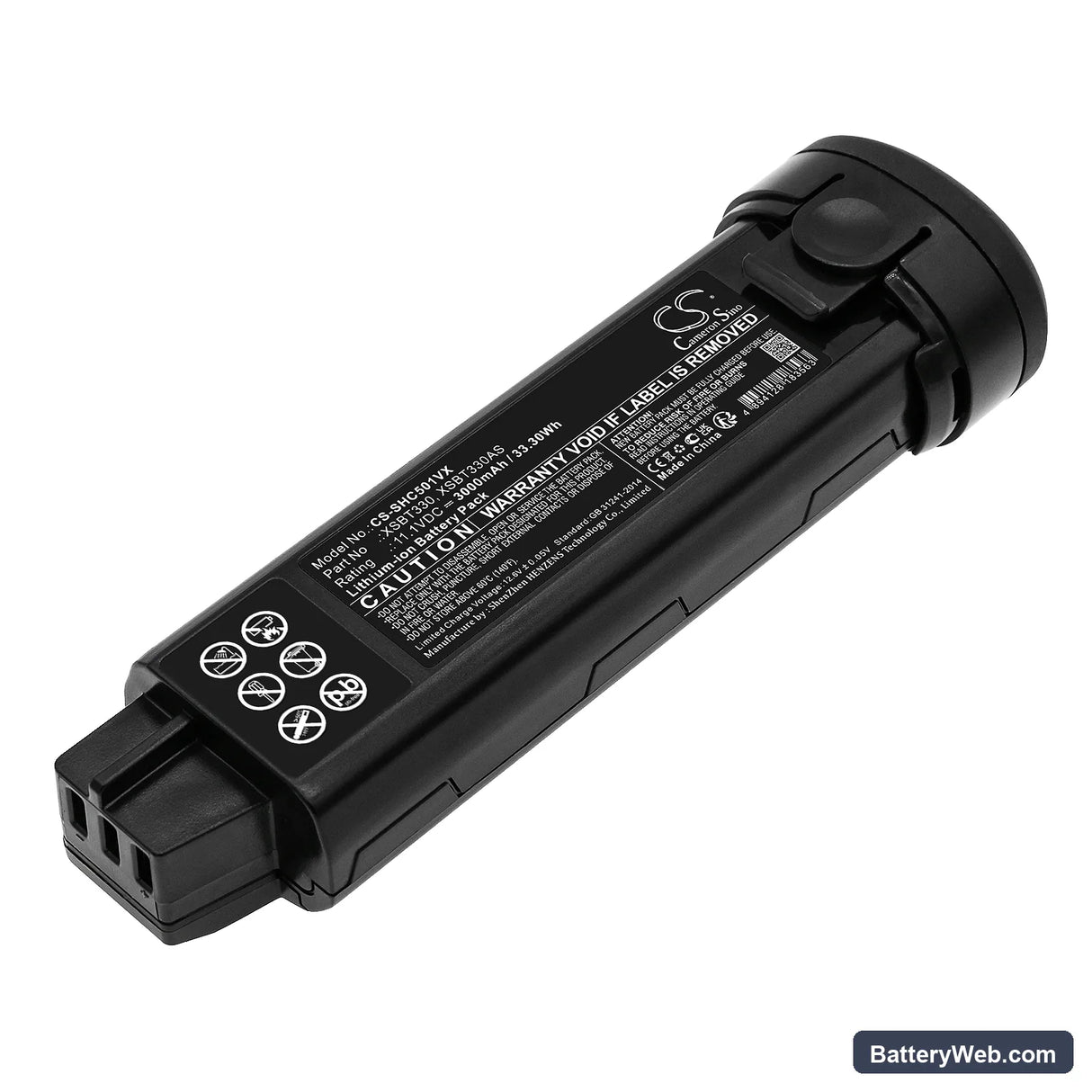

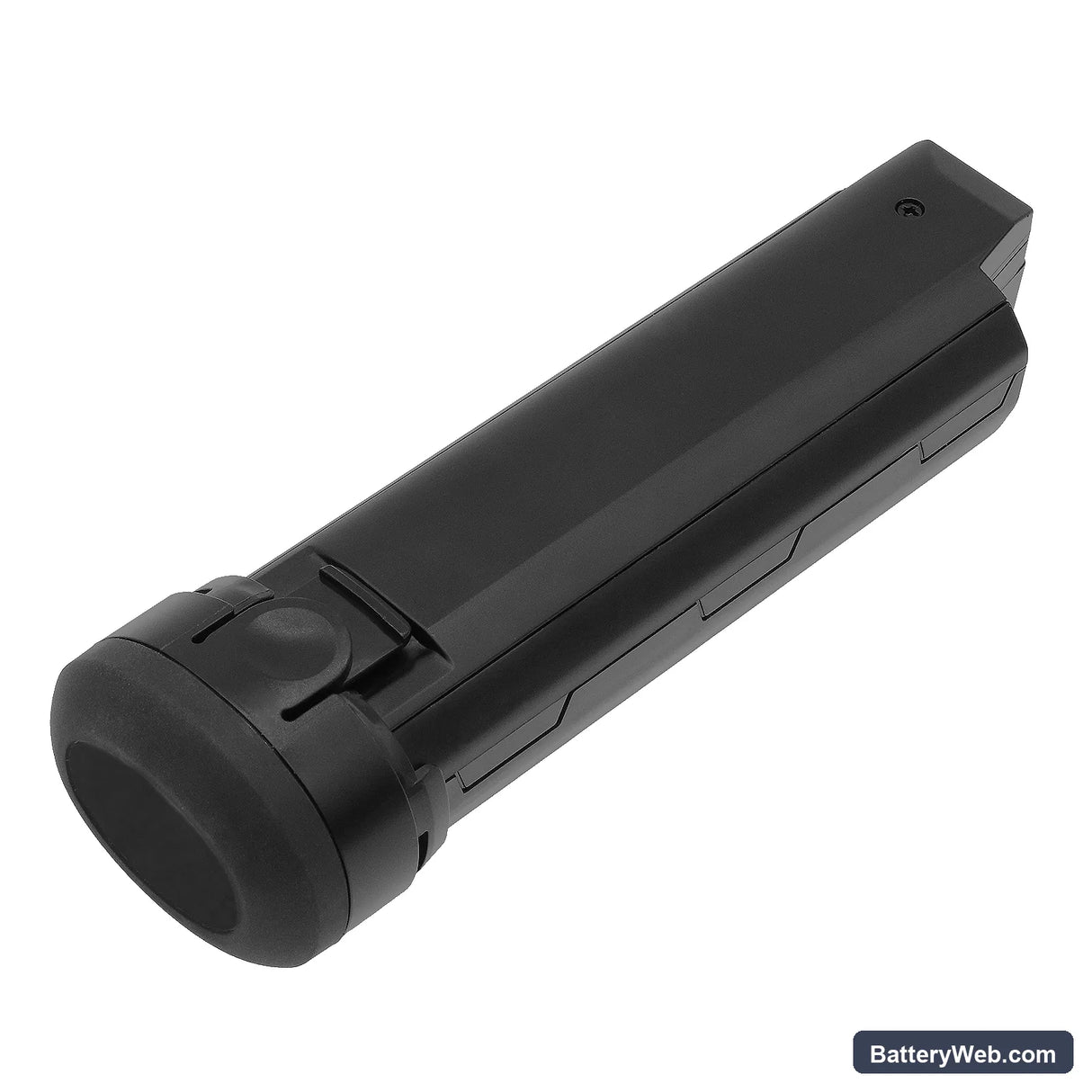

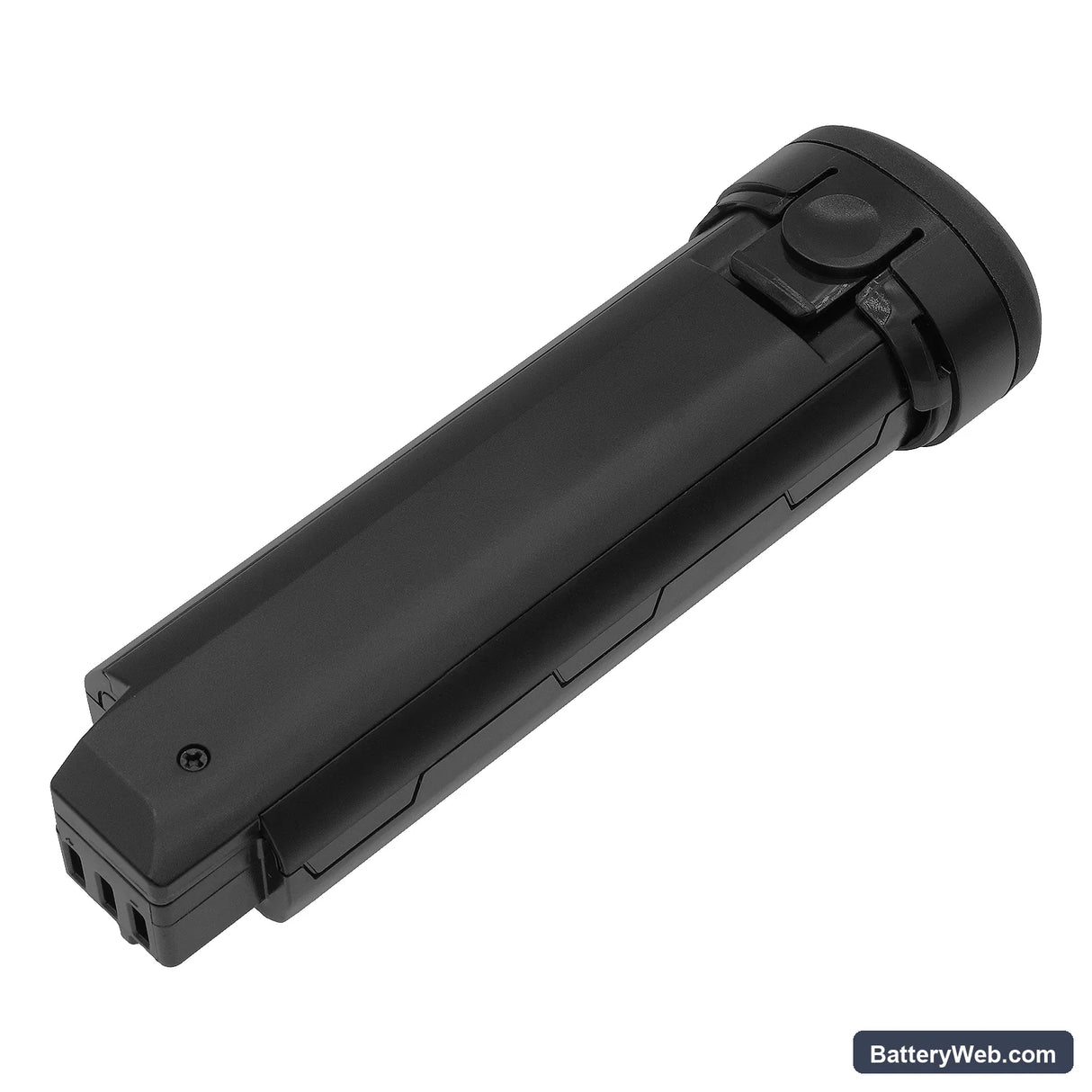

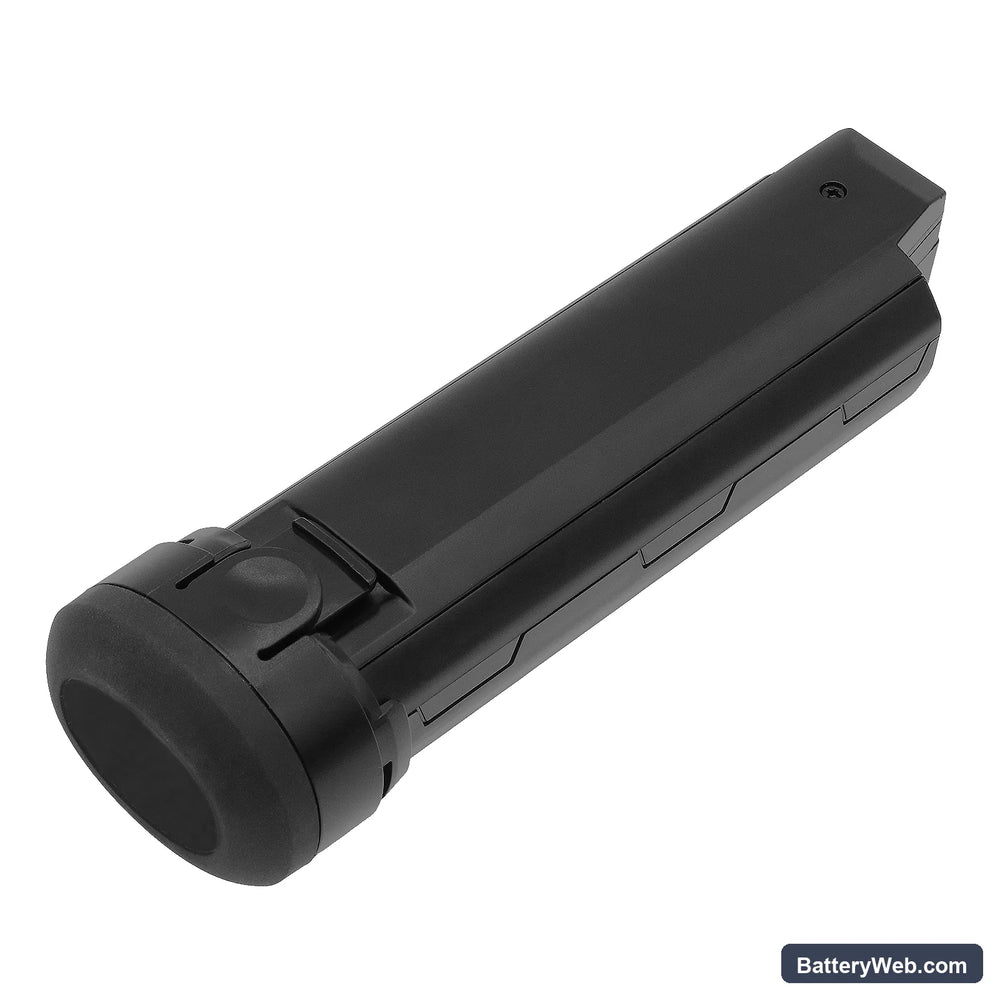

This 11.1V 3000mAh Li-ion battery replaces the XSBT330 and XSBT330AS packs used in the Shark Evopower System Flex range. It fits the CS501J, CS401J, CS200J, and WS632 among others. Voltage and capacity match the original spec — no modifications needed to fit or operate.

• Evopower System Flex platform compatibility: The CS501J, CS401J, CS200J, and WS632 share the same 11.1V three-cell architecture and XSBT330 connector format. The BMS handshake across these models is consistent, so one cell pack covers the full group without pinout differences or firmware conflicts.
• Bench tested on actual hardware: We ran this pack through charge and discharge cycles on the CS501J. The BMS held the overcurrent trip threshold within spec during motor start, and cell balance across all three cells stayed within 30mV at full charge.
• Dock charging behaviour on the Evopower Flex: Do not leave the vacuum sitting on the charging dock between uses. The Evopower Flex dock does not cut trickle current once the pack is full, which accelerates capacity fade. Charge to full and remove the unit from the dock.

Cordless vacuum losing suction before the battery indicator reaches low

This is a voltage sag issue, not a capacity issue. When the motor labours against a partial blockage or a clogged filter, current draw spikes and pack voltage drops temporarily below the motor controller's threshold — triggering a power reduction before the indicator registers low. The battery still holds charge; the filter restriction is forcing the motor to pull harder than it should. Clear the filter and check the brush roll for obstructions, then retest. If suction recovers immediately, the cell is fine.

Motor cuts out mid-clean and restarts after a few seconds

This is the BMS overcurrent protection tripping, not a faulty cell. On sustained restricted suction — usually a blocked filter or jammed brush roll — motor draw exceeds the BMS current limit and the pack shuts output momentarily to protect the cells. The BMS resets automatically after a short cooldown, which is why the vacuum restarts on its own. Clean the filter, clear the brush roll, and confirm the post-filter is seated correctly. If the cutout stops after clearing the blockage, the pack is operating as intended.
