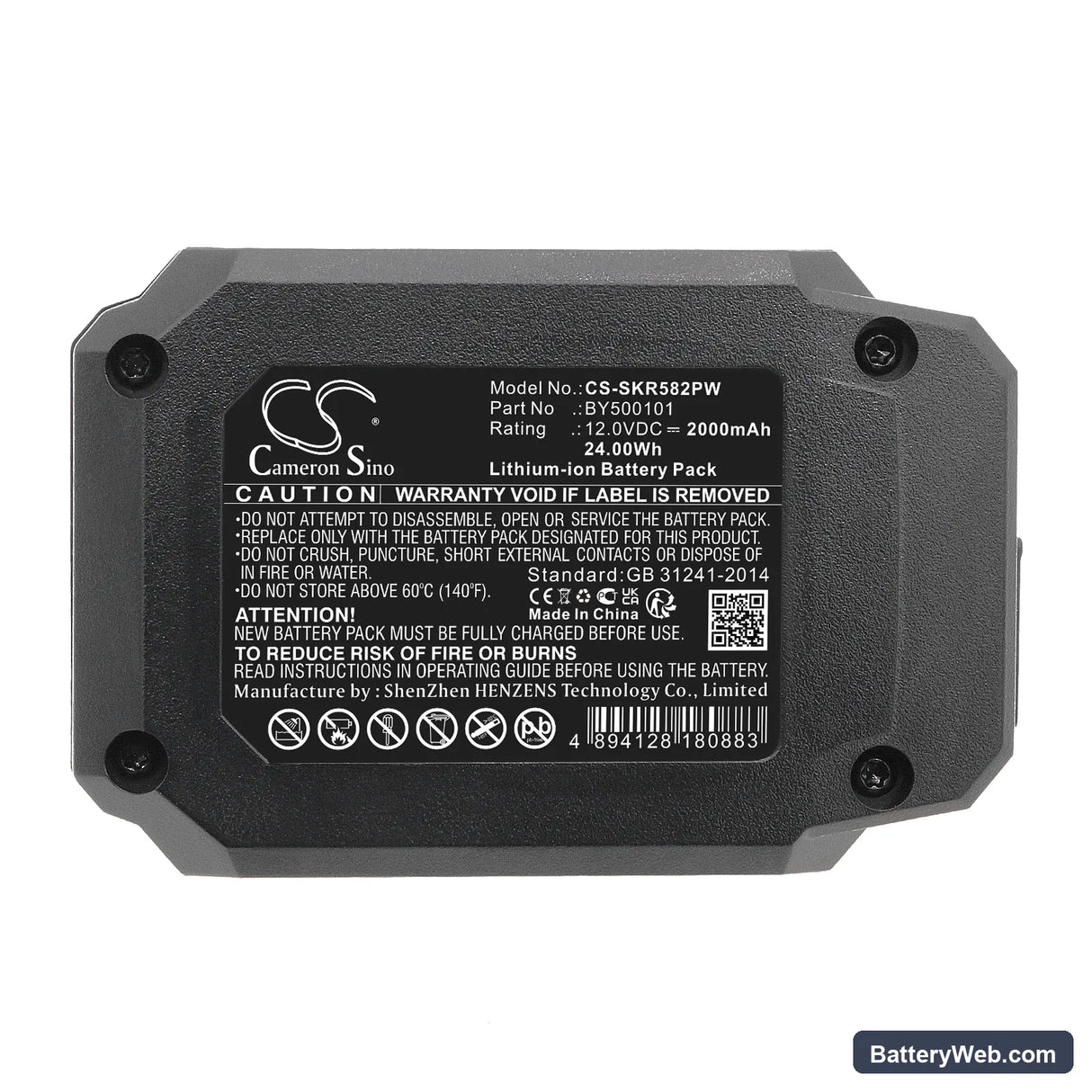

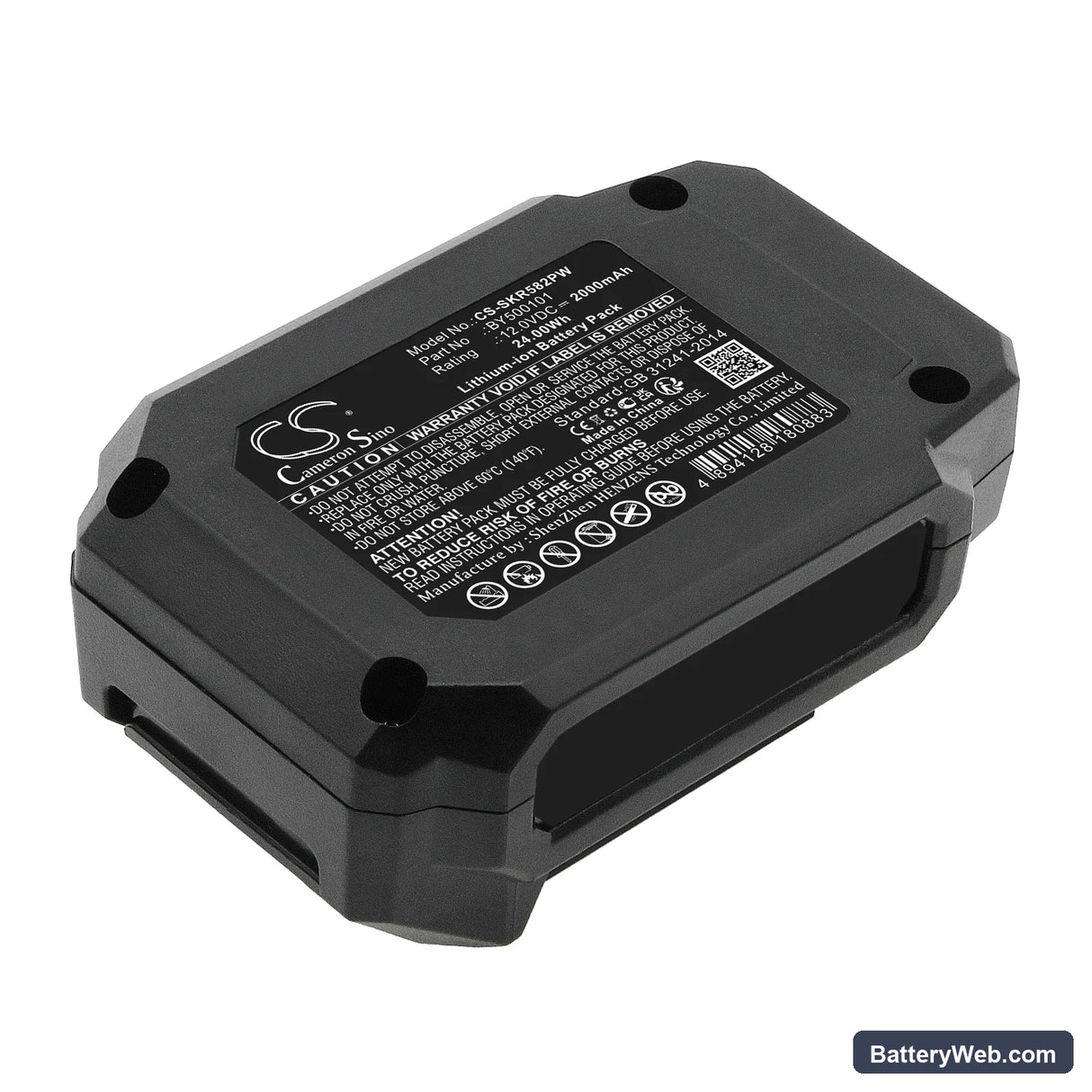

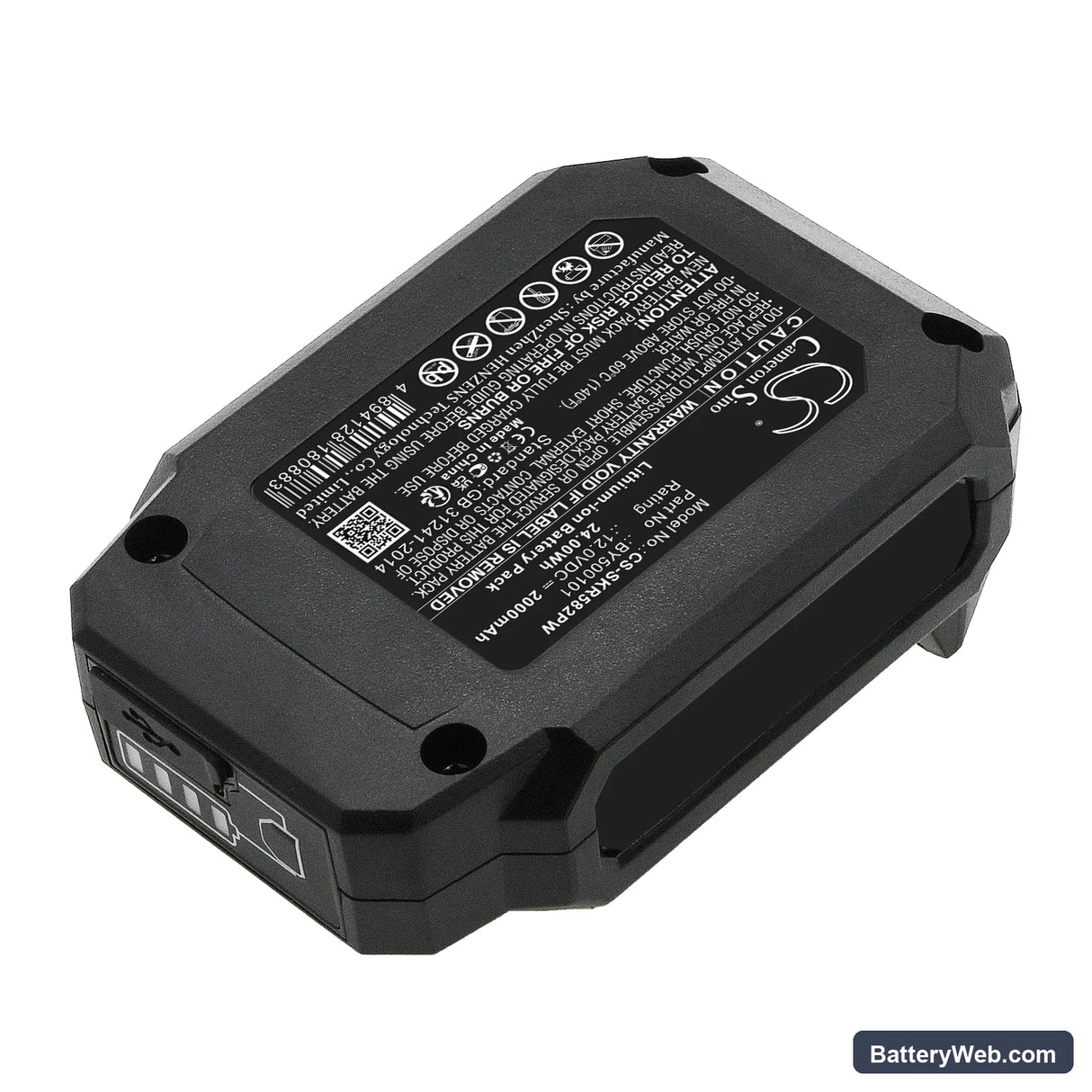

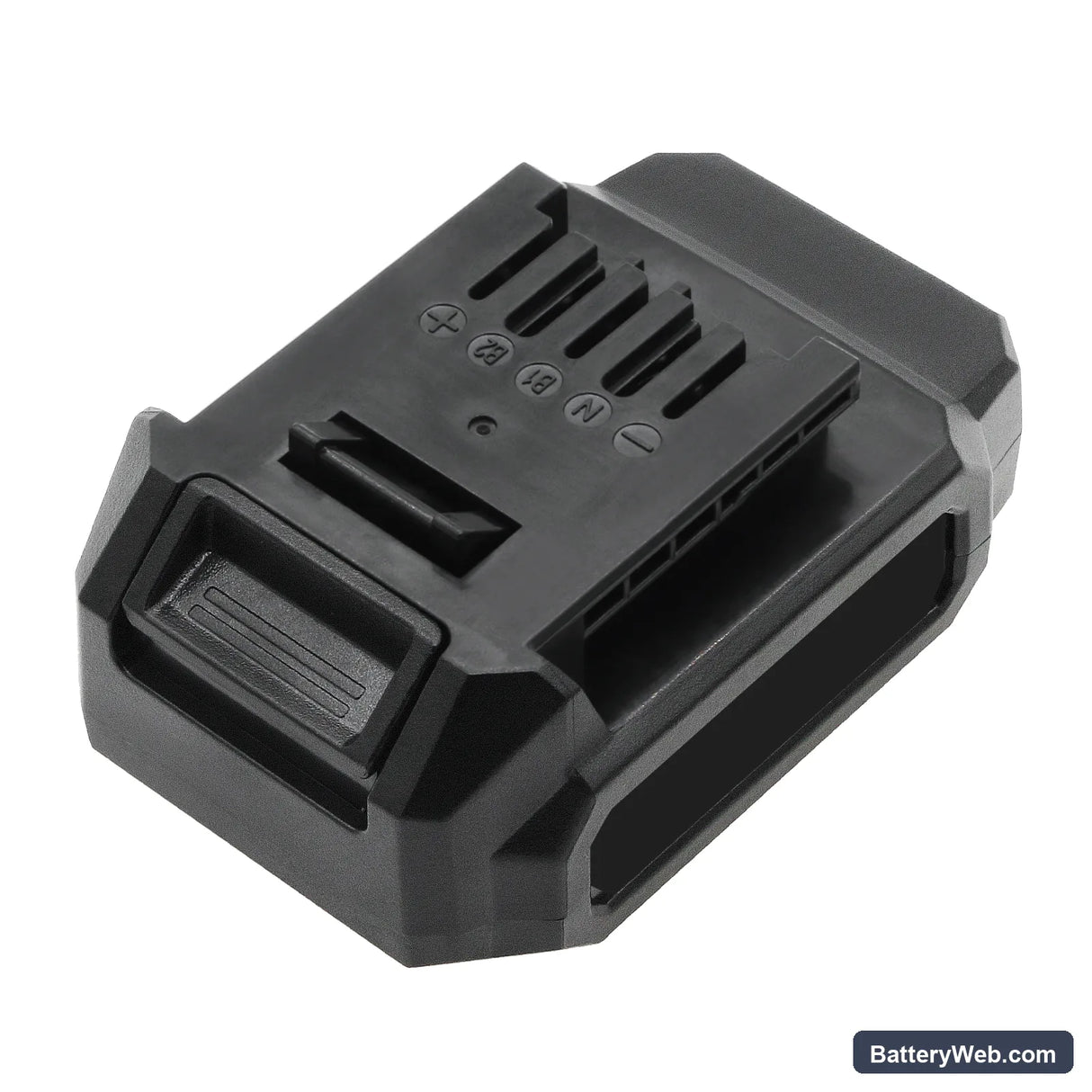

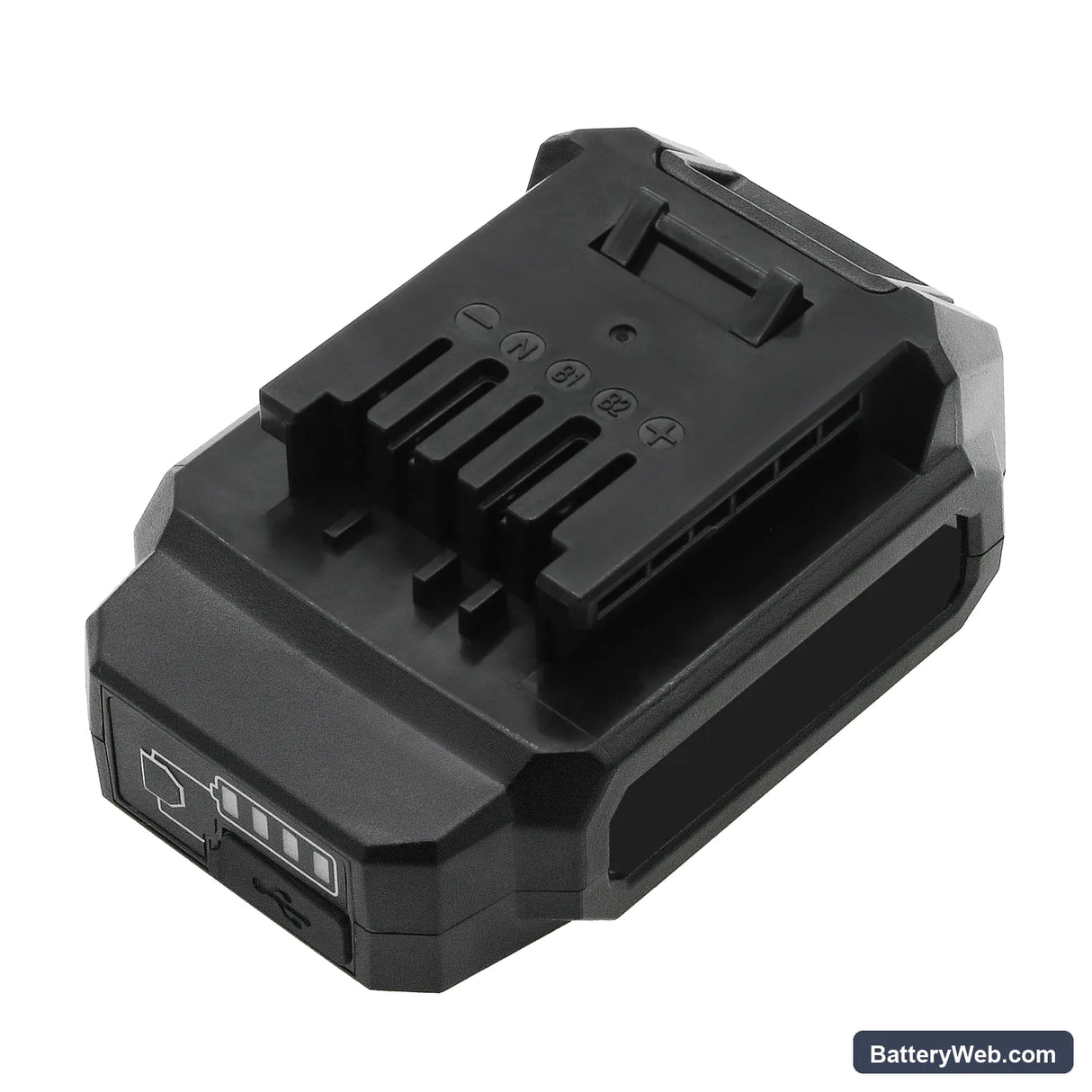

Skil PWRCORE 12V BY500101 Replacement Battery 2000mAh

Skil PWRCORE 12™ Series — 12V Li-ion Replacement Battery (BY500101)

This 12V 2000mAh Li-ion battery pack fits the Skil PWRCORE 12™ Brushless 3/8" Ratchet Wrench Kit and over 22 additional PWRCORE 12™ platform tools including the IW5744-10 impact and 12V Mechanical Light. It replaces OEM part BY500101 directly. Voltage, connector, and BMS handshake match the original pack specification.

• PWRCORE 12™ platform compatibility: All listed tools share the same 12V rail, slide-in connector, and BMS communication protocol. One battery pack moves across the entire platform without adapters or firmware issues.
• Bench tested on actual hardware: We ran this pack through full charge and discharge cycles on a PWRCORE 12™ ratchet wrench. The BMS registered correct cell voltage, accepted the charger handshake, and held the overcurrent threshold through repeated trigger pulls at full torque load.
• Motor inrush conditioning on first use: Run the ratchet wrench at half load for two cycles before applying maximum torque. This lets the BMS log the motor's inrush current spike and set accurate overcurrent protection thresholds — reducing false cutoffs during hard fastening jobs later.

BMS cutoff on trigger-pull inrush surge in the 3/8" ratchet

The ratchet wrench draws a sharp current spike the instant the trigger is pulled — this inrush can briefly exceed the BMS overcurrent threshold on a new or cold pack, tripping a protective cutoff. The BMS in the BY500101 pack uses a short-delay overcurrent window to distinguish sustained overload from a normal motor-start spike. A new pack straight from storage may have that threshold set conservatively until it has logged a few actual start cycles. Two or three light-load cycles recalibrate the threshold so the BMS stops tripping on normal trigger pulls.

Charger blinking red and refusing to accept pack after storage

Li-ion packs left unused for several months can drop below the charger's minimum acceptance voltage — typically around 2.5V per cell. When cell voltage falls below that threshold, the charger's safety circuit flags the pack as faulty and blinks red rather than starting a charge cycle. The fix is a brief recovery charge: some PWRCORE chargers include a wake-up mode that applies a trickle current to bring cells back above the acceptance floor. If your charger has no wake mode, check total pack voltage with a multimeter — if it reads above 9V across the terminals, the cells are recoverable and the charger should accept the pack after a full power cycle of the charger itself.
