TCL P520L Replacement Battery 3.7V 2000mAh TLp020JD

TCL P520L / P518L Series — 3.7V Li-ion Replacement Battery (TLp020JD)

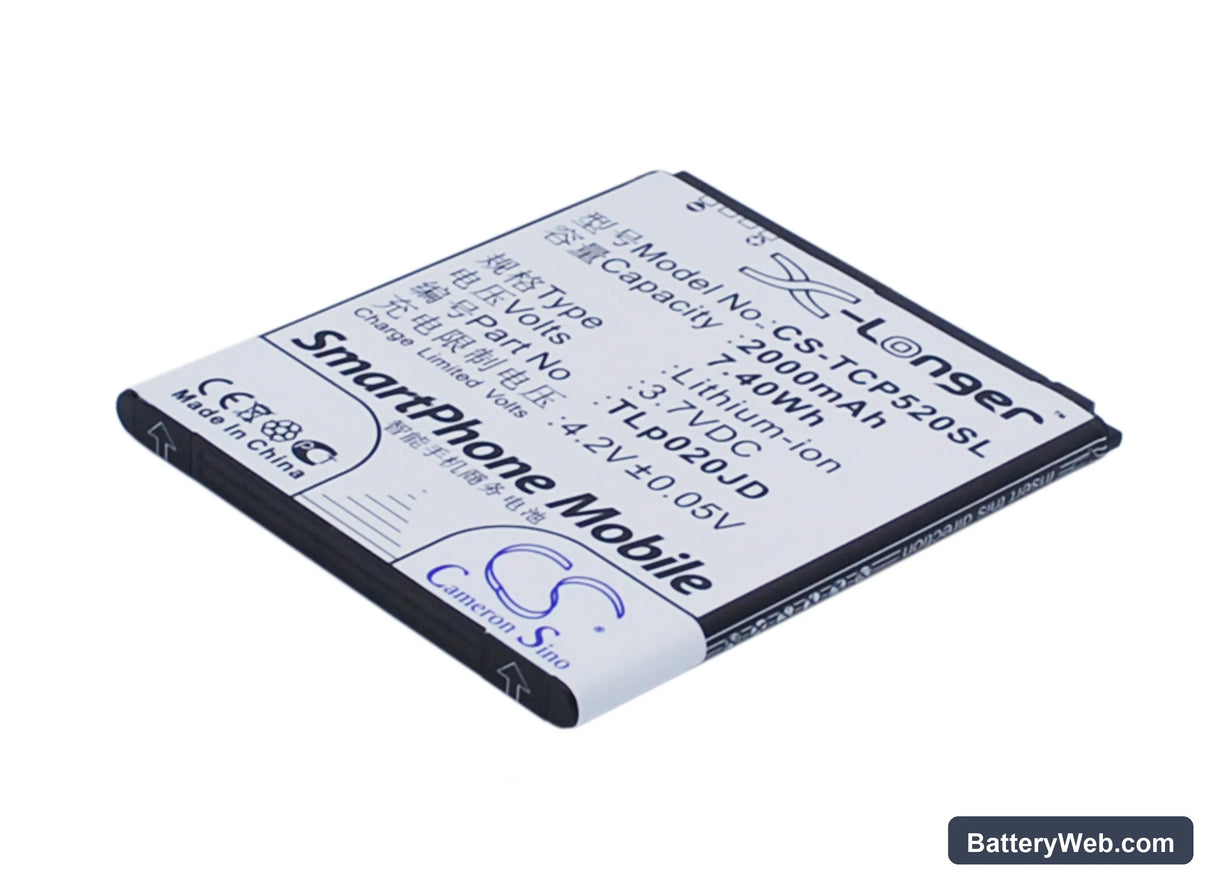

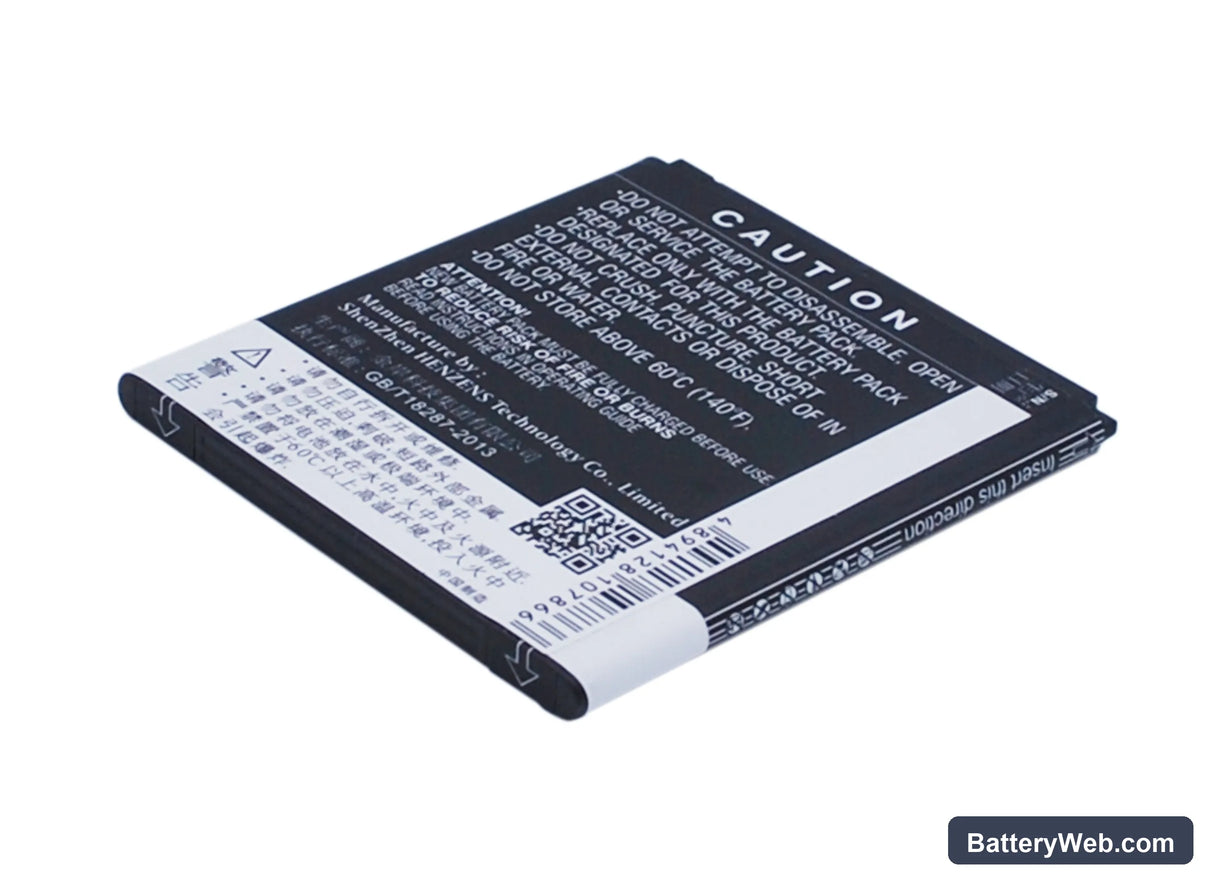

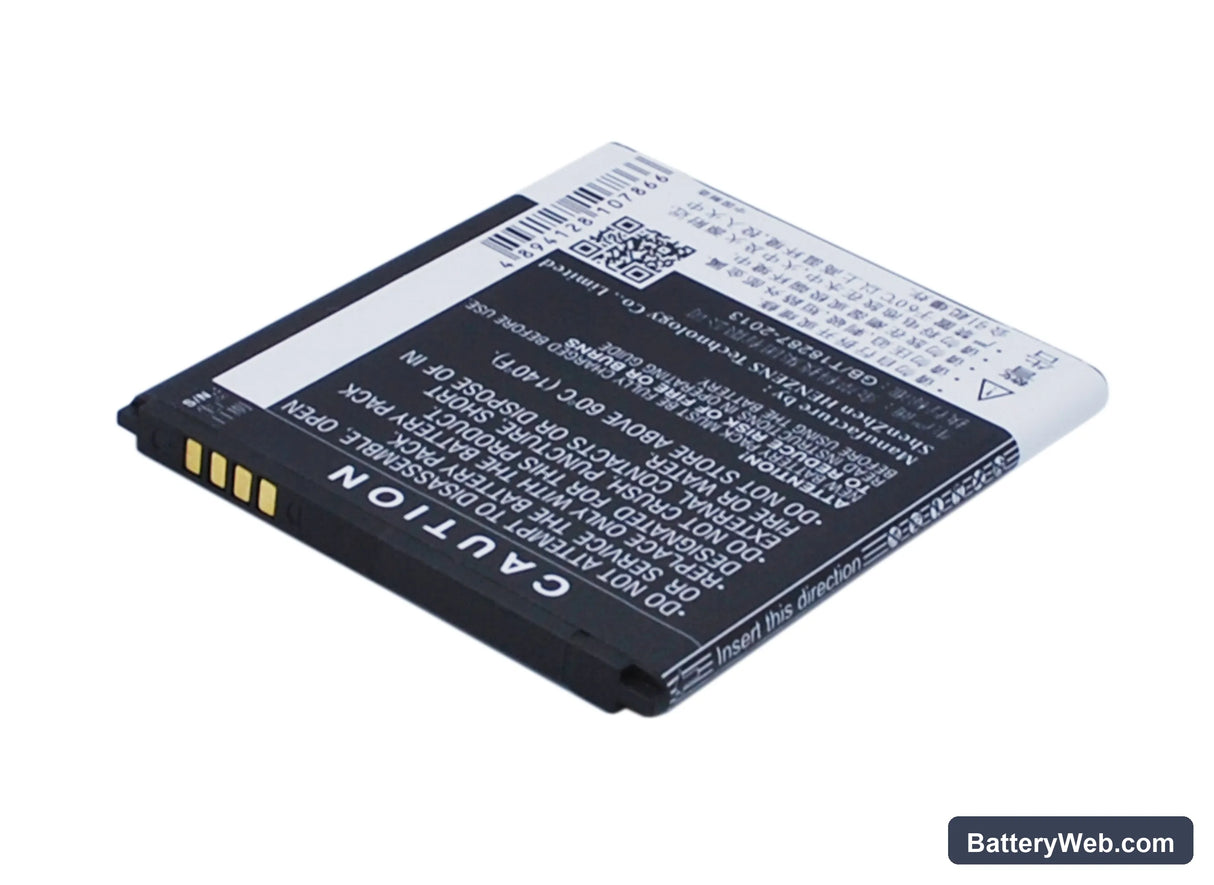

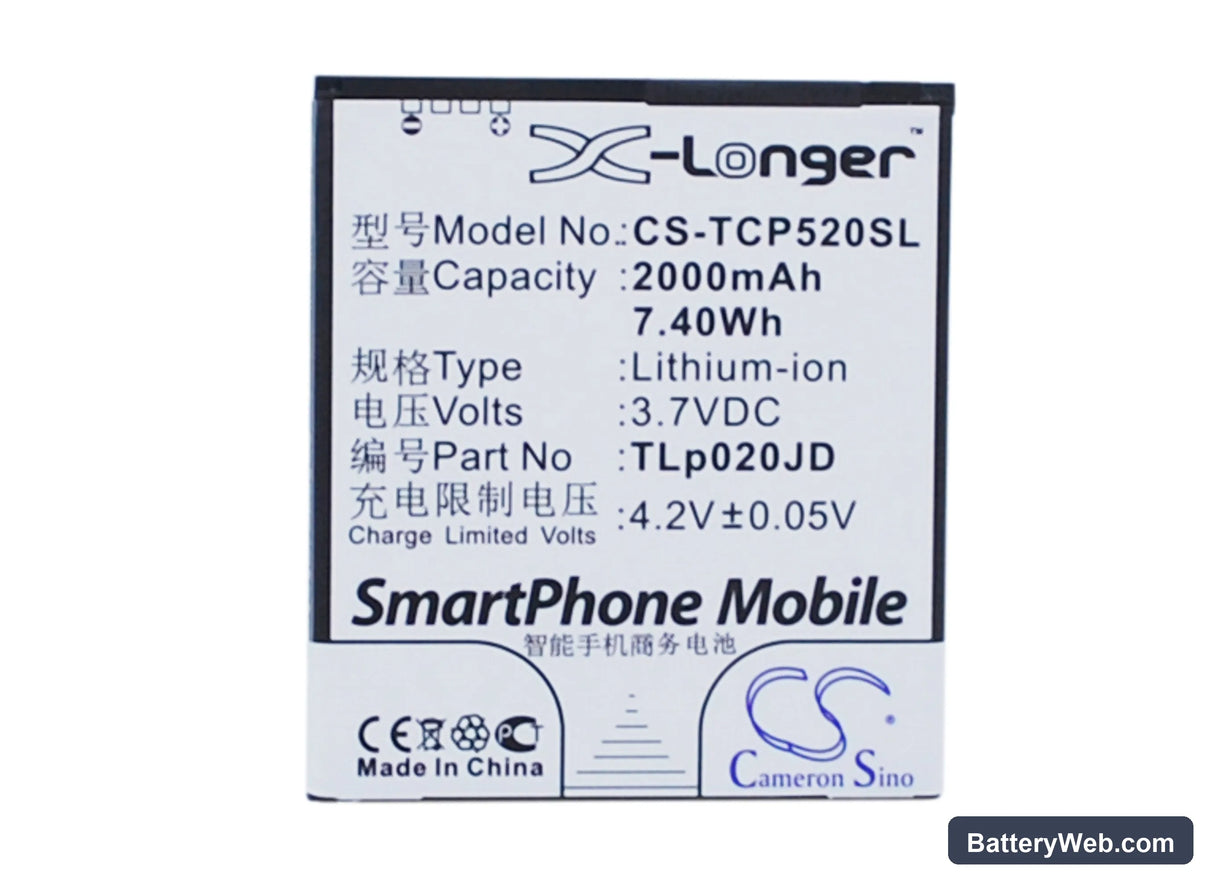

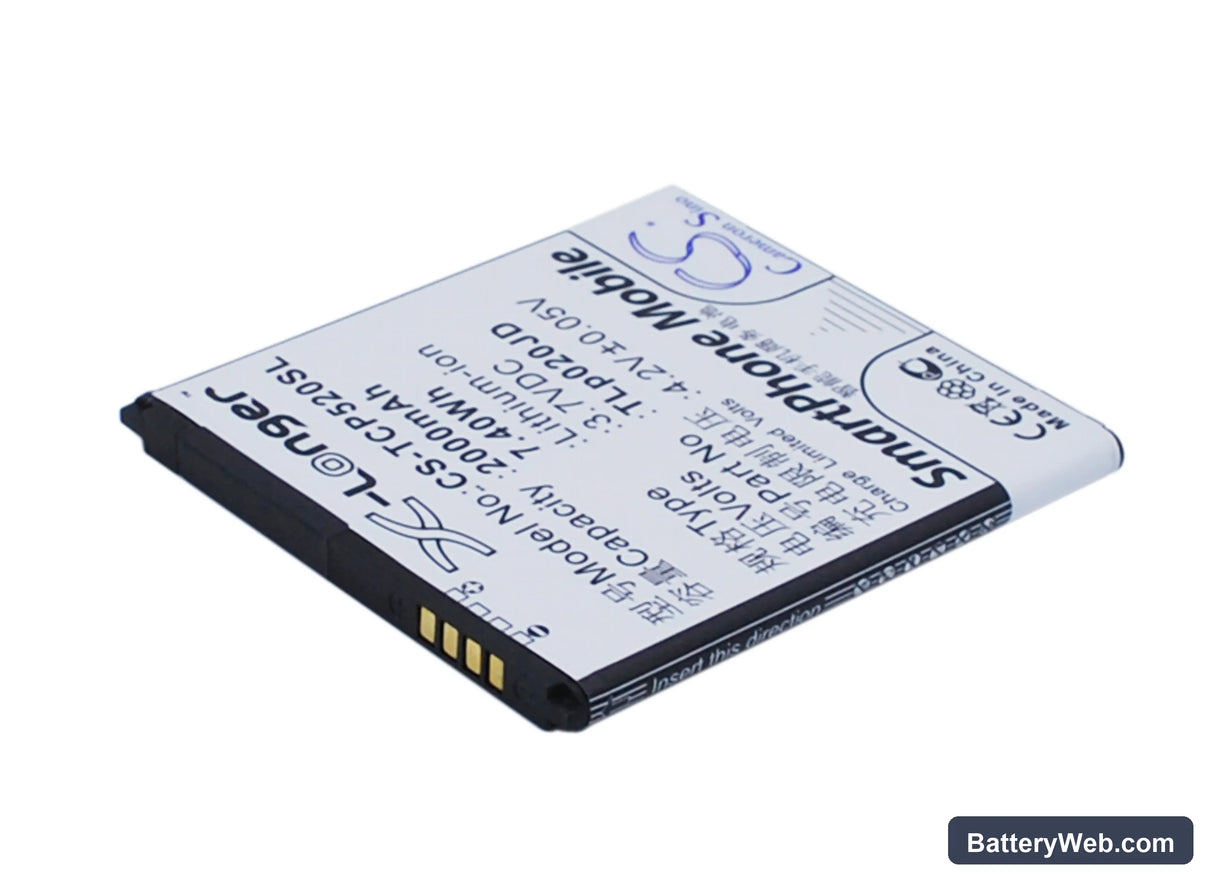

This is a 3.7V, 2000mAh (7.4Wh) Li-ion cell that replaces part number TLp020JD in the TCL P520L, P518L, P5201, and P5181 smartphones. It matches the original voltage rail and physical footprint exactly. Swap it in when the original cell no longer holds a charge or causes unexpected shutdowns.

• P520L / P518L platform fit: These four models share the same PCB layout, connector pinout, and BMS handshake protocol — that is why one cell covers all of them. The 3.7V nominal rail and TLp020JD connector are consistent across the entire group.
• Bench tested on actual hardware: We cycled this cell through a full discharge and charge sequence on a P520L unit. The BMS accepted the cell without error flags, charge termination triggered correctly at 4.2V, and the fuel gauge IC began tracking state-of-charge within one full cycle.
• First-cycle fuel gauge recalibration: After fitting this cell, disable fast charging and run one complete discharge-to-charge cycle at standard rate. The fuel gauge IC was calibrated to the old cell's discharge curve — one full cycle at low current gives it a clean reference before high-current charging begins.

Sudden shutdown at 20–30% on the replacement cell

This happens because the fuel gauge IC still holds the discharge curve from the old, degraded cell. When modem activity or screen brightness spikes current draw, the new cell's voltage drops briefly below the threshold the IC expects at that reported percentage. The phone interprets this as a critical low-voltage event and shuts down — even though actual capacity remains. One full discharge cycle down to automatic power-off, followed by a full charge, resets the coulomb counter and eliminates most of these shutoffs.

Device will not power on after sitting discharged in storage

If a Li-ion cell drops below approximately 2.5V during extended storage, the BMS enters a protection lockout and blocks normal charge current. Plugging in a charger produces no response — the phone appears completely dead. Connect the device to a wall adapter (not a PC USB port) and leave it for 15–20 minutes without pressing the power button. Most BMS circuits on this platform accept a trickle pre-charge passively and will exit lockout once cell voltage climbs back above 2.9V, at which point a normal boot sequence becomes possible.
