Vileda 488A Cordless Vacuum Compatible Battery 14.4V 4000mAh

Vileda 488A / A3 — 14.4V Ni-MH Replacement Battery

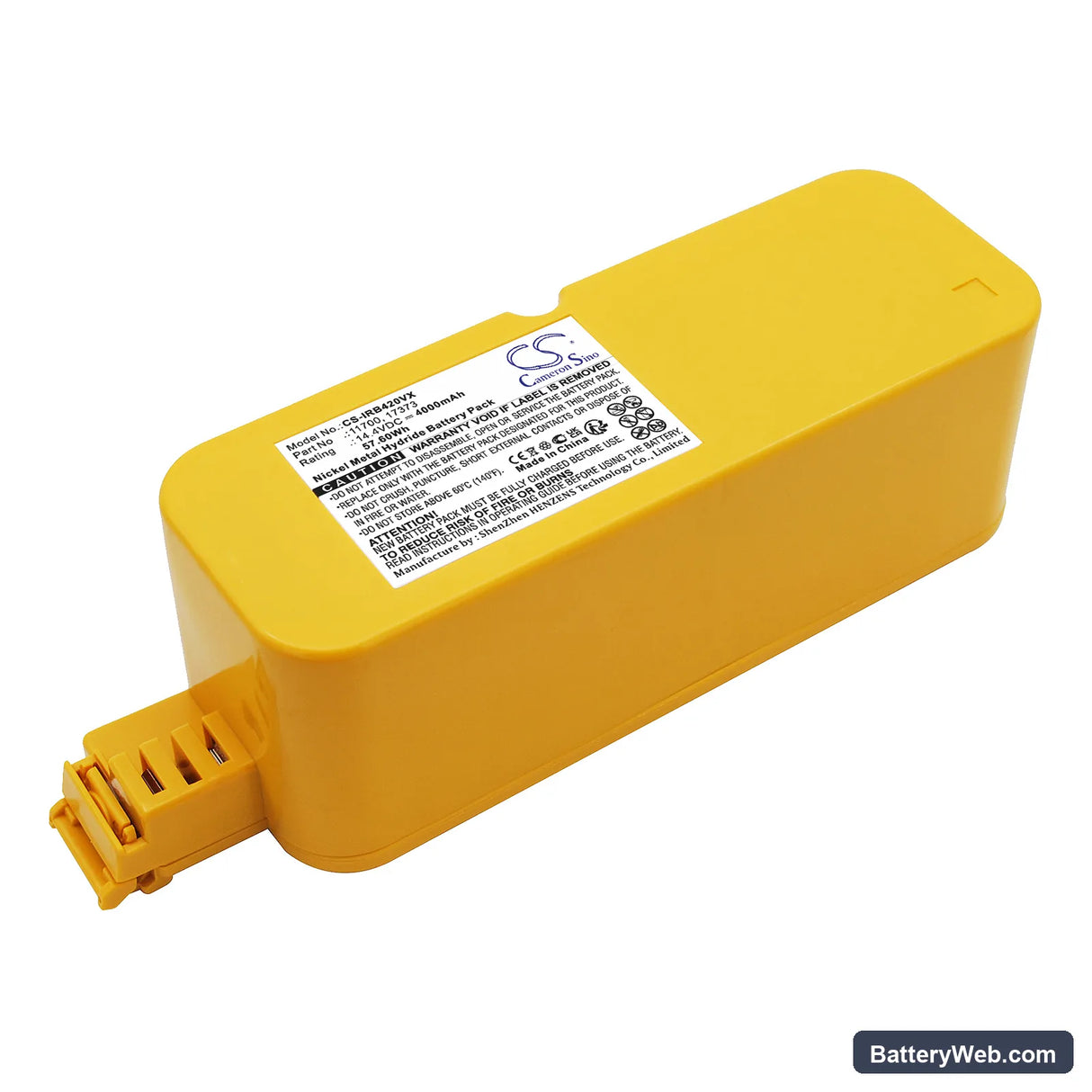

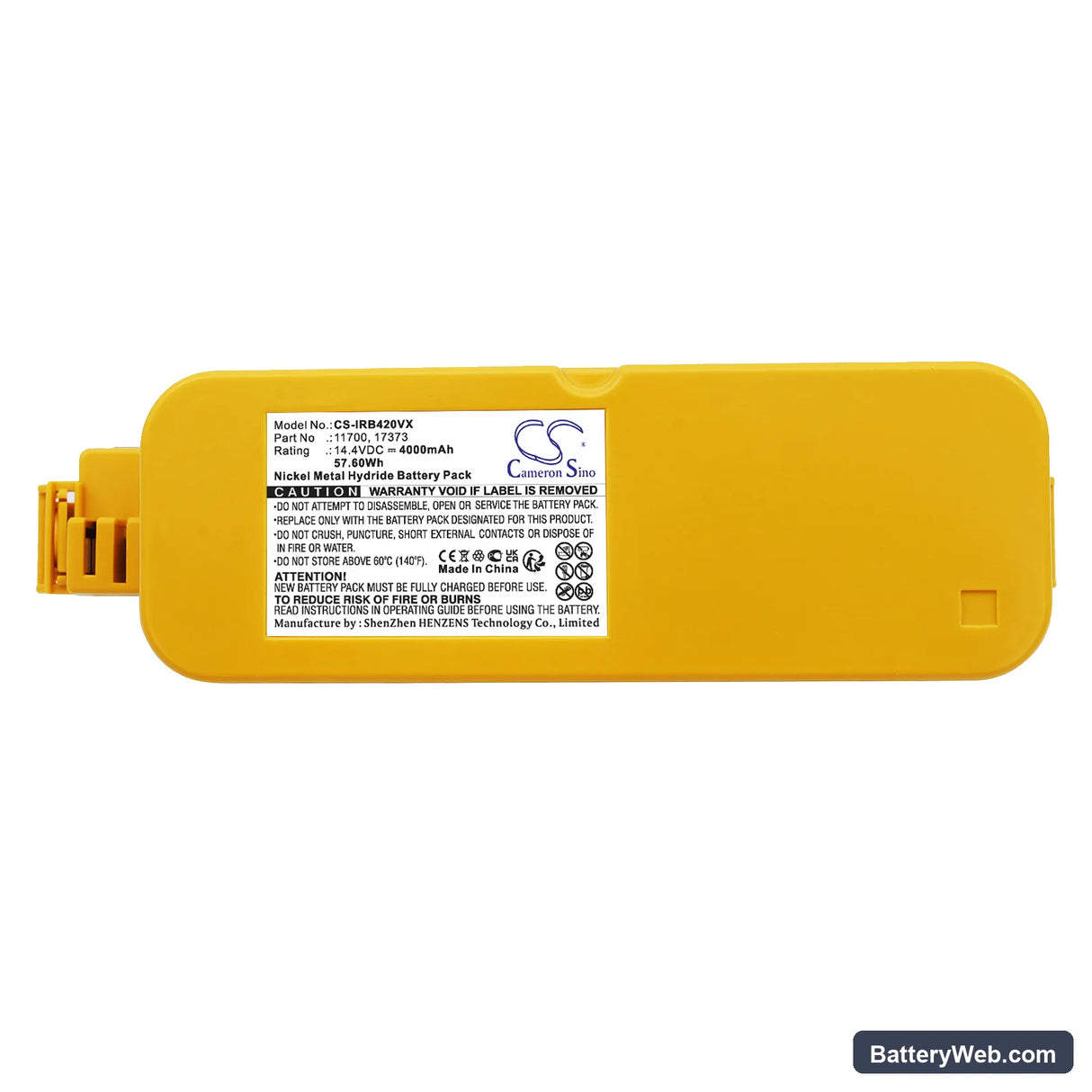

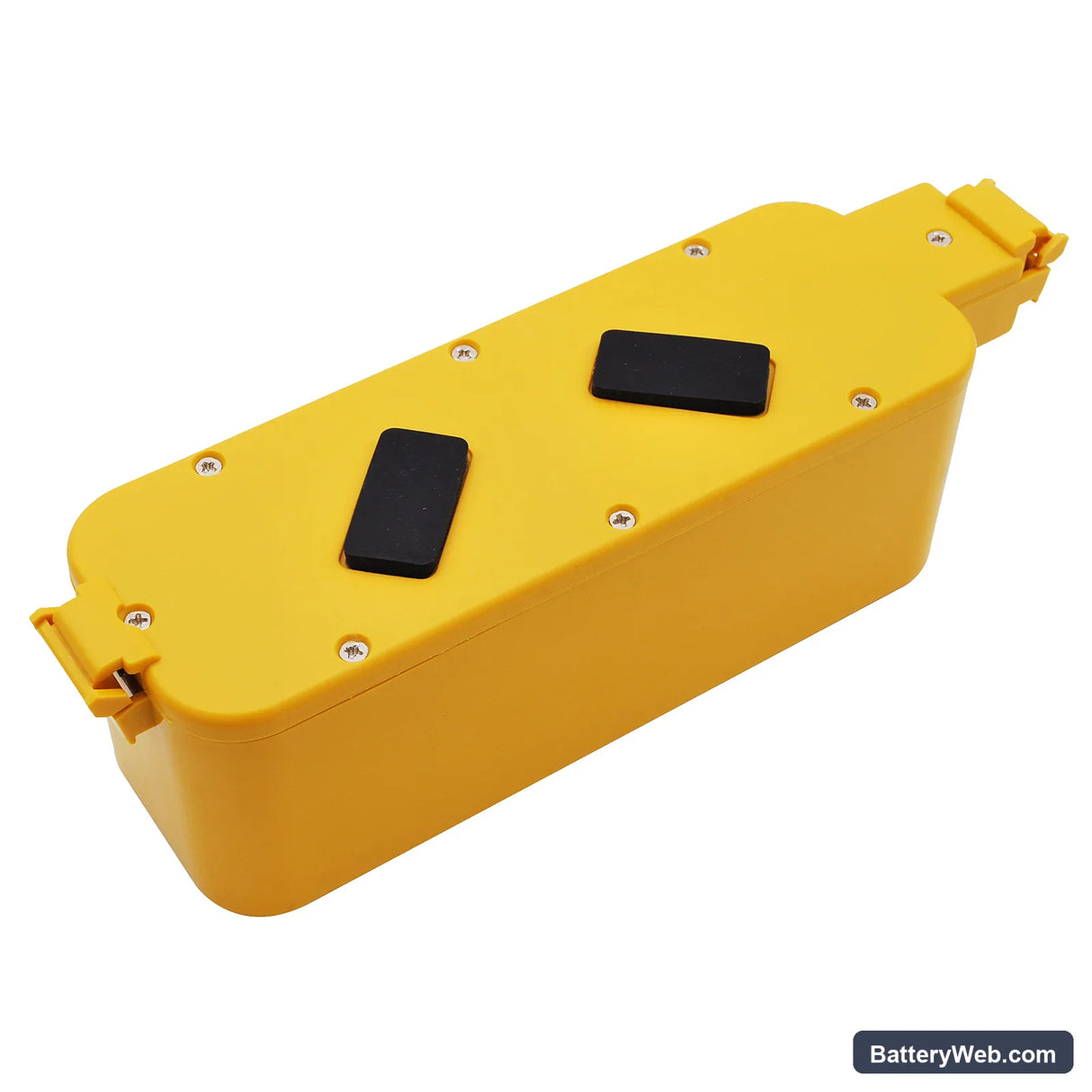

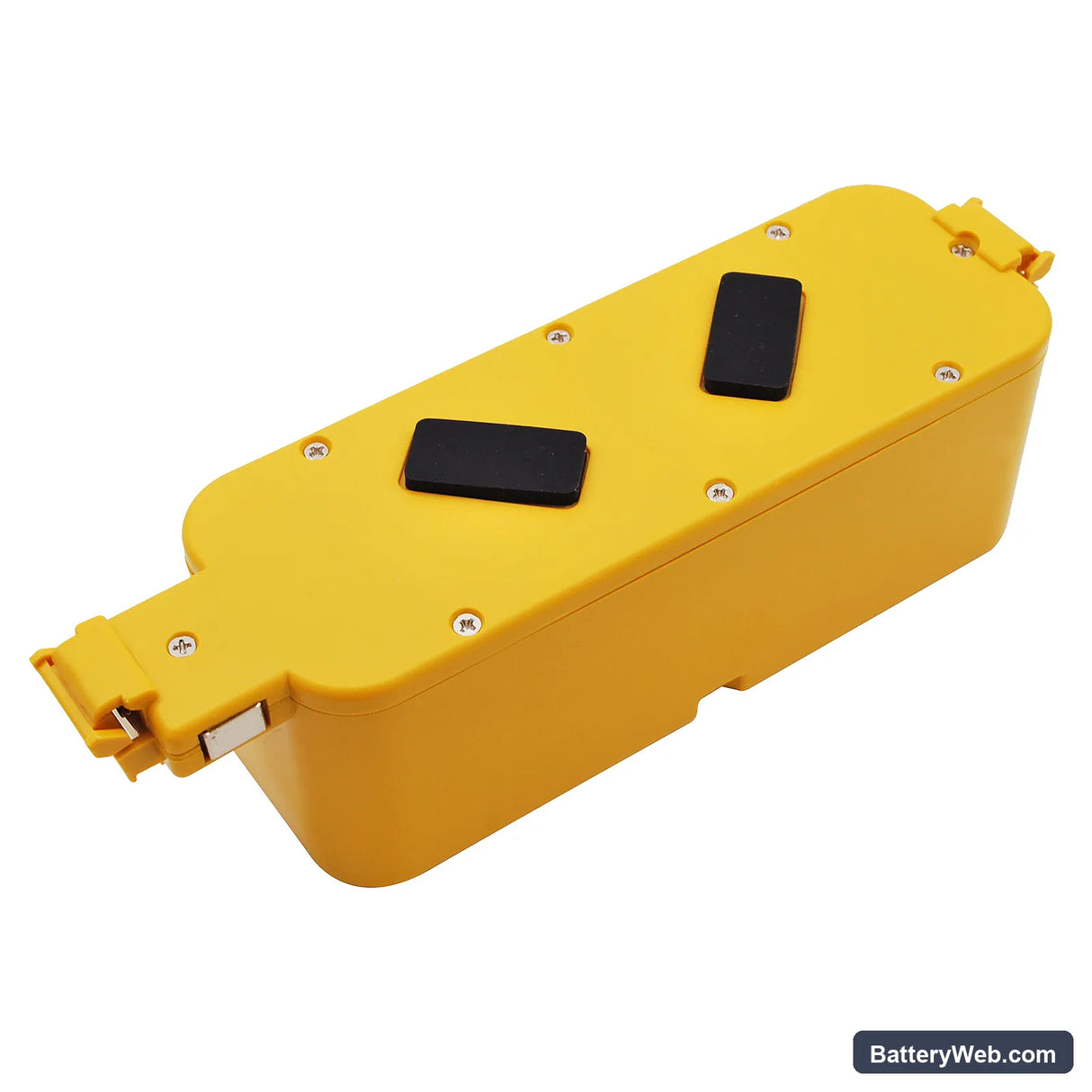

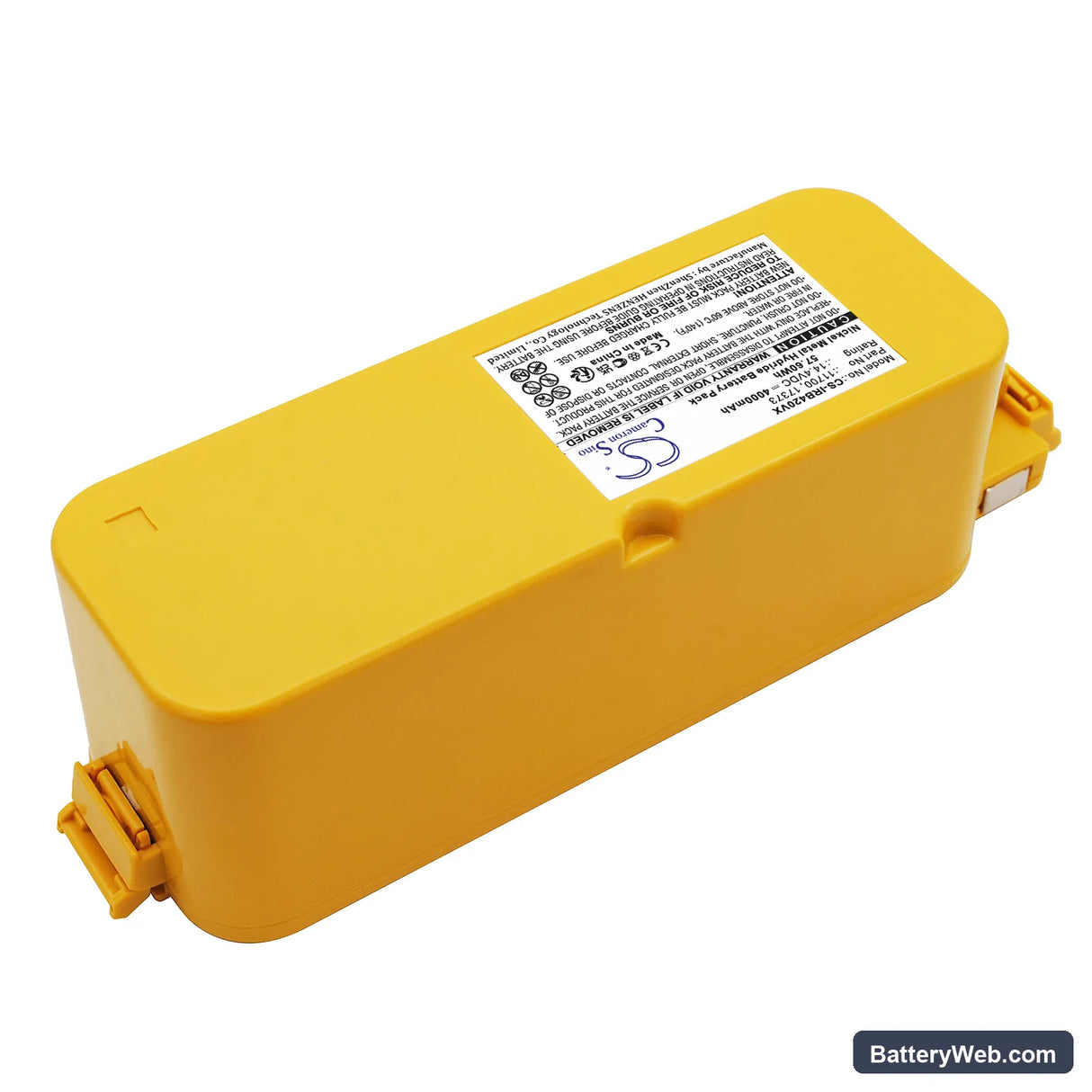

This is a 14.4V Ni-MH battery rated at 4000mAh (57.6Wh), built to fit the Vileda 488A and A3 cordless vacuum cleaners. It slots into the same bay as the original cell and connects to the existing charger circuit. Order this when the original battery no longer holds a useful charge or fails to power the motor at full suction.

• 488A and A3 compatibility: Both models run the same 14.4V motor rail, use the same physical battery housing, and share an identical connector pinout — one cell fits both without modification.
• Bench tested on actual hardware: We cycled this battery through repeated discharge loads matching the 488A motor draw. The BMS held stable voltage delivery across the full discharge curve and triggered protection correctly at the low-voltage threshold.
• Dock charging habit on the 488A: Do not leave the 488A sitting on the charging dock continuously. Ni-MH cells degrade faster under constant trickle charge than from regular charge-and-remove cycling. Charge until full, then lift the unit off the dock.

Suction dropping before the battery indicator reaches low

The 488A's motor draws harder when the filter is partially blocked — airflow restriction forces the motor to work against back-pressure, pulling more current than the battery's rated output anticipates. This causes the cell voltage to sag under load even when charge state looks healthy. The result is reduced suction that feels like a dying battery but is actually a restricted airflow problem. Clean or replace the filter first; if suction restores, the battery is fine.

Motor cuts out mid-clean then recovers after a short pause

This is a BMS overcurrent trip, not a dead battery. When the vacuum runs against a blockage or a heavily loaded carpet with a restricted filter, current draw spikes past the BMS protection threshold and the cell disconnects to prevent damage. After a brief pause the BMS resets and the motor runs again. Clear the blockage, check the filter, and verify the intake path is unobstructed — if the cut-outs stop, the battery and BMS are functioning correctly.
