Vivo B-S6 T1 5G Replacement Battery 3.89V 4900mAh

Vivo T1 5G / iQOO Z5 Series — 3.89V Li-Polymer Replacement Battery (B-S6)

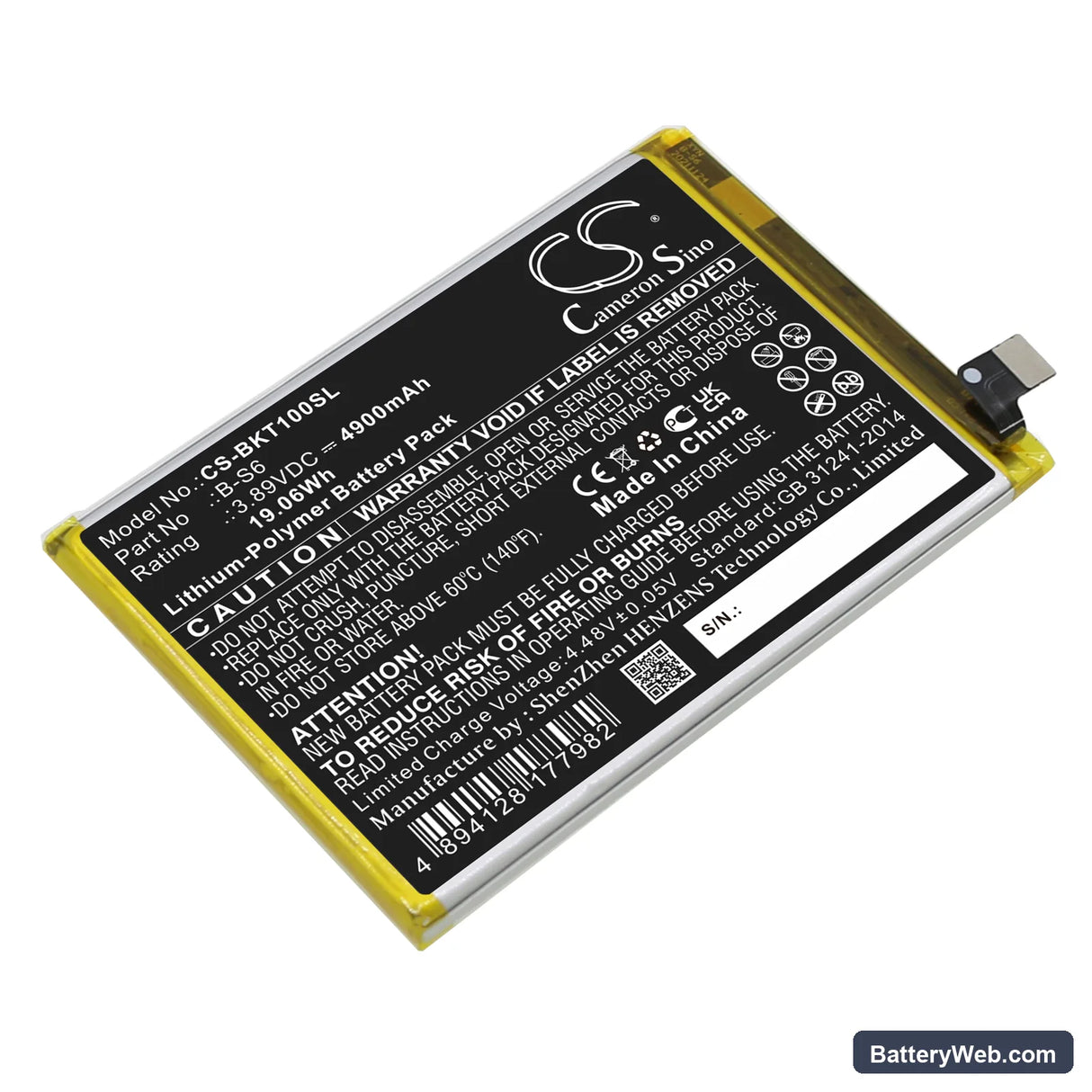

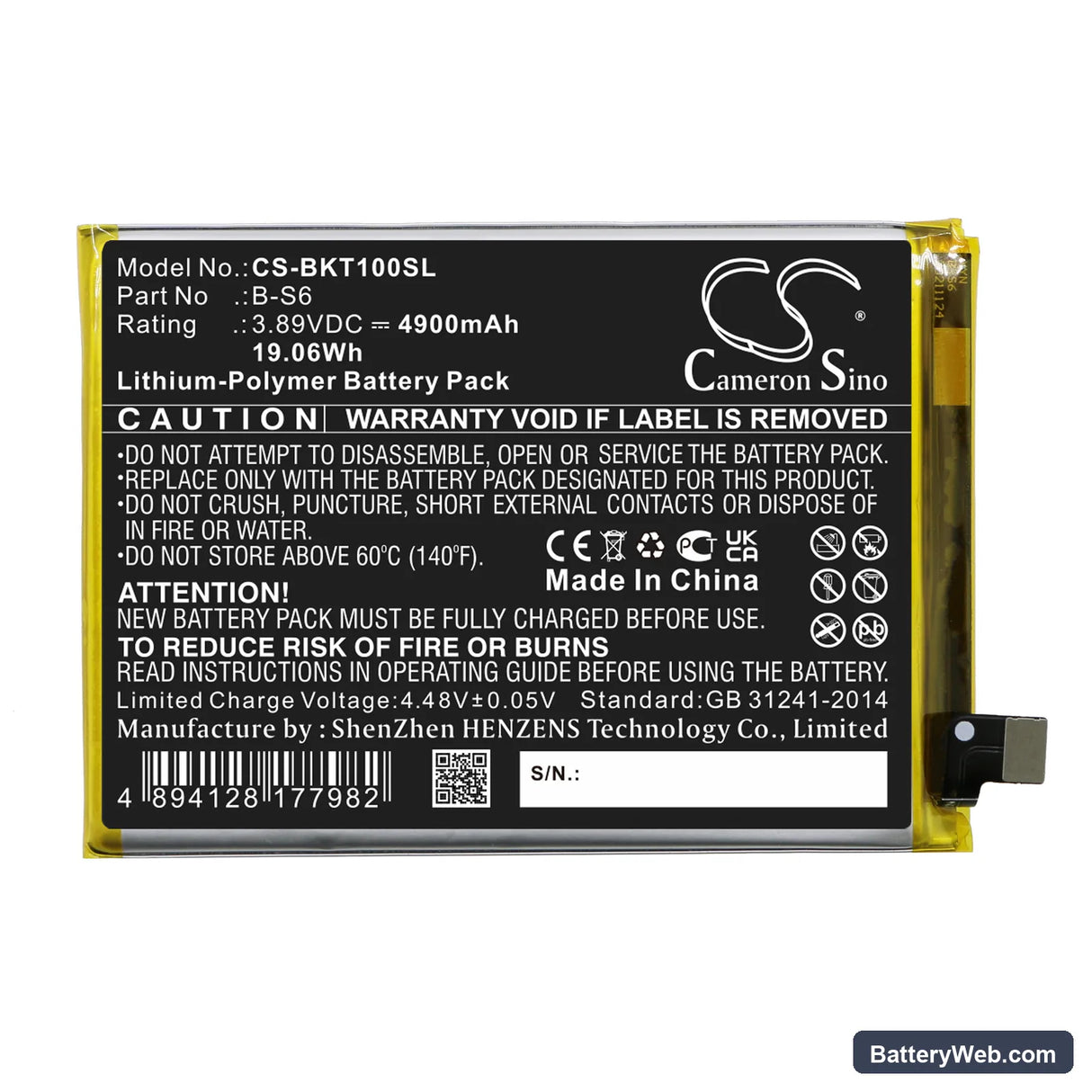

The B-S6 is a 3.89V, 4900mAh (19.06Wh) Li-Polymer cell for the Vivo T1 5G, iQOO Z5, iQOO Z5X, and V2115A smartphones. It replaces a degraded original battery that no longer holds adequate charge for daily use. Dimensions are 90.00 × 64.10 × 4.50mm — verify these against your existing cell before installation.

• T1 5G and iQOO Z5 platform compatibility: These models share the same battery bay geometry, connector pinout, and BMS handshake protocol. One B-S6 cell covers the full group because the fuel gauge IC and charge controller are identical across the V2115A board variants.
• Bench tested on actual hardware: We ran this cell through a full charge cycle on the T1 5G board. The BMS accepted the cell immediately, charge current ramped correctly through CC/CV stages, and no protection trips were triggered at the charge IC level.
• Fuel gauge recalibration on first cycle: On first use after installation, disable fast charging and run one complete discharge-charge cycle at standard current. This allows the fuel gauge IC to map the new cell's discharge curve before high-current fast charging pushes current into an uncalibrated coulomb counter.

Sudden shutdown at 20–30% on the B-S6 after installation

A fresh cell can still trigger early shutdowns if the fuel gauge IC is still calibrated to the old, degraded cell curve. Under modem load or screen-on bursts, the phone draws current the gauge hasn't accounted for, and voltage drops below the protection threshold faster than the percentage reading suggests. The fix is a full uninterrupted discharge to automatic shutdown, followed by a full charge — no fast charging on that first cycle. After one complete cycle, the coulomb counter resets against real cell data and the shutdowns stop.

USB-PD or fast charge not activating after battery replacement

On the first charge cycle after a cell swap, the charge IC sometimes refuses to negotiate fast charge protocols because it reads the new cell's impedance as outside the safe window it learned from the old cell. This is a conservative BMS response, not a fault in the replacement cell. Charge once at standard 5V/1A to let the IC characterise the new cell's internal resistance. Fast charging typically activates normally from the second cycle onward once the charge IC logs baseline impedance data.
