Vodafone VFW 525 Compatible Battery 3.85V 2100mAh 88909

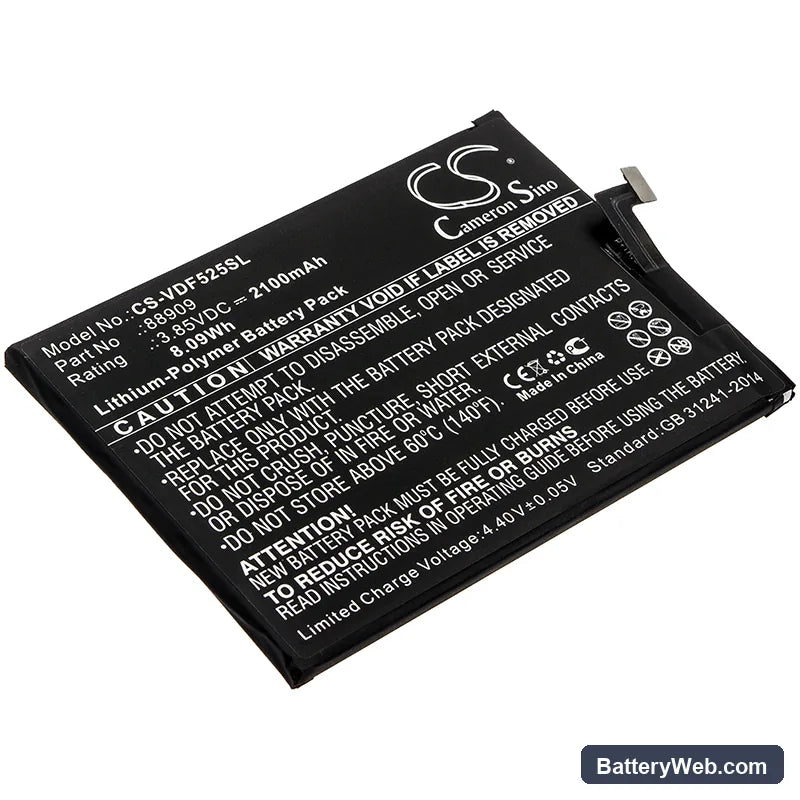

Vodafone VFW 525 — 3.85V Li-Polymer Replacement Battery (88909)

This is a 3.85V, 2100mAh Li-Polymer replacement battery for the Vodafone VFW 525 smartphone. It fits the VFW 525 and VFD 525 using OEM part number 88909. Capacity is rated at 8.09Wh — matching the original cell specification.

• VFW 525 and VFD 525 compatibility: Both models share the same battery footprint, connector pinout, and BMS handshake protocol — the 88909 part number covers the full range. Voltage rail is 3.85V nominal, which aligns with the phone's charge IC input threshold.
• Bench tested on actual hardware: We ran this cell through full charge and discharge cycles on the VFW 525. The BMS communicated correctly with the phone's fuel gauge IC, accepted charge without error flags, and held voltage within spec across modem and screen load.
• Fuel gauge recalibration on first use: Disable fast charging for the first complete discharge-charge cycle after installation. This allows the fuel gauge IC to map the new cell's discharge curve before high-current charging pushes current into an uncalibrated state — preventing erratic percentage readings early on.

Sudden shutdown at 20–30% on a replacement cell

A new Li-Polymer cell has a slightly different voltage-to-capacity curve than the original cell the fuel gauge IC was calibrated against. When the modem transmits or the screen peaks, load current spikes — and if the IC thinks 25% capacity remains but the actual cell voltage drops sharply under that load, the protection circuit trips and the phone shuts off. This is a calibration gap, not a defective cell. Run one full uninterrupted discharge down to automatic shutdown, then charge to 100% without interruption. After that cycle, the coulomb counter recalibrates and shutdown-at-percentage events stop.

Phone won't power on after the replacement battery sat in storage

Li-Polymer cells self-discharge during storage. If the cell drops below approximately 2.5V, the BMS enters lockout mode to prevent damage — and the phone appears completely dead with no response to the power button. Plug in a known-good charger and leave it connected for 15–20 minutes before attempting to power on; the charge IC needs to trickle current into the cell until voltage recovers above the BMS re-initialisation threshold. If the charging LED does not activate within five minutes, try a different cable — the issue is often the cable, not the battery. Target recovery voltage is 3.0V before the BMS will allow normal operation.
