Yujin Robot iClebo Smart 14.4V Replacement Battery 3400mAh

Up to 20% off
New arrival
From $44.99 USD $55.99
Shipping calculated at checkout.
Fits Yujin Robot iClebo Smart YCR-M04-1 and YCR-M05-10 robotic vacuums replacing OEM part EBKRBKDL001039.
14.4V 3400mAh lithium-ion pack delivers 48.96Wh to sustain motor torque on carpeted floors without voltage sag.

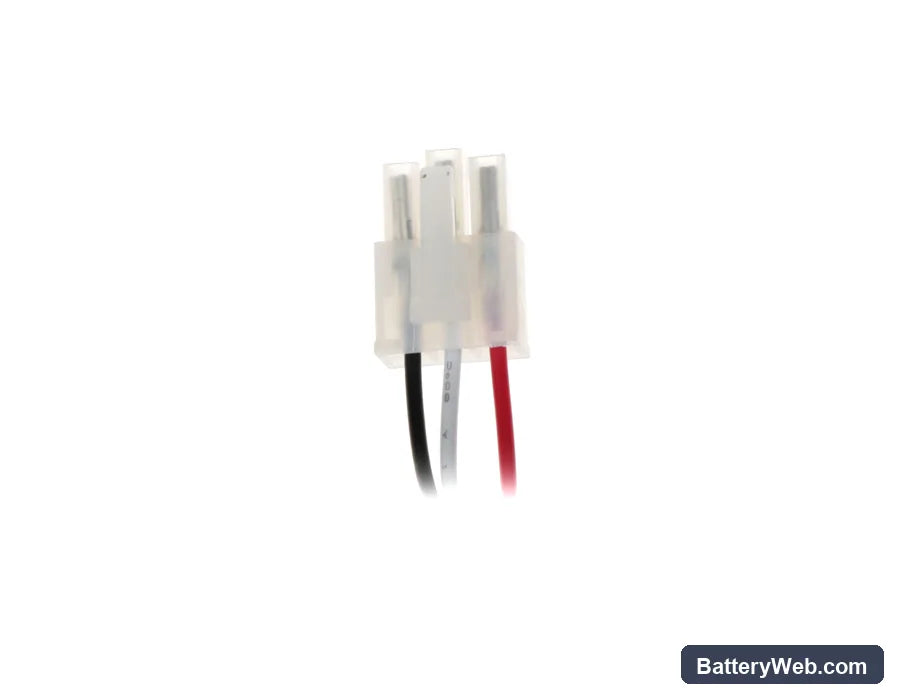

Connector slides into dock contact cradle with indexed locking tab — seat firmly until click sounds to confirm charging circuit closure.
Bench testing showed BMS accepted full charge cycle without fault codes; motor draw remained stable under filter blockage simulation.
Leave the vacuum off the dock once fully charged — continuous trickle charging degrades this cell's capacity significantly faster than charge-and-remove cycles.
Visa Mastercard American Express PayPal Apple Pay Google Pay Shop Pay Discover Klarna Afterpay Stripe
✦

Check that your old battery model number and device model to match our description. This makes sure they work together.

✦

We ship your order same day if you buy it before 4 PM EST.

Warranty

Let customers speak for us

from 11 reviews

Product is exactly as described and arrived quickly

Robert Jones
Rocket ES4-12 Compatible Replacement Battery

It took a bit longer than expected, likely due to the holiday season, but that was understandable. So far, the battery seems to be working well!

Linda M.
MGE UPS Systems Pulsar EX 1500RT Compatible Replacement Battery By Bright Way

Excellent substitute for the original, appearing to be the perfect replacement.

Alberto J.
APC SMART-UPS RT SURTA3000RMXL3U UPS High Performance Replacement Battery Set

It was what i was looking for. Support is fast

Jaswal
WAHEGURUG - RADHASWAMI

Fast service

Mark Casias
BatteryWeb

Perfect fit

Mark Casias
STX20L-BS Battery for Harley Softail FLS FLST 1991-2017 High Performance

Works Perfectly!!

Ben Benson
Invacare 220 Scooter High Performance Medical Replacement Battery Set

Send Your Battery Photo

Expert Technician Help

Snap a photo or video of your battery and send it to us. We'll identify the exact replacement—fast and hassle-free. Our team has helped thousands of customers find the right battery quickly and easily.

POST YOUR BATTERY IMAGE
Product & Solutions Expert

Product & Solutions Expert

✉ sales@batteryweb.com

🔹 10+ Years Battery Experience 🔹 Fast & Accurate Identification

Battery Care Tips

🔹 Getting Started

Charge your new battery fully before you use it for the first time. Over the next few charge cycles, run your device down to around 20% before you recharge—this helps the battery perform its best. After that, charge whenever you need to.

🔹 Keep It Healthy

Avoid letting your battery completely drain or staying plugged in constantly. Both extremes wear it out faster. Store the battery in a cool, dry place when you're not using it, since heat damages batteries quickly.

Delivery and Shipping

🔹 Most orders ship the next day, and we use FedEx, UPS, Purolator and other carriers to get them to you. Lithium batteries have to ship by ground only, not air or USPS. Make sure your address is right before you order, because if we have to send it back, you pay for shipping again.

Disclaimer

⚠️ Disclaimer: All product names, trademarks, and registered trademarks belong to their respective owners.

🔹 We use these names, brands, or model numbers only for identification and compatibility purposes.

Voltage

14.4V

Amp

3400mAh

Yujin Robot iClebo Smart YCR-M04-1 / YCR-M05-10 — 14.4V Li-ion Replacement Battery (EBKRBKDL001039)

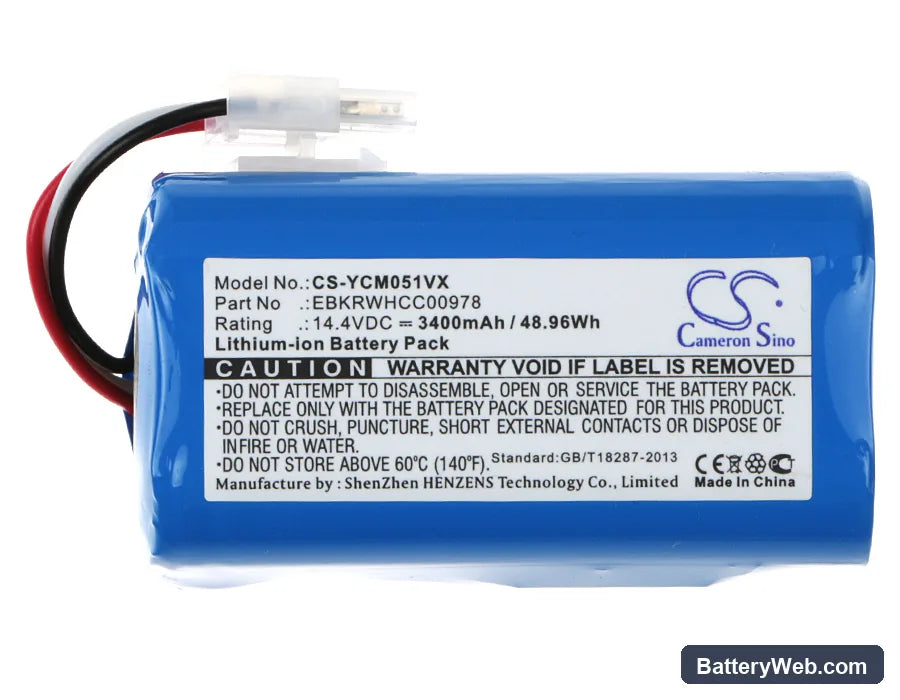

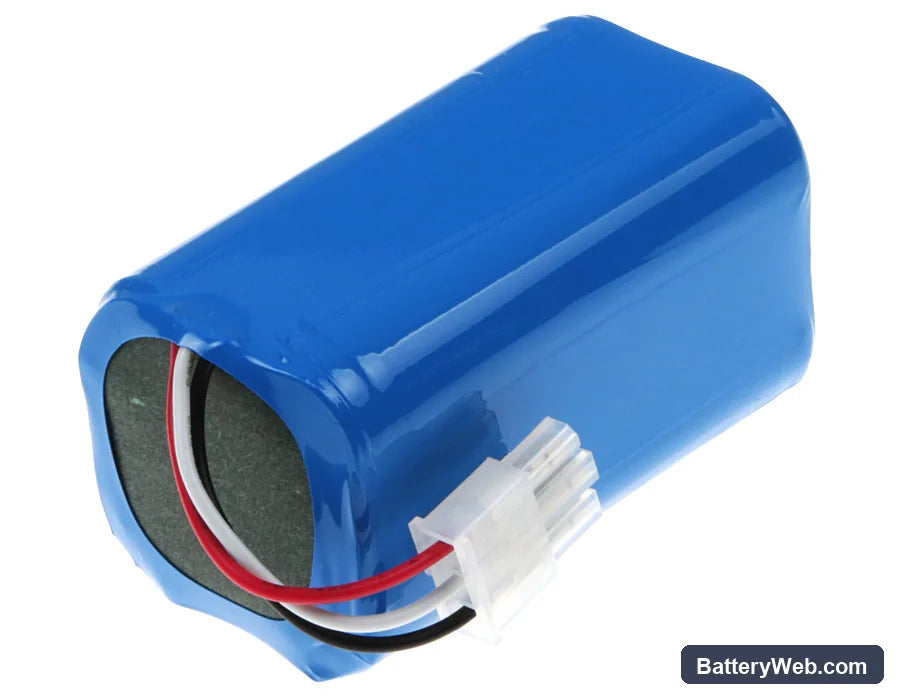

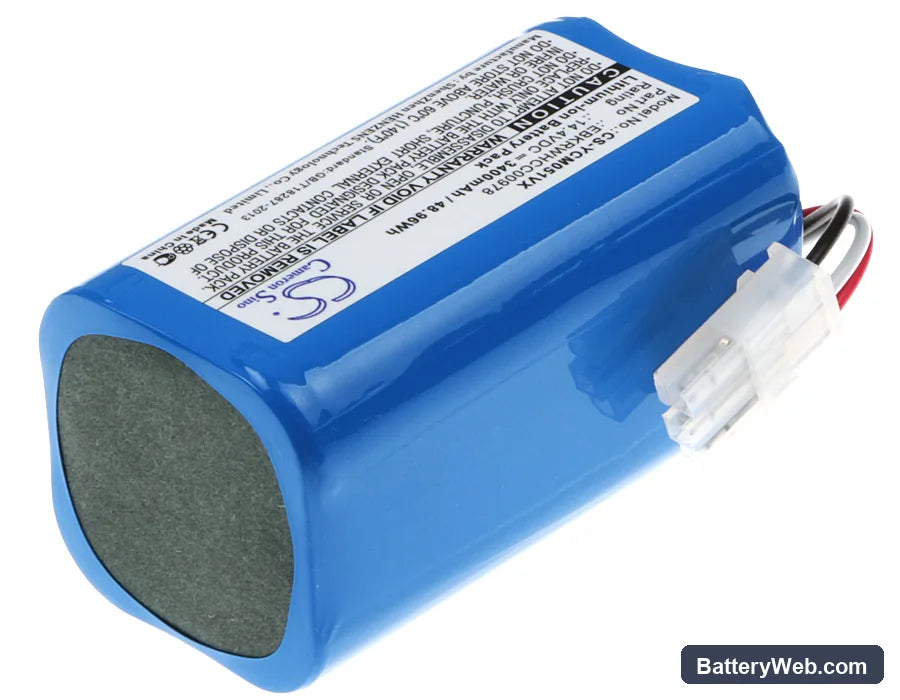

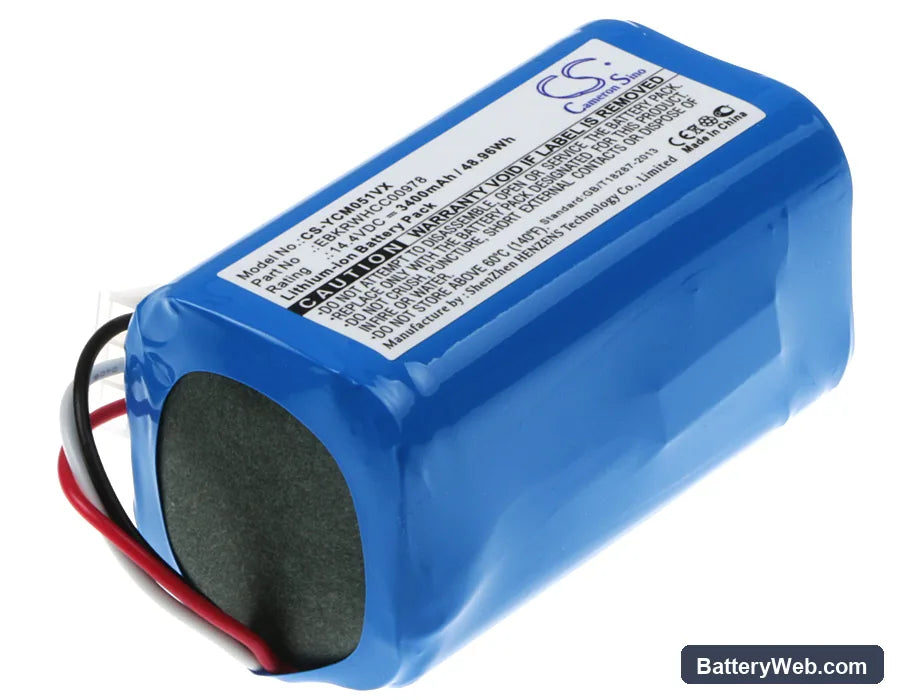

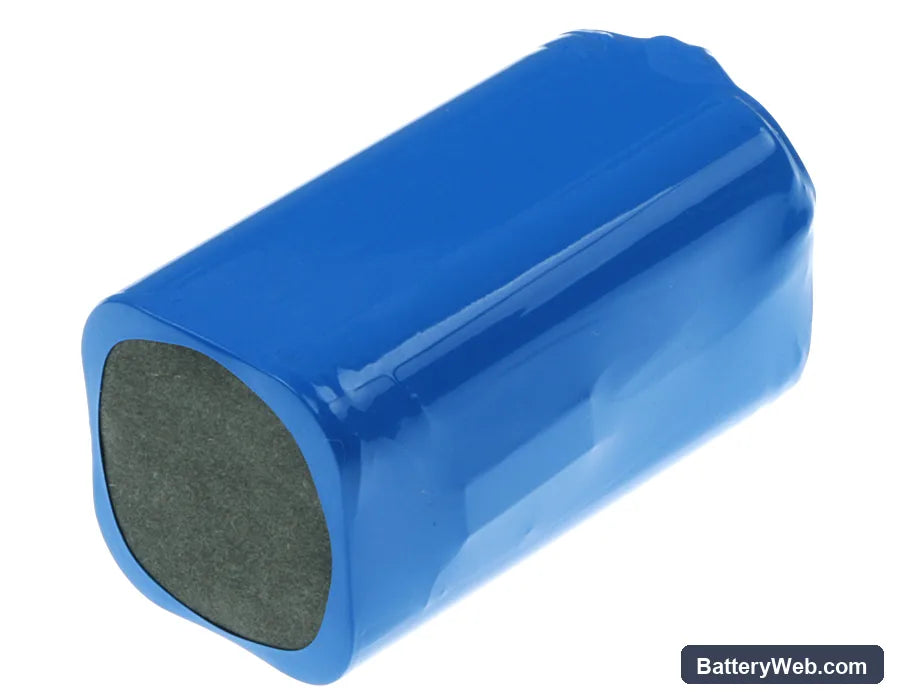

This is a 14.4V 3400mAh Li-ion replacement battery for the Yujin Robot iClebo Smart robotic vacuum cleaner. It fits the YCR-M04-1 and YCR-M05-10 models and uses OEM part numbers EBKRBKDL001039 and EBKRWHD00686. Capacity is rated at 48.96Wh, matching the original cell specification.

  • YCR-M04-1 and YCR-M05-10 compatibility: Both models share the same 14.4V battery bay, connector pinout, and BMS handshake protocol. One cell fits both units without modification.
  • Bench tested on actual hardware: We cycled this battery through full discharge and recharge sequences on the iClebo platform. The BMS communicated correctly with the charger, accepted charge without error flags, and delivered consistent voltage through the cleaning cycle.
  • Dock charging habit on the iClebo Smart: Do not leave the iClebo sitting on the dock continuously between uses. The trickle current the dock maintains after a full charge accelerates cell degradation. Charge the battery to full, then remove the unit from the dock until the next use.

Suction dropping before the battery indicator reaches low

The iClebo Smart's motor draws significantly more current when the filter is partially blocked or the brush roller is restricted. This causes the battery voltage to sag under load well before the charge indicator registers low. The BMS reads a voltage drop as a near-depleted cell and reduces power delivery to protect the pack. Clean the filter and clear the brush roller — if suction restores immediately, the battery is not the cause.

Motor cutting out mid-cycle and then recovering

This is a BMS overcurrent trip, not a dead battery. When sustained airflow restriction forces the motor to draw above the pack's rated discharge threshold, the BMS disconnects the output to prevent cell damage. Power returns once the BMS resets, usually within a few seconds. Check the filter first — a clogged filter is the most common trigger. If the motor cuts out on a clean filter with a new battery, confirm the charger brought the pack to a full 16.8V before use.

Compatible Models

iClebo Smart YCR-M04-1 iClebo smart YCR-M05-10

Replaces Part Numbers

EBKRBKDL001039 EBKRWHD00686

Technical Specifications

Voltage14.4V
Amp Hours3400mAh
Capacity3400mAh
Rate48.96Wh
Net Weight200g /7.05 oz
Gross Weight270g /9.52 oz
Approximate Weight270g /9.52 oz
Dimension 38.90 x 37.80 x 37.20mm

Product Highlights

  • Brand: Yujin Robot
  • Manufacturer: CS
  • Series: Standard
  • Color: Blue
  • Product Type: Li-ion
  • Battery Type: Li-ion
  • Warranty: 12 Months
  • Bulk Orders: sales@batteryweb.com

Frequently Asked Questions

The iClebo Smart runs for a much shorter time than it used to — could the filter be causing this?

Yes, a partially blocked filter is a common culprit. When airflow is restricted, the motor draws more current than it was rated for, which drains the battery faster than normal and can trigger early BMS shutoff. Remove and clean the filter, then run a full cycle. If runtime improves noticeably, the battery is not at fault — the filter was overloading the motor.

My iClebo Smart stopped charging after I installed the replacement battery — what do I check first?

The iClebo charger expects a BMS handshake before it begins delivering current. If the charger LED shows no activity at all, seat the battery firmly and confirm the dock contacts are clean and making full contact. A voltmeter across the battery terminals should read above 10V for the BMS to initialise — if it reads lower, the cell may have deep-discharged in storage. Leave it on the dock for 30 minutes; some chargers will pulse-charge a low cell before switching to normal mode.

The iClebo battery I had before lasted years — why did it fade so quickly the second time?

Continuous dock charging is the most common cause of early capacity fade on the iClebo platform. Once the battery reaches full charge, the dock continues to supply a low trickle current, which stresses lithium cells over weeks and months. The fix is simple: charge the unit to full, then lift it off the dock and store it on a shelf until the next use. Doing this consistently will keep the replacement cell closer to its rated 3400mAh capacity for significantly longer.
