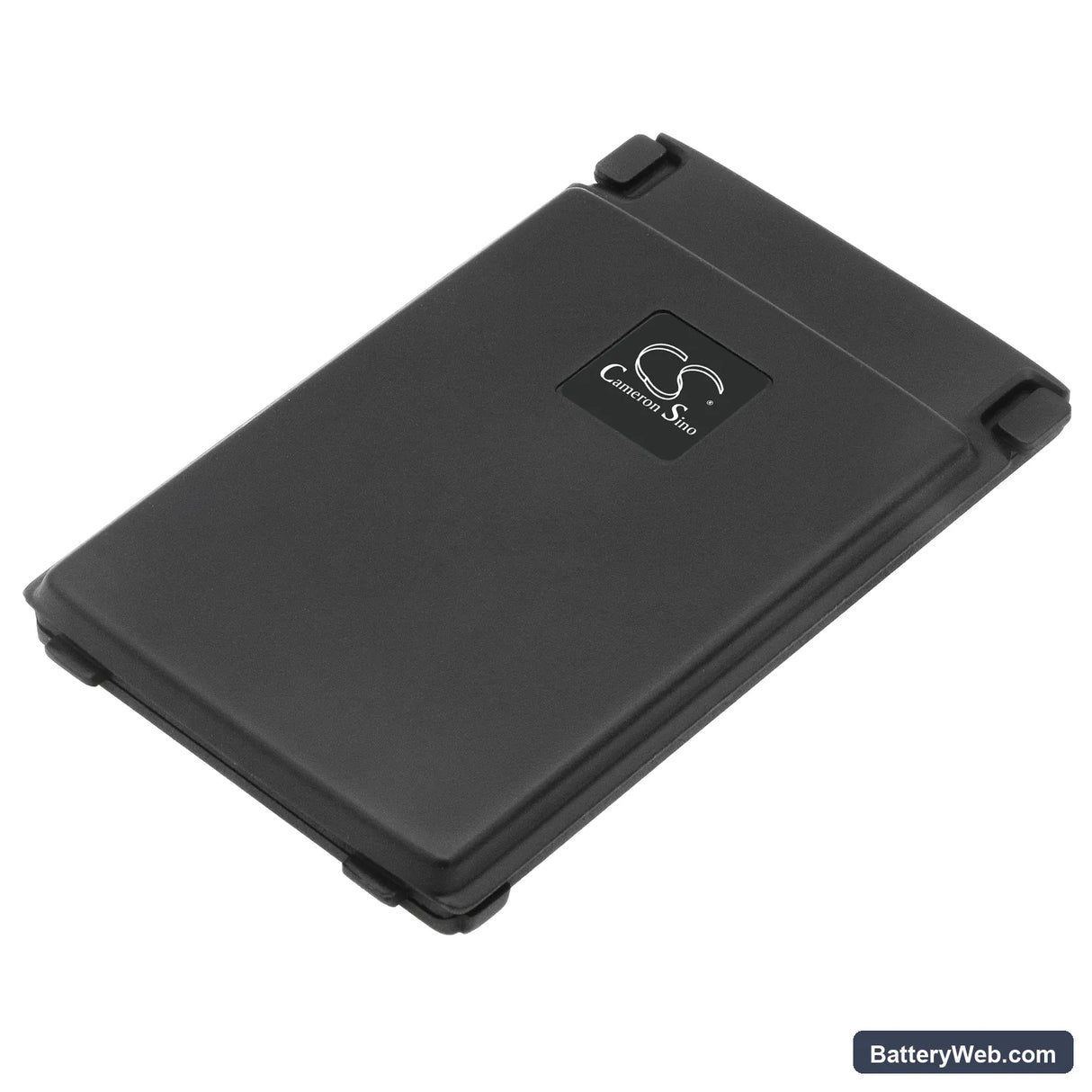

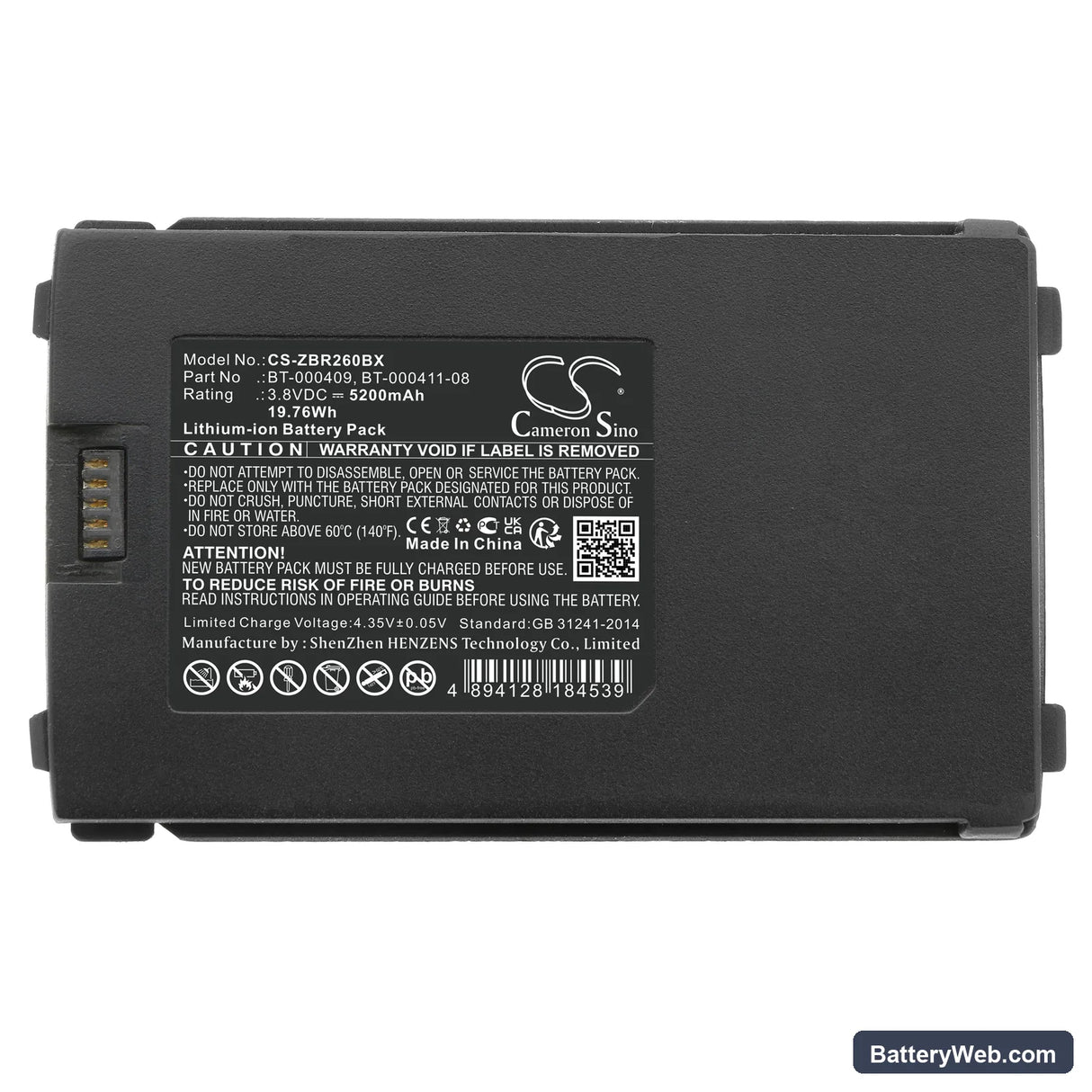

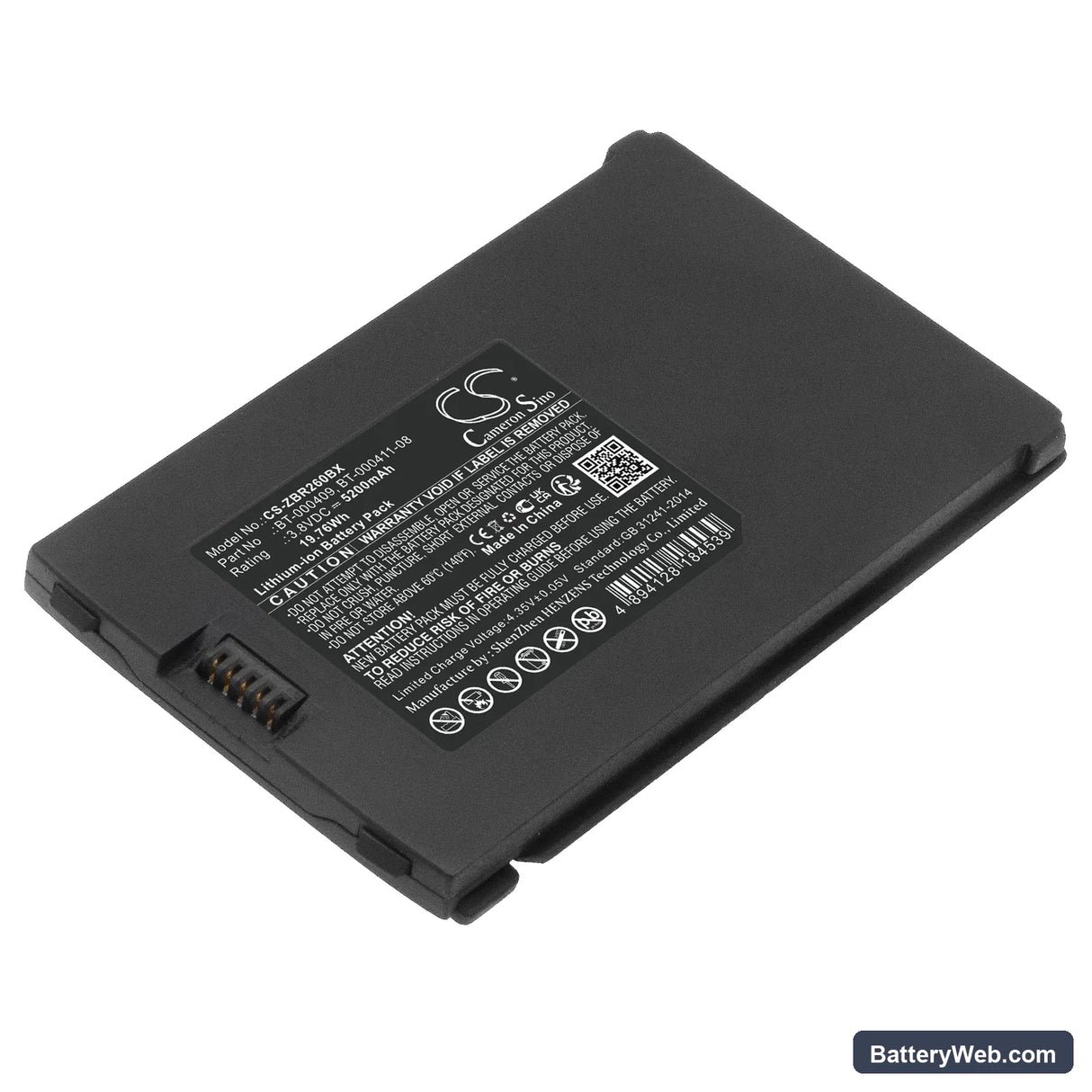

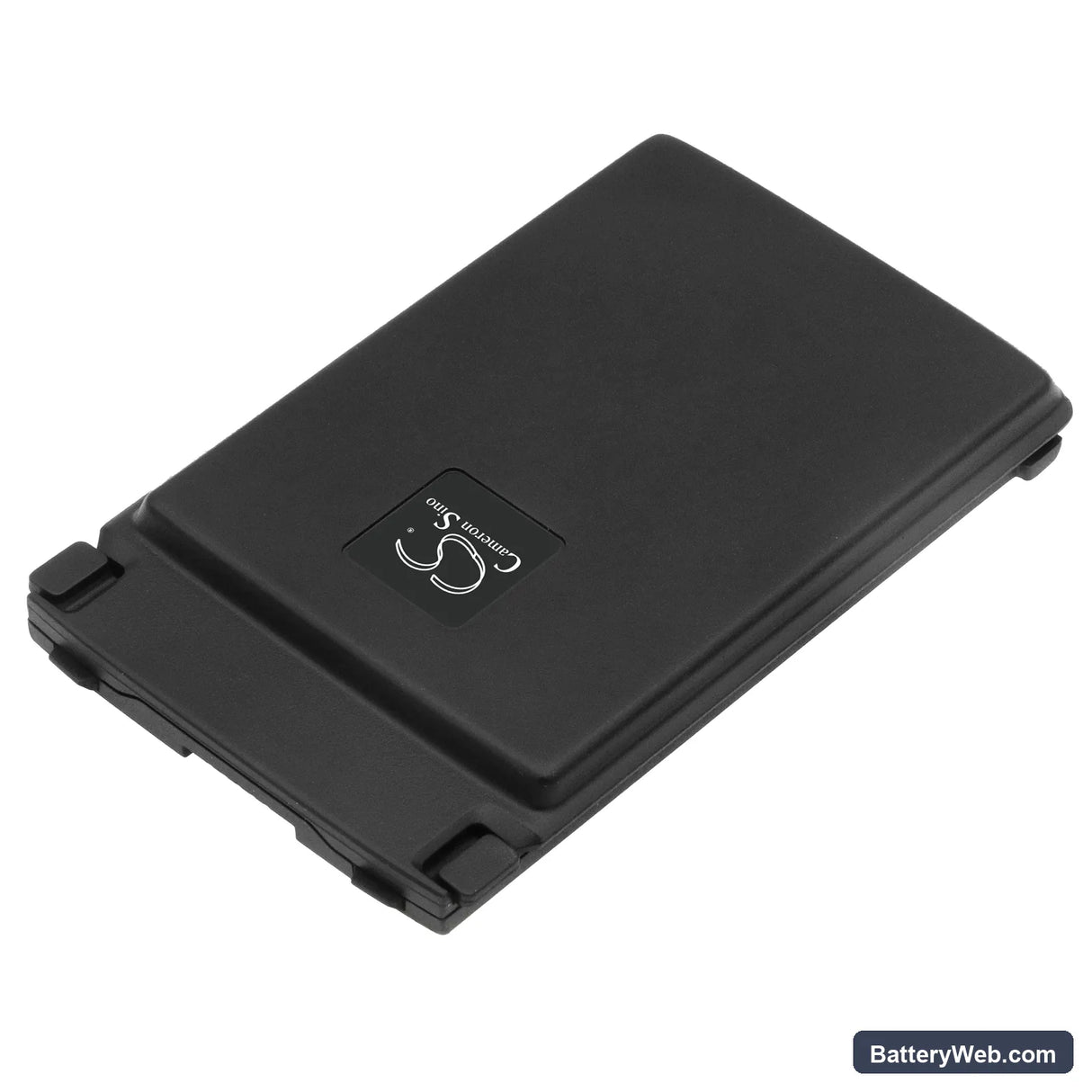

Zebra TC21 Barcode Scanner Compatible Battery BT-000409 3.8V 5200mAh

Zebra TC21 / TC26 Series — 3.8V Li-ion Replacement Battery (BT-000409)

This 3.8V, 5200mAh Li-ion battery replaces the original pack in Zebra TC21 and TC26 series mobile computers, including the TC26AK and TC210. These handhelds are used in retail, warehousing, and logistics where scan throughput and wireless connectivity run simultaneously. When the original cell degrades, scan sessions shorten and the device becomes unreliable mid-shift.

• TC21 / TC26 platform fit: These models share the same 3.8V battery bay, contact layout, and BMS handshake protocol. One replacement pack covers the full TC2-series lineup without modification.
• Bench tested on actual hardware: We ran this pack through full charge cycles on a TC26 dock. The BMS negotiated correctly with the cradle, charge termination fired at the right cutoff voltage, and the scan trigger inrush caused no false protection trips.
• First-shift cradle charge: After installing, seat the scanner in its cradle and run a full charge cycle before the first pick-and-pack shift. The scan trigger inrush current peaks when the cell is near minimum — a pre-charged cell stops the BMS from tripping on that first burst.

Cradle showing charging error on a new TC21 pack

Charging errors on a new pack almost always come from contact resistance between the battery terminals and the dock's charging pins — not a faulty cell. Dust, warehouse grime, or factory film on the gold contacts breaks the low-resistance path the cradle needs to begin charge negotiation. Wipe the battery contacts and the cradle pins with a dry lint-free cloth, then reseat the device firmly until it clicks. If the error clears, the pack is good — the dock was reading a high-resistance contact, not a bad battery.

Scanner dropping wireless connection during rapid scan bursts

On the TC21 and TC26, the scan trigger and Wi-Fi radio draw current at the same time during rapid barcode capture. That combined inrush can cause a momentary voltage sag on a discharged or degraded cell, and the radio drops out before the BMS trips. With a new cell at full charge, the internal resistance is low enough that the voltage rail stays stable through simultaneous scan-plus-radio draw. If drop-outs happen only toward end of shift, the cell is likely not reaching a full charge — run a complete cradle cycle and retest before assuming a radio fault. Check that the cradle contact voltage reads 5V at the pins before starting the cycle.
