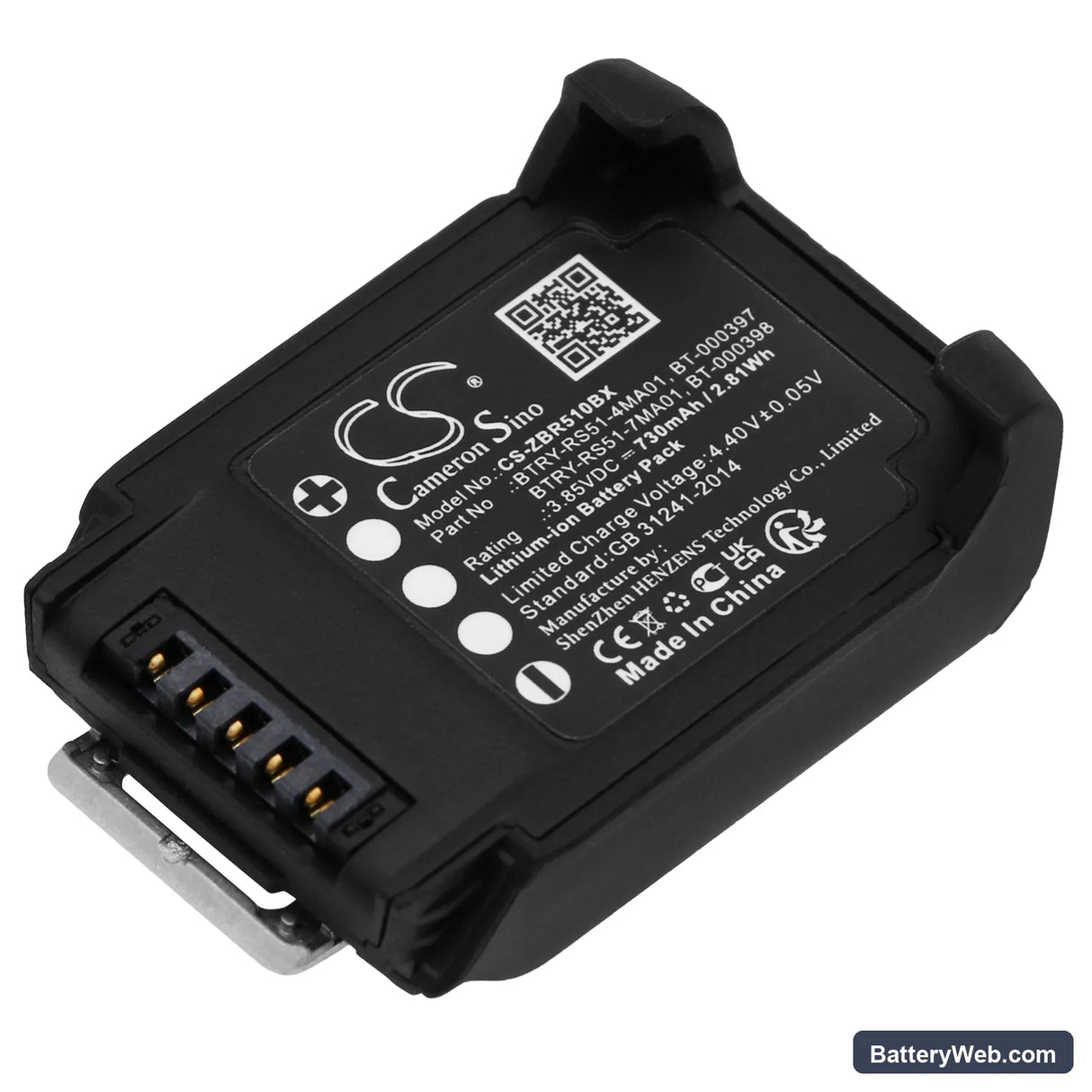

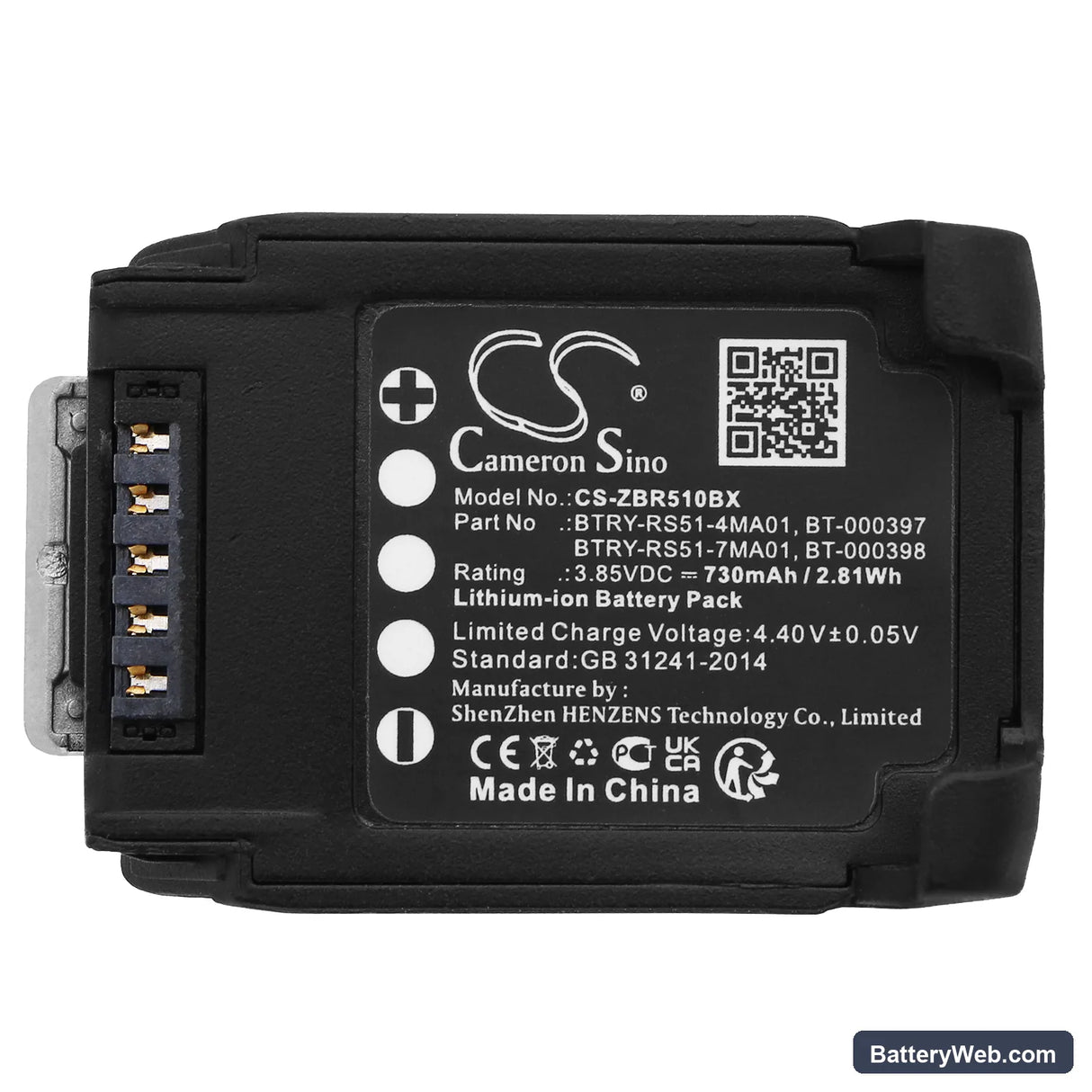

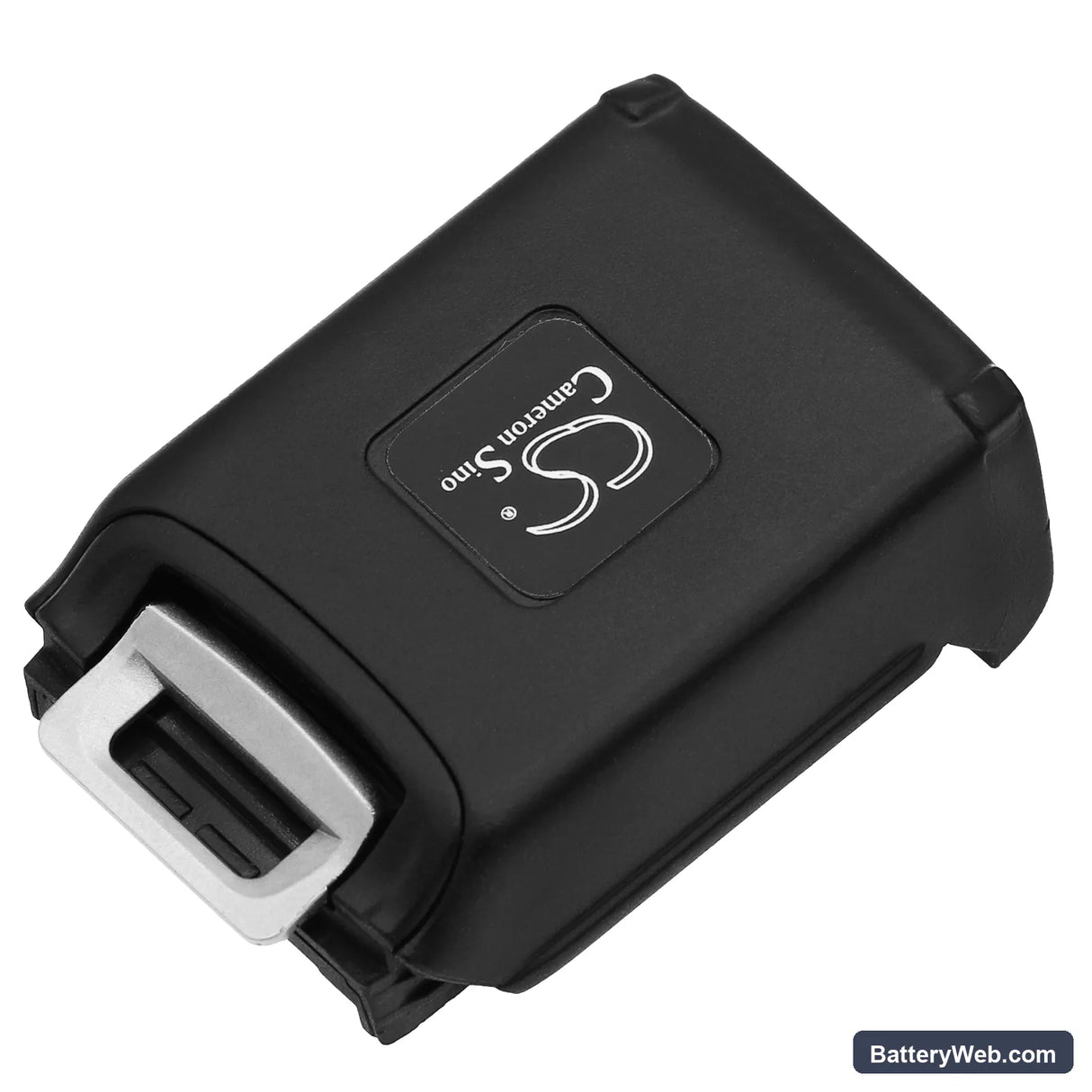

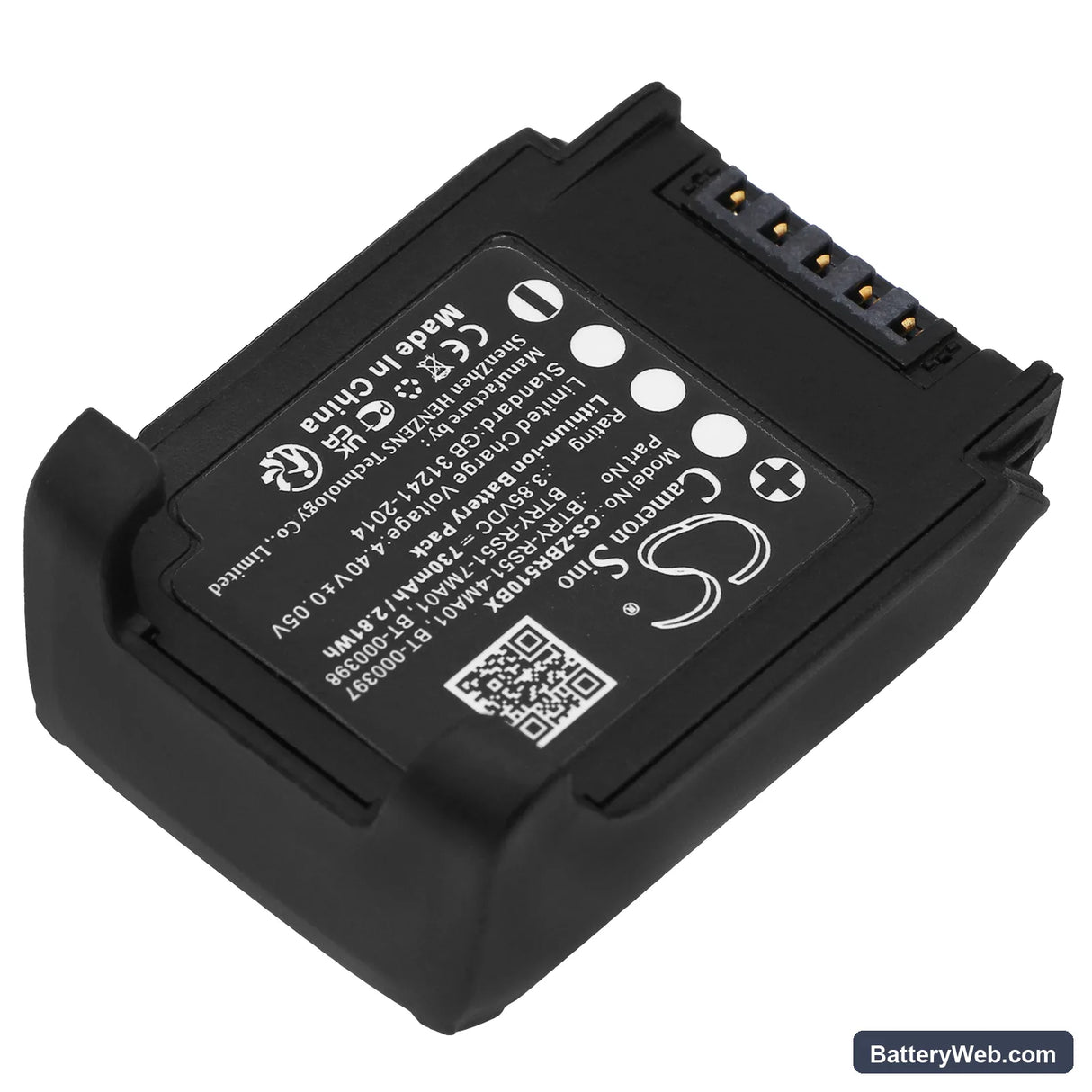

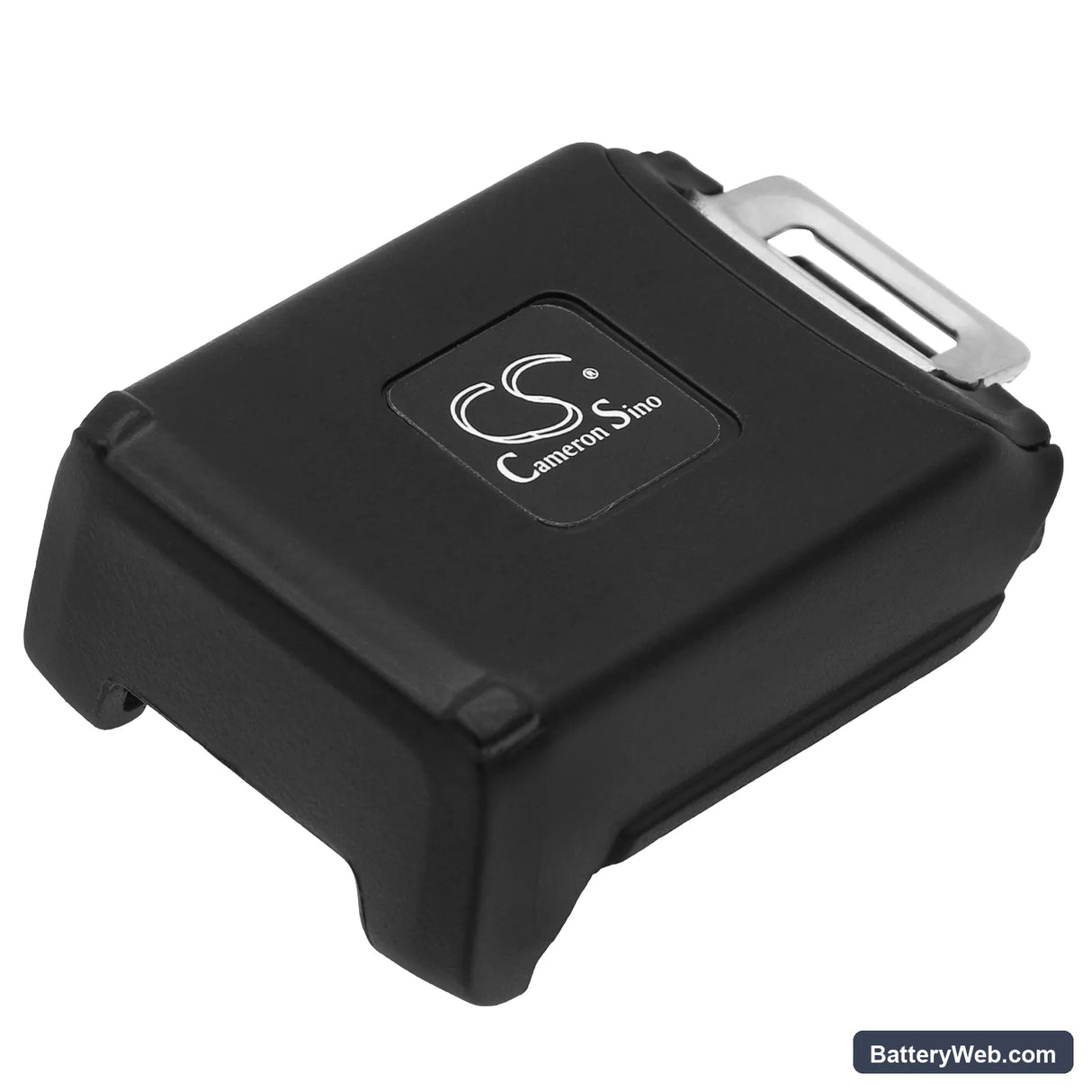

Zebra RS51 BTRY-RS51-4MA01 Replacement Battery 3.85V 730mAh

Zebra RS5100 Ring Scanner — 3.85V Li-ion Replacement Battery (BTRY-RS51-4MA01)

This 3.85V 730mAh Li-ion cell replaces the factory battery in the Zebra RS51, RS5100, RS5100 Ring Scanner, and RS5100 2D Bluetooth Ring Scanner. These are thumb-worn ring scanners used in pick-and-pack, receiving, and logistics operations. Swapping a degraded cell restores the scan trigger response and Bluetooth radio performance the device needs to keep up with shift demand.

• RS51 and RS5100 platform fit: All variants in this family — wired ring, 2D, and Bluetooth — share the same battery bay geometry, connector pinout, and BMS handshake protocol. One cell covers every variant listed above without adapter or modification.
• Bench tested on actual hardware: We ran this pack in an RS5100 cradle and verified the BMS negotiation completed without error codes. Charge acceptance was confirmed at full capacity, and the scan trigger draw did not trip the BMS protection threshold at the cell's lower state-of-charge.
• First-shift charge protocol for ring scanners: After installing, seat the scanner in its cradle and complete a full charge cycle before the first pick shift. The scan trigger inrush current is highest when the cell sits near minimum charge — a pre-charged cell prevents false BMS cutoff on the first burst sequence of the day.

Cradle showing a charging error on a new RS5100 pack

The RS5100 cradle reads the battery contacts before beginning a charge cycle. If contact resistance is too high — from debris, oxidation, or residue on the gold pads — the dock reports a fault instead of charging. This is not a cell fault. Wipe the battery contacts and the cradle bay contacts with a dry lint-free cloth, reseat the scanner firmly, and the error clears in most cases. If the error persists after cleaning, check cradle firmware, as some dock versions require a firmware update to accept newer BMS firmware on replacement packs.

Scanner dropping Bluetooth mid-shift during rapid scan bursts

The RS5100 runs both the Bluetooth radio and the imager from the same 3.85V cell. During rapid sequential scans, the combined inrush from the imager trigger and the radio transmit pulse can cause a brief voltage sag at the cell terminals. On a degraded or partially charged cell, this sag crosses the BMS low-voltage threshold and the radio stack resets to protect the cell. The fix is to keep the replacement cell above 40% state of charge during high-frequency scan runs. If drop-outs still occur on a fully charged new pack, check that the scanner's Bluetooth pairing table is not holding stale device entries that force repeated re-association and extra radio load.
