ZTE MF900 Replacement Battery 3.8V 3100mAh Li-Polymer

ZTE MF900 — 3.8V Li-Polymer Replacement Battery (Li3832T43P3h455290-H)

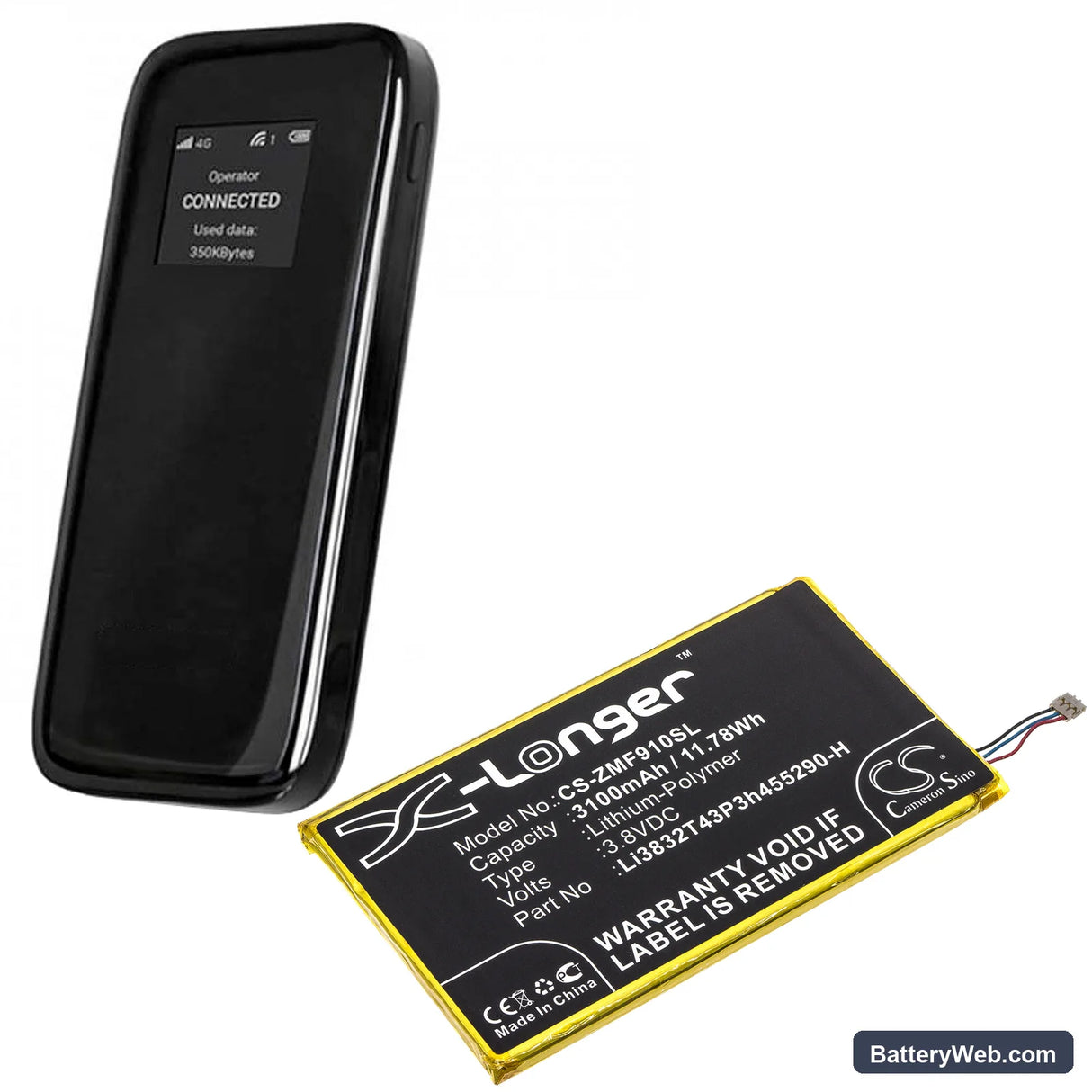

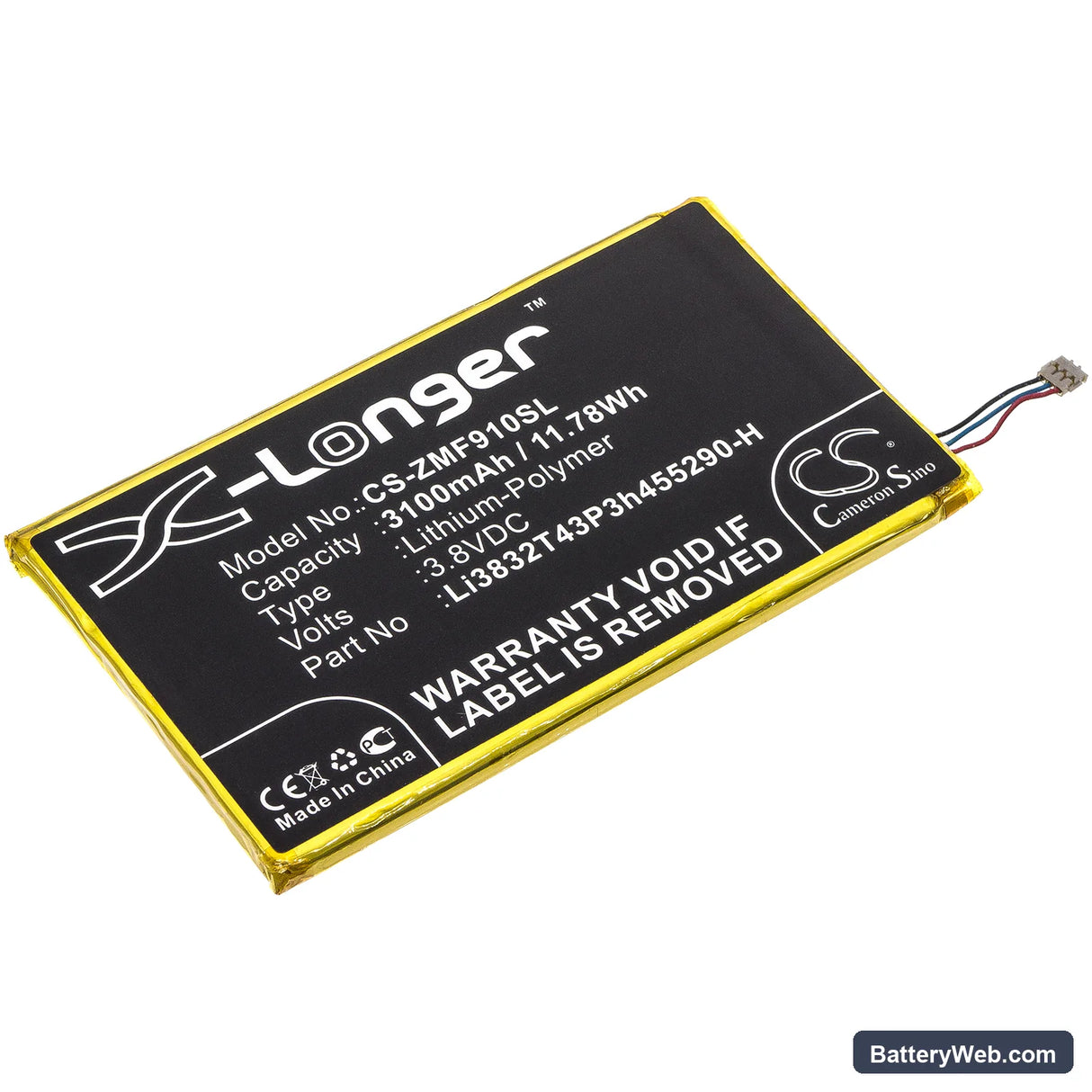

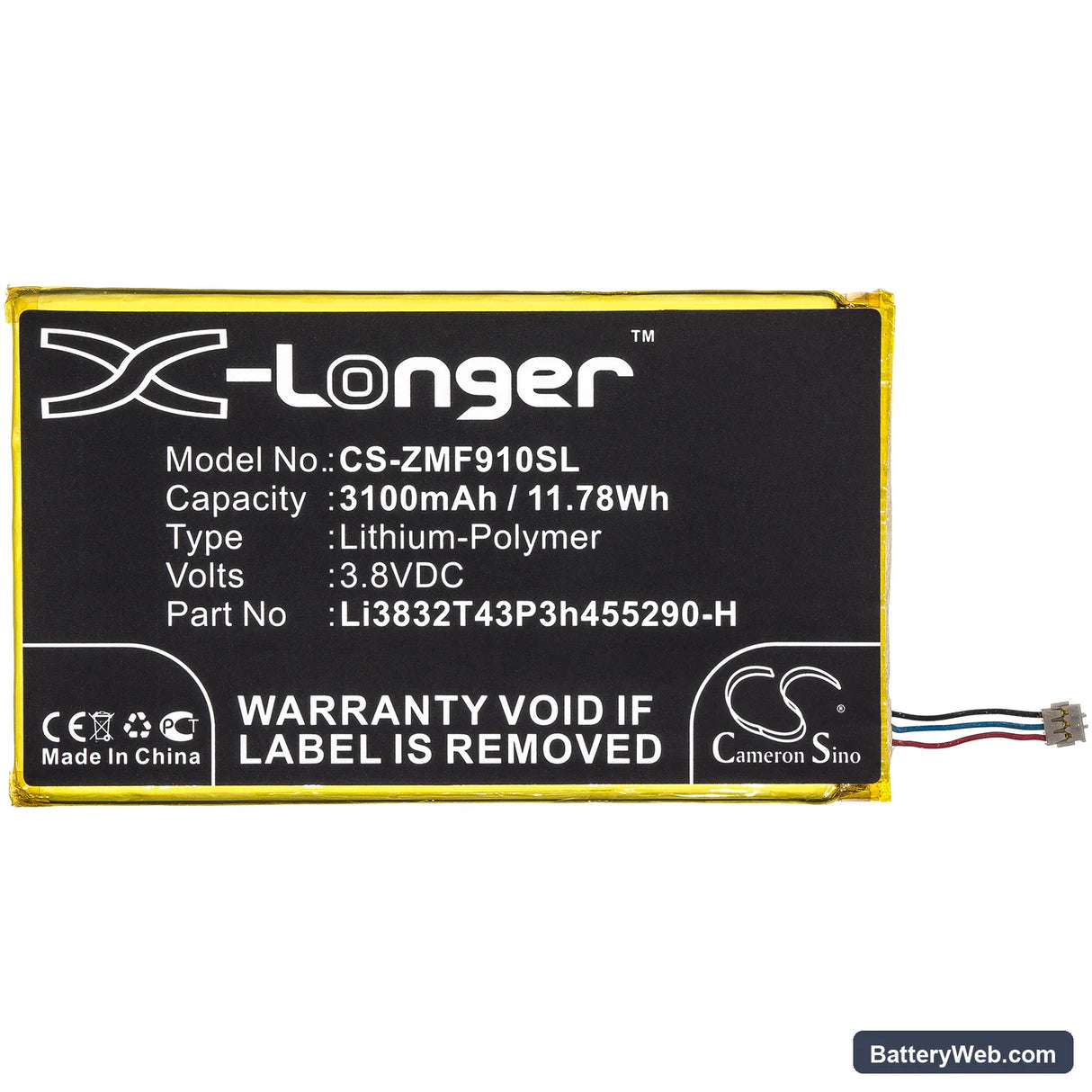

This 3.8V, 3100mAh lithium-polymer battery replaces the original Li3832T43P3h455290-H cell in the ZTE MF900 mobile hotspot. The MF900 is a portable Wi-Fi device that shares a cellular data connection across multiple wireless clients. Capacity figure is taken directly from product data — 3100mAh / 11.78Wh.

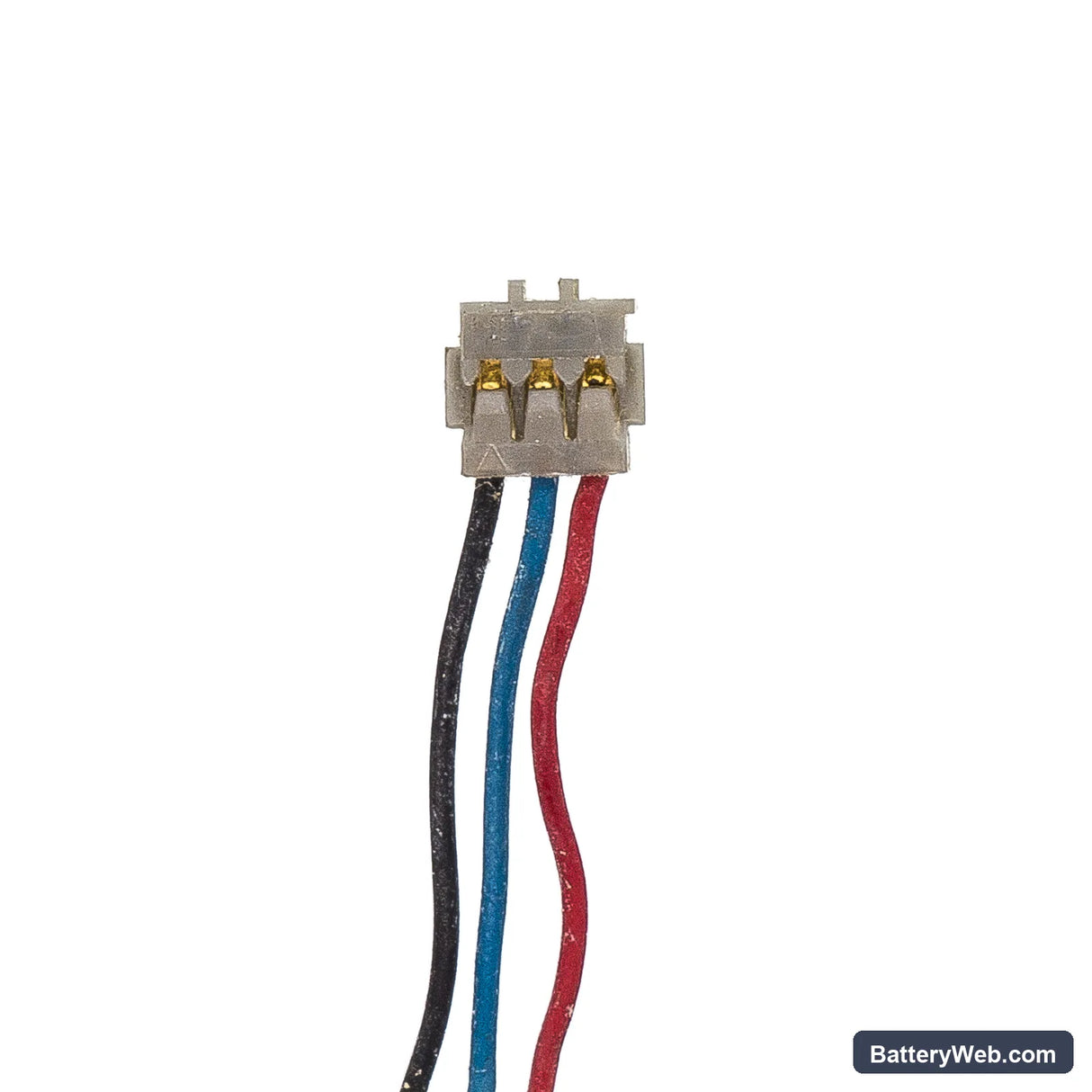

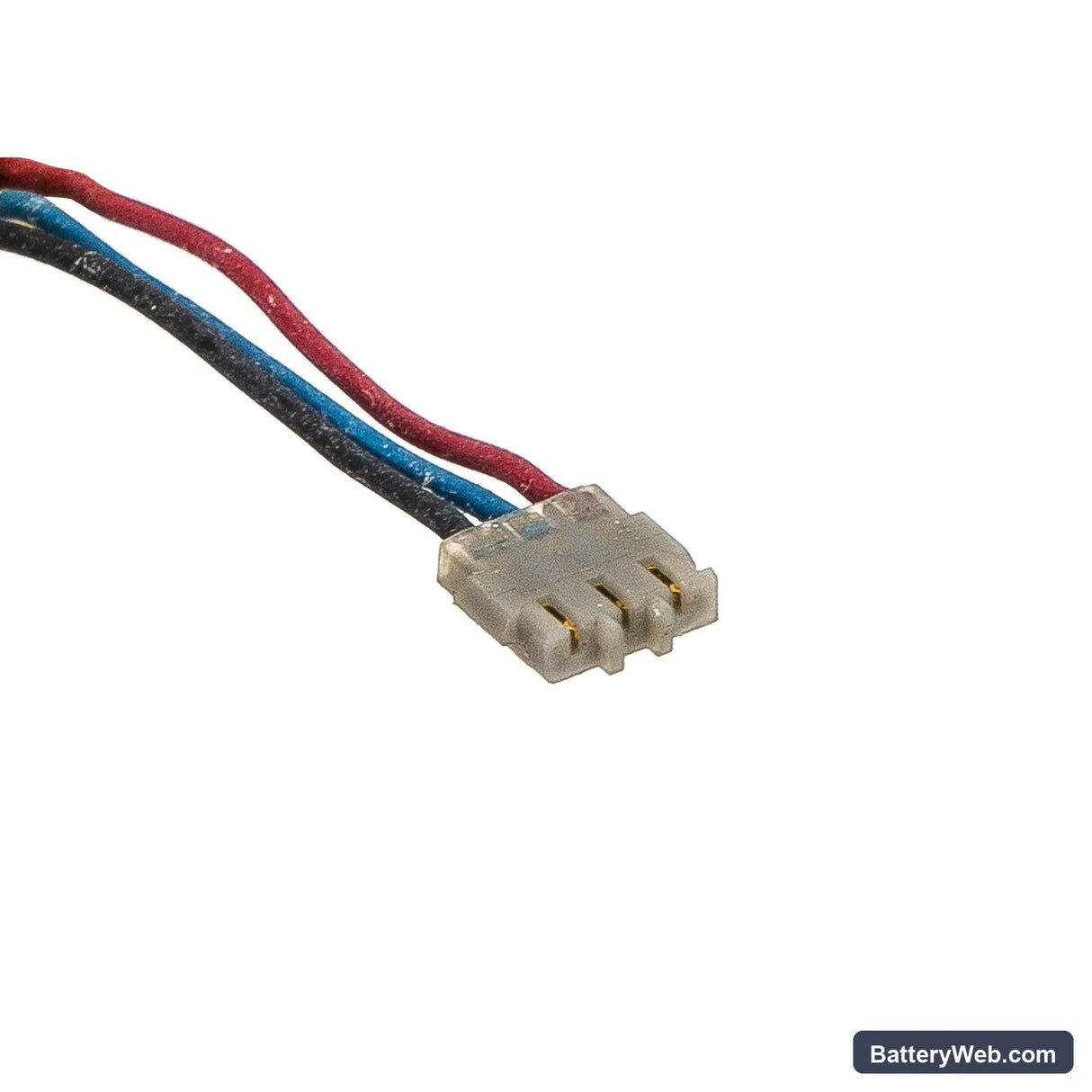

• MF900 platform fit: The MF900 uses a slim 4.20mm Li-Polymer cell with a specific connector pitch and BMS handshake tied to the modem's power management IC. Substituting a cell outside that voltage window causes the device to refuse to boot or to shut down mid-session under combined modem and Wi-Fi draw.
• Bench tested on actual hardware: We cycled this cell under simulated full-load conditions — cellular modem active, maximum Wi-Fi clients connected. The BMS held the output rail steady and triggered thermal protection at the correct cutoff threshold without false trips.
• Ventilation during extended sessions: Keep the MF900 on a hard, flat surface — not pocketed or face-down on fabric. When connected clients are far from the hotspot, the cellular radio runs at maximum transmit power, and trapped heat accelerates electrolyte degradation in the thin-film polymer cell.

Why the MF900 drops connected clients mid-session under full load

The MF900 runs two power-hungry subsystems simultaneously — a cellular modem and a Wi-Fi radio. At maximum client count, the combined current draw can spike sharply enough to pull cell voltage below the BMS protection threshold. When that happens, the BMS cuts power to protect the cell and the hotspot resets, dropping every connected device. A degraded or counterfeit cell with higher internal resistance hits that threshold far sooner than a fresh cell with the correct impedance profile. Replacing the cell with one that matches the original impedance spec resolves the mid-session dropout.

MF900 won't power on after sitting unused for several weeks

Li-Polymer cells self-discharge slowly during storage. If the MF900 sat unused long enough, the cell voltage may have dropped below the minimum boot threshold — typically around 3.0V — and the BMS locks out the discharge circuit to prevent deep-discharge damage. Plugging the device directly into the wall charger (not a USB hub or low-output port) for 20–30 minutes allows the charger to trickle current into the cell and bring voltage back above the BMS re-enable point. If the device still shows no sign of life after that, check charger output is at least 5V / 1A at the port.
