CipherLab CP30 / 9200 Series — 3.7V Li-ion Replacement Battery (BA-0032A2)

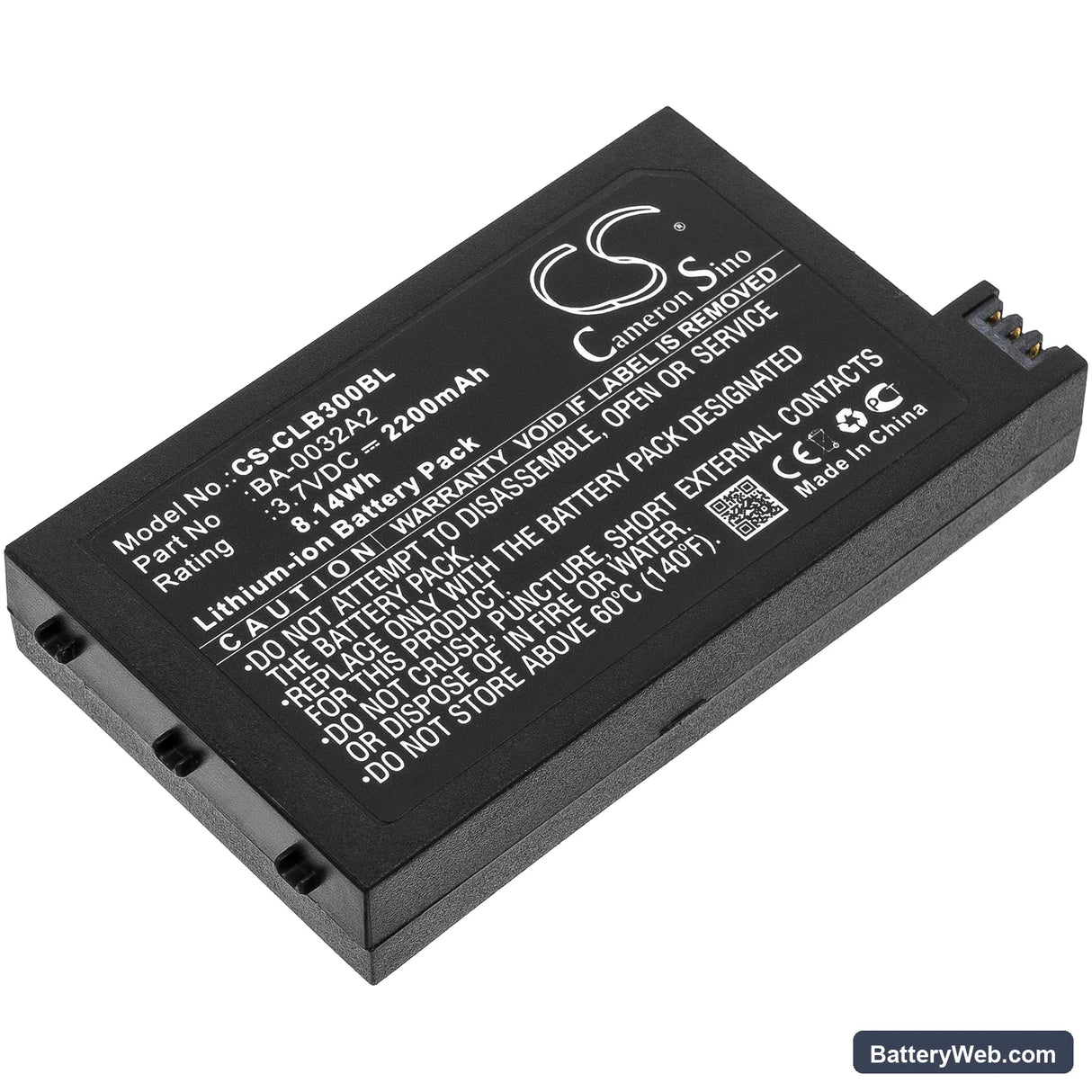

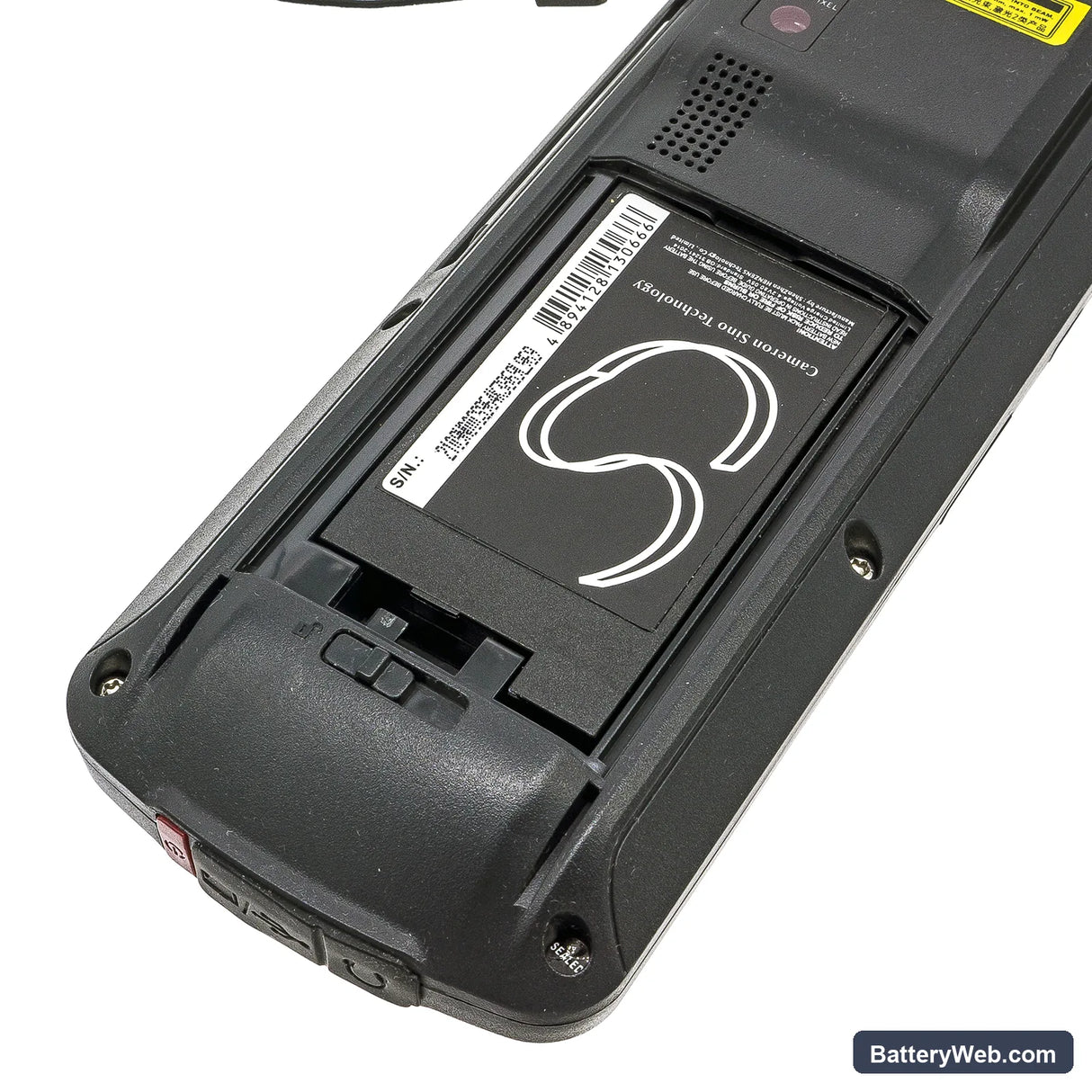

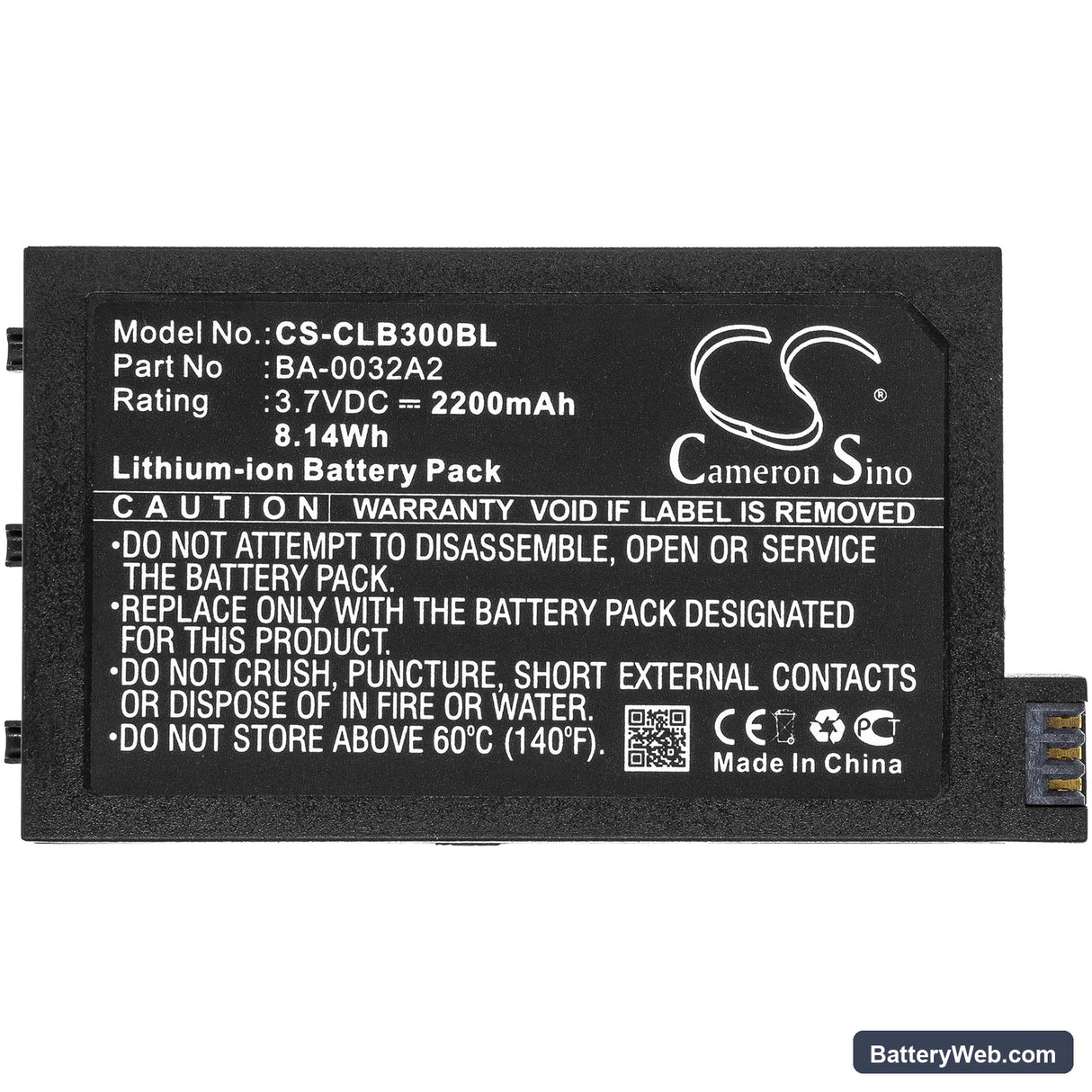

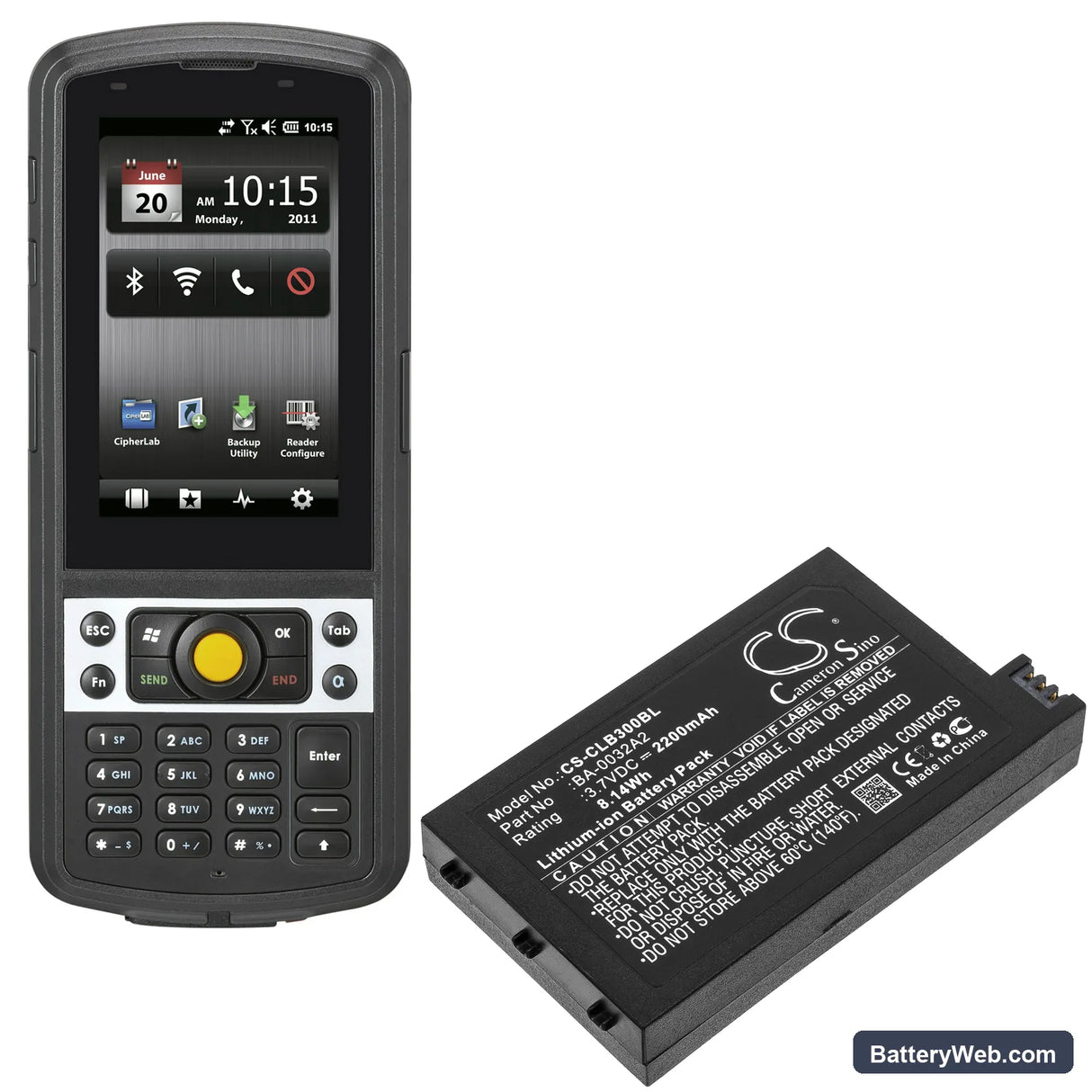

This is a 3.7V, 2200mAh Li-ion replacement battery for the CipherLab CP30, CP30-L, 9200, and A929CFNLNN1U1 handheld barcode scanners. It matches the original BA-0032A2 specification and fits directly into the battery bay on each of those models. Capacity is 8.14Wh — identical to the factory pack.

• CP30 and 9200 platform fit: Both series run the same 3.7V single-cell architecture with the same physical connector and BMS handshake protocol. One battery services the full range without modification.
• Bench tested on actual hardware: We cycled this pack through repeated scan bursts and wireless polling loads on a CP30 unit. The BMS held charge termination cleanly and did not false-trip during the combined inrush of laser fire plus radio transmit.
• First-shift preparation on CP30: After installing, seat the scanner in its cradle and run a full charge cycle before starting pick-and-pack. Scan trigger inrush is highest when the cell is near minimum voltage — a fully charged pack prevents the BMS from tripping on the first burst of the shift.

Cradle showing a charging error on a new BA-0032A2 pack

The CP30 cradle reads pack status through four gold contacts on the base of the scanner. If any of those contacts have oxidation or debris, the dock reports a fault even when the battery itself is fine. Wipe the contacts on both the pack and the cradle with a dry cloth, then reseat the scanner firmly. If the error clears, contact resistance was the cause — not the cell. A persistent error after cleaning points to a cradle firmware mismatch or a damaged dock pin.

Scanner losing wireless connection during rapid scan bursts

On the CP30, firing the laser and transmitting a scan result over Bluetooth or Wi-Fi happen almost simultaneously. That combined inrush can pull the cell voltage down momentarily if the pack is partially depleted. When voltage dips below the radio module's minimum threshold, the wireless link drops mid-burst. Start each shift with a full charge, and check that the battery contact pins on the scanner body are clean — poor contact increases internal resistance and worsens the voltage sag. A healthy, fully charged BA-0032A2 pack keeps the rail above 3.5V through that combined draw.
