Dirt Devil M030 Replacement Battery 10.8V 3000mAh Ni-MH

Dirt Devil M030 / M3120 — 10.8V Ni-MH Replacement Battery (0030013)

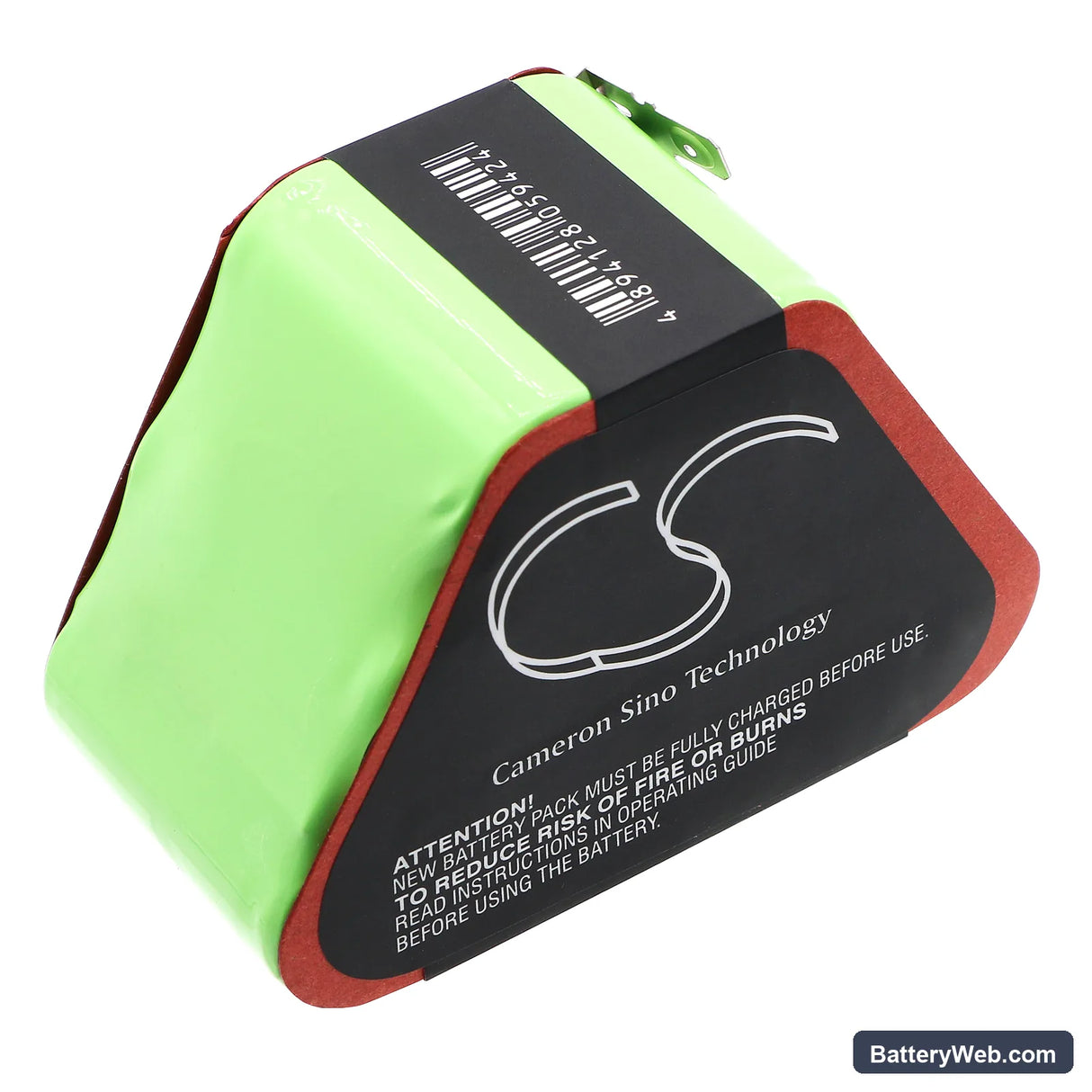

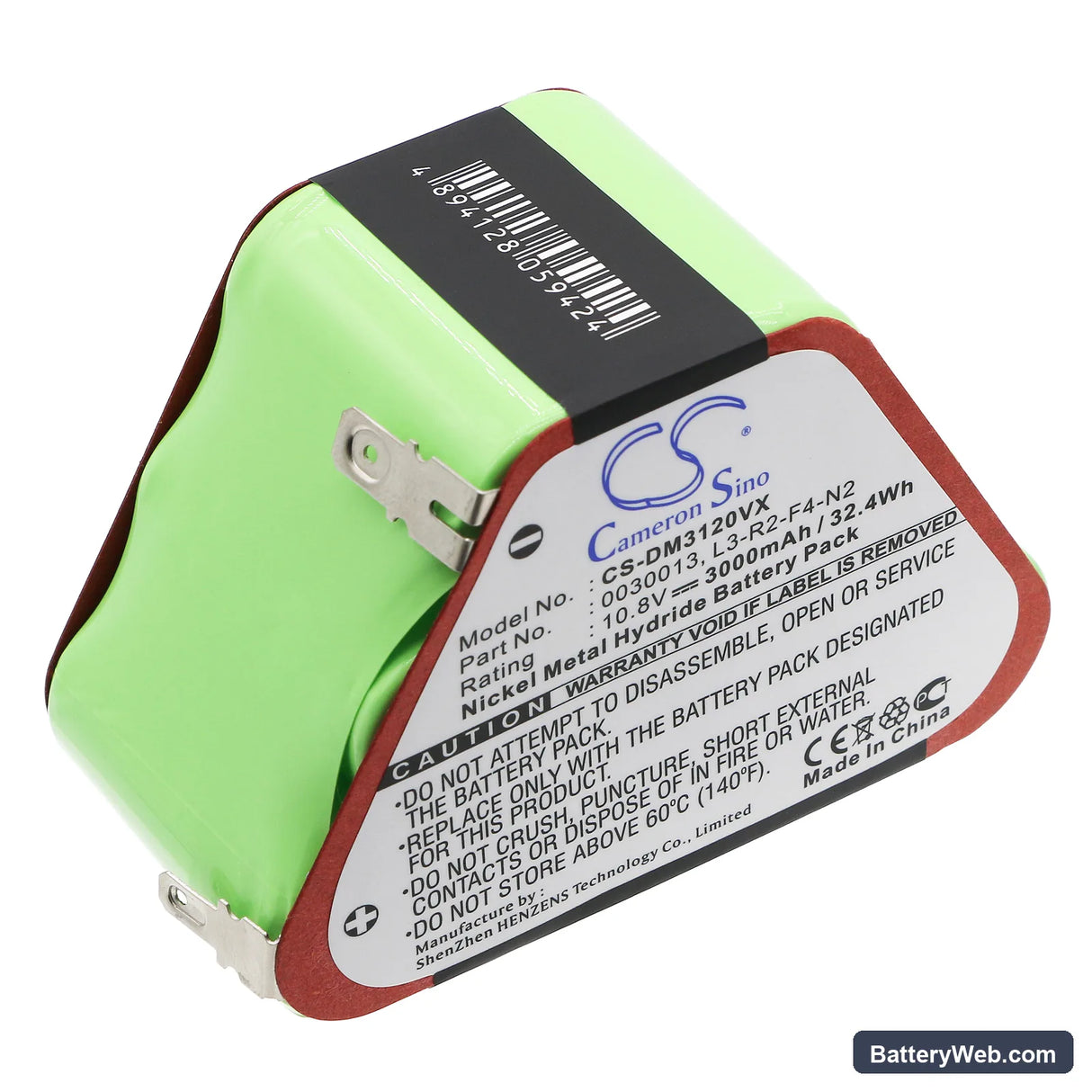

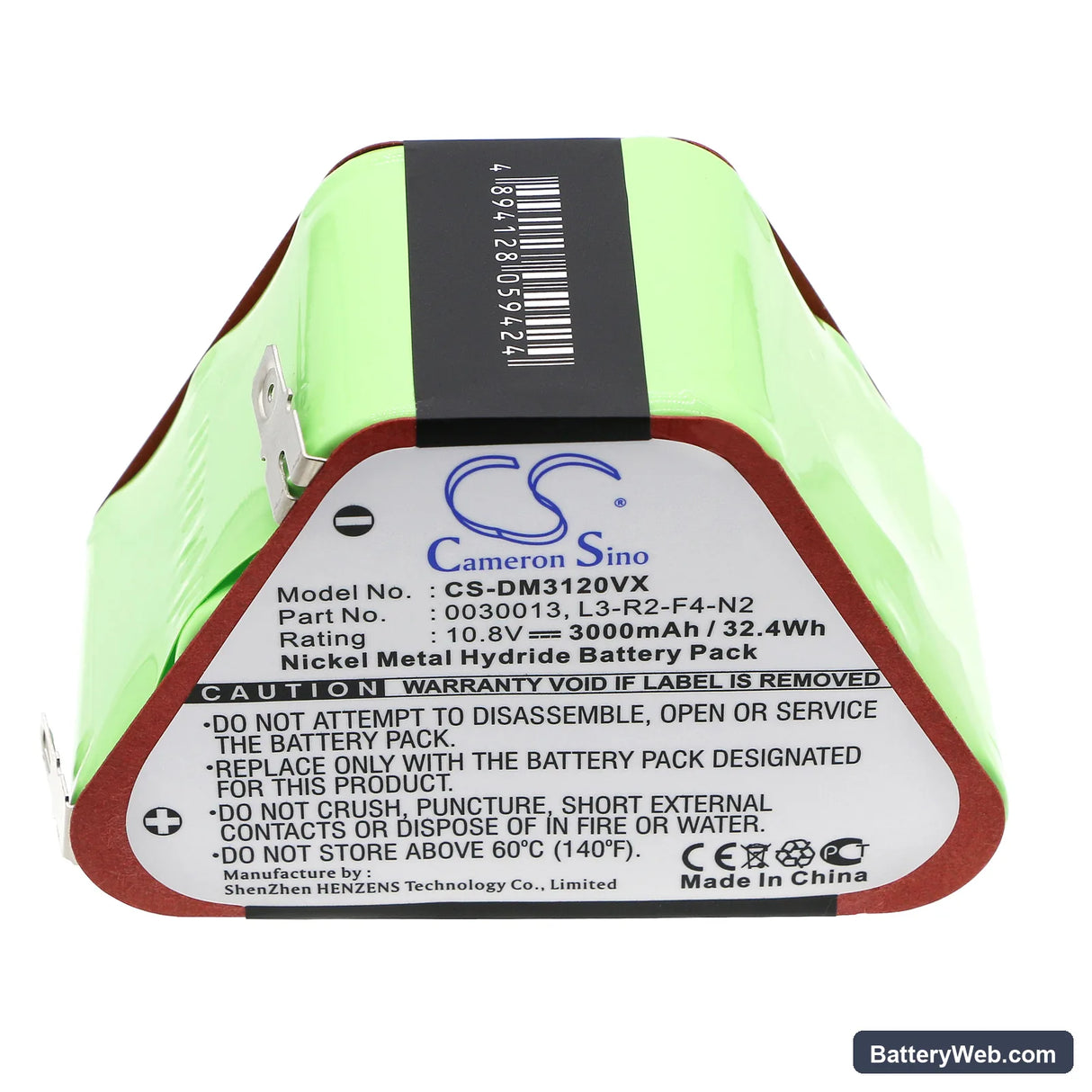

This is a 10.8V, 3000mAh Ni-MH replacement battery for the Dirt Devil M030 and M3120 handheld cordless vacuums. It slots into the same battery bay as the original and restores full suction power when the factory cell has degraded. Capacity is 3000mAh (32.4Wh), matching the OEM specification.

• M030 and M3120 compatibility: Both models run the same 10.8V power rail, share the same battery bay dimensions, and use the same connector pinout — one battery fits either machine without modification.
• Bench tested on actual hardware: We cycled this cell through full discharge and recharge sequences on the M030 motor platform. The BMS handled motor-start current draw without tripping, and voltage held stable across sustained suction loads.
• Dock charging habit on the M030 and M3120: Do not leave the vacuum sitting on the charging dock permanently. Ni-MH cells in continuous trickle charge develop capacity fade significantly faster than cells charged only when depleted. Charge to full, then remove from the dock.

Suction dropping before the battery indicator reaches low

The M030 motor draws higher current the moment airflow is restricted — a partially blocked filter forces the motor to work harder, which pulls more amps and causes voltage to sag early. That sag reads to the vacuum's circuitry as a low-battery condition even when the cell still has charge remaining. The motor then throttles back to protect itself, and suction drops noticeably. Clean or replace the filter first — if suction recovers and holds, the battery is not the cause.

Motor cuts out mid-use then recovers after a short pause

This is a BMS overcurrent trip, not a dead cell. When the filter is partially blocked or the nozzle is held against carpet for an extended pass, motor current spikes past the BMS threshold and the battery cuts output to protect the cell. After a short rest the BMS resets and the motor runs again. Clear the filter, check the nozzle for blockages, and retry — if the cutout stops, the battery is functioning correctly. If it continues on a clean filter, test resting cell voltage; a healthy Ni-MH cell at 10.8V nominal should read at or above 11.5V immediately off charge.
