Shark V1705 Cordless Vacuum Replacement Battery 3.6V 2000mAh
Check that your old battery model number and device model to match our description. This makes sure they work together.
We ship your order same day if you buy it before 4 PM EST.
Shark V1705 Cordless Vacuum Replacement Battery 3.6V 2000mAh - is backordered and will ship as soon as it is back in stock.
Let customers speak for us
Send Your Battery Photo
Expert Technician Help
Snap a photo or video of your battery and send it to us. We'll identify the exact replacement—fast and hassle-free. Our team has helped thousands of customers find the right battery quickly and easily.
POST YOUR BATTERY IMAGE
Product & Solutions Expert
✉ sales@batteryweb.com
Battery Care Tips
Battery Care Tips
🔹 Getting Started
Charge your new battery fully before you use it for the first time. Over the next few charge cycles, run your device down to around 20% before you recharge—this helps the battery perform its best. After that, charge whenever you need to.
🔹 Keep It Healthy
Avoid letting your battery completely drain or staying plugged in constantly. Both extremes wear it out faster. Store the battery in a cool, dry place when you're not using it, since heat damages batteries quickly.
Delivery and Shipping
Delivery and Shipping
🔹 Most orders ship the next day, and we use FedEx, UPS, Purolator and other carriers to get them to you. Lithium batteries have to ship by ground only, not air or USPS. Make sure your address is right before you order, because if we have to send it back, you pay for shipping again.
Disclaimer
Disclaimer
⚠️ Disclaimer: All product names, trademarks, and registered trademarks belong to their respective owners.
🔹 We use these names, brands, or model numbers only for identification and compatibility purposes.
Shark V1705 Cordless Vacuum Replacement Battery 3.6V 2000mAh - is backordered and will ship as soon as it is back in stock.
Voltage
3.6V
Amp
2000mAh

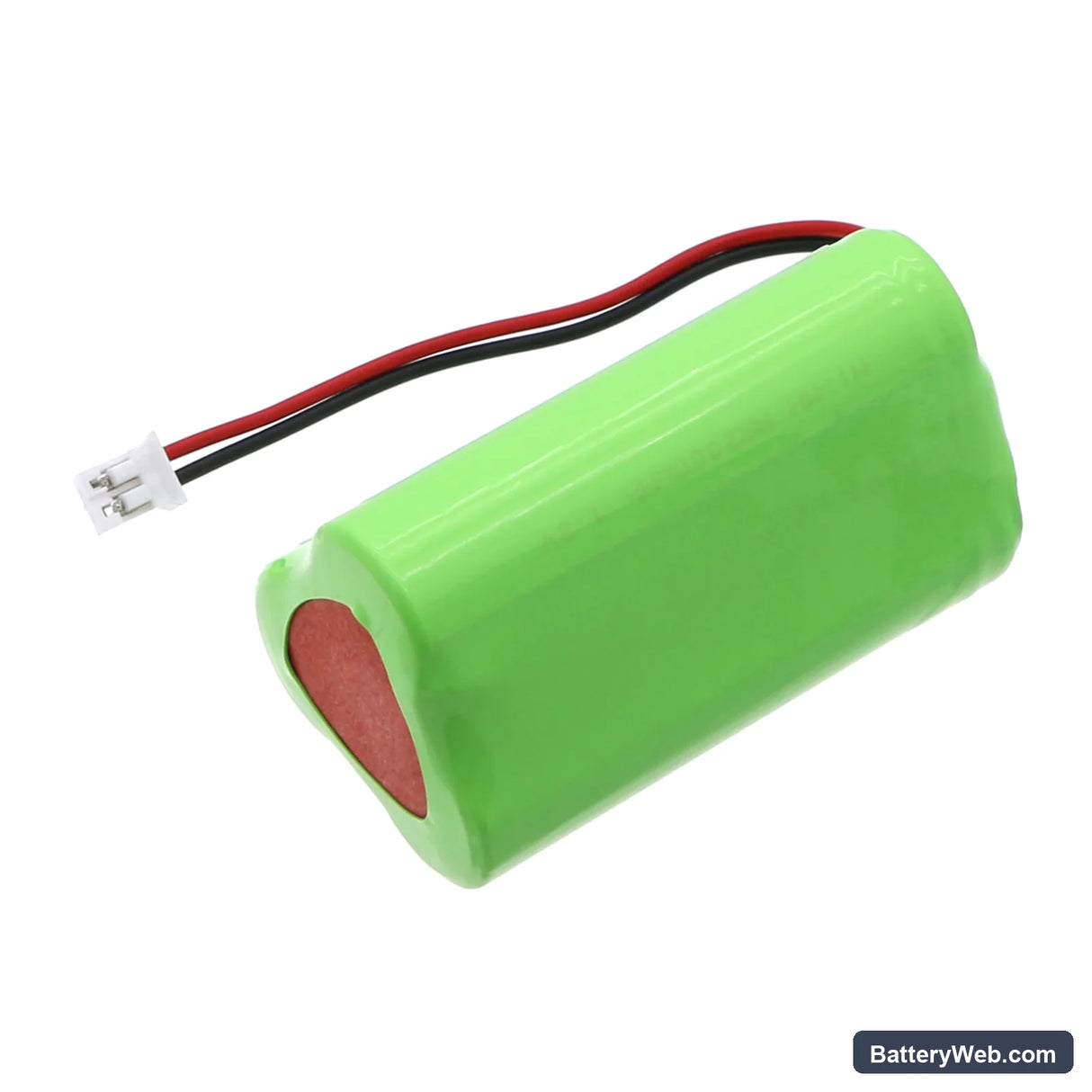

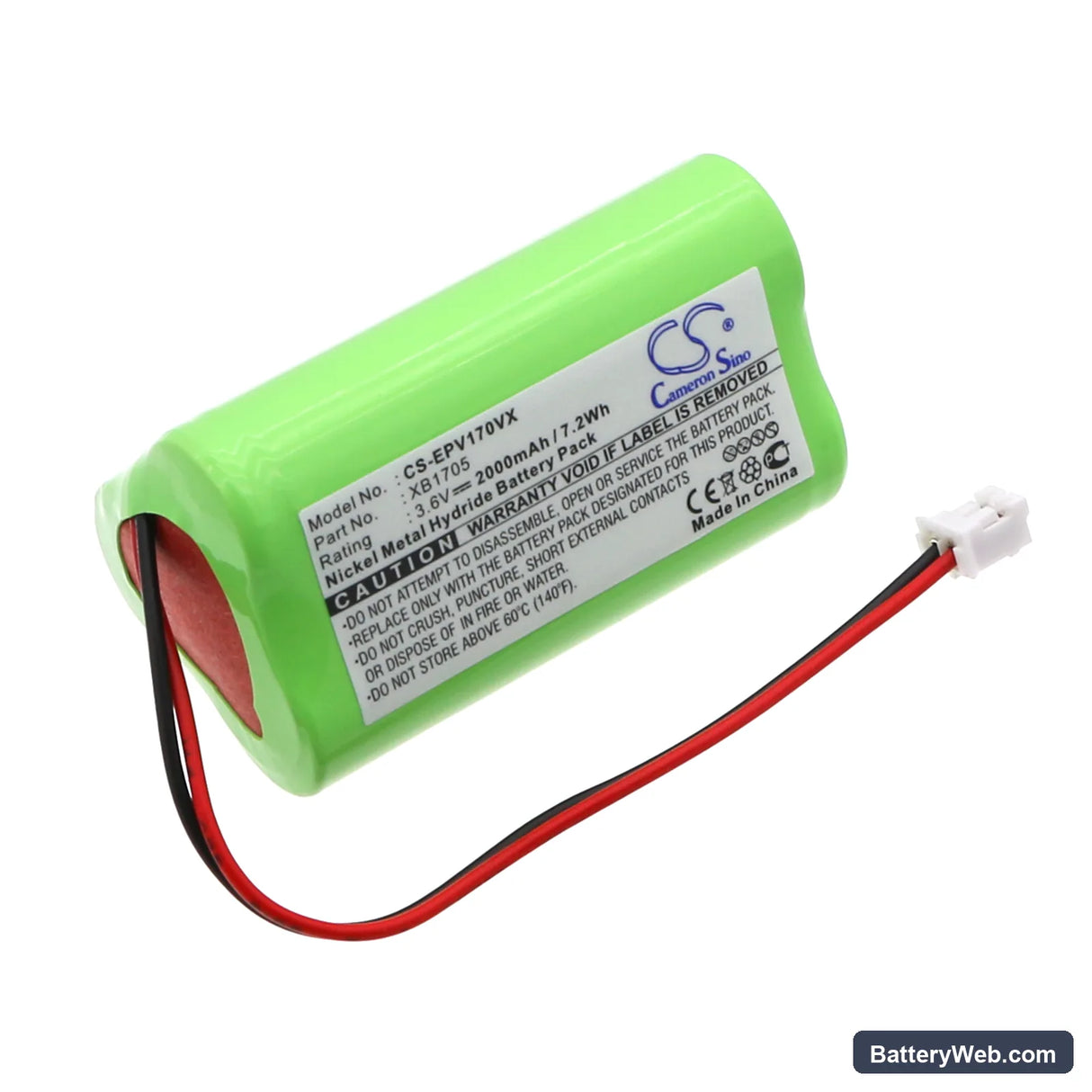

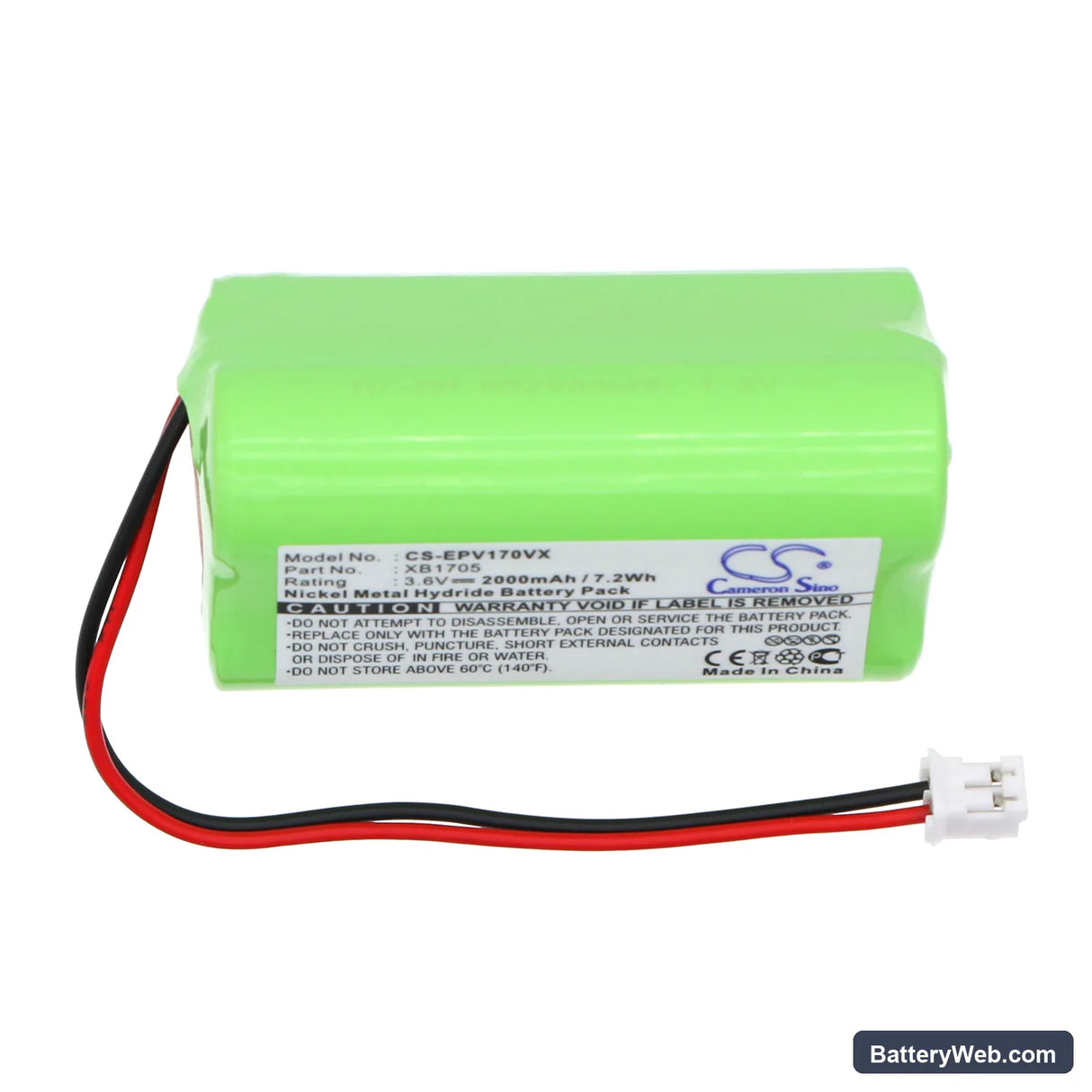

Shark V1705 / V1705i — 3.6V Ni-MH Replacement Battery (XB1705)
This is a 3.6V, 2000mAh Ni-MH replacement battery for the Shark V1705 and V1705i cordless handheld vacuums. It directly replaces OEM part number XB1705. Fit it when the original cell no longer holds a useful charge or fails to power the motor entirely.

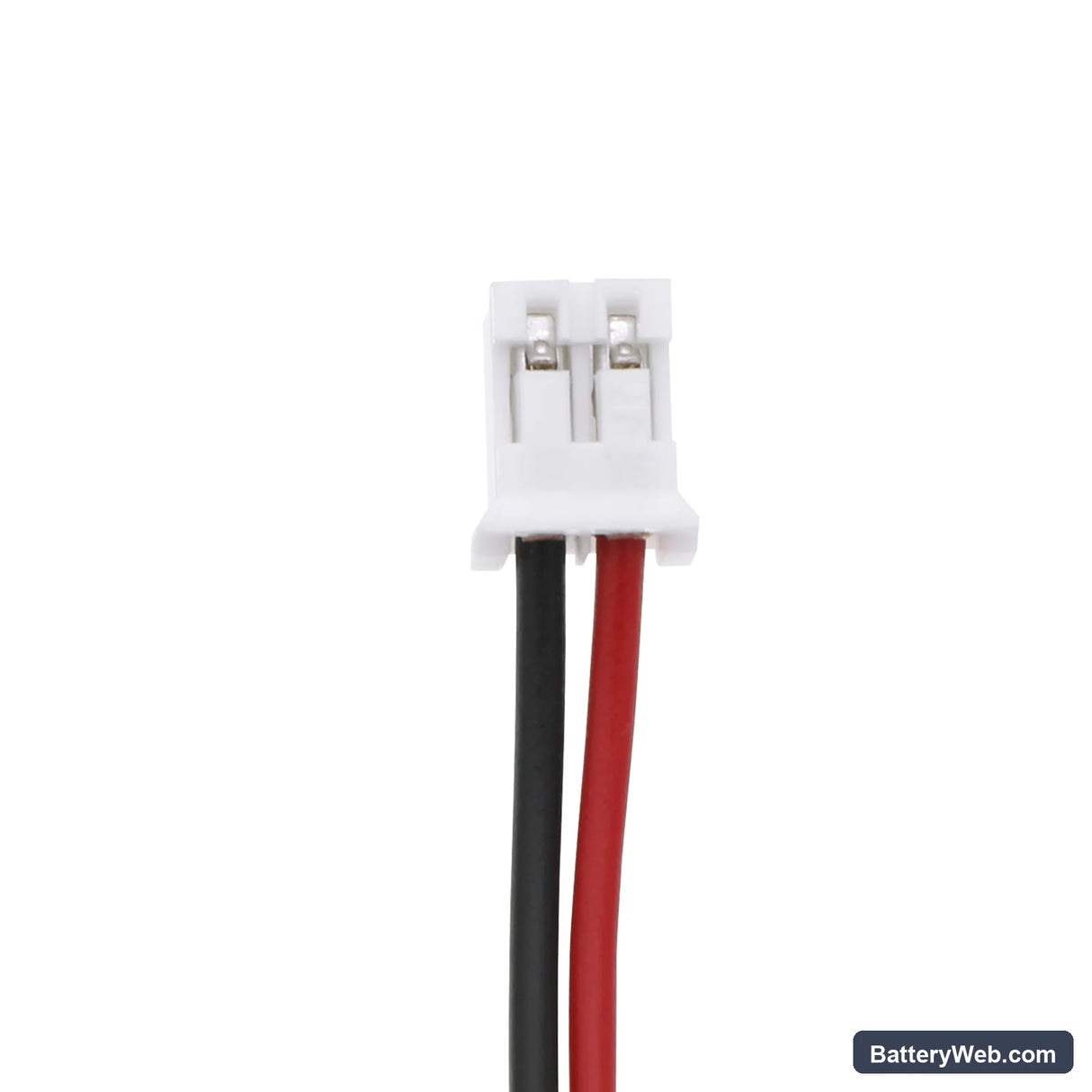

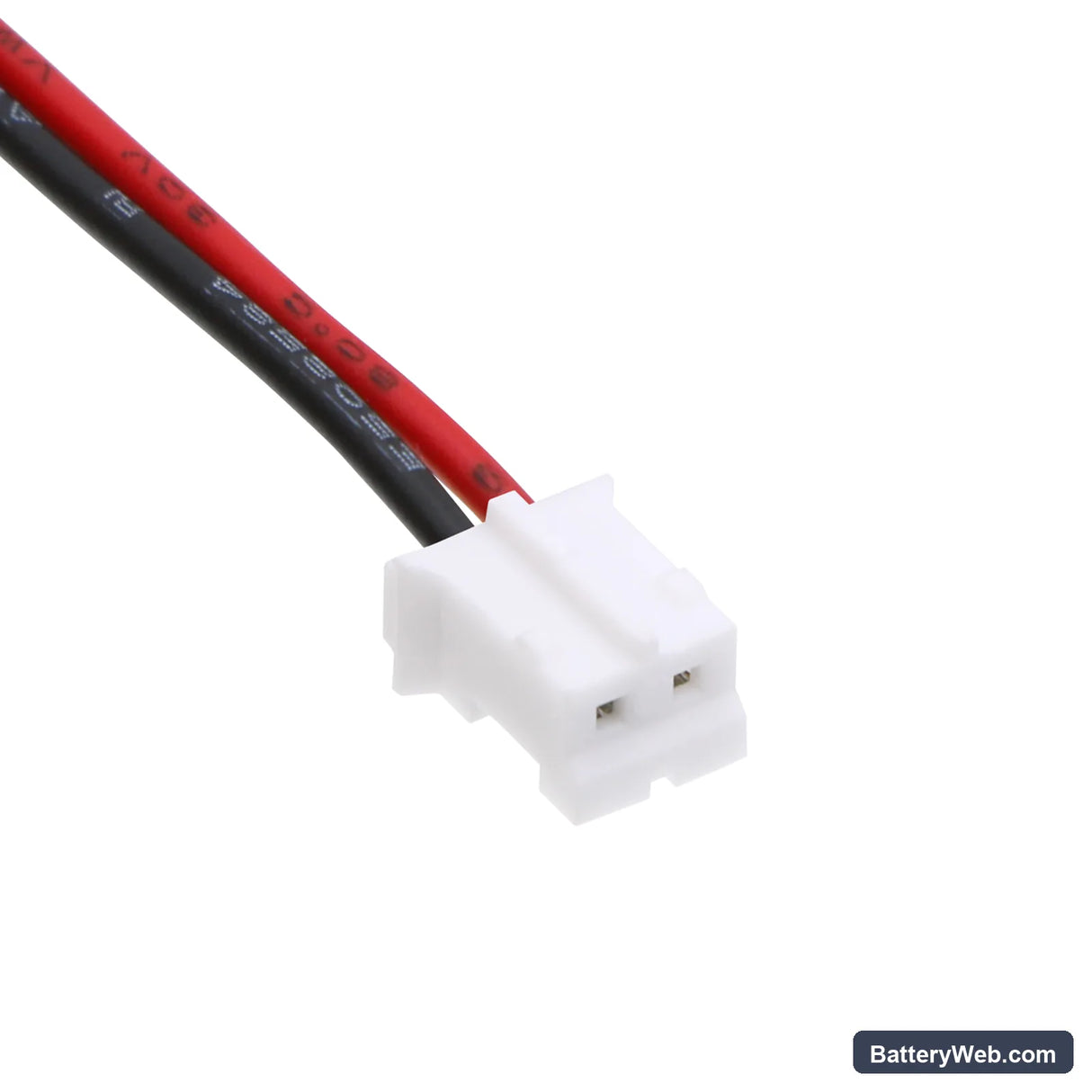

- V1705 and V1705i compatibility: Both models run the same 3.6V single-cell Ni-MH platform with identical connector orientation and BMS handshake. The XB1705 cell fits either variant without modification.
- Bench tested on actual hardware: We cycled this cell through the V1705 charger circuit and confirmed the BMS accepted charge without fault codes. Current draw during motor-on load stayed within the cell's rated output envelope.
- Dock charging habit on the V1705: Do not leave the vacuum sitting on its charging dock between uses. Continuous trickle charge is the fastest way to degrade a Ni-MH cell. Charge to full, remove from the dock, and store off the charger.
Suction dropping before the battery indicator reaches low
This happens when a partially blocked filter forces the motor to draw more current than the cell can sustain cleanly. The voltage sags under that elevated load, cutting effective motor speed before the indicator registers a low-battery state. It looks like battery failure but the filter is usually the cause. Clean or replace the filter first, then re-test — if suction holds, the cell is fine.
Motor cutting out mid-use then recovering after a short pause
This is a BMS overcurrent trip, not a dead battery. When airflow is restricted — blocked nozzle, clogged filter, or dense carpet load — the motor draws a spike of current that exceeds the protection threshold. The BMS shuts output, the cell recovers its resting voltage, and the vacuum restarts. Clear the blockage, confirm the filter is clean, and the trip frequency should drop. If it persists with unrestricted airflow, the cell's internal resistance has risen enough to need replacement.
Compatible Models
Replaces Part Numbers
Technical Specifications
Product Highlights
- Brand: Shark
- Manufacturer: CS
- Series: Standard
- Color: Green
- Product Type: Ni-MH
- Battery Type: Ni-MH
- Warranty: 12 Months
- Bulk Orders: sales@batteryweb.com
Frequently Asked Questions
My Shark V1705 loses suction halfway through a job even though the battery light isn't showing low — is the new battery faulty?
Not necessarily — this is almost always a filter restriction, not the cell. A clogged filter makes the motor work harder, which pulls more current than the 3.6V Ni-MH cell can sustain cleanly, causing voltage sag and reduced motor speed before the indicator trips. Clean or replace the filter and retest under normal load. If suction holds consistently after that, the battery is working correctly.
The V1705 motor cuts out for a few seconds then comes back on its own — what's causing that?
That's the BMS tripping on an overcurrent spike, typically triggered by a blocked nozzle or dense carpet restricting airflow. The motor draws a surge to compensate, the protection circuit shuts output, and once the cell voltage recovers, the vacuum restarts. Clear any blockage and check the filter before assuming the battery is the issue. If it still trips with clean, unrestricted airflow, check that the cell's resting voltage is at or above 3.6V with a multimeter.
The replacement XB1705 isn't charging on the dock — the dock light doesn't come on at all.
The V1705 charger circuit looks for a specific voltage window before it initiates the Ni-MH charge cycle. If the replacement cell arrived deeply discharged, the charger may not recognise it as a valid load. Connect the battery, leave it on the dock for 20–30 minutes undisturbed — some chargers apply a conditioning pulse before the indicator light activates. If there is still no response after that, measure the cell's open-circuit voltage with a multimeter; a reading below 1.0V indicates a deep-discharge state that may need a slow external pre-charge before the dock charger will accept it.
Payment & Security
Payment methods
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Related Products
Engineered for Performance. Built to Last.
Check out our top-rated selection of reliable products built to last. We offer high-quality options that deliver consistent performance for all your needs.
-
Up to 20% offNew arrival
BatteryWeb
Dirt Devil M030 Replacement Battery 10.8V 3000mAh Ni-MH
1.25 lb
Sale priceFrom $73.99 USD Regular price $91.99Unit priceIn stock (171 units) -
-
Up to 19% offNew arrival
BatteryWeb
AEG Liliput AG1413 Replacement Battery 3.6V 3000mAh Ni-MH
0.53 lb
Sale priceFrom $33.99 USD Regular price $41.99Unit priceIn stock (66 units) -
-
Up to 19% offNew arrival
BatteryWeb
iRobot Looj 11200 Replacement Battery 7.2V 3600mAh
1.11 lb
Sale priceFrom $66.99 USD Regular price $82.99Unit priceIn stock (48 units) -
-
Up to 21% offNew arrival
BatteryWeb
Shark V1705 Vacuum Replacement Battery XB1705 3.6V 2000mAh
0.34 lb
Sale priceFrom $30.99 USD Regular price $38.99Unit priceIn stock (114 units) -
-
Up to 19% offNew arrival
BatteryWeb

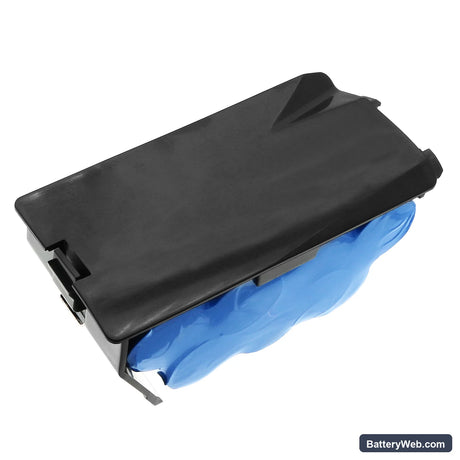

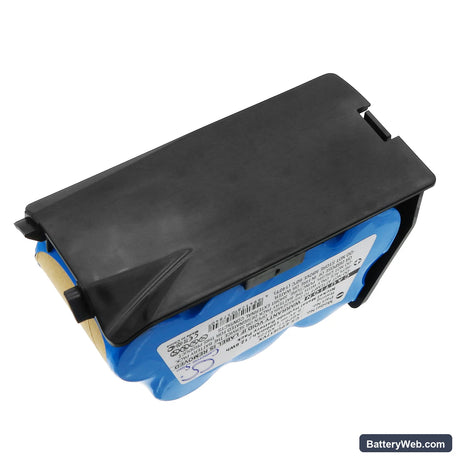

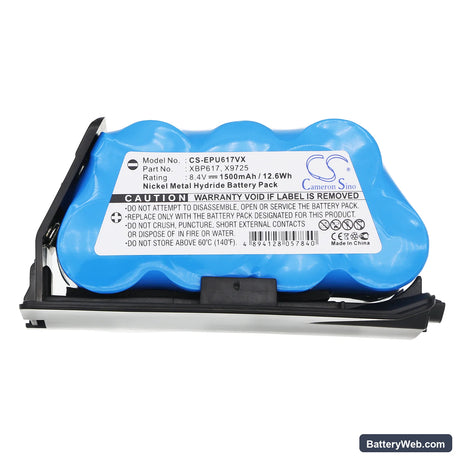

Shark UV617 Replacement Battery 8.4V 1500mAh Ni-MH XBP617
1.12 lb
Sale priceFrom $71.99 USD Regular price $88.99Unit priceIn stock (66 units) -
-
Up to 19% offNew arrival
BatteryWeb

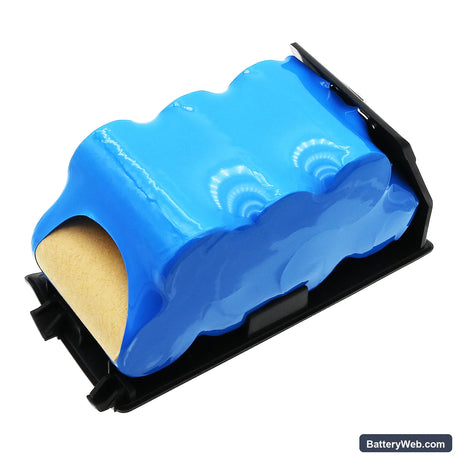

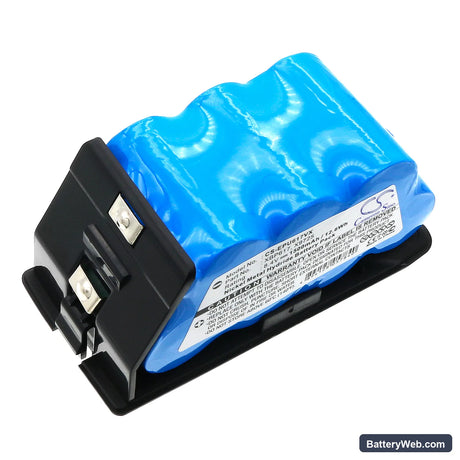

Euro Pro Shark UV617 Replacement Battery XBP617 8.4V
