Domo DO211S Replacement Battery 14.4V 2000mAh

Domo DO211S / DO203S Series — 14.4V Ni-MH Replacement Battery (91705363)

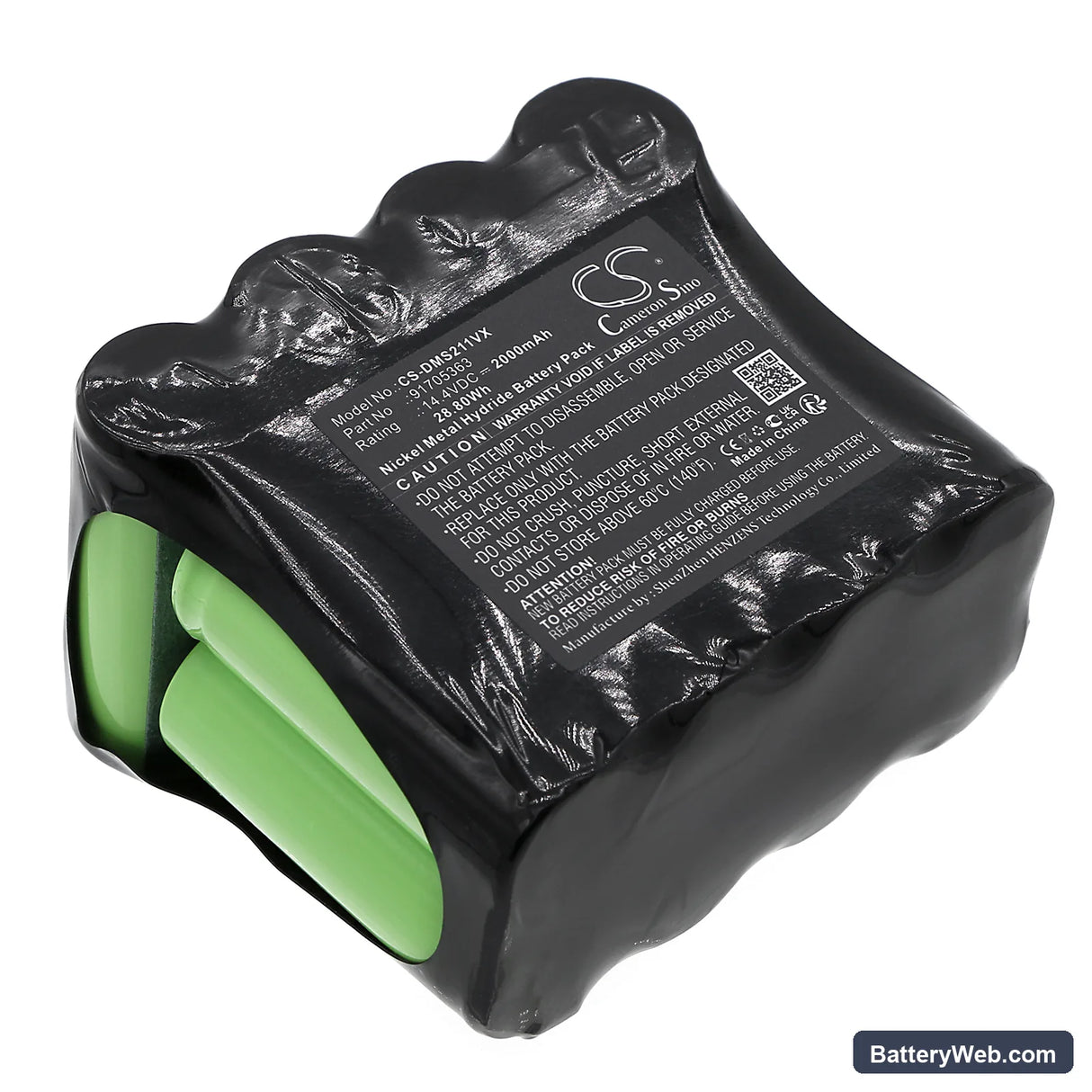

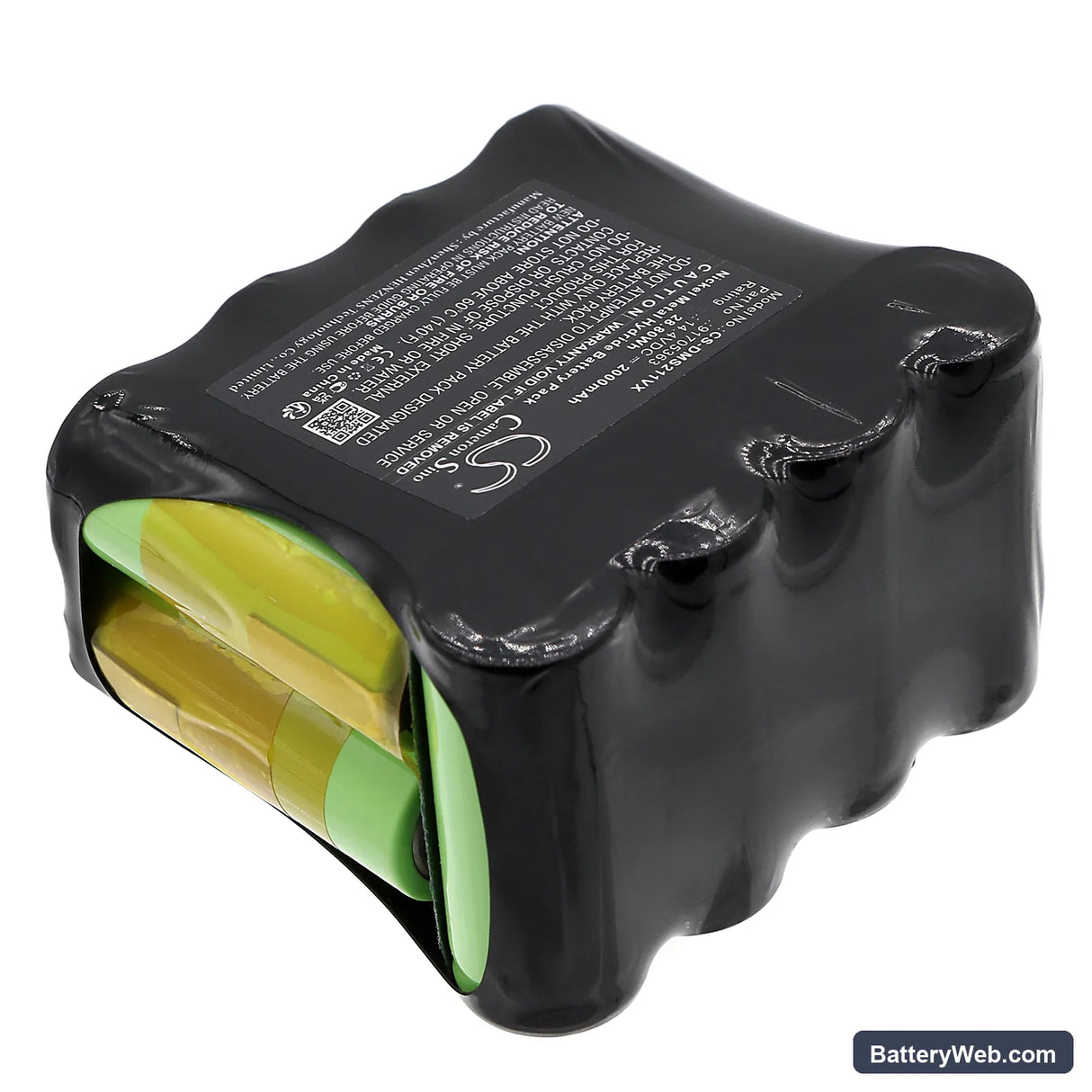

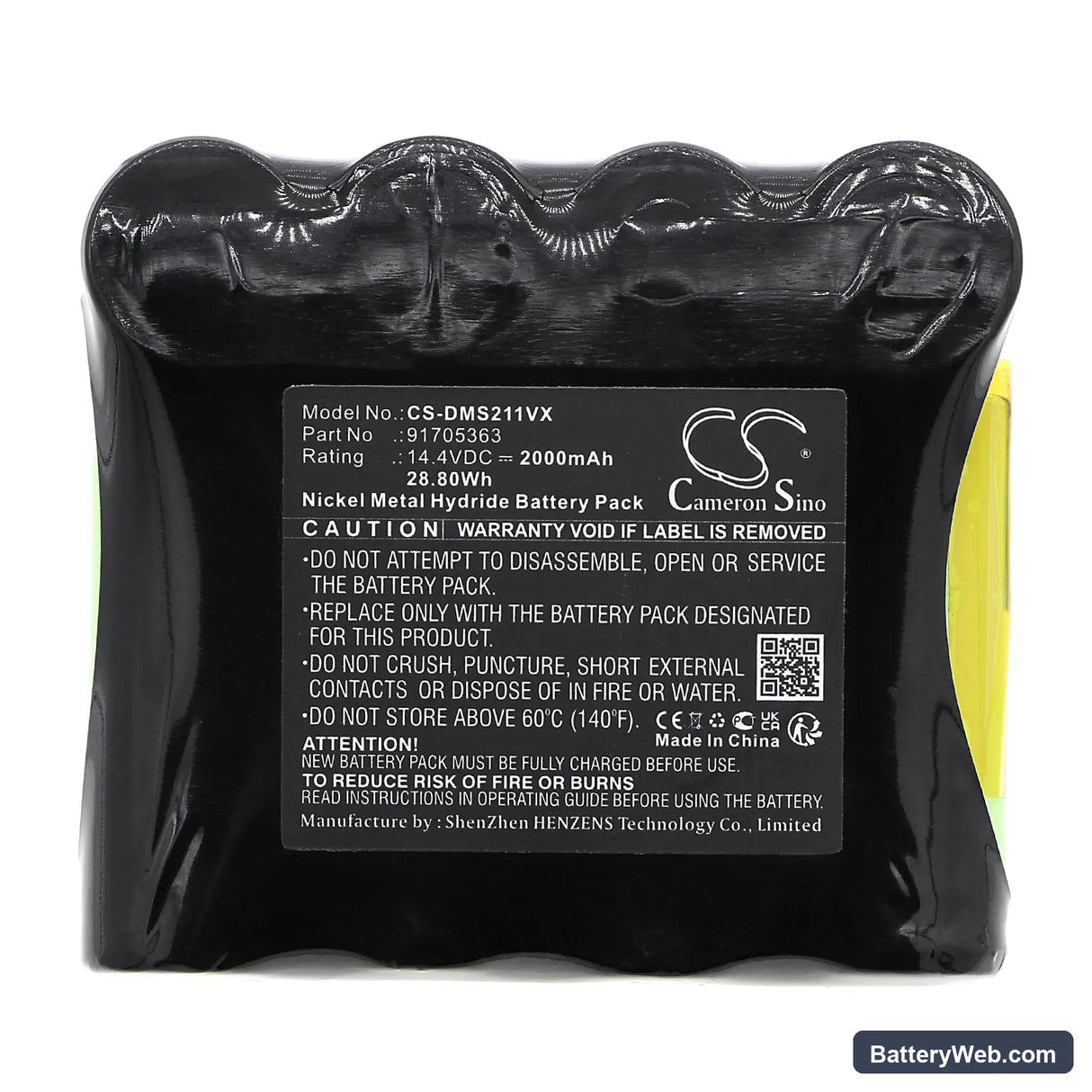

This is a 14.4V 2000mAh Ni-MH replacement battery for the Domo DO211S, DO203S, and DO211S-45 cordless handheld vacuums. OEM part number 91705363 confirms fitment across these models. Swap it in when the original cell no longer holds charge or the vacuum shuts off before the job is done.

• DO211S, DO203S, and DO211S-45 compatibility: All three models run the same 14.4V motor rail and share the same connector and battery housing dimensions. One cell covers the group — no adaptor or modification needed.
• Bench tested on actual hardware: We cycled this cell through load testing on the DO211S motor. The BMS handled the inrush current at motor start without tripping, and voltage held steady across the discharge curve under normal suction load.
• Dock charging habit for this vacuum: Do not leave the DO211S sitting on the charging dock continuously. Ni-MH cells in handheld vacuums develop capacity fade significantly faster under constant trickle charge. Charge to full, then remove from the dock.

Suction dropping before the battery indicator reaches low

This happens when the motor draws more current than the BMS expects — usually caused by a partially blocked filter, not a failing battery. A restricted airflow path forces the motor to work harder, pulling higher current and triggering a voltage sag at the cell terminals. The vacuum reads this sag as low charge and reduces power to protect the cell. Clear the filter first, then recheck suction — if the problem clears, the battery is not the cause.

Motor cuts out mid-use then recovers after a short pause

This is a BMS overcurrent trip, not a power cut. When suction is restricted — blocked nozzle, saturated filter, or debris lodged in the intake — the motor current spikes above the BMS trip threshold. The BMS shuts the output to protect the cell, then resets once current normalises. Check and clear the filter before concluding the battery is at fault. If the cutout persists on a clean filter, check that cell voltage at rest reads at or above 14.4V after a full charge.
