Ecovacs Winbot 880 Replacement Battery 14.8V 700mAh Li-ion

Ecovacs Winbot 880 / W1 Pro — 14.8V Li-ion Replacement Battery (201-1907-0302)

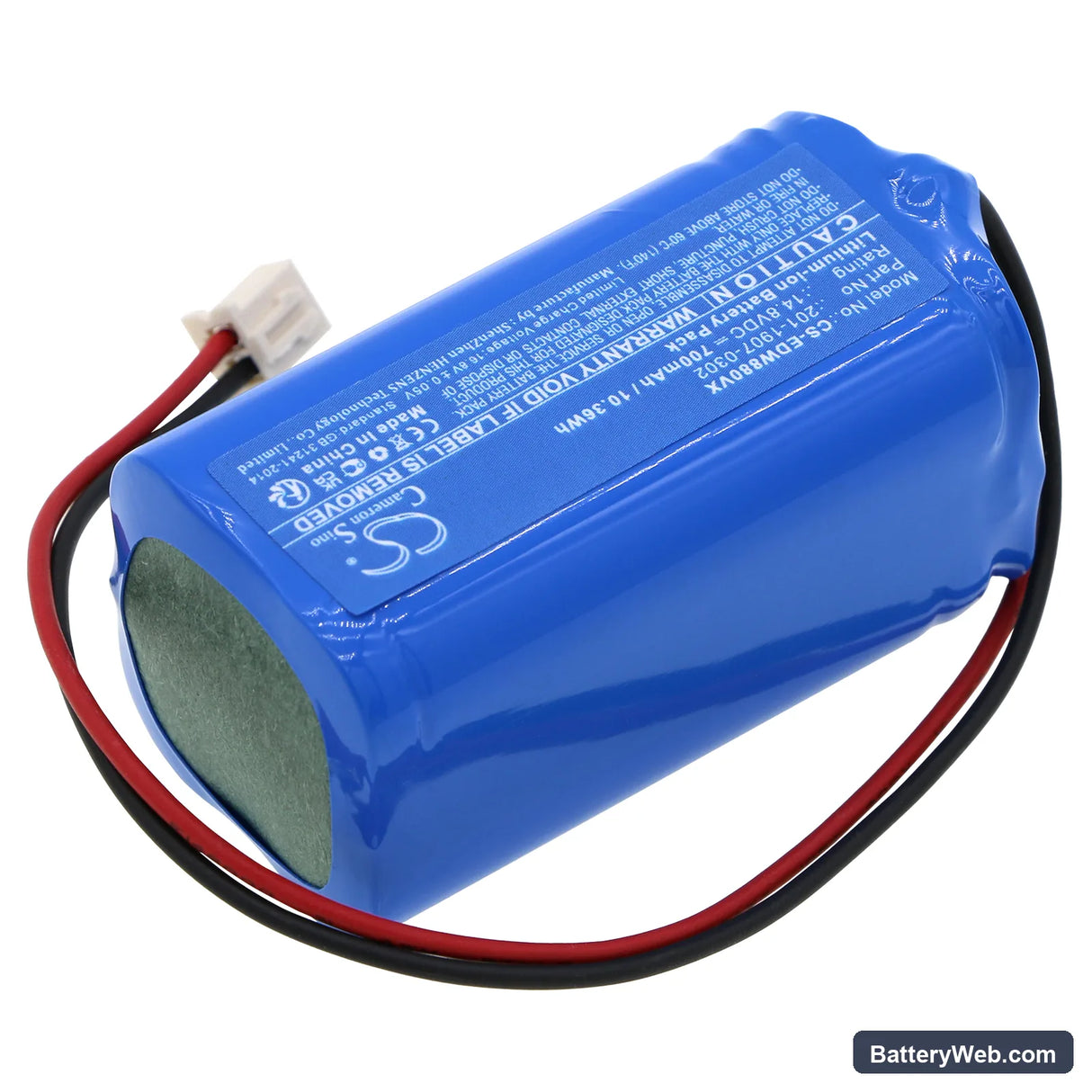

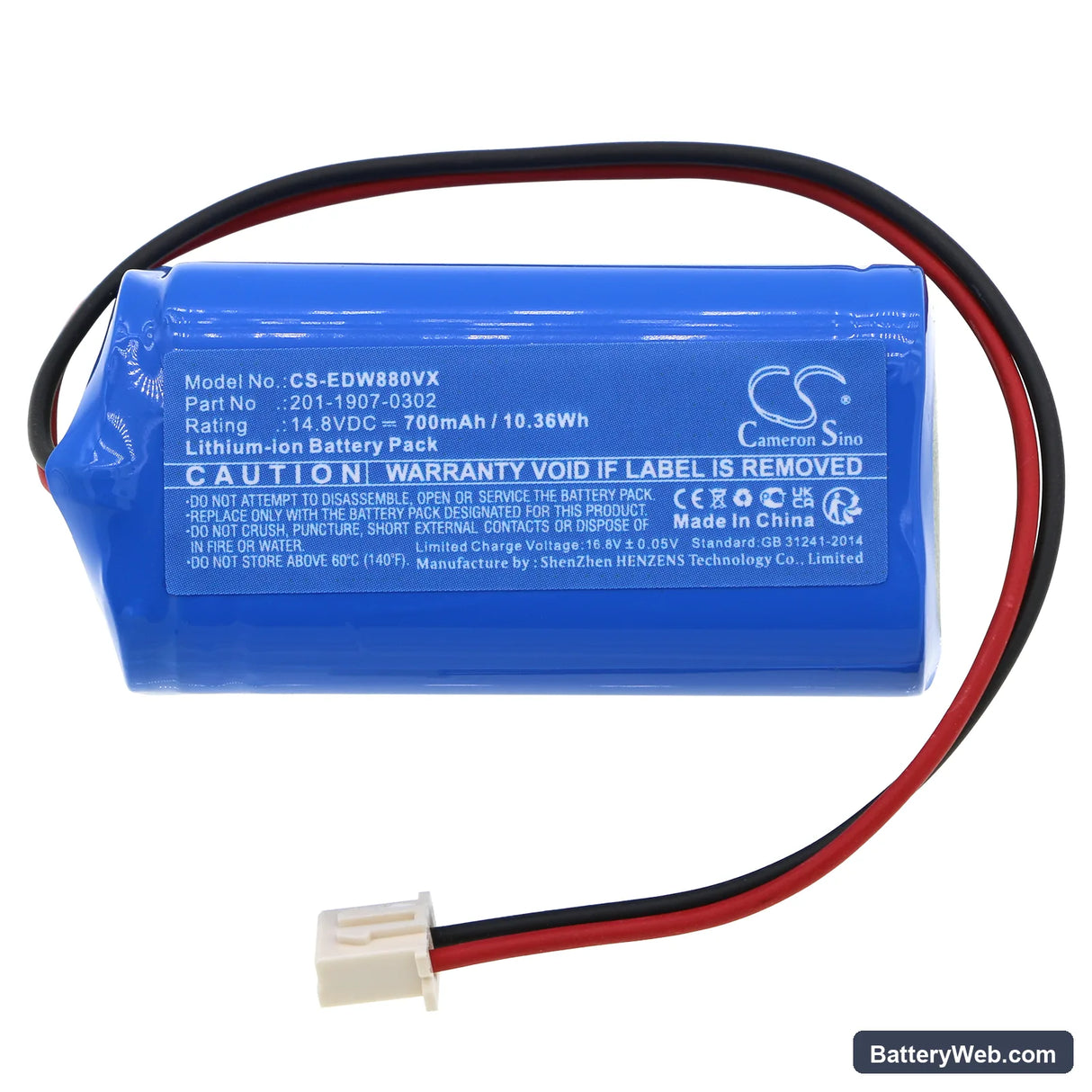

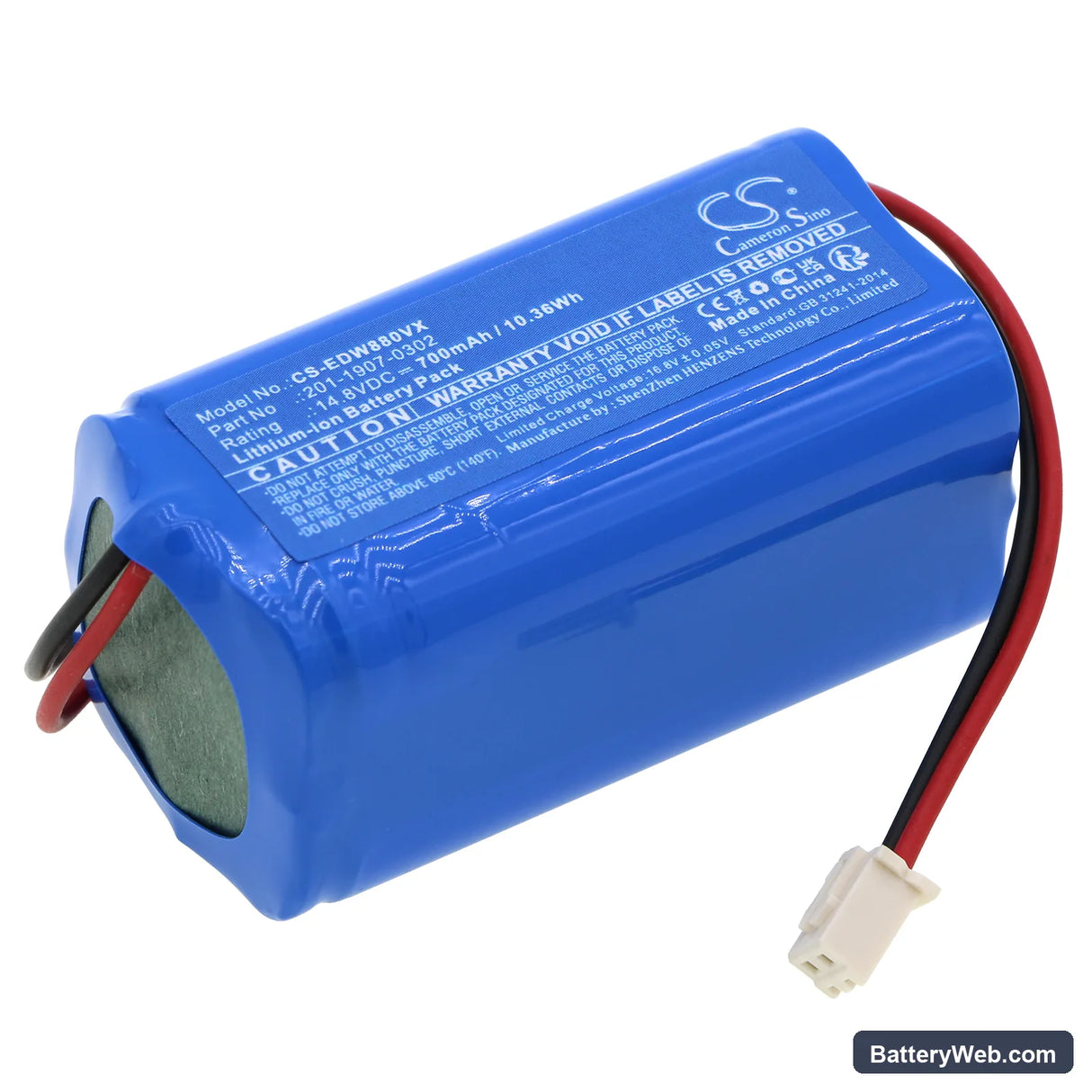

This is a 14.8V 700mAh Li-ion battery for the Ecovacs Winbot 880 and W1 Pro window cleaning robots. It replaces OEM part numbers 201-1907-0302, S04-L148-650, S15-LI-148-650, and 201-2005-0022. The Winbot series uses this compact 4-cell pack to power its suction motor, drive wheels, and onboard sensors simultaneously across the glass surface.

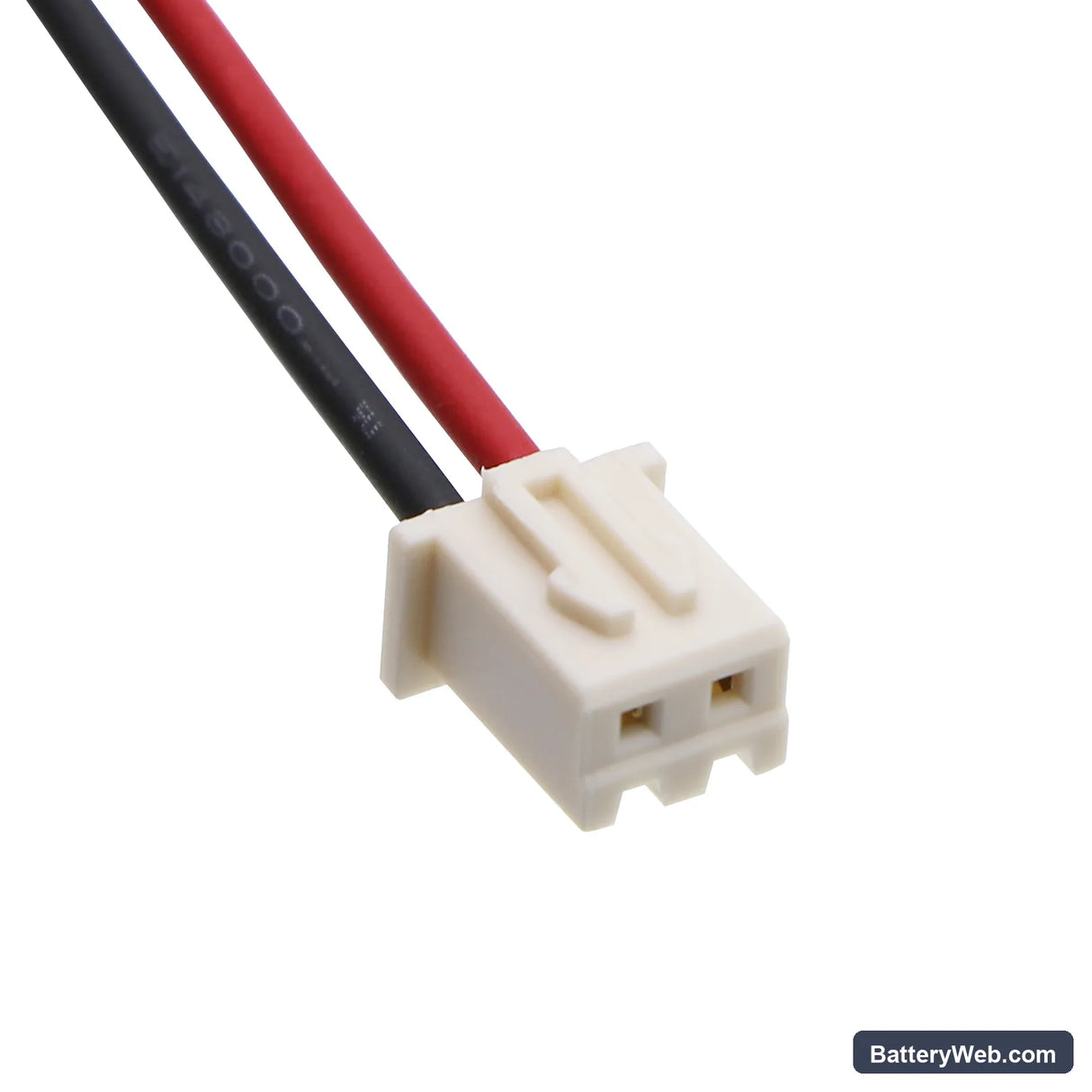

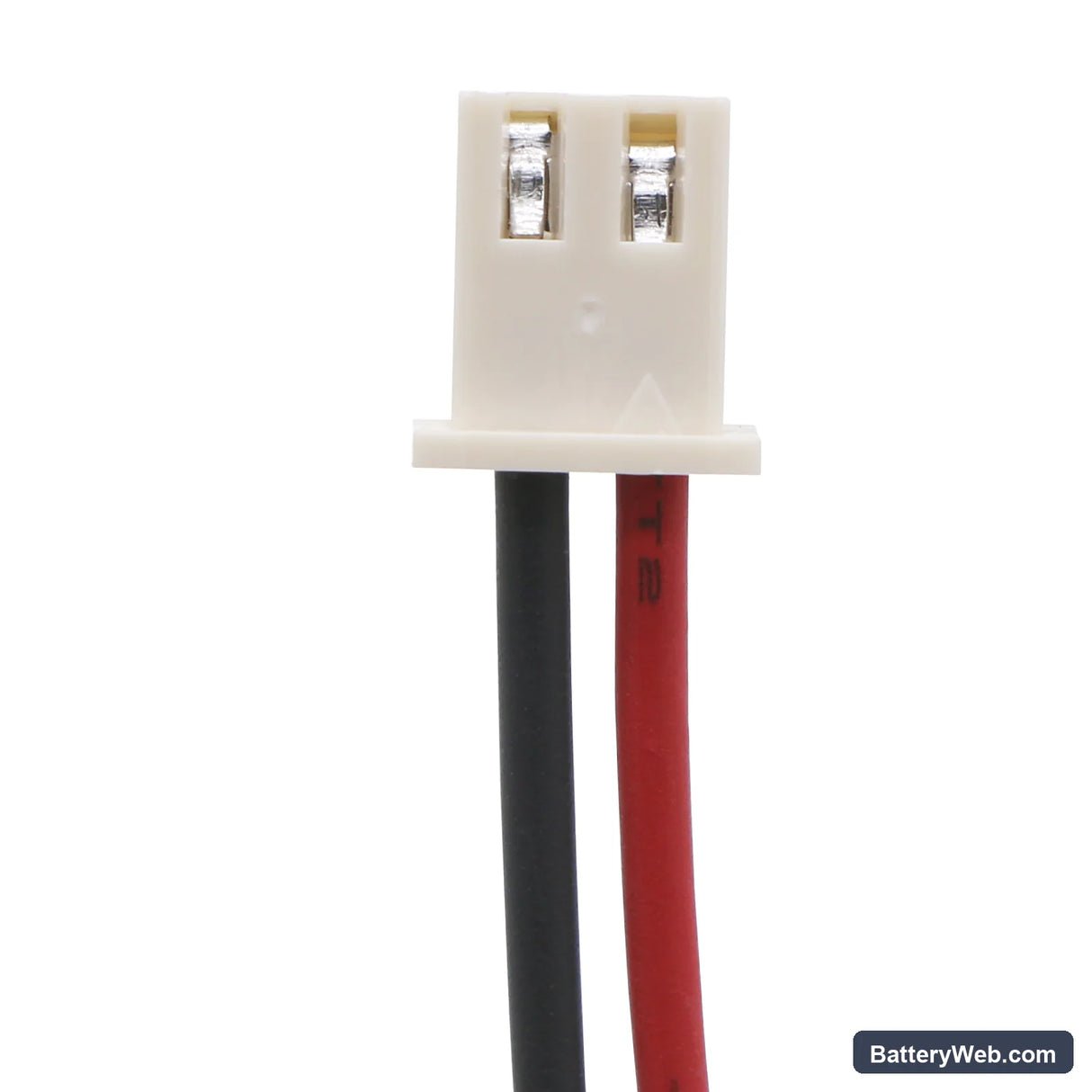

• Winbot 880, W880, W1, W1 Pro compatibility: These models share the same 14.8V nominal voltage rail, physical cell housing, and BMS connector pinout — the battery slots and communicates identically across the group.
• Bench tested on actual hardware: We ran this cell through full charge and discharge cycles on a Winbot unit. The BMS correctly negotiated charge acceptance, applied overvoltage cutoff at the top of the 4.2V-per-cell limit, and tripped overcurrent protection when the suction motor was stalled.
• Window-grip motor load tip: The Winbot holds itself to glass using negative pressure from the same motor that drives movement. If the window surface is damp or dusty at the start of a clean, the motor draws higher current from the first second. Wipe the glass edge before placing the robot — this reduces the initial load spike and protects the BMS from an early overcurrent trip.

Why the Winbot 880 drops off the glass mid-cycle

The Winbot's grip depends entirely on sustained suction pressure. When the battery voltage sags under combined motor load — drive wheels and suction running together — the suction motor loses enough speed to drop below the minimum hold pressure. The BMS then sees a low-voltage condition and cuts output to protect the cells. This mid-cycle detachment happens most often on larger windows where the robot runs continuously for extended periods without reaching the frame to pause. A battery with degraded cells accelerates this failure because voltage sag becomes steeper as internal resistance rises.

Replacement battery not charging on the Winbot dock

The Winbot dock delivers a fixed charge profile and expects the battery BMS to accept it without a proprietary handshake signal — but a deeply discharged replacement cell may sit below the BMS's minimum recovery threshold and appear dead on the dock. If the robot shows no charge activity after 30 minutes on the dock, remove the battery, let it rest for 10 minutes at room temperature, then reseat it. If the cell voltage has dropped below approximately 2.5V per cell (10V total pack), the BMS will block charging entirely and the pack will need to be replaced rather than recovered.
