HandHeld Nautiz X1 Replacement Battery 3.7V 1700mAh Li-ion

HandHeld Nautiz X1 — 3.7V Li-ion Replacement Battery (NX1-1003)

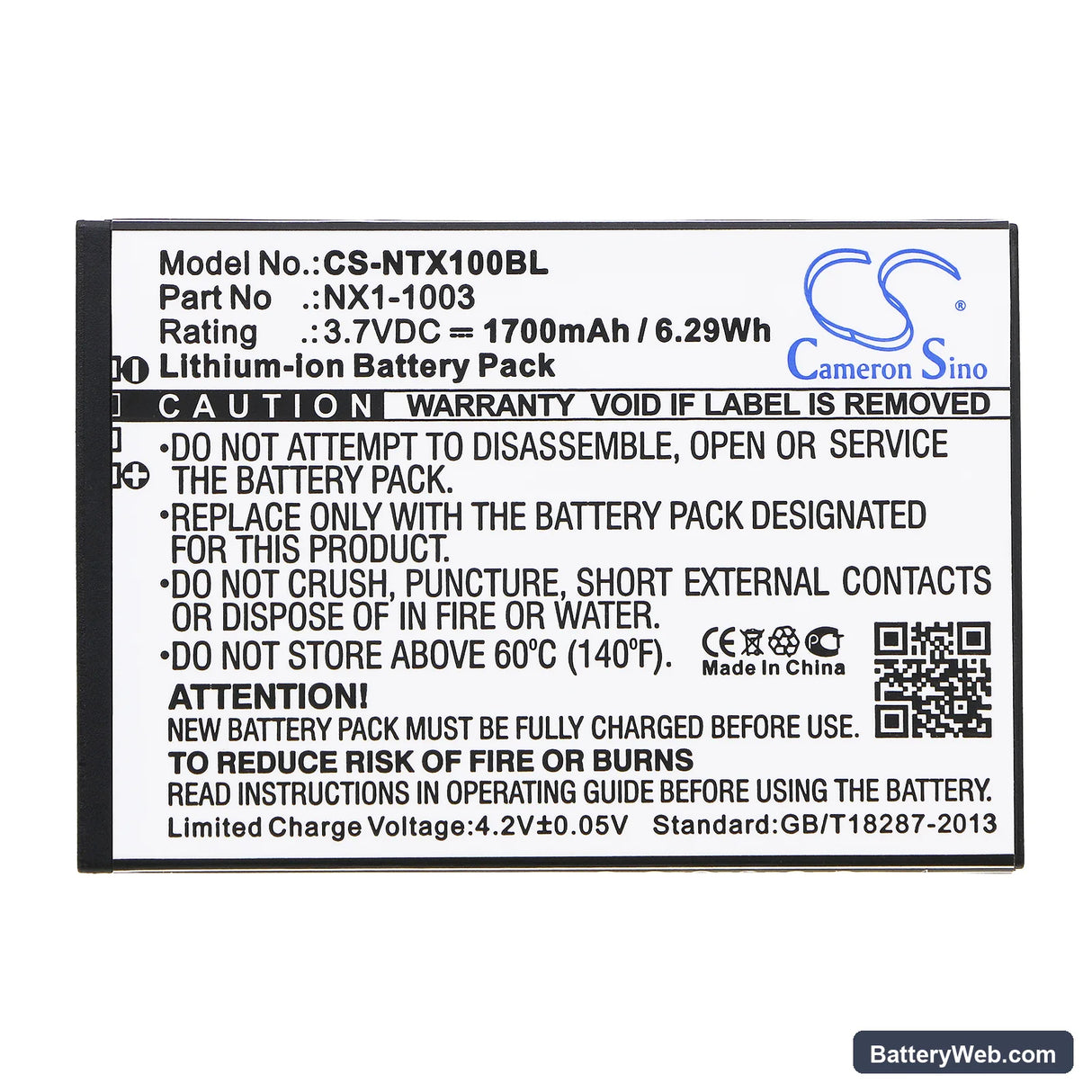

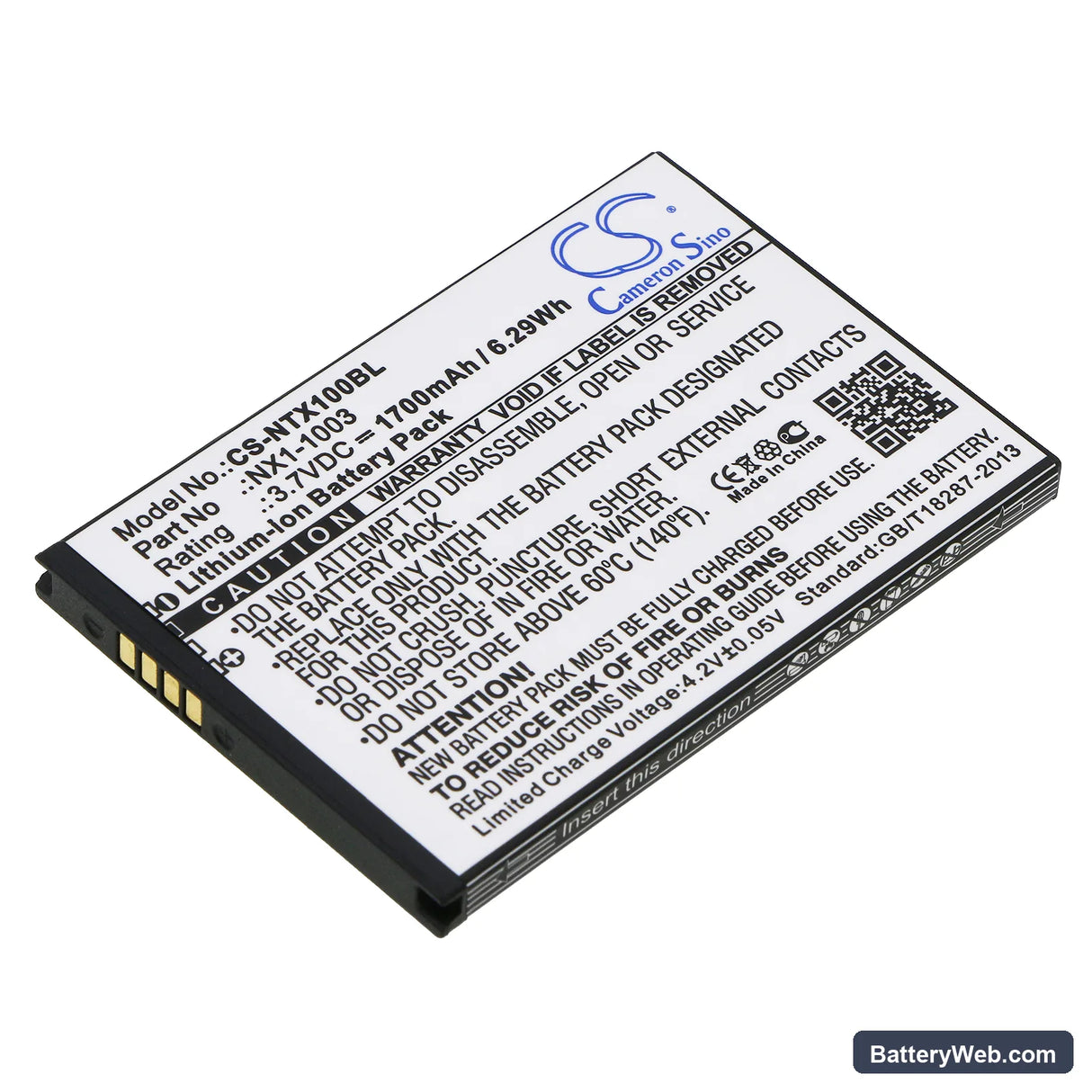

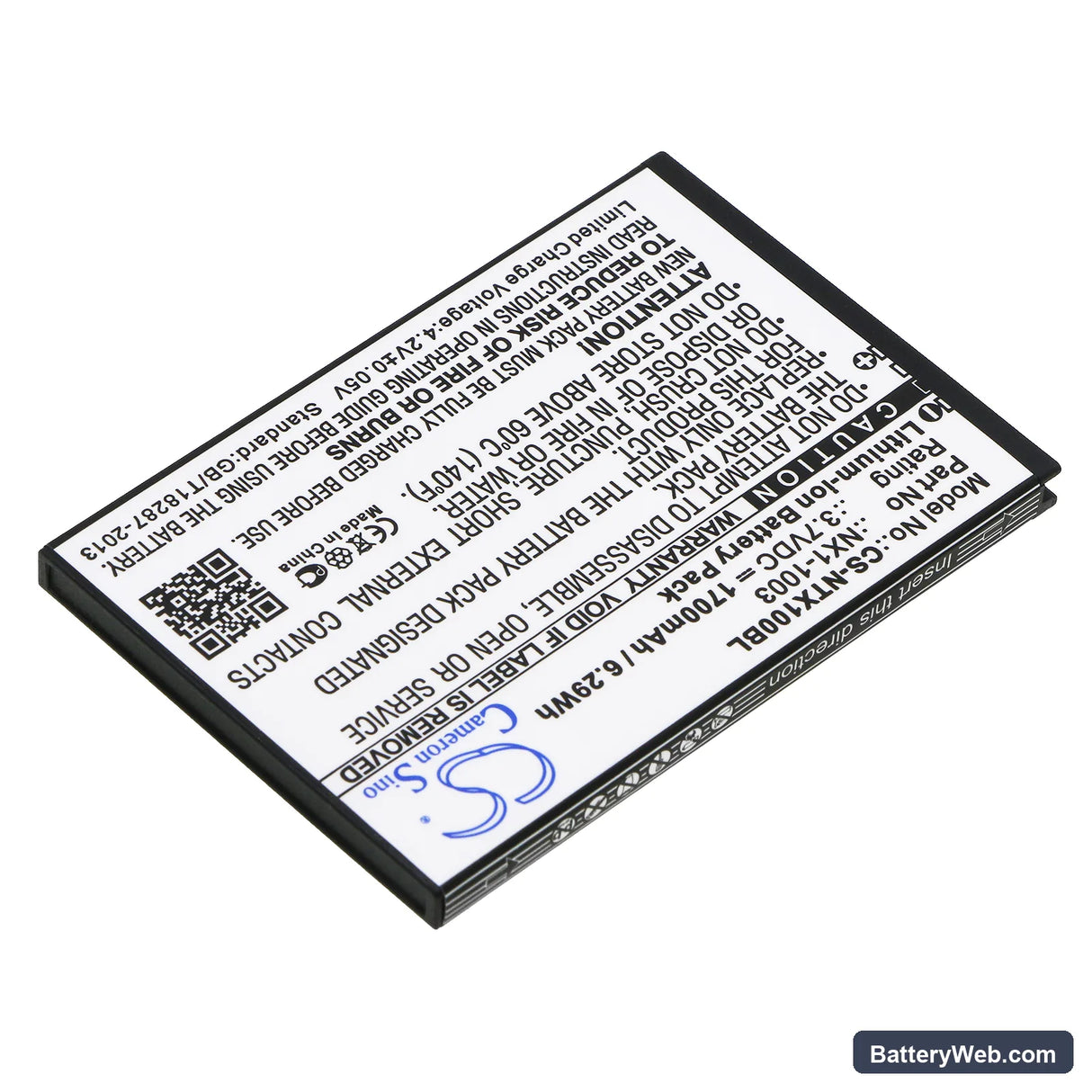

This 3.7V 1700mAh Li-ion battery replaces the OEM pack in the HandHeld Nautiz X1 rugged mobile computer. The Nautiz X1 is a compact handheld used in warehouse scanning, field data collection, and logistics — anywhere continuous uptime matters. Voltage and cell chemistry match the original spec exactly.

• Nautiz X1 platform fit: The X1 uses a slim cell form factor — 66.40 × 45.70 × 4.90 mm — with a BMS that monitors voltage and temperature through a dedicated contact array. This replacement matches that connector layout and communicates correctly with the device's power management firmware, so the battery indicator reads accurately from the first power-on.
• Bench tested on actual hardware: We cycled this pack through simulated scan-burst loads — combined imager trigger draws plus active wireless polling. The BMS held stable across repeated inrush events and did not trigger a false low-voltage cutoff at any point during testing.
• First-shift preparation for pick-and-pack use: Before running the Nautiz X1 on a live shift, place it in the charging cradle for a complete charge cycle after installing this pack. Scan trigger inrush current peaks when the cell is near minimum charge, and a fully charged cell prevents false BMS trips during the first high-frequency scan burst of the day.

Cradle showing a charging error on a new Nautiz X1 pack

The Nautiz X1 cradle reads battery state through gold pogo-pin contacts on the base of the device. If those contacts have oxidation, dust, or residue from a previous worn pack, the dock can misread resistance and flag a charging fault even on a fully functional new battery. This is not a pack defect — it is a contact issue. Wipe the battery contacts and the cradle pins with a dry cloth, reseat the device firmly, and the error clears in most cases. If the fault persists, check that the cradle supply voltage is stable at the rated input before replacing anything else.

Scanner losing wireless connection during rapid scan bursts

During a fast scan sequence, the Nautiz X1 draws simultaneous current for the imager and the wireless radio. On a degraded or low-charge cell, this combined inrush can drag cell voltage below the BMS protection threshold momentarily, causing the radio stack to drop and reconnect. The symptom looks like a network or Wi-Fi issue, but the root cause is voltage sag under combined load. Starting each shift with a fully charged pack keeps cell voltage above 3.5V under dual-load draw and eliminates the drop-outs.
