Nippon Thermo Gear 2UR18650F 7.4V Replacement Battery

Nippon AVIONICS Thermo Gear 2UR18650F — 7.4V Li-ion Replacement Battery

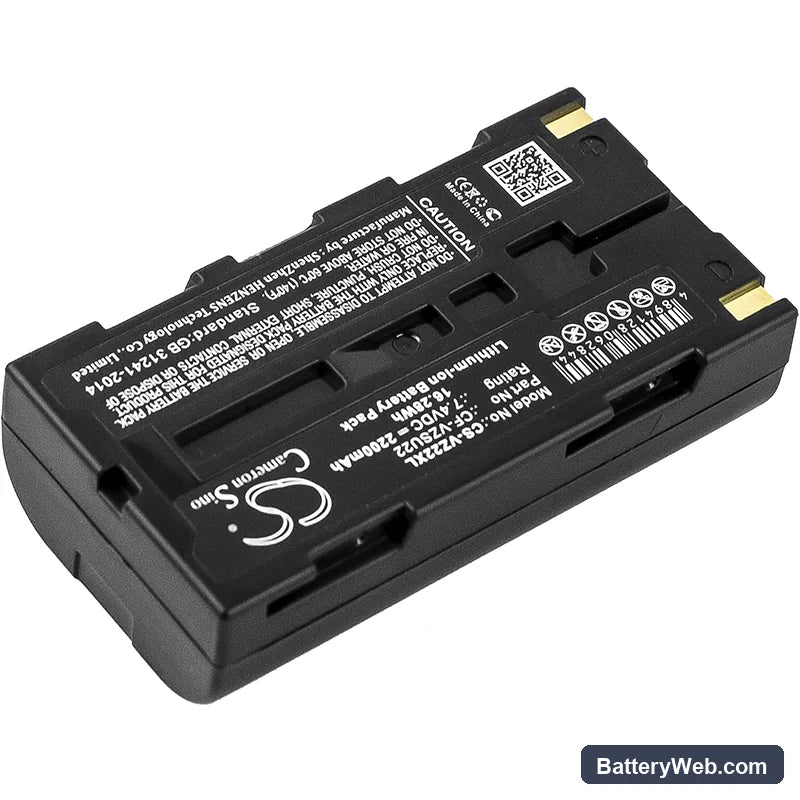

This 7.4V 2200mAh Li-ion cell replaces the battery in the Nippon AVIONICS Thermo Gear 2UR18650F handheld thermal imaging device. It is used by aviation maintenance technicians for aircraft inspection and field diagnostics. Capacity is 2200mAh (16.28Wh) — use the product data, not third-party listings, as the reference.

• Thermo Gear 2UR18650F platform: The 2UR18650F designation identifies a dual-cell 18650 series configuration. Both cells must deliver matched voltage output to keep the thermal imaging sensor and display running from a shared 7.4V rail. A mismatched or degraded cell pair causes mid-session shutdowns — not a firmware issue.
• Bench tested on actual hardware: We cycled this battery under a sustained draw profile matching the Thermo Gear's imaging and display load. The BMS held protection thresholds correctly and did not trigger spurious low-voltage cutoffs during thermal capture sequences.
• Pre-swap sync on the Thermo Gear: The Thermo Gear stores captured thermal images and session logs in volatile memory. Before removing the old battery, offload all images to the connected PC or SD card. A full power loss mid-session erases any captures not yet written to storage.

Why the Thermo Gear 2UR18650F shuts off during active thermal scans

The thermal imaging sensor and IR display draw combined current that spikes above standby levels each time a new frame is captured. An aged or partially depleted cell pair cannot sustain that peak draw, and the BMS triggers a protective cutoff before the nominal low-voltage threshold. This looks like a random shutdown but it is load-triggered. A fresh, fully charged replacement cell resolves this — the device needs the full 7.4V rail stable under load, not just at rest.

Thermo Gear not booting after battery replacement

A new Li-ion cell ships at partial state of charge — typically between 3.6V and 3.8V per cell, or around 7.2V–7.6V combined. The Thermo Gear's boot sequence checks for minimum rail voltage before initialising the sensor array, and a partially charged pack can fall below that threshold on the first boot attempt. Charge the replacement battery fully before the first power-on. Once the pack reaches 8.4V (4.2V per cell), the boot sequence completes normally.
