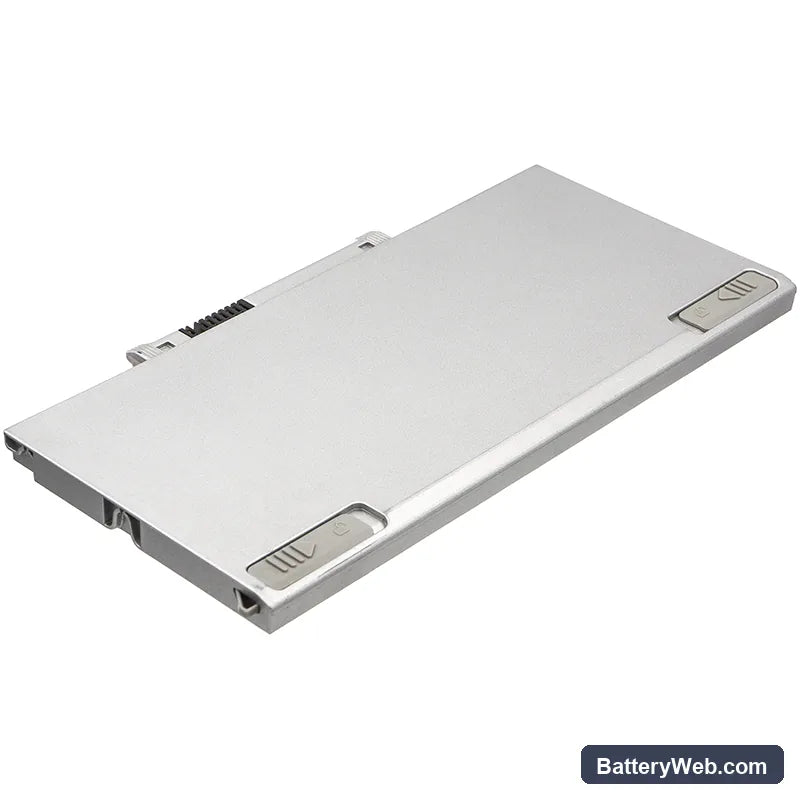

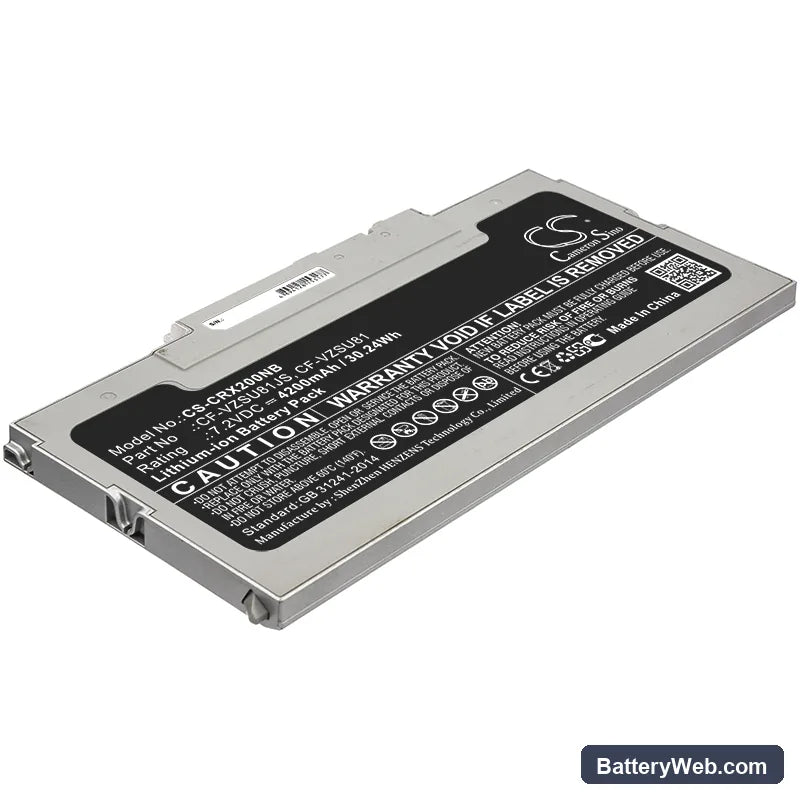

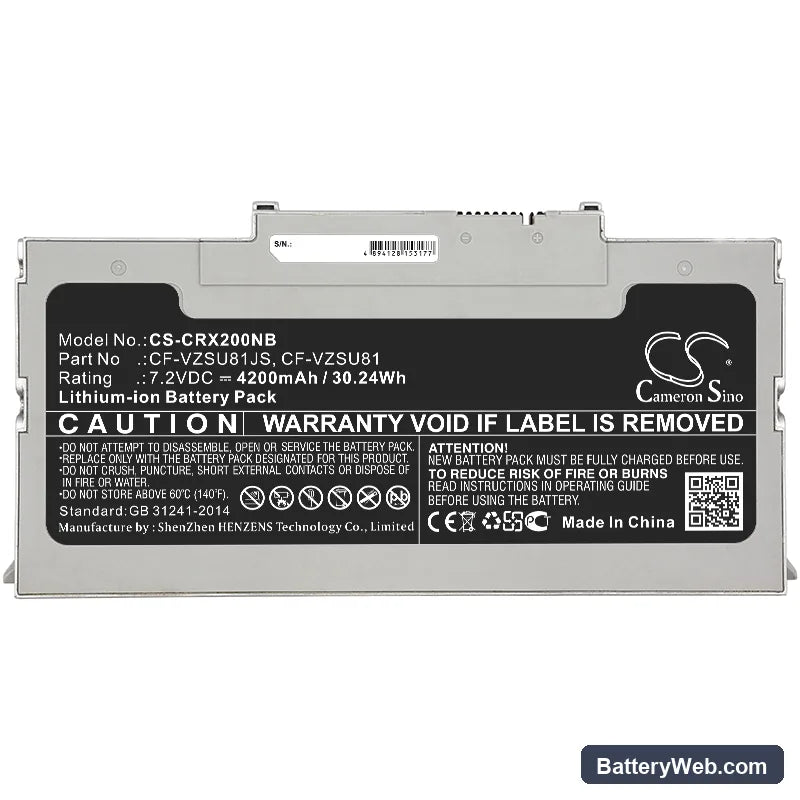

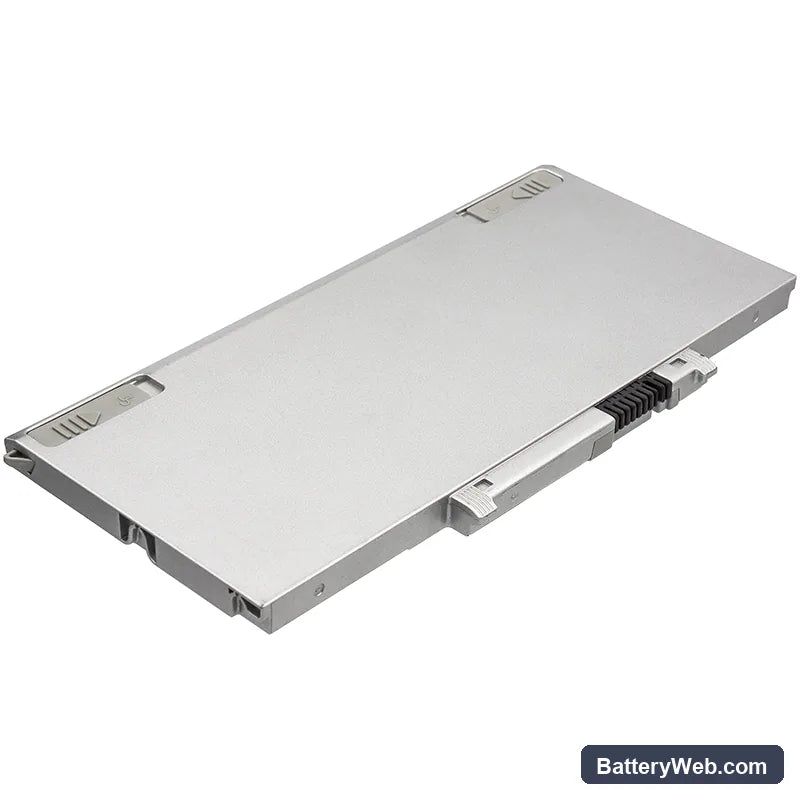

Panasonic CF-VZSU81 Toughbook CF-AX2 Replacement Battery 7.2V 4200mAh

Panasonic CF-AX2 / CF-AX3 Toughbook — 7.2V Li-ion Replacement Battery (CF-VZSU81)

This 7.2V, 4200mAh Li-ion battery replaces the CF-VZSU81 and CF-VZSU85 cells in the Panasonic Toughbook CF-AX2 and CF-AX3 ultraportable rugged notebooks, including the Lets Note AX2 variant. It matches the original connector, BMS handshake protocol, and physical footprint. Capacity is 4200mAh (30.24Wh) — sourced from the product specification, not interpolated.

• CF-AX2 and CF-AX3 shared battery platform: Both models run the same 7.2V single-cell-pair architecture with identical dock connectors and BMS communication lines. The CF-VZSU81 and CF-VZSU85 part numbers are cross-compatible across this platform — same voltage rail, same SMBus handshake, same physical latch geometry.
• Bench tested on actual hardware: We ran this cell through full charge and load cycles on CF-AX2 hardware. The BMS authenticated correctly, reported accurate State of Charge over SMBus, and held voltage under combined CPU and display load without triggering protection cutoff.
• First cycle after install: Run one full discharge to hibernate-cutoff, then charge uninterrupted to 100%. This resets the BIOS battery learn cycle on the CF-AX2 and clears the false low-health warning the firmware flags after every cell swap.

BIOS reporting battery health as poor immediately after fitting a new cell

The CF-AX2 BIOS reads battery health from EEPROM data stored on the old cell's fuel gauge IC, not from the new cell's actual chemistry. When the cell is swapped, that stored data no longer matches the new cell's charge profile, so the BIOS flags poor health or an unknown battery. This is a firmware calibration issue, not a hardware fault. Run one full discharge-to-hibernate cycle followed by an uninterrupted charge to 100% — after two to three cycles the fuel gauge IC recalibrates and the BIOS health status normalises.

Toughbook CF-AX2 shutting down at 20–30% charge shown on screen

This happens when the cell voltage drops below the BMS cutoff threshold under full load — CPU boost plus display — while the fuel gauge IC still reports remaining capacity. The old EEPROM calibration data causes the OS to misread actual cell voltage against its stored discharge curve. The cell hits a voltage cliff the gauge did not anticipate and the system shuts off without warning. Discharge fully to hibernate-cutoff, charge to 100% uninterrupted, and repeat two cycles — the gauge recalibrates its curve to the new cell and the shutdown stops occurring above 10%.
