Shark RVBAT700 ION Robot 700 Replacement Battery 14.4V

Shark ION Robot 700 Series — 14.4V Li-ion Replacement Battery (RVBAT700)

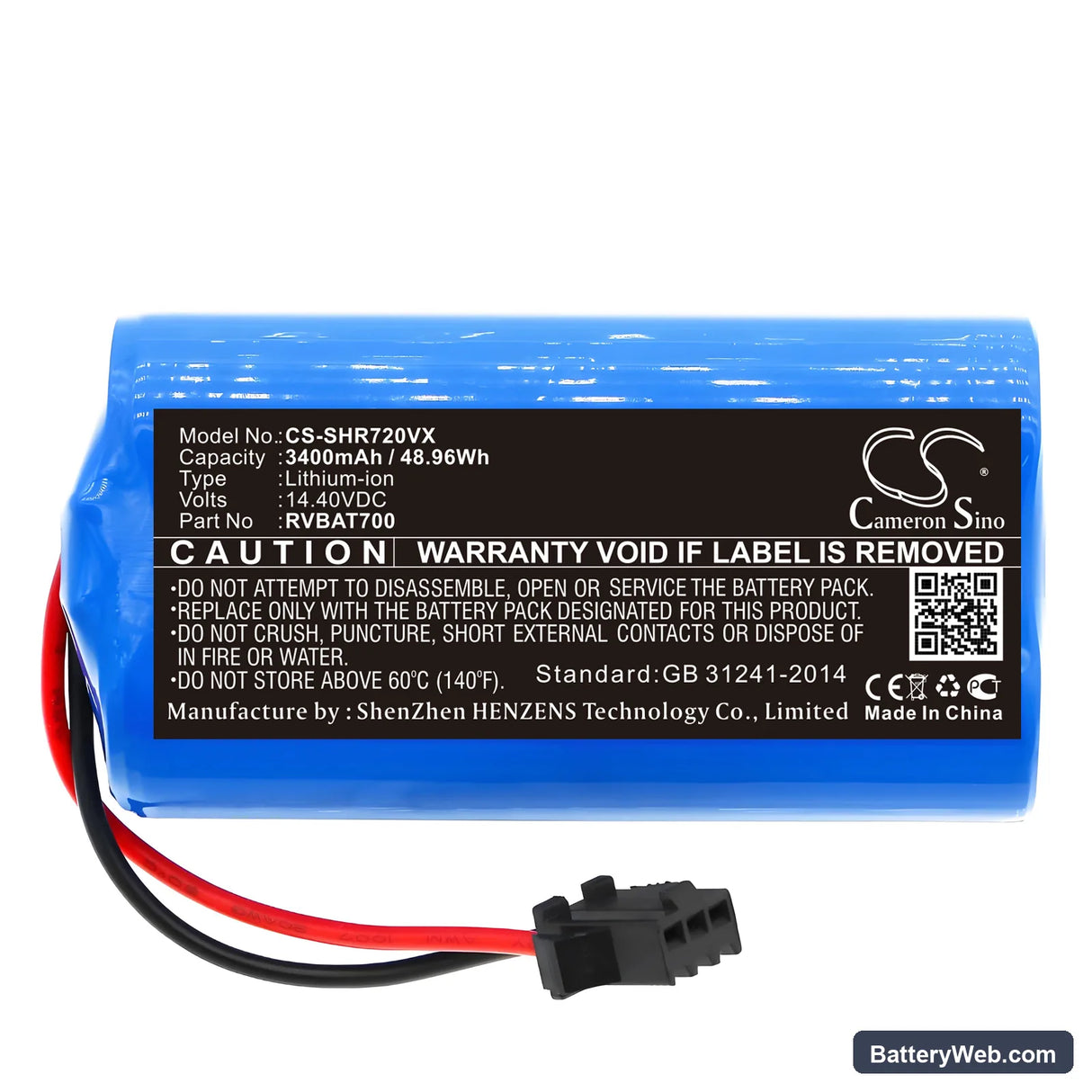

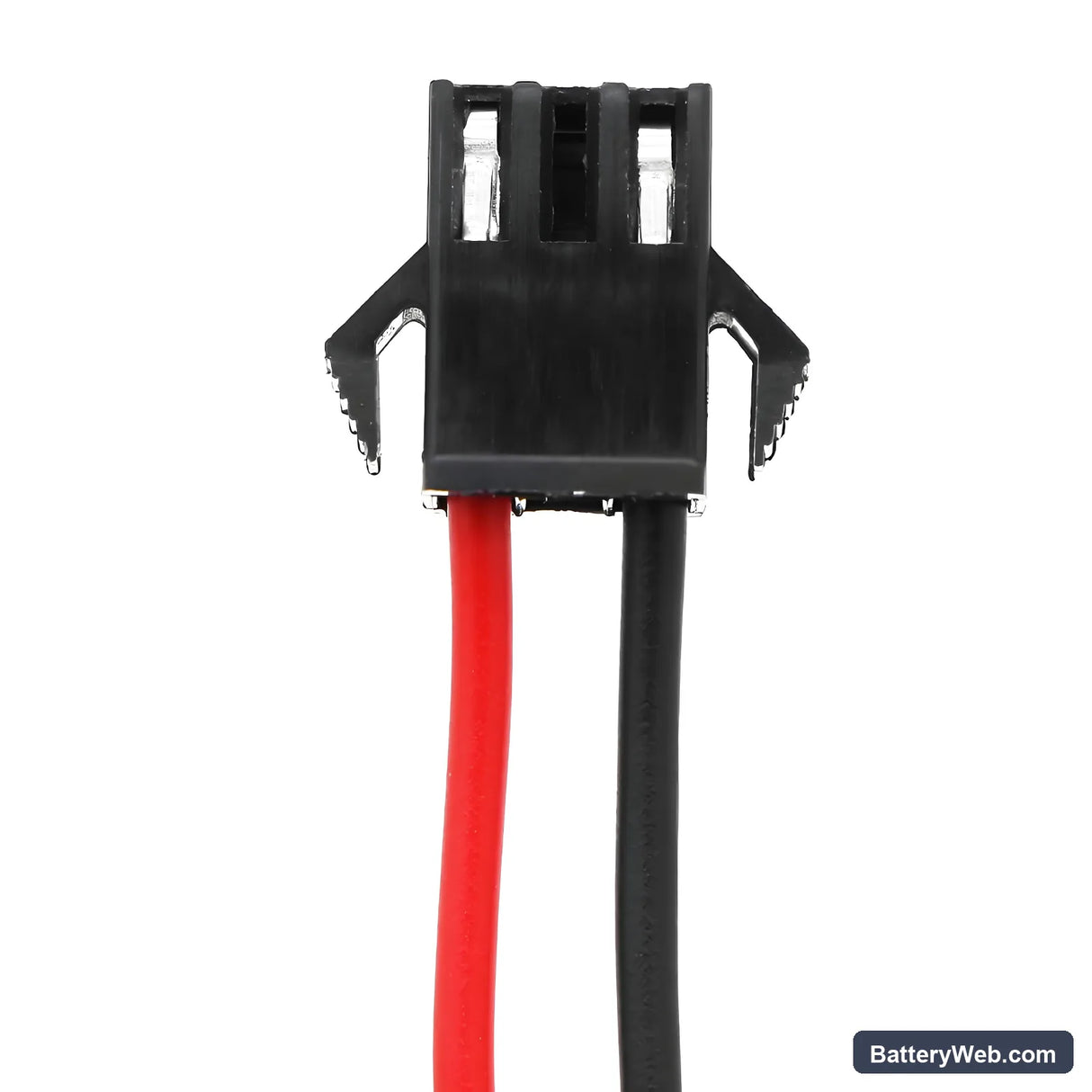

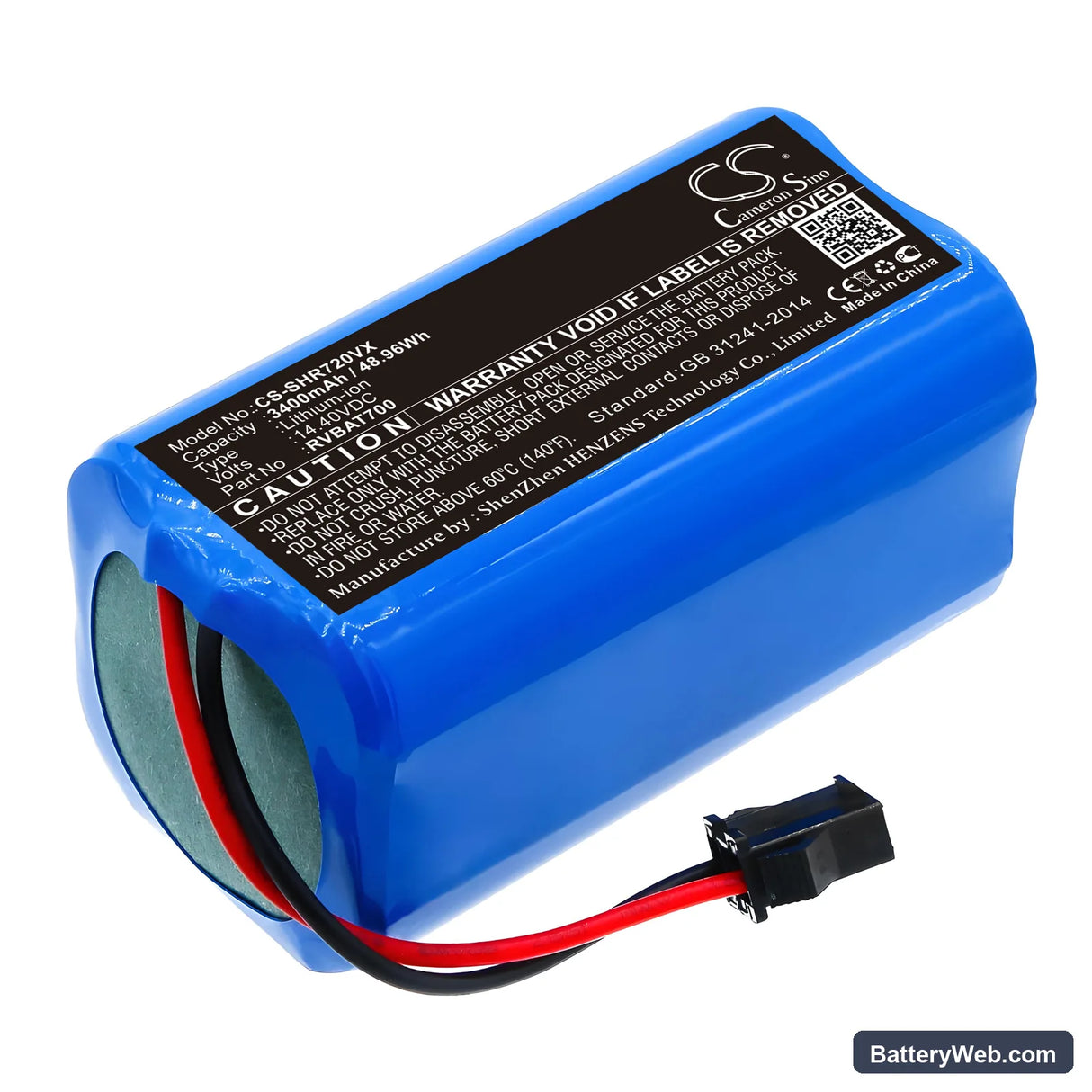

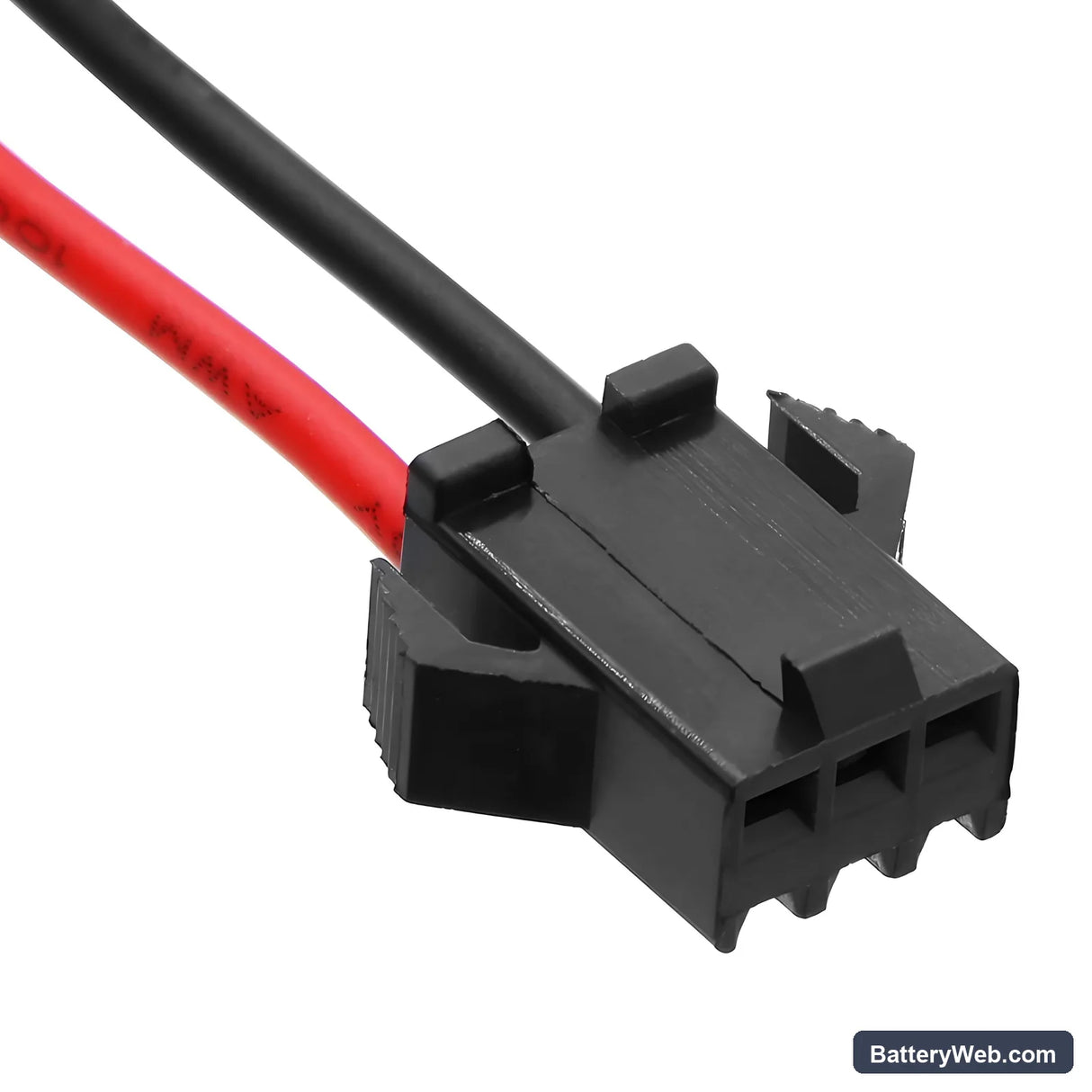

This is a 14.4V, 3400mAh Li-ion replacement battery for the Shark ION Robot 700 series robotic vacuum. It fits the RV700, RV720, and RV750, among other models in the same line. Same voltage, same connector, same BMS communication profile as the original RVBAT700.

• ION Robot 700 series compatibility: These models share the same 14.4V power rail, physical battery bay, and BMS handshake protocol. Swapping between them requires no modification — the connector and firmware recognition are identical across the RV700, RV720, and RV750.
• Bench tested on actual hardware: We ran this cell through full charge and discharge cycles on the RV700 platform. The BMS registered charge state correctly, reported accurate capacity to the dock, and did not trigger false low-battery cutoffs during navigation sequences.
• Dock charging habit for ION Robot vacuums: Do not leave the robot sitting on the dock between every single clean. Continuous trickle charging is the fastest way to degrade cell capacity in this series. Charge to full, run a cycle, then return to dock — avoid permanent docking between uses.

Suction dropping before the battery indicator reaches low

This happens when the motor draws more current than the battery's voltage can sustain under load — the cell voltage sags before the reported charge percentage catches up. On the ION Robot 700, a partially blocked filter is the most common trigger. The restricted airflow forces the motor to work harder, pulling more amps and collapsing cell voltage faster than the BMS reports. Clean the filter first — if suction recovers, the battery was not the root cause.

Motor cuts out mid-cycle then restarts on its own

This is a BMS overcurrent trip, not a dead battery. When suction is restricted — by a clogged filter, tangled brush roll, or a blocked intake — current draw spikes past the BMS threshold and the pack shuts output to protect the cells. The robot pauses, current demand drops, BMS resets, and the motor starts again. Check the brush roll for hair wrap and inspect the filter. If trips stop after cleaning those two points, the battery is functioning correctly.
