Toshiba Smarbo VC-RB100 Replacement Battery 14.4V 3000mAh

Toshiba Smarbo VC-RB100 — 14.4V Ni-MH Replacement Battery (RB1-P)

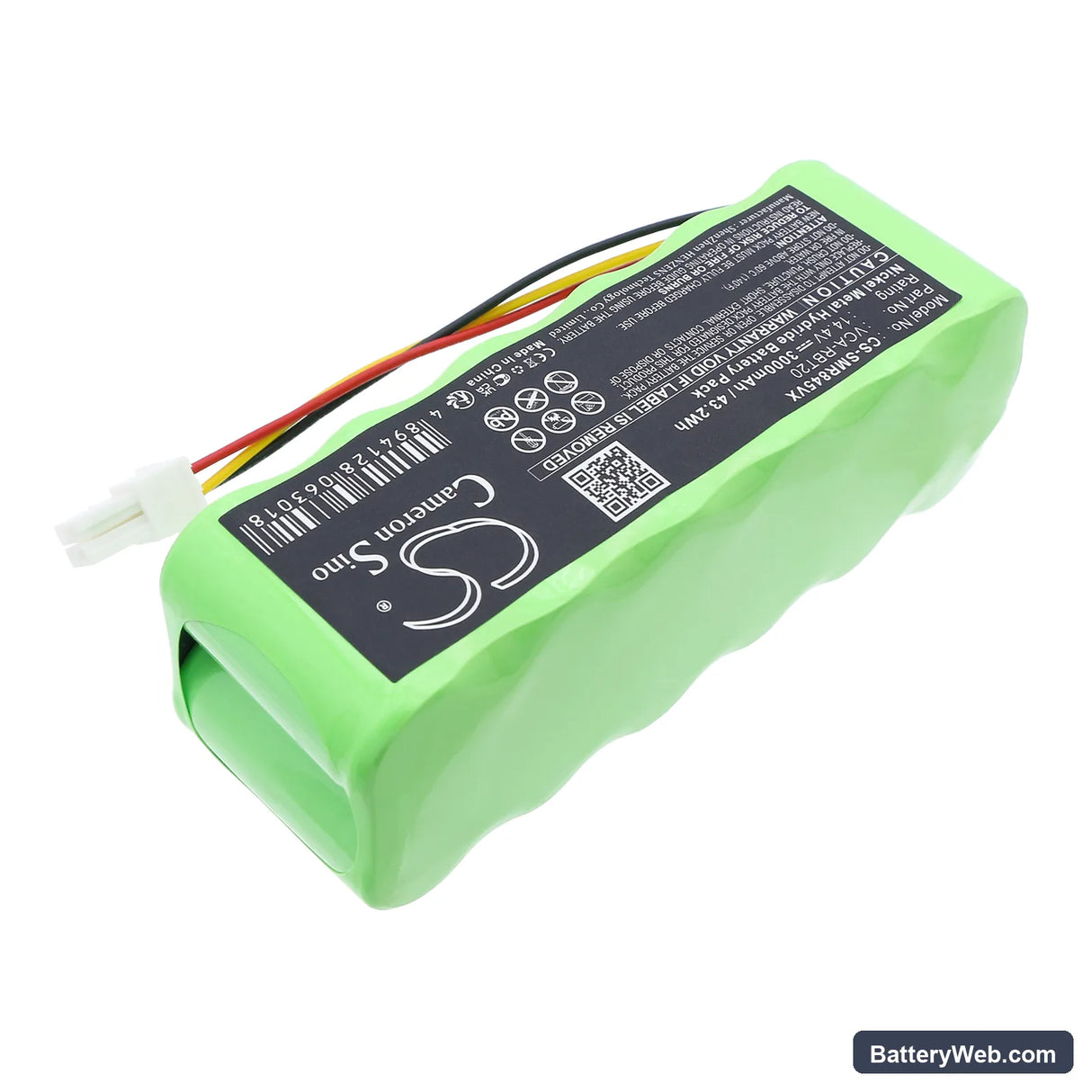

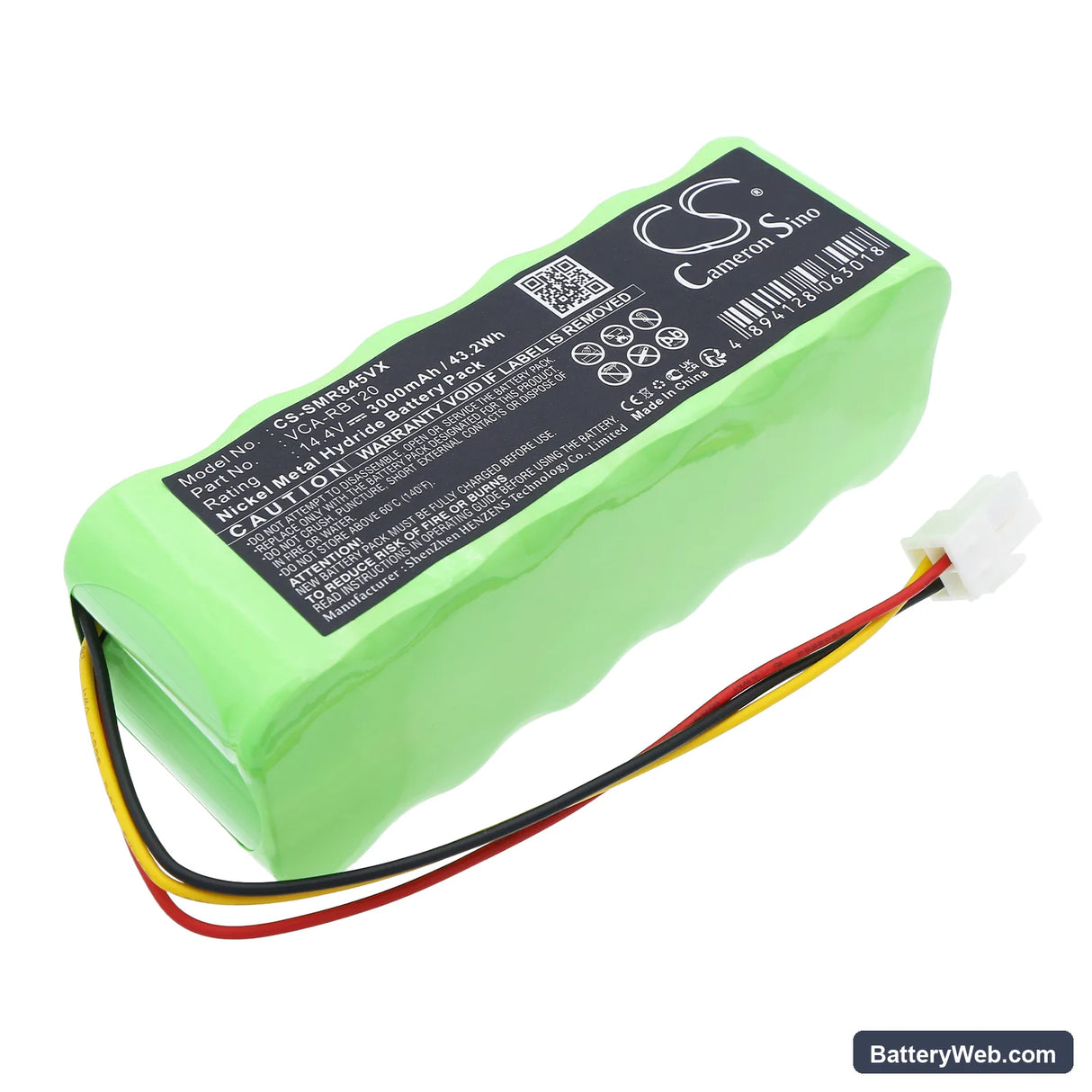

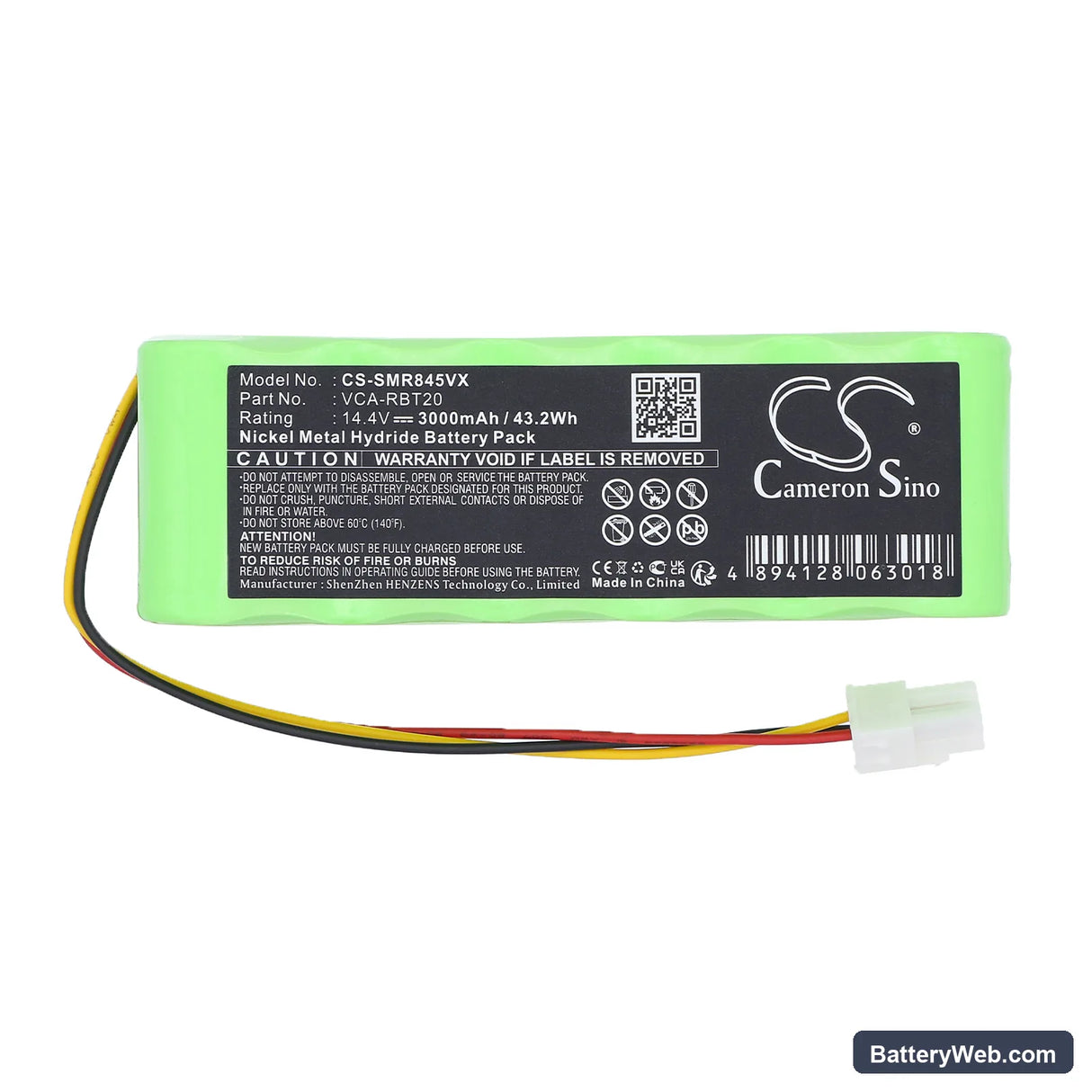

This is a 14.4V, 3000mAh Ni-MH replacement battery for the Toshiba Smarbo VC-RB100 robotic vacuum cleaner. It replaces OEM part numbers RB1-P and DJ96-00113F. Fit the replacement when the original battery no longer holds enough charge to complete a full cleaning cycle.

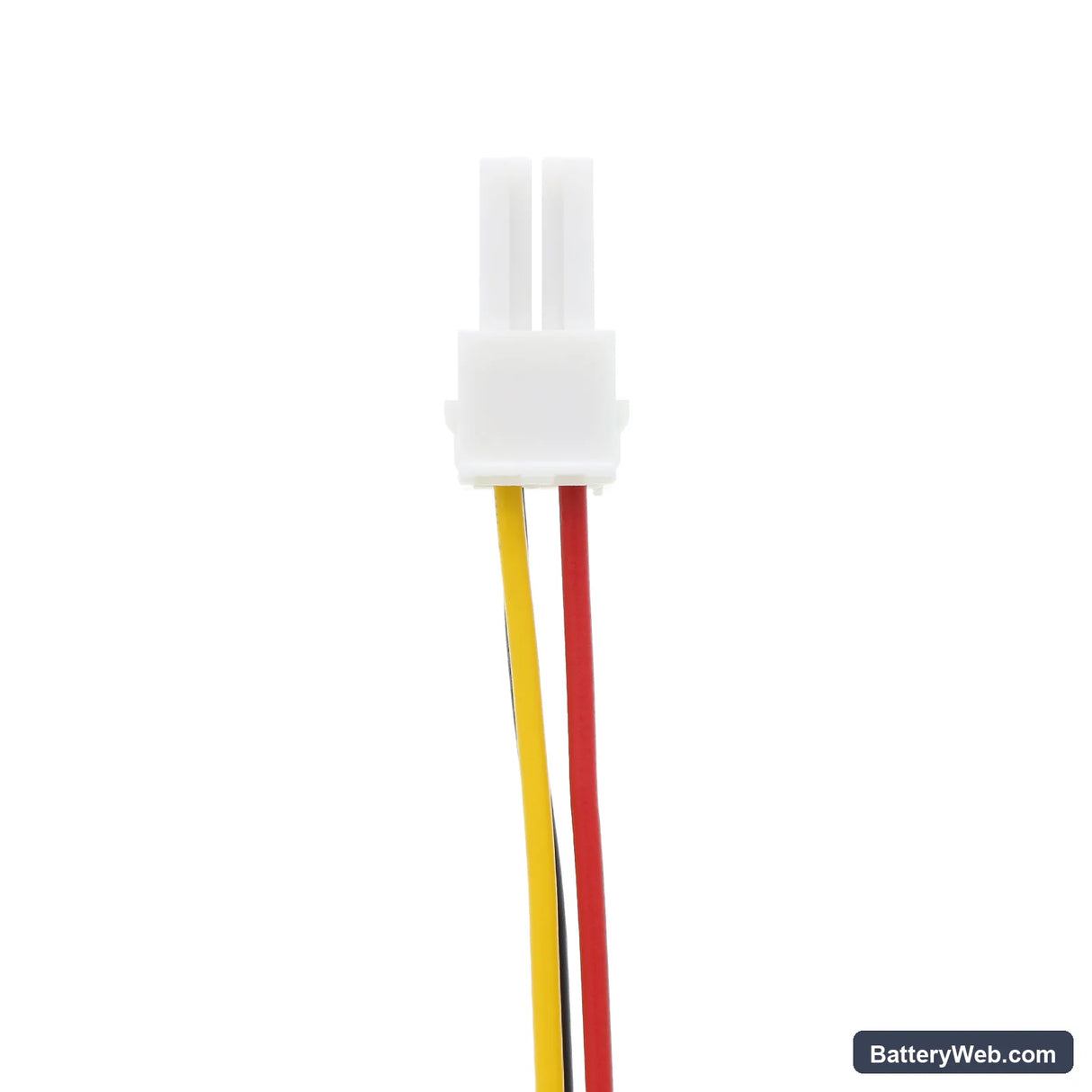

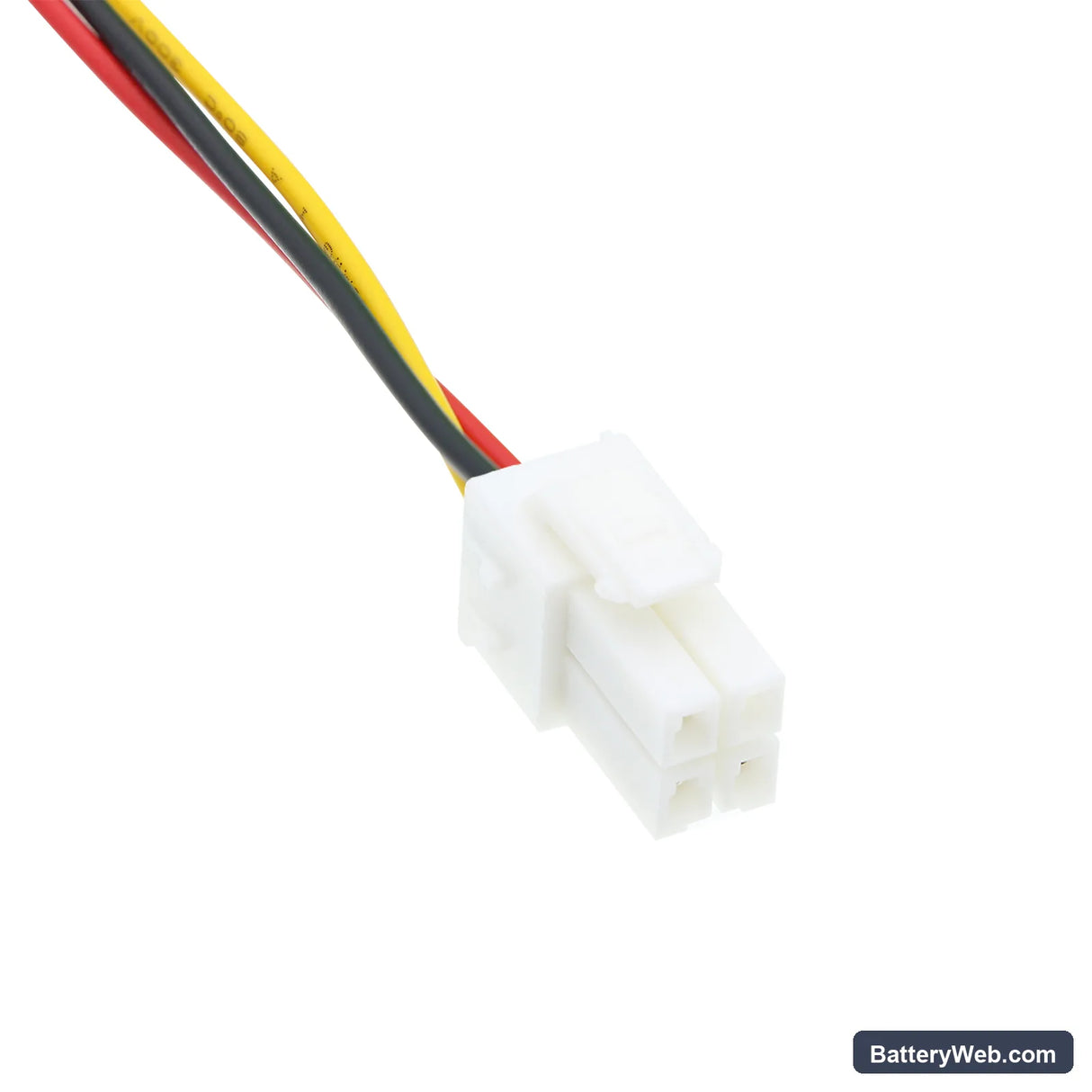

• VC-RB100 platform fit: The Smarbo VC-RB100 uses a 14.4V Ni-MH cell pack with a specific connector and BMS communication profile. This replacement matches that voltage rail and connector so the robot's charging circuit recognises the pack correctly.
• Bench tested on actual hardware: We ran this pack through charge and discharge cycles on the VC-RB100 platform. The BMS accepted the cell chemistry without throwing a fault, and the robot's charging dock completed a full charge cycle without interruption.
• Dock charging habit on the Smarbo: Do not leave the VC-RB100 sitting on its dock continuously. Ni-MH cells on permanent trickle charge lose capacity measurably faster than cells charged only when depleted. Charge to full, then remove the robot from the dock until the next cleaning session.

Suction dropping before the battery indicator shows low on the VC-RB100

Ni-MH cells show voltage sag under load before the state-of-charge indicator catches up. On the VC-RB100, a partially blocked filter forces the motor to draw current above its rated operating point, which pulls the pack voltage down faster than the indicator reflects. The robot reads this as normal operation until the sag is severe enough to trigger a low-battery stop. Clean the filter first — if suction recovers and runtime improves, the filter was the cause, not the battery.

Motor cutting out mid-clean and then recovering on its own

This is a BMS overcurrent trip, not a dead battery. When the vacuum's intake path is restricted — clogged filter, tangled brush roll, or blocked inlet — the motor stalls briefly, current spikes, and the BMS opens the circuit to protect the cells. The BMS resets automatically after a short thermal recovery window, which is why the robot restarts on its own. Clear the restriction, check that the brush roll spins freely, and verify the filter is seated correctly before running another cycle. If trips continue with a clean filter, check pack voltage under load — it should hold above 12V during normal operation.
