Garmin Nuvi 2797 Replacement Battery 3.7V 1500mAh

Garmin Nuvi 2797 Series — 3.7V Li-ion Replacement Battery (361-00066-00)

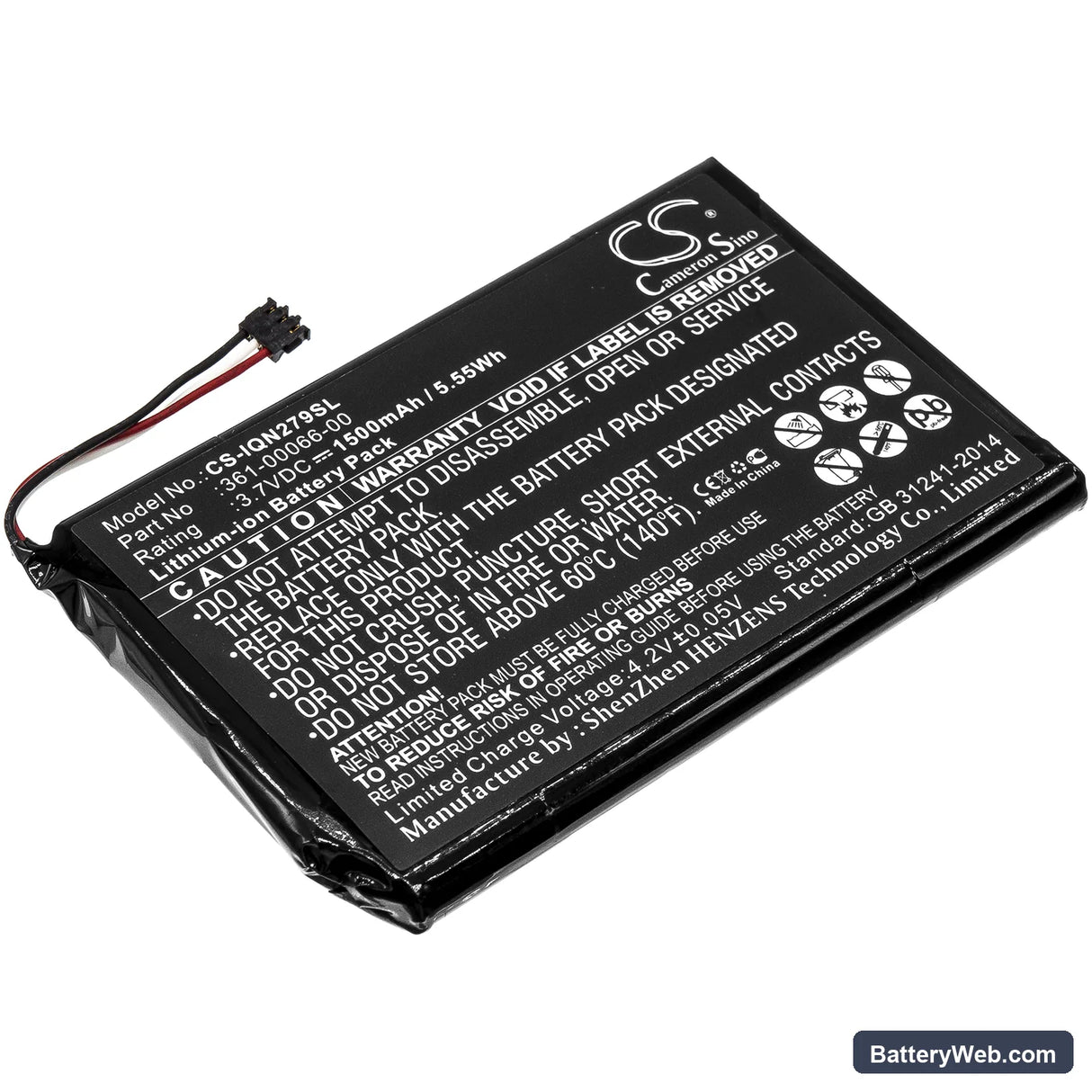

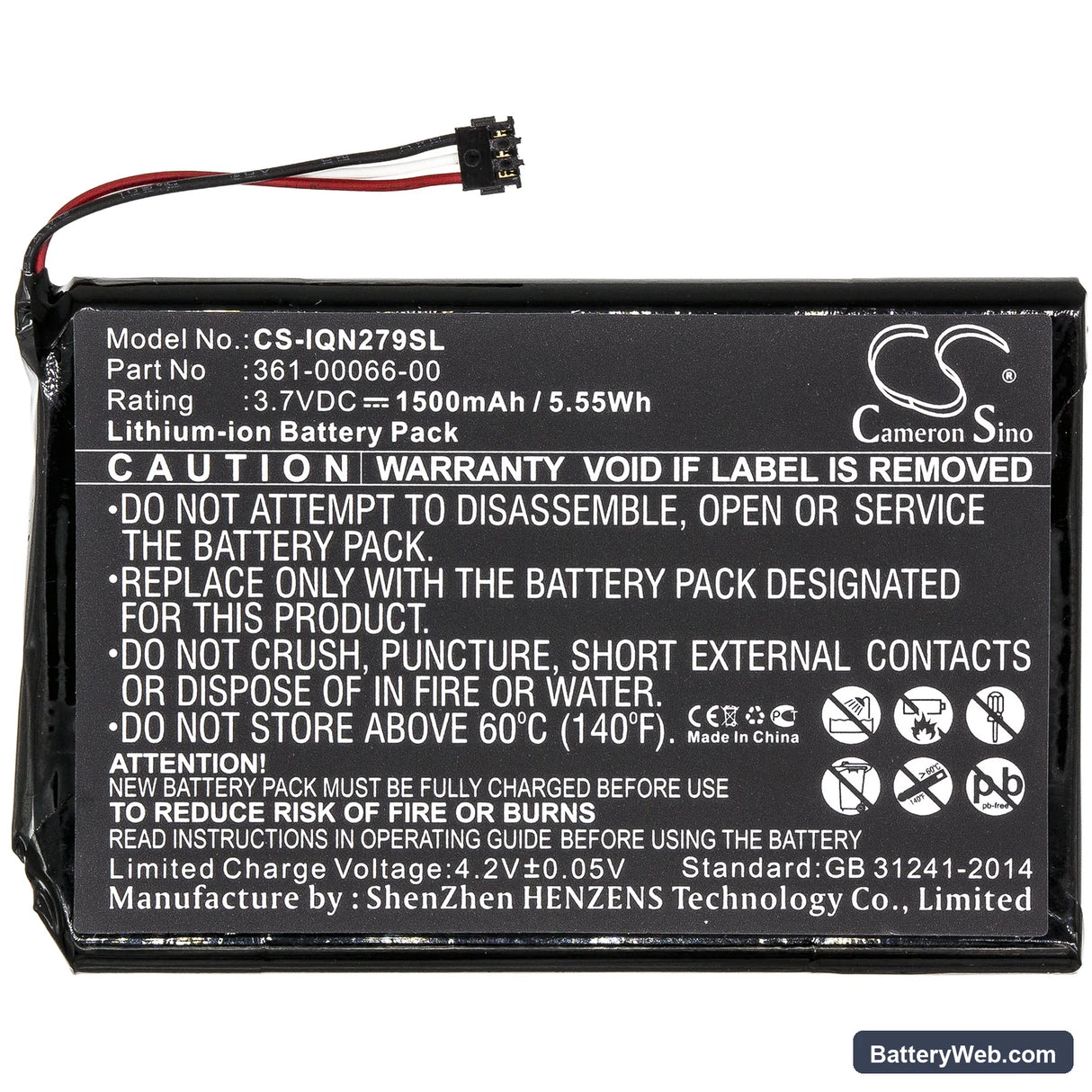

This 3.7V 1500mAh Li-ion cell replaces the original battery in the Garmin Nuvi 2797, Nuvi 2757, Nuvi 2757LM, and Nuvi 2797LMT portable GPS navigators. It matches the OEM part numbers 361-00066-00 and 361-00066-10. Capacity is 1500mAh (5.55Wh) — identical to the stock specification.

• Nuvi 2757 and 2797 platform fit: These models share the same battery bay dimensions, connector pinout, and BMS communication protocol. The cell measures 64.42 × 41.90 × 5.10mm — any deviation here causes the bay cover to sit proud or the connector to misalign, so verify your existing cell against those dimensions before ordering.
• Bench tested on actual hardware: We cycled this cell through the Nuvi 2797LMT while running active turn-by-turn navigation with the display at full brightness. The BMS held the charge curve steady and triggered the low-voltage cutoff cleanly at the correct threshold — no premature shutdowns during testing.
• Cold-start satellite acquisition after installation: After fitting this cell, power the unit on outdoors and let it acquire a satellite fix before your first route. A full power interruption clears the GPS receiver's almanac cache, so the first lock after a battery swap can take 5–10 minutes. Subsequent starts return to normal warm-start times of under a minute.

Why the Nuvi 2797 shuts off without warning at low battery

The Nuvi 2797 reads battery level through a fuel-gauge circuit calibrated to the original cell's discharge curve. When an aged or replacement cell has a slightly different internal resistance, the fuel gauge can misread the remaining capacity. The device thinks it has more charge left than it does, so the low-battery warning either appears very briefly or not at all before the BMS cuts power. Running one or two full charge-discharge cycles after installation re-aligns the gauge to the new cell's actual curve — after that, the on-screen indicator tracks correctly.

GPS accuracy dropping noticeably during the final stretch of charge

Some Nuvi units step down receiver sensitivity as cell voltage falls below approximately 3.5V — a power-saving behaviour baked into the firmware. The result is fewer satellites tracked and wider position error on the map, which shows up as the route line drifting off the road. This is not a fault with the replacement cell. Keeping the unit plugged into the car charger during long sessions holds voltage above the threshold and keeps receiver performance consistent. If you notice accuracy degrading, check the on-screen battery indicator — if it reads below two bars, connect the charger.
