Hitachi G1000 PDA Replacement Battery 3.7V 1600mAh

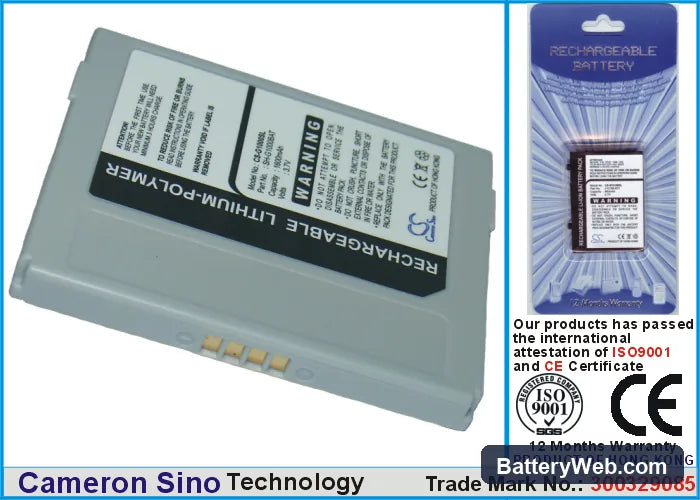

Hitachi G1000 — 3.7V Li-Polymer Replacement Battery (SH-G1000-BAT)

This 3.7V 1600mAh lithium-polymer cell replaces the original battery in the Hitachi G1000 PDA and Pocket PC. It matches the OEM part number SH-G1000-BAT and restores power to the device's CPU, display, and RAM. Capacity figures are taken directly from product data — 5.92Wh total energy.

• G1000 platform fit: The G1000 runs a single-cell 3.7V Li-Polymer architecture with a BMS that monitors cell voltage and cuts off at approximately 3.0V under load. This replacement cell matches that voltage rail and connector pinout, so the BMS handshake completes without fault codes on boot.
• Bench tested on actual hardware: We ran the cell through charge and discharge cycles on a G1000 unit, confirmed the BMS accepted the new cell without triggering a battery-fault flag, and verified that RAM retention held across a controlled power transfer during swap.
• Sync before you swap: The G1000 stores open application state and unsaved data in volatile SRAM powered directly by this battery. Perform a full ActiveSync or host-computer sync before removing the old cell — anything in RAM that has not been written to flash storage will be lost the moment power drops.

G1000 not booting after new battery installation

A fresh Li-Polymer cell ships at a storage charge — typically around 3.6V to 3.7V, which is below the G1000's minimum boot threshold when the BMS factors in startup current draw. The device may show a blank screen or a battery-low icon and refuse to proceed into the boot sequence. Connect the G1000 to its charger for at least 30 minutes before attempting the first power-on. Once the cell reaches approximately 3.85V, the boot sequence will complete normally.

Battery life shorter than expected during warehouse scanning use

The G1000's rated capacity reflects draw from the CPU and display alone. In active scanning environments, the barcode scanner LED and any active wireless radio — Bluetooth or Wi-Fi if fitted — add significant instantaneous current draw that accelerates cell depletion. The BMS reads cumulative drain, not just standby consumption, so the charge indicator can drop faster than users expect coming from office use. Limit background wireless polling during active scan sessions to keep draw closer to the device's base consumption curve.
