Hoover RBC030 Replacement Battery 14.4V 2500mAh

Hoover RBC030 Series — 14.4V Li-ion Replacement Battery (RB219)

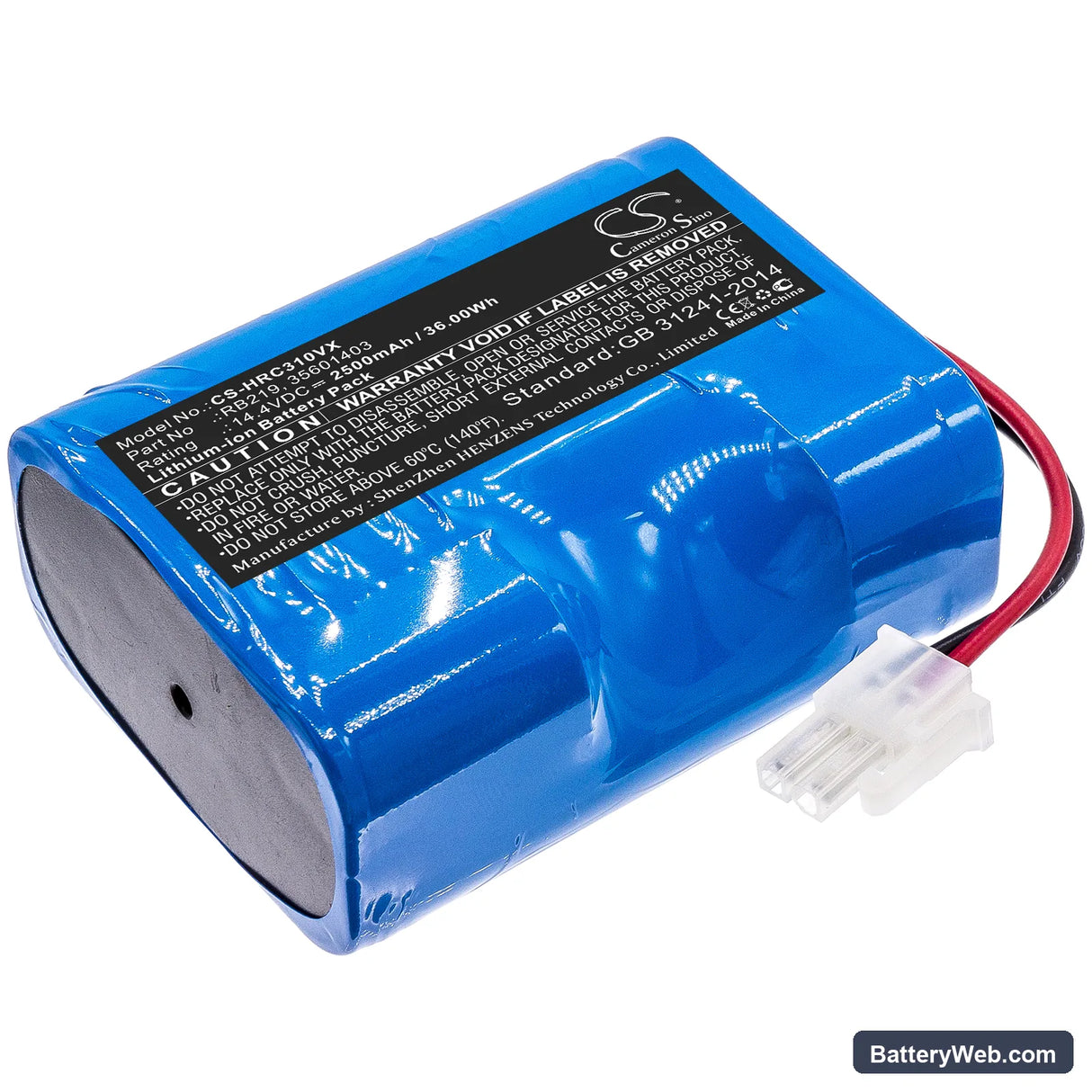

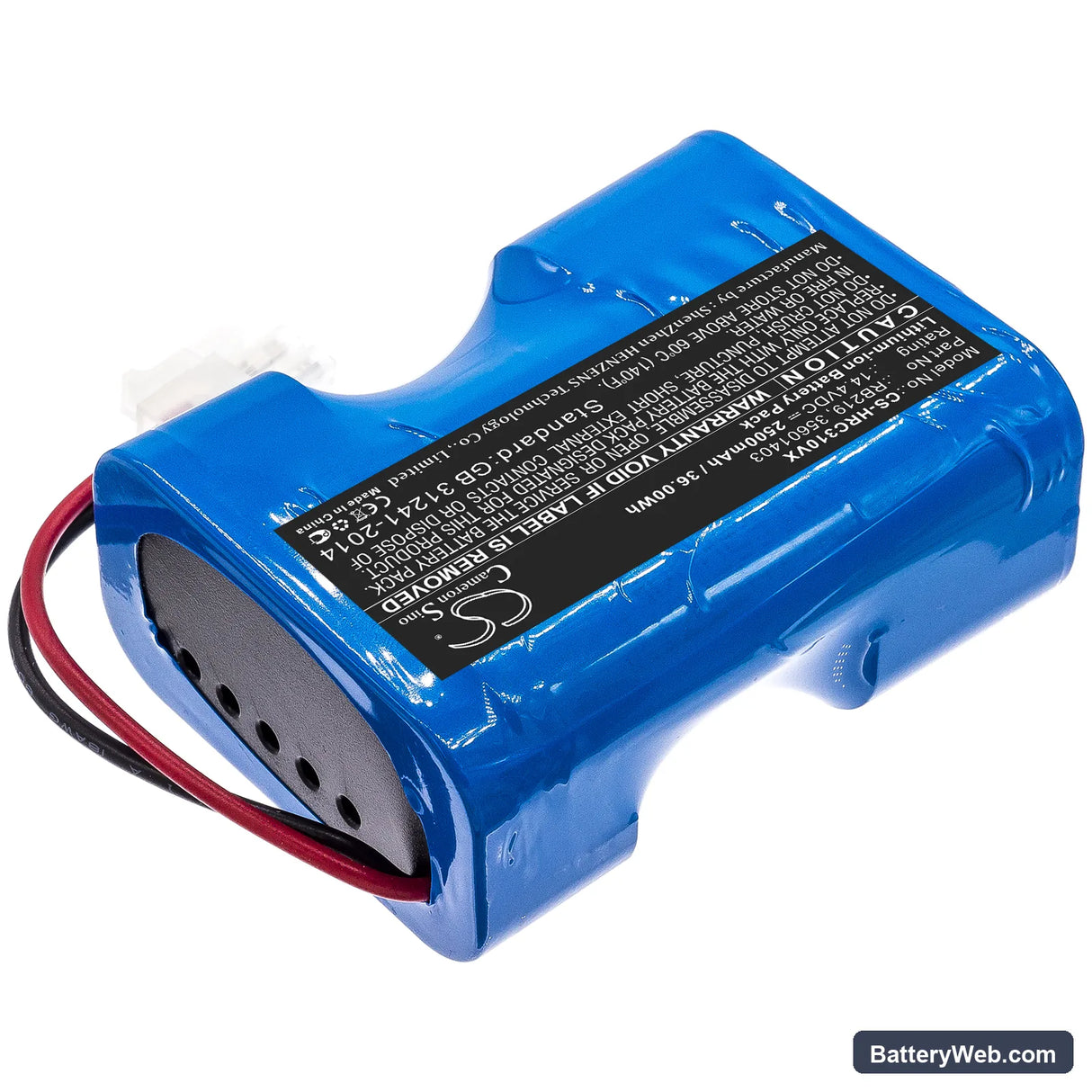

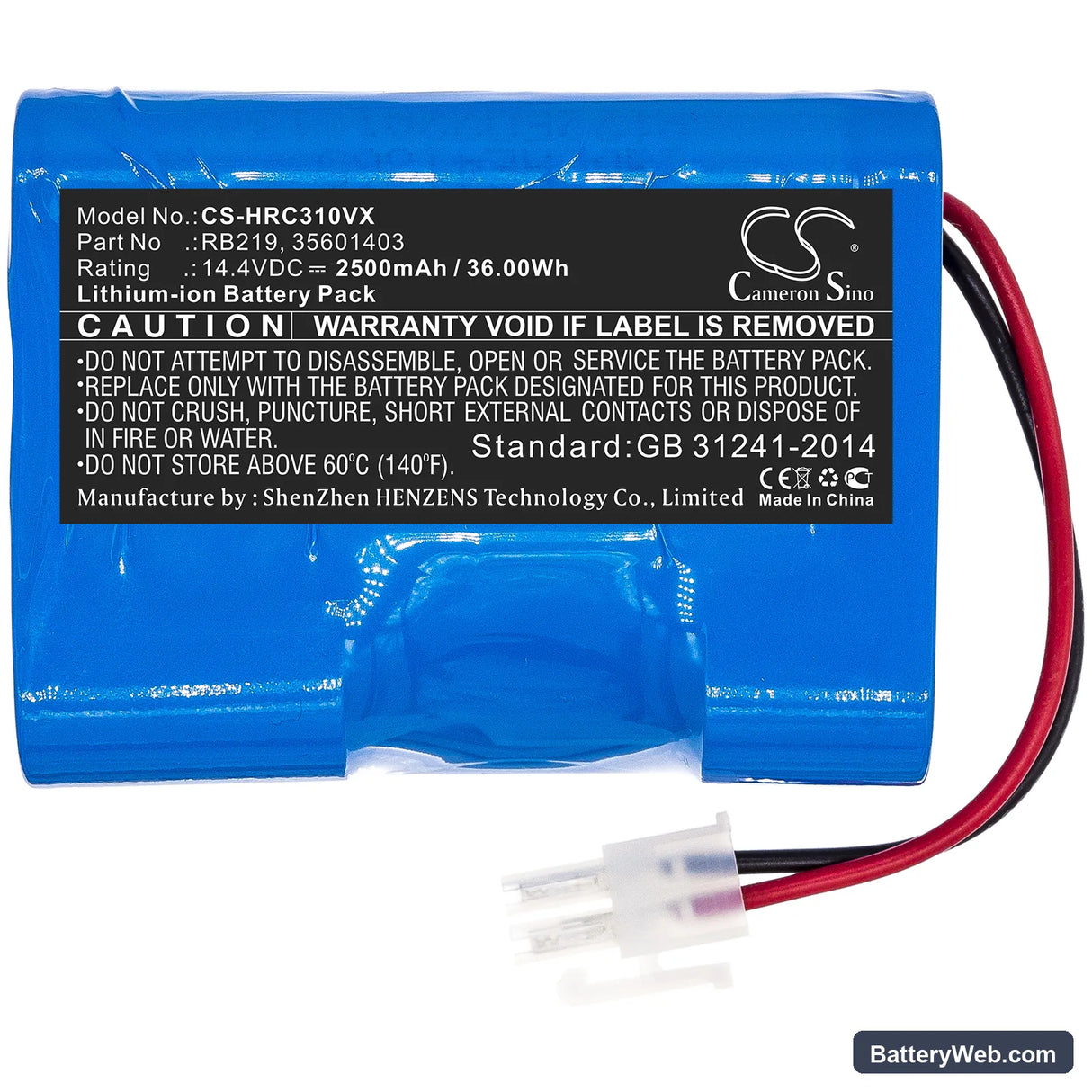

This is a 14.4V, 2500mAh (36Wh) Li-ion battery for Hoover cordless stick and handheld vacuum models including the RBC030, RBC031B, RBC040, and RBC040019. It replaces OEM part numbers RB219, 35601403, Li-RB226, and 35601727. When the original cell degrades and suction drops off well before the indicator shows low, this is the replacement cell to fit.

• RBC030 series compatibility: These models share the same 14.4V battery bay, connector pinout, and BMS handshake protocol — which is why a single cell covers the full range from RBC030 through to RBC040019 and beyond.
• Bench tested on actual hardware: We ran this cell through full discharge cycles on an RBC030 and confirmed the BMS communicates correctly with the vacuum's charge controller — no false low-battery cutoffs and no fault flags during motor spin-up.
• Dock charging behaviour on this vacuum: Do not leave the vacuum sitting on the charging dock permanently. The RBC030 series does not interrupt trickle current when full, so continuous dock charging accelerates capacity fade. Charge to full, then remove from the dock.

Suction dropping before the battery indicator reaches low

This happens when the cell voltage sags under motor load before the indicator circuit registers a low-battery condition. A partially blocked filter forces the motor to draw more current than its rated load, which pulls cell voltage down faster than normal. The BMS reads this as a healthy cell at rest but can't sustain the motor's demand under restriction. Clean the filter first — if suction still drops early, the cell itself has degraded and needs replacement.

Motor cutting out mid-clean and then recovering after a pause

This is a BMS overcurrent trip, not a dead battery. When airflow is restricted — usually a clogged filter or blocked nozzle — the motor draws sustained high current to compensate, and the BMS shuts the output rail to protect the cell. After a short rest, the BMS resets and the motor starts again. Clear the blockage completely and check that the filter is dry before reinstalling — a damp filter restricts airflow just as much as a dirty one and will trigger the same trip cycle.
