Rand McNally TND-550 GPS Compatible Battery 3.7V 1000mAh

Rand McNally TND-550 / TND-540 — 3.7V Li-Polymer Replacement Battery (TOP 523450)

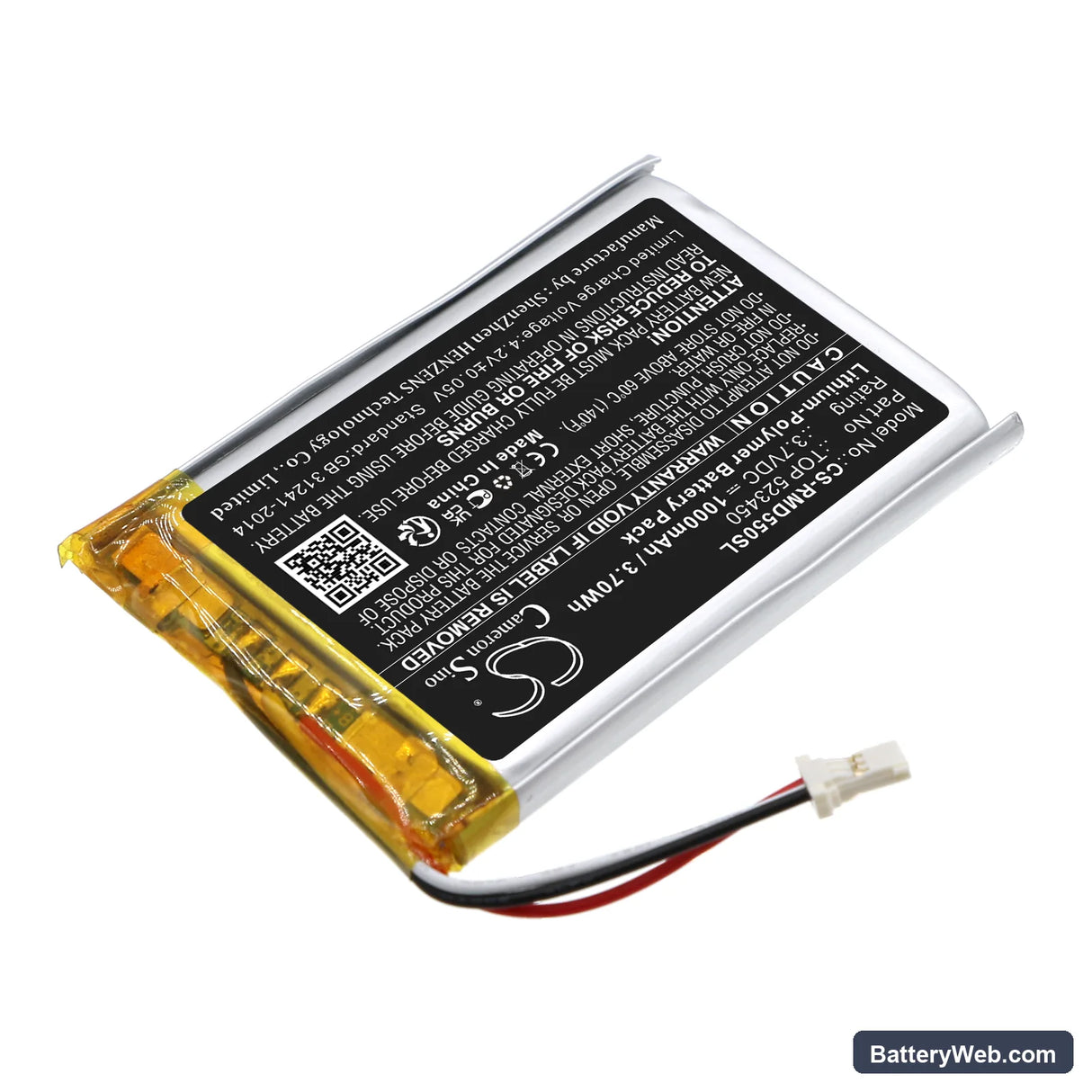

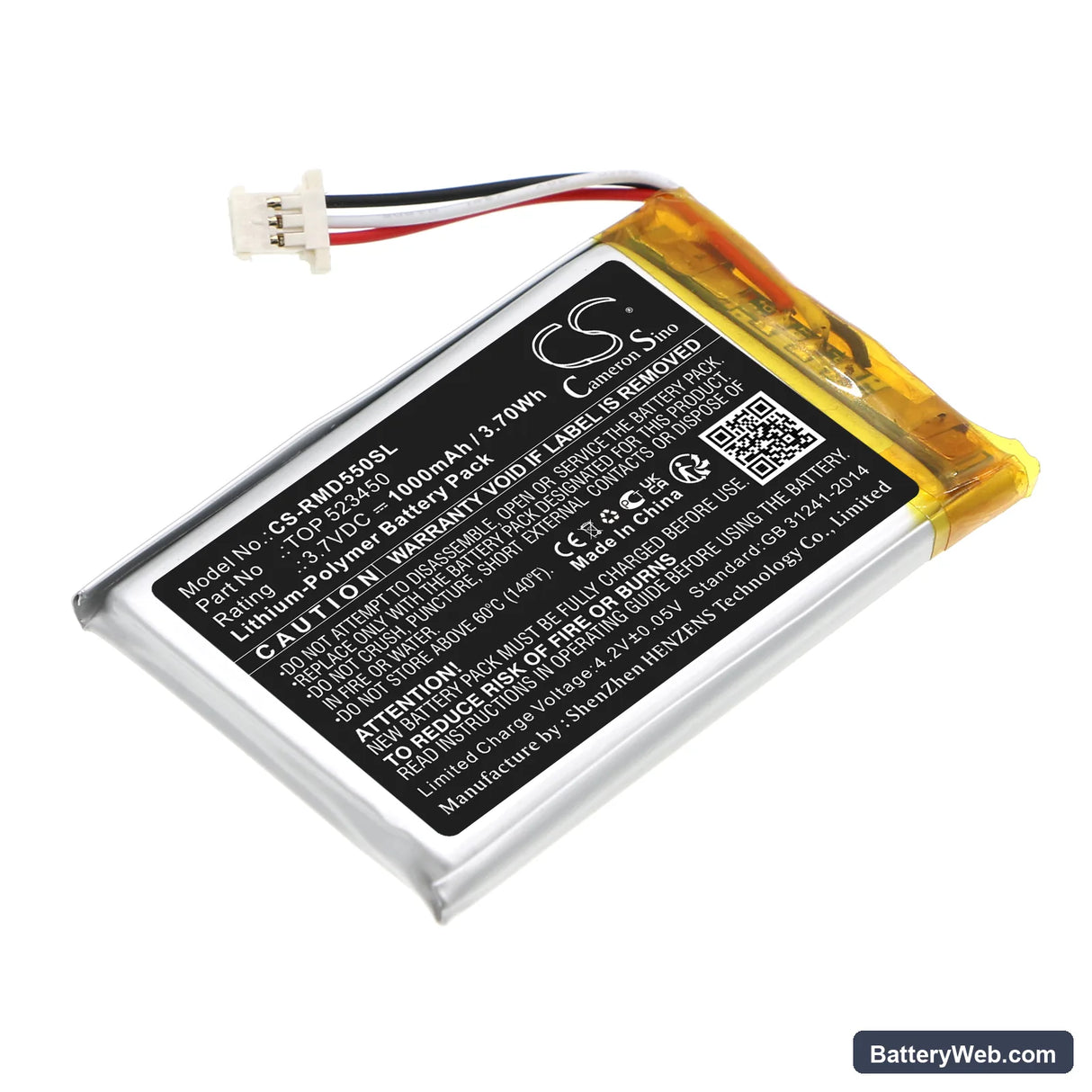

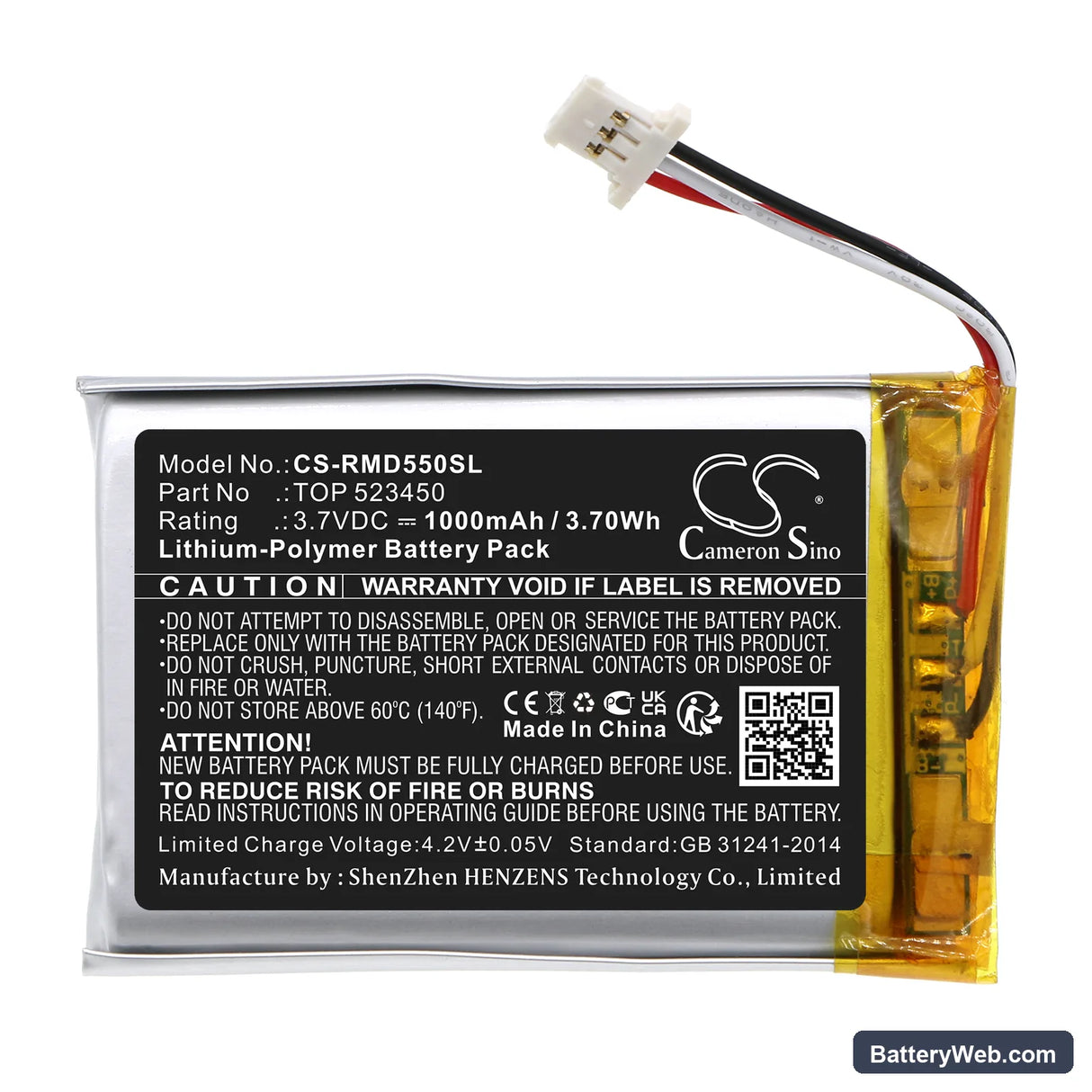

This 3.7V 1000mAh lithium-polymer cell replaces the original TOP 523450 battery in the Rand McNally TND-550 and TND-540 trucking GPS navigators. It restores off-vehicle operation when the factory cell no longer holds a charge. Capacity is 1000mAh (3.7Wh) — matched to the original specification.

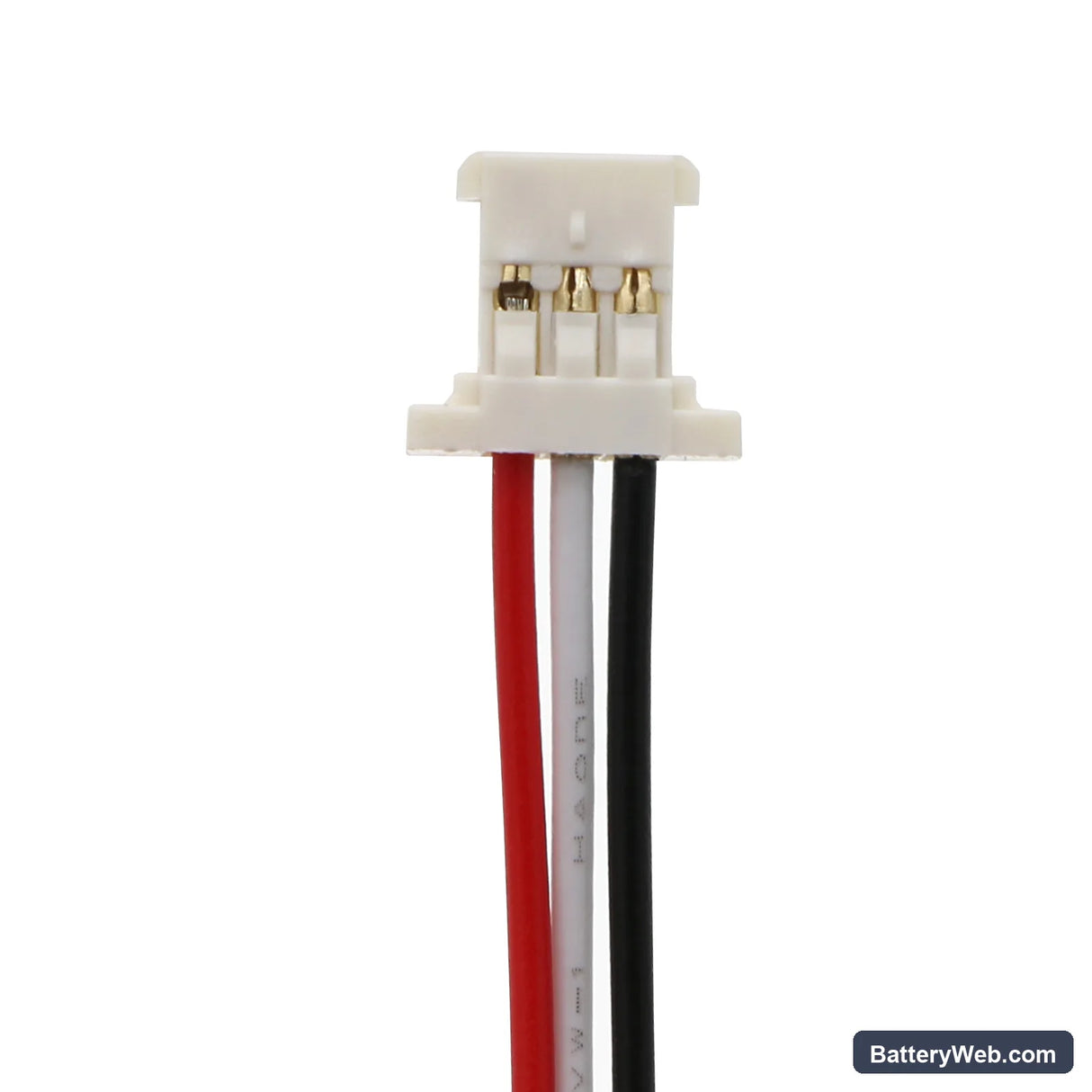

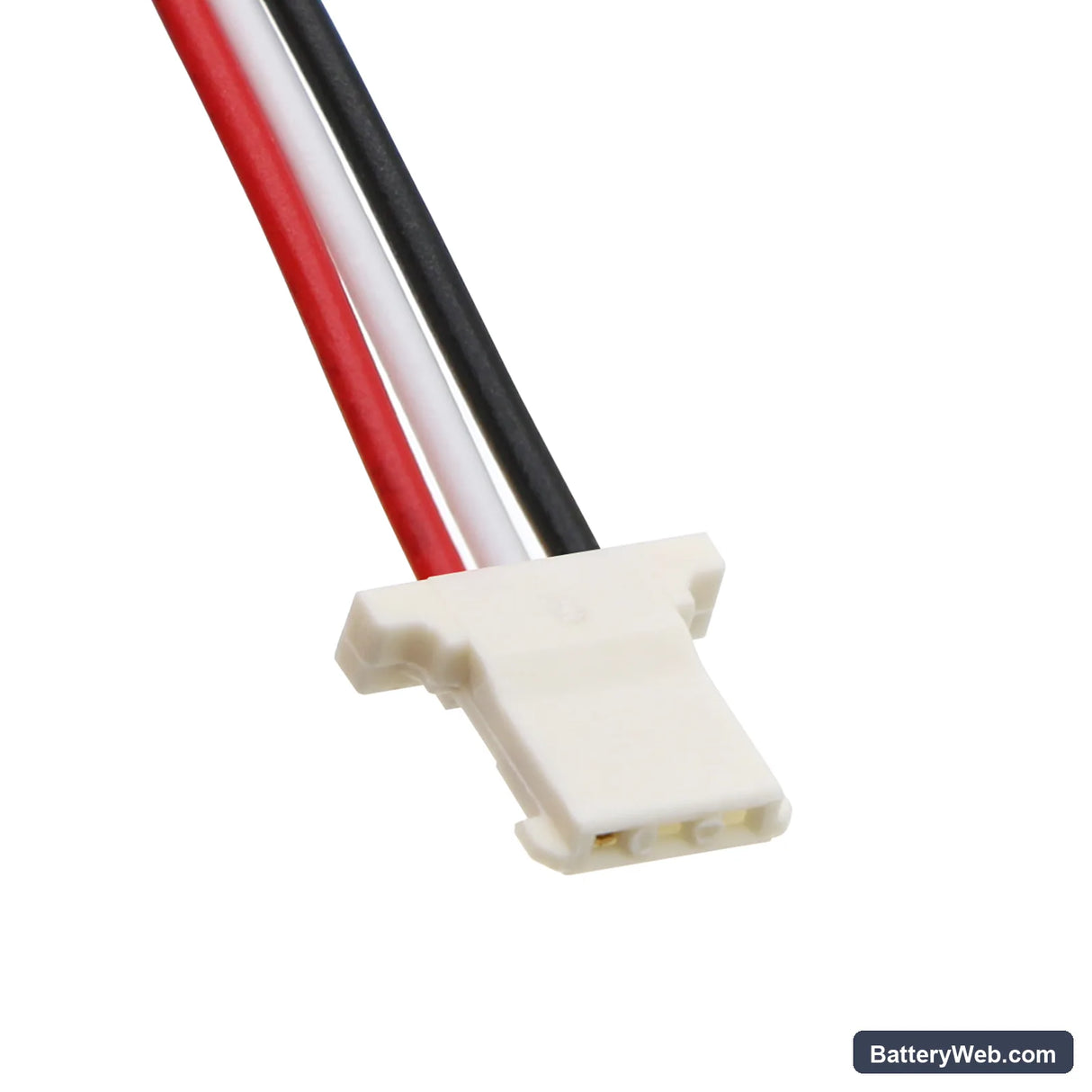

• TND-550 and TND-540 compatibility: Both models share the same battery bay geometry, connector pinout, and 3.7V supply rail. The TOP 523450 part number covers both, so one cell fits either unit without modification.
• Bench tested on actual hardware: We cycled this cell through charge and discharge on the TND platform. The BMS accepted the cell without error flags, and the charge circuit terminated correctly at full voltage. No swelling or thermal anomaly was observed during the test run.
• Cold-start satellite acquisition after swap: After fitting this battery, power the unit on outdoors before driving. The TND-550 performs a GPS cold start following a full power interruption — first satellite fix can take 5–10 minutes. Subsequent warm starts drop that to under a minute once almanac data is cached.

GPS accuracy reduced at low battery on the TND-550

As the Li-Polymer cell drops toward its lower voltage threshold, some TND units reduce GPS receiver sensitivity to conserve power. This shows up as position drift or a delayed position update on the map, even on open roads with clear sky view. The fix is not a settings change — it is voltage. Keeping the cell above 3.6V under load maintains full receiver operation. Charge the unit or connect to vehicle power before the battery indicator reaches its last bar.

TND-550 shutting off without a low-battery warning

After an aged battery is replaced, the fuel gauge IC on the TND-550 is still calibrated to the old cell's discharge curve. The device's low-battery threshold can trigger later than expected — or not at all — causing an abrupt shutdown mid-route. This is not a fault with the new cell. Run two or three full charge-to-discharge cycles to allow the gauge to recalibrate. After the third cycle, the warning LED and on-screen indicator should align with the actual remaining voltage, which reads approximately 3.5V at the cutoff point.
